INSTALLATION
MANUAL

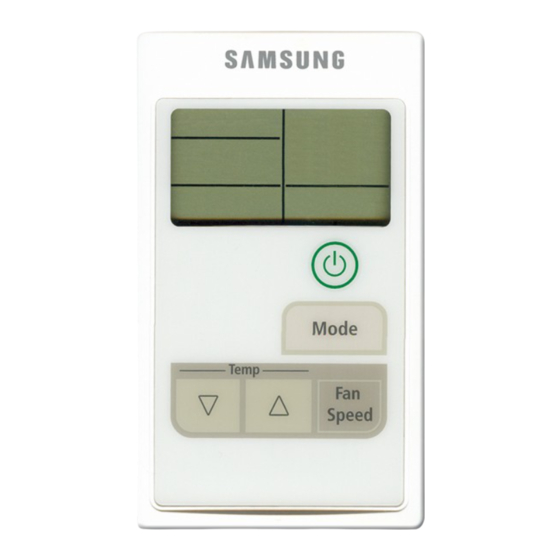

Wired Remote Control
MWR-SH00
System Air Conditioner
2007-06-21
ｿﾀﾀ・10:49:11

Advertisement

loading

Related Manuals for Samsung MWR-SH00

Summary of Contents for Samsung MWR-SH00

  • Page 1 INSTALLATION MANUAL Wired Remote Control MWR-SH00 System Air Conditioner DB98-28133A(1) MWR-SH00_IM_E_28133.indd 2007-06-21 ｿﾀﾀ・10:49:11...

  • Page 2: Safety Precautions

    Safety Precautions This installation manual describes how to install the wired remote control. For installation of other optional accessories, refer to the appropriate installation manual. R ead carefully this installation manual before   WARNING installation and check if the wired remote control is installed correctly after installation.

  • Page 3: Table Of Contents

    Contents ........4  IRED EMOTE ONTROL AND CCESSORIES Accessories ....................4  ..........5  NSTALLING THE IRED EMOTE ONTROL Installation ....................5  Setting the Wired Remote Control Options ......6  Wired Remote Control Error Codes ..........6 ...

  • Page 4: Wired Remote Control And Accessories

    Wired Remote Control and Accessories Accessories The following accessories are supplied with the air conditioner.  The number of each accessory is indicated in parentheses. Cable Tie (2) Cable Clamp(2) M4X16 Screw(2) User's manual(1) Installation manual(1) Caution The wired remote control should be installed by a ...

  • Page 5: Installing The Wired Remote Control

    Installing the Wired Remote Control Installation Connect the power cables and communication cables of the wired remote control to the terminal of ventilator PCB. Open the wired remote control by using the groove on its top. Secure the rear cover of the wired remote control to the wall with 2 screws.

  • Page 6: Setting The Wired Remote Control Options

    Installing the Wired Remote Control (Continued) Setting the Wired Remote Control Options Default setting Switch Switch OFF Switch ON ��� ��� ��� ��� ��� ��� ��� ��� SW1 Cooling and Heating Cooling Only SW2 Temp. display : °C Temp. display : °F �...

  • Page 7: Connecting The Wired Remote Control

    Connecting the Wired Remote Control Individual Control   U sing one wired remote control for one indoor unit. Outdoor unit COM1 COM1 Indoor unit COM2 COM2 COM2 Wired remote control Note The wired remote control can be only installed on COM2. MWR-SH00_IM_E_28133.indd 2007-06-21 ｿﾀﾀ・10:49:09...
  • Page 8 Installing the Wired Remote Control (Continued) Connecting the Wired Remote Control Group Control   U sing one wired remote control for a group of indoor units. Outdoor unit COM1 COM1 COM1 Indoor unit COM2 COM2 Wired remote control Outdoor unit Indoor unit Outdoor unit Wired remote control...
  • Page 9 Using 2 wired remote controls   2 wired remote controls can be used to control a single indoor unit or a group of indoor units. Outdoor unit COM1 Indoor unit COM2 Wired remote control Wired remote control (Master) (Slave) ���...
  • Page 10 MEMO MWR-SH00_IM_E_28133.indd 2007-06-21 ｿﾀﾀ・10:49:10...
