Installing And Securing The Rails-Front; Installing And Securing The Rails-Rear; Installing Tray - Dell EMC Data Domain DD9800 Installation Manual

CL5495

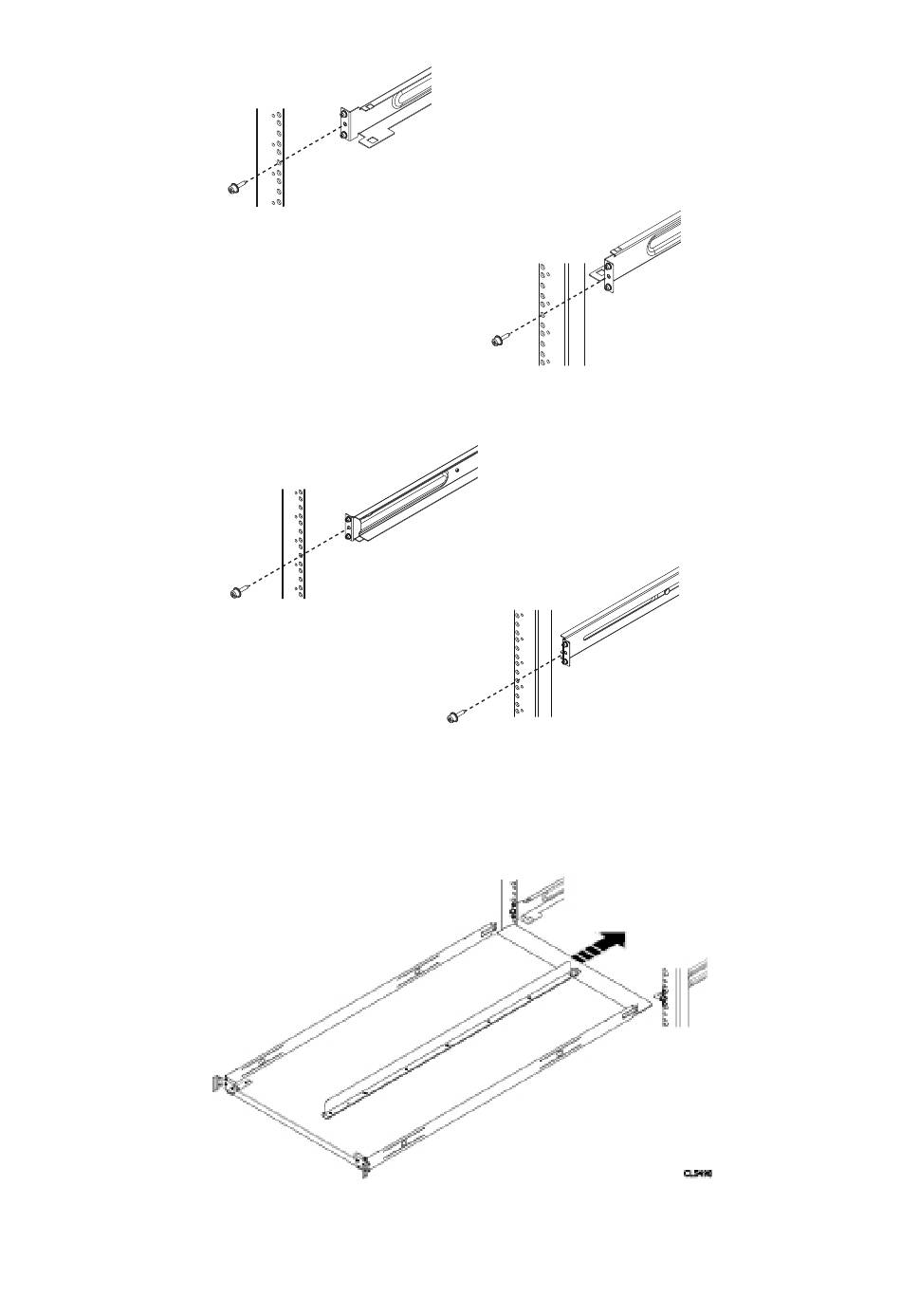

Figure 39. Installing and securing the rails—front
CL5518
Figure 40. Installing and securing the rails—rear
2. Align the flanges on the inside the mounting holes of the rack. Adjust the rails to the fit the rack you are using. Insert the
two adapters on the rail into the mounting holes, in both the front and the rear of the rails. Secure the rails to the rack using
two knurled screws from the hardware package, one in the front of the rail, and one in the rear of the rail. Torque the screws
to 12-16 inch-pounds. Repeat for the other rail.
Figure 41. Installing tray
Install the Disk Shelves in the Rack 41
