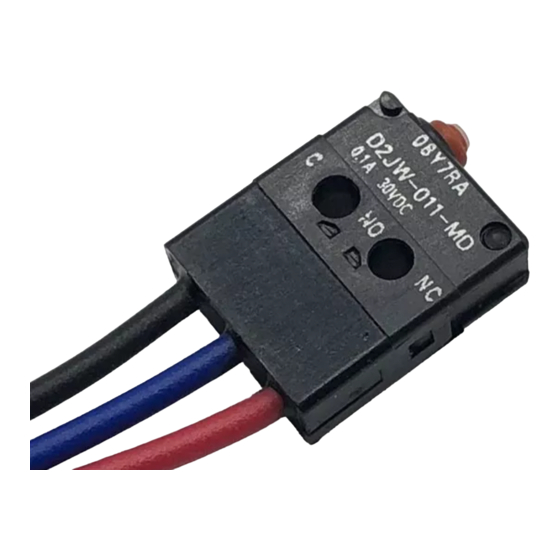

Sealed Ultra Subminiature Basic Switch
Ultra-small and Highly Sealed
Degree of protection for the lead wire models
conforms to IEC IP67. (Lead wire type only)
Wide range of operating temperature from –40 C to
85 C.
Gold crossbar contact and coil spring offer long life
expectancy and high contact reliability.
Ordering Information
Model Number Legend
D2JW-01j-j
1
2
3
1.
Ratings
01:
0.1 A, 30 VDC
2.
Actuator
1:
Pin plunger
K1A1: Short hinge lever
K11:
Hinge lever
K31:
Simulated hinge lever
K21:
Hinge roller lever
List of Models
Actuator
Pin plunger
Short hinge lever
Hinge lever
Simulated hinge lever
Hinge roller lever
Note: The standard lengths of the lead wires (AVS0.3f) of models incorporating them are 30 cm.
3.
Solder
D2JW-011
D2JW-01K1A1
D2JW-01K11
D2JW-01K31
D2JW-01K21
Terminal
None: Solder terminal
MD:
Molded lead wire terminal
Model
Molded lead wire
D2JW-011-MD
D2JW-01K1A1-MD
D2JW-01K11-MD
D2JW-01K31-MD
D2JW-01K21-MD
D2JW
1
Advertisement
Related Manuals for Omron D2JW-011
Summary of Contents for Omron D2JW-011

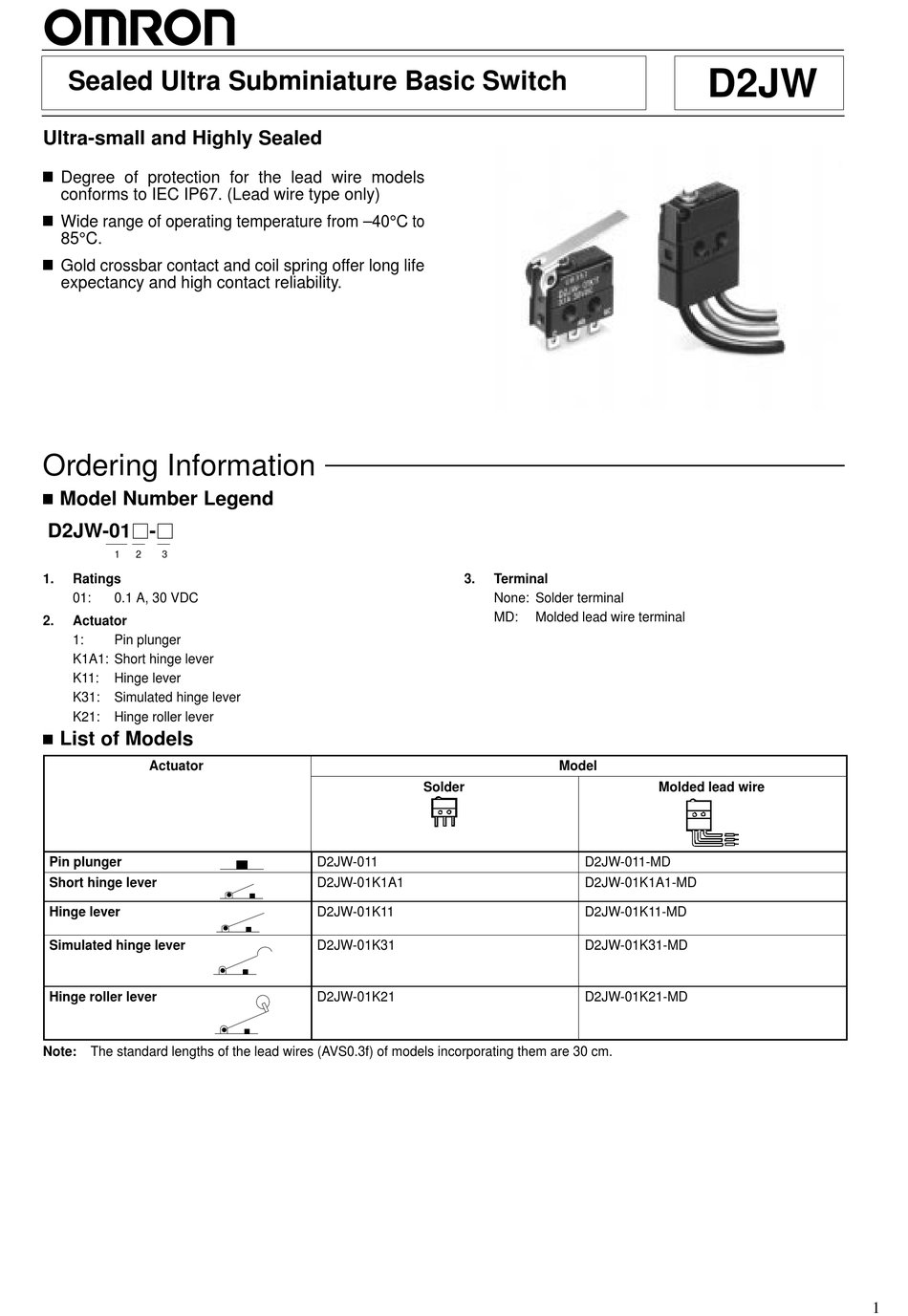

- Page 1 Hinge lever K31: Simulated hinge lever K21: Hinge roller lever List of Models Actuator Model Solder Molded lead wire Pin plunger D2JW-011 D2JW-011-MD Short hinge lever D2JW-01K1A1 D2JW-01K1A1-MD Hinge lever D2JW-01K11 D2JW-01K11-MD Simulated hinge lever D2JW-01K31 D2JW-01K31-MD Hinge roller lever...
-
Page 2: Specifications
Approx. 7 g (molded lead wire models, pin plunger models) Note: 1. The operating speed value shown is for pin plunger models. (For different models, contact your OMRON representative.) 2. The dielectric strength values shown apply for use with Separator (terminal type). - Page 3 Dimensions and Operating Characteristics Pin Plunger OF max. 2.45 N {250 gf} 1.6 dia. D2JW-011 RF min. 0.98 N {100 gf} PT max. 0.6 mm OT min.
- Page 4 D2JW D2JW Simulated Hinge Lever OF max. 0.95 N {97 gf} D2JW-01K31 RF min. 0.19 N {20 gf} 0.3 t stainless-steel PT max. 5.5 mm spring lever OT min. 1.1 mm MD max. 0.6 mm 10.3 0.8 mm +0.05 2.35 dia.
-
Page 5: Correct Use
D2JW D2JW Separator (Order Separately) Model Separator for D2JW Two, 2.4 0.1 dia. t=0.18 Precautions Cautions Leave the test piece in water for 30 min with the top of the test piece submerged 15 cm or more below the water level and the bottom of Mounting Dimensions the test piece submerged 1 m or more below the water level.
