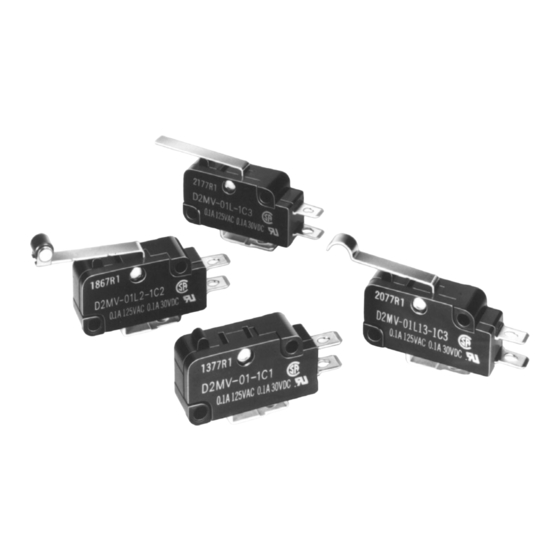

Miniature Basic Switch
Ultra-low Load, Miniature Basic Switch
Twin crossbar contact employed for exceptionally
high contact reliability in micro load applications.
A coil spring employed in the internal mechanism
extends durability and improves contact reliability.
Ordering Information
Model Number Legend
D2MV-jj-jjj
1
2
1.
Ratings
1:
1 A at 125 VAC
01:
0.1 A at 30 VDC
2.
Actuator
None: Pin plunger
L11:
Short hinge lever
L:
Hinge lever
L111: Long hinge lever
L13:
Simulated roller lever
L22:
Short hinge roller lever
L2:
Hinge roller lever
List of Models
Pin plunger
p
g
Short hinge lever
Hinge lever
Long hinge lever
Simulated roller lever
Short hinge roller lever
Hinge roller lever
Note: Consult your OMRON sales representative for details on SPST-NO and SPST-NC models.
Arrow.com.
Downloaded from
3
4
5
Actuator
0.10 N {10 gf}
0.25 N {25 gf}
0.49 N {50 gf}
0.49 N {50 gf}
0.29 N {30 gf}
0.15 N {15 gf}
0.29 N {30 gf}
0.49 N {50 gf}
0.29 N {30 gf}
3.
Contact Form
1:
SPDT
2:
SPST-NC
3:
SPST-NO
4.
Terminals
C:
Solder terminals
5.
Maximum Operating Force
1:
0.10 N {10 gf}
2:
0.25 N {25 gf}
3:
0.49 N {50 gf}
Note:
These values are for the pin plunger models.
OF max.
D2MV-01-1C1
D2MV-01-1C2
D2MV-01-1C3
D2MV-01L11-1C3
D2MV-01L-1C3
D2MV-01L111-1C3
D2MV-01L13-1C3
D2MV-01L22-1C3
D2MV-01L2-1C3
D2MV
0.1 A
1 A
D2MV-1-1C1
D2MV-1-1C2
D2MV-1-1C3
D2MV-1L11-1C3
D2MV-1L-1C3
D2MV-1L111-1C3
D2MV-1L13-1C3
D2MV-1L22-1C3
D2MV-1L2-1C3
RC
133

Advertisement

loading

Related Manuals for Omron D2MV

Summary of Contents for Omron D2MV

  • Page 1 0.29 N {30 gf} D2MV-01L13-1C3 D2MV-1L13-1C3 Short hinge roller lever 0.49 N {50 gf} D2MV-01L22-1C3 D2MV-1L22-1C3 Hinge roller lever 0.29 N {30 gf} D2MV-01L2-1C3 D2MV-1L2-1C3 Note: Consult your OMRON sales representative for details on SPST-NO and SPST-NC models. Arrow.com. Downloaded from...
  • Page 2 {approx. 10G} max. Durability (see note 4) Mechanical: 10,000,000 operations min. (60 operations/min) (Refer to Engineering Data.) Electrical: D2MV-1 models: 500,000 operations min. (30 operations/min) D2MV-01 models: 1,000,000 operations min. (30 operations/min) (Refer to Engineering Data.) Degree of protection IEC IP40...
  • Page 3 3. For the pin plunger models, the above values apply for use at both the free position and total travel position. For the lever models, they apply at the total travel position. 4. For testing conditions, contact your OMRON sales representative. Arrow.com.
  • Page 4 D2MV D2MV Approved Standards Contact Form Consult your OMRON sales representative for specific models with SPDT standard approvals. UL1054 (File No. E41515)/ CSA C22.2 No.55 (File No. LR21642) Rated voltage D2MV-1 D2MV-01 125 VAC 0.1 A 30 VDC 0.1 A...

  • Page 5: Mounting Holes

    D2MV D2MV Dimensions Note: All units are in millimeters unless otherwise indicated. Terminals Mounting Holes Two, 3.1-dia. mounting holes or M3 screw holes 10.3 ± 0.1 22.2 ± 0.1 4.75± 2.4 dia. 1.3 dia. Dimensions and Operating Characteristics Note: 1. All units are in millimeters unless otherwise indicated.
  • Page 6 D2MV D2MV Hinge Lever Models 35.6±0.8 Model D2MV-01L-1C3 t = 0.5 (see note) D2MV-1L-1C3 +0.07 D2MV-01L-1C3 dia. holes –0.05 D2MV-1L-1C3 OF max. 0.29 N {30 gf} RF min. 0 02 N {2 f} 0.02 N {2 gf} 10.3±0.1 (reference value) 11.6...
  • Page 7 D2MV D2MV Hinge Roller Lever Models Model D2MV-01L2-1C3 D2MV-1L2-1C3 D2MV-01L2-1C3 D2MV-1L2-1C3 4.8 dia. × 4.8 (see note 2) OF max. 0.29 N {30 gf} 34±0.8 RF min. 0 02 N {2 f} 0.02 N {2 gf} +0.07 t = 0.5 dia.
  • Page 8 General Information General Information Correct Use Electrical Conditions Area Item Page Load Using Switches The switching capacity of a switch significantly differs depending on Selecting Correct Switch whether the switch is used to break an alternating current or a direct Electrical Load current.

  • Page 9: General Information

    General Information General Information Contact Protective Circuit Apply a contact protective circuit (surge killer) to extend contact du- When a switch is used under high humidity, arcs resulting from cer- rability, prevent noise, and suppress the generation of carbide or ni- tain types of load (e.g., inductive loads) will generate nitrious oxides tric acid due to arc.

  • Page 10: Mechanical Conditions

    General Information General Information Mechanical Conditions Switching Speed and Frequency The switching frequency and speed of a switch have a great influ- Operating Stroke Setting ence on the performance of the switch. Pay attention to the follow- The setting of stroke is very important for a switch to operate with ing.

  • Page 11: Terminal Connections

    General Information General Information • Incorrect Do not modify the actuator. If the actuator is modified, excessive external force may be applied to the internal switch mechanism, Snap-back characteristics may change, and the switch may stop Shock operation functioning. • If an external actuator is used as an operating object, check the material and thickness of the lever to make sure that the force applied to the lever is within the permissible range.
  • Page 12 General Information General Information terminals, otherwise the terminal may be deformed or the housing Operation and Storage Environment may be damaged. Handling Wiring Work Do not apply oil, grease, or other lubricants to the sliding parts of a When wiring a switch, check the insulation distance between the switch.
  • Page 13 General Information General Information Switch Trouble and Corrective Action Type Location Failure Possible cause Corrective action of failure Failures Contact Remove the cause of the problem, place Contact Dust and dirt on the contacts. related to l t d t f il failure the switch in a box, or use a sealed...
  • Page 14 2. Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions. 3. For operating characteristics of models not listed above, consult your OMRON sales representative. 4. The operating characteristics are for operation in the A direction ( ).
  • Page 15 D3V/V/VX/D2MV/K/D2RV D3V/V/VX/D2MV/K/D2RV Simulated Leaf Spring In the case of V-15-1A5 VAL12 (Designed for models of OF 200 gf and greater) OF max. 2.26 N {230 gf} RF min. 0.49 N {50 gf} t=0.3, (Stainless-steel spring lever) OT min. 0.8 mm 2.4R...
  • Page 16 D3V/V/VX/D2MV/K/D2RV D3V/V/VX/D2MV/K/D2RV Hinge Roller Lever In the case of V-15-1A5 VAV2 4.8 dia. 4.8 (Unlubricated polyacetal resin roller) OF max. 0.74 N {75 gf} RF min. 0.09 N {9 gf} PT max. 4.8 mm OT min OT min. 1 5 mm 1.5 mm...
  • Page 17 D3V/V/VX/D2MV/K/D2RV D3V/V/VX/D2MV/K/D2RV Reverse Hinge Roller Lever In the case of V-15-1A5 9.5 dia. 4.8. VAM22 (Stainless- OF max. 3.53 N {360 gf} steel roller) RF min. 0.69 N {70 gf} OT min. 3 mm (reference value) (reference value) MD max.
  • Page 18 Connectors Connectors Connectors Microswitches for tab-terminals listed in this catalog are compatible with other companies‘ products. The following AMP-made Connectors are also available. For more details about AMP Connectors, contact one of the addresses listed below. Tyco Electronics/AMP • • Japan Great Britain Phone: 81-44-844-8013...
