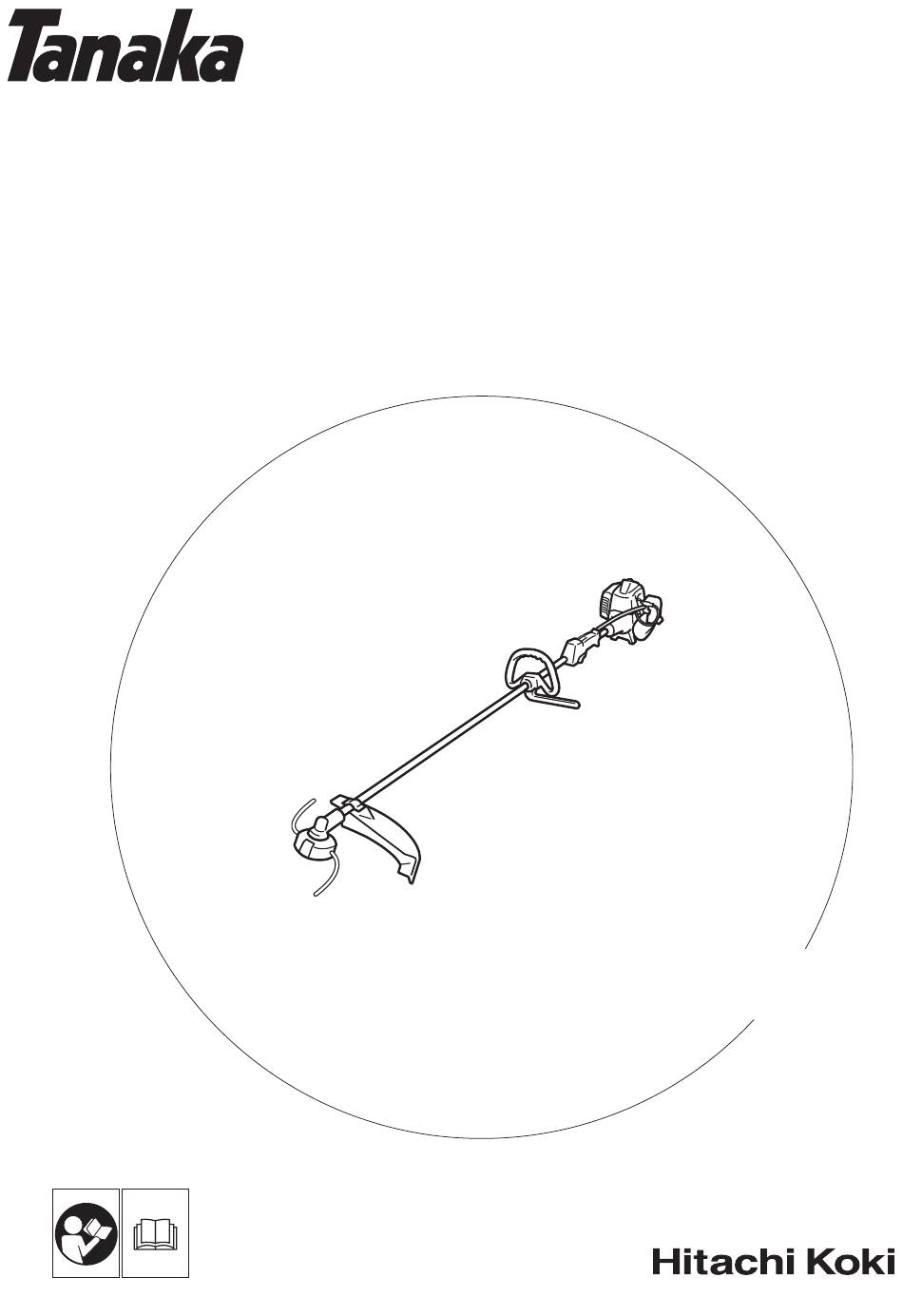

Grass Trimmer/Brush Cutter
Model TCG 22EAS(SL)/TCG 22EAS(S)
TCG 22EAD(SL)/TCG 22EAB(L)
Handling instructions
Note:
Before using this machine, carefully read through these HANDLING INSTRUCTIONS to ensure
effi cient, safe operation. It is recommended that these INSTRUCTIONS be kept readily available as
an important reference when using this machine.

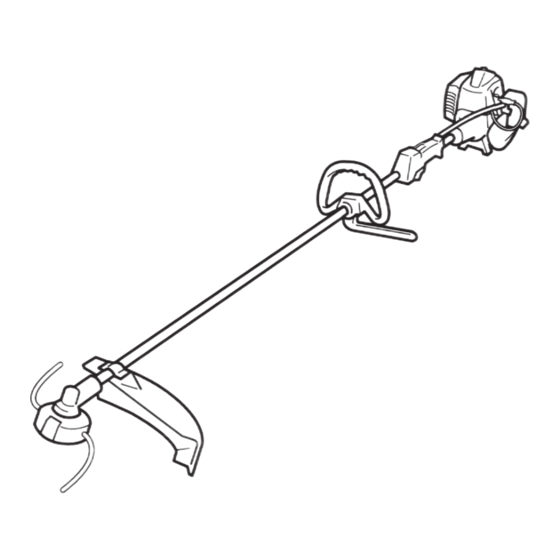

TCG22EAS (SL)
Advertisement
Related Manuals for Hitachi Koki TCG 22EAS
Summary of Contents for Hitachi Koki TCG 22EAS
- Page 1 Grass Trimmer/Brush Cutter Model TCG 22EAS(SL)/TCG 22EAS(S) TCG 22EAD(SL)/TCG 22EAB(L) Handling instructions TCG22EAS (SL) Note: Before using this machine, carefully read through these HANDLING INSTRUCTIONS to ensure effi cient, safe operation. It is recommended that these INSTRUCTIONS be kept readily available as...
-
Page 2: Table Of Contents
MEANINGS OF SYMBOLS NOTE: Some units do not carry them. Symbols WARNING The following show symbols used for the machine. Be sure that you understand their meaning before use. It is important that you read, fully understand and observe the following Shows maximum shaft speed. -
Page 3: What Is What
WHAT IS WHAT Since this manual covers several models, there may be some diff erence between pictures and your unit. Use the instructions that apply to your unit. Fuel cap 2. Throttle trigger 3. Starter handle 4. Blade guard 5. Cutting attachment 6. -
Page 4: Warnings And Safety Instructions
○ For respiratory protection, wear an aerosol protection mask WARNINGS AND SAFETY INSTRUCTIONS when cutting the grass after insecticide is scattered. ○ Keep others including children, animals, bystanders and Operator safety helpers outside the 15 m hazard zone. Stop the engine ○... -
Page 5: Specifications
SPECIFICATIONS Model TCG22EAS (SL) TCG22EAS (S) TCG22EAD (SL) TCG22EAB (L) Engine Size (ml) 21.1 Spark Plug NGK BMR7A or equivalent Fuel Tank Capacity (l) 0.45 Dry Weight (kg) Sound pressure level LpA (dB (A)) Equivalent (EN27917) Measured sound (ISO10884) power level LwA Equivalent (dB (A)) Measured sound... - Page 6 NOTE Attach the protection tube to the drive shaft or handle using cord When it is hard to insert drive shaft up to the marked position on clamps (8). (Fig. 5) the drive shaft tube, turn drive shaft by the cutter mounting end clockwise or counter-clockwise.
- Page 7 Installation of blade guard (Fig. 9, 10) NOTE The guard bracket may come already mounted to the gear case on some models. Install the blade guard on drive shaft tube against angle transmission. Tighten the guard bracket fi rmly so that the blade guard does not swing or move down during operation.
-
Page 8: Operating Procedures
Installation of cutting blade (Fig. 17) ○ For outstanding performance and reliability, always use Tanaka (If so equipped) nylon cutting line. Never use wire or other materials that could become a dangerous projectile. When installing a cutting blade, make sure that there are no cracks ○... - Page 9 Fuel ○ Always use branded 89 octane unleaded gasoline. ○ Use genuine two-cycle oil or use a mix between 25:1 to 50:1, please consult the oil bottle for the ratio or Hitachi dealer. ○ If genuine oil is not available, use an anti-oxidant added quality oil expressly labeled for air-cooled 2-cycle engine use (JASO FC GRADE OIL or ISO EGC GRADE).
-
Page 10: Maintenance
4. When you hear the engine want to start, return choke lever to WARNING RUN position (open) (B). Then pull recoil starter briskly again. If cutting attachment should strike against stones or other debris, stop the engine and make sure that the attachment and NOTE related parts are undamaged. - Page 11 Carburetor adjustment (Fig. 30) Cleaning the air fi lter Open the air fi lter cover and the fi lter (28). Rinse it in warm soap suds. Check that the fi lter is dry before reassembly. An air fi lter that has been used for some time cannot be cleaned completely. Therefore, it must regularly be replaced with a new one.
- Page 12 (4) Push each line into the stopper holes (33), leaving the loose ends approx. 10 cm in length. (Fig. 38) Fig. 34 Fig. 38 Angle transmission (Fig. 35) Check angle transmission or angle gear for grease level about every (5) Insert both loose ends of the line through the cord guide (34) 50 hours of operation by removing the grease fi...
- Page 13 ○ Check that the cutting attachment is properly centred, sharp, and without cracks. An off -centre cutting attachment induces heavy vibrations that may damage the unit. ○ Check that the cutting attachment nut is suffi ciently tightened. ○ Make sure that the blade transport guard is undamaged and that it can be securely fi...
- Page 20 Hitachi Koki Co., Ltd. Shinagawa Intercity Tower A, 15-1, Konan 2-chome, Minato-ku, Tokyo, Japan Code No. E99005612 NA Printed in China...
