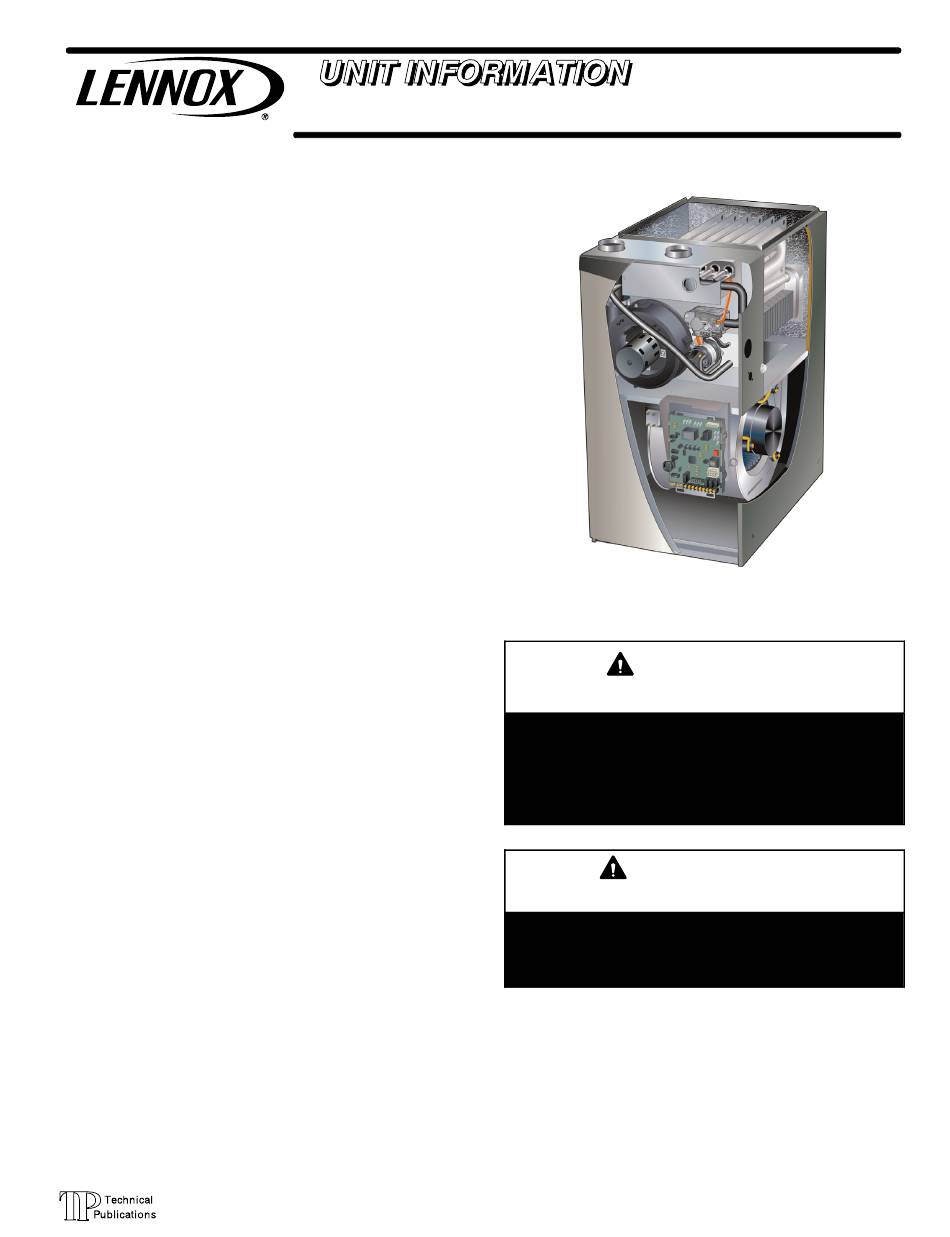

Lennox EL296UHVX Series Unit Information

Hide thumbs Also See for EL296UHVX Series:

Advertisement

Table of Contents

Service Literature
icomfort

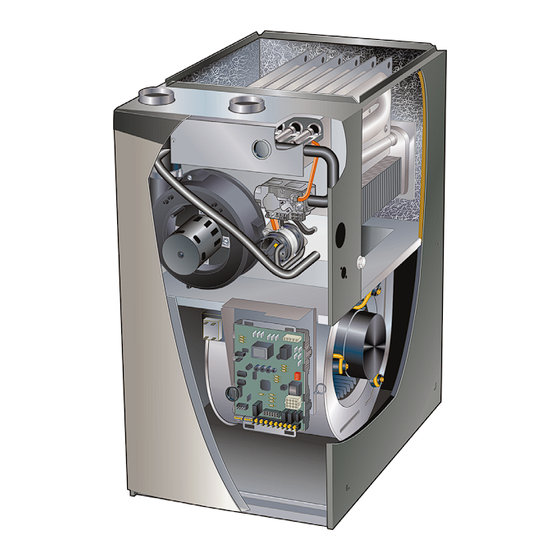

EL296UHV(X) series units are 90% efficiency gas furnaces
used for upflow or horizontal applications only, manufac­
tured with Lennox Duralokt heat exchangers formed of
aluminized steel. EL296UHV(X) units are available in heat­
ing capacities of 44,000 to 132,000 Btuh and cooling ap­
plications up to 5 tons. Refer to Product Specifications
Manual for proper sizing.
Units are factory equipped for use with natural gas. Kits are
available for conversion to LPG operation. EL296UHV(X)
model units are equipped with the icomfort
®
eLight
two-stage variable speed integrated control.
EL296UHV(X) unit meets the California Nitrogen Oxides
(NO
) Standards and California Seasonal Efficiency re­
x
quirements. All units use a redundant gas valve to assure
safety shut-off as required by C.S.A.
All specifications in this manual are subject to change. Pro­
cedures outlined in this manual are presented as a recom­
mendation only and do not supersede or replace local or
state codes. In the absence of local or state codes, the
guidelines and procedures outlined in this manual (except
where noted) are recommendations only and do not consti­
tute code.

TABLE OF CONTENTS

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . .
Corp. 1125-L5
Revised 06/2021
®
- ENABLED EL296UHV(X) SERIES UNITS
®
enabled Sur­
Page 2
Page 5
Page 27
Page 50
Page 73
. . . . . . . . .
Page 74
. . . . . . . . .
Page 78
Page 78
. . . . . .
Page 81
. . . . . . .
Page 87
. . . . . . .
Page 91
Page 92
Page 1
EL296UHV(X)
WARNING
Improper installation, adjustment, alteration, service
or maintenance can cause property damage, person­
al injury or loss of life. Installation and service must
be performed by a licensed professional HVAC in­
staller (or equivalent), service agency or the gas sup­
plier.
CAUTION
As with any mechanical equipment, contact with
sharp sheet metal edges can result in personal in­
jury. Take care while handling this equipment and
wear gloves and protective clothing.
