Instructions - Parts List

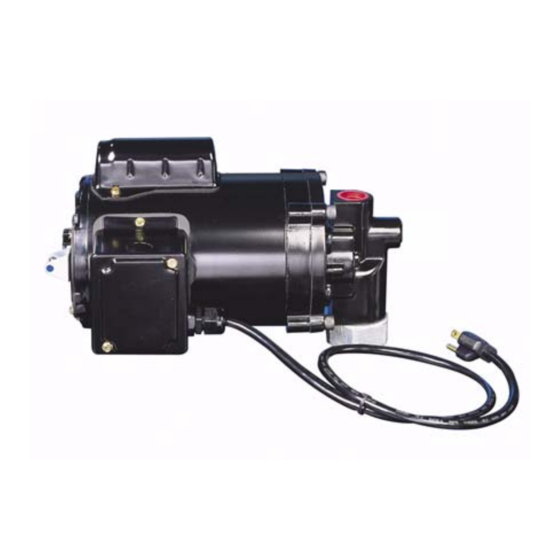

Oil Transfer Pump
For pumping non-flammable fluids including motor oils, hydraulic
fluid, and antifreeze. Do not use to pump water.
Model 260549, 3.0 gpm (11 lpm), 115 VAC
150 psi (1.03 MPa, 10.3 bar) Maximum Working Pressure
Important Safety Instructions
Read all warnings and instructions in this
manual. Save these instructions.
Contents
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Mounting Pump on Barrel or Tank . . . . . . . . . . . . 4
Mounting Pump In-line . . . . . . . . . . . . . . . . . . . . . 4
Electrical Installation . . . . . . . . . . . . . . . . . . . . . . 5
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Copyright 2007
312009 rev.A
Advertisement
Table of Contents
Related Manuals for Graco 260549
Summary of Contents for Graco 260549
-
Page 1: Table Of Contents
312009 rev.A For pumping non-flammable fluids including motor oils, hydraulic fluid, and antifreeze. Do not use to pump water. Model 260549, 3.0 gpm (11 lpm), 115 VAC 150 psi (1.03 MPa, 10.3 bar) Maximum Working Pressure Important Safety Instructions Read all warnings and instructions in this manual. -
Page 2: Warnings
Warnings Warnings The following general warnings are for the setup, use, grounding, maintenance, and repair of this equipment. Additional, more specific warnings may be found throughout the body of this manual where applicable. Symbols appearing in the body of the manual refer to these general warnings. When these symbols appear throughout the manual, refer back to these pages for a description of the specific hazard. - Page 3 Warnings WARNING PRESSURIZED EQUIPMENT HAZARD Fluid from the gun/dispense valve, leaks, or ruptured components can splash in the eyes or on skin and cause serious injury. • Follow Pressure Relief Procedure in this manual, when you stop dispensing and before cleaning, checking, or servicing equipment. •...
-
Page 4: Installation
Installation Installation 4. Apply pipe sealant to threads and install pipe into pump inlet. If you are pumping used oil, install suction These pumps are positive displacement gear tube assembly with inlet suction screen to pumps. The AC motors are 115 VAC, and use filter large contaminants. -
Page 5: Electrical Installation
Operation Electrical Installation Operation 115VAC The pump comes pre-wired with a 30 in. (762 Before servicing, turn pump off and open mm) power cord with a 3 prong grounded plug. the nozzle to relieve pressure. Power to the pump must be 115 VAC, 60Hz, single phase. -
Page 6: Troubleshooting
Troubleshooting Troubleshooting Problem Cause Solution Motor runs but pump will not Dirt under pressure relief valve Remove pressure relief valve prime. or seal. and inspect, clean, or replace if damaged. Worn or damaged gears. Remove cover and inspect gears. Replace if worn or damaged. - Page 7 Troubleshooting Problem Cause Solution Unit pumps but output flow is Clogged inlet strainer (12). Clean or replace. low. Air leak in suction tube. Check to make sure all joints in suction tube are sealed. Suction tube too close to tank Suction tube must have a 2 in.
-
Page 8: Parts
Parts Parts Accessories Ref. No. Description Qty. Part PUMP BODY, with swivel ADAPTER, pump motor Number Description GEAR, pump 260124 Suction pipe, 55 in. PVC with check SEAL, shaft valve MOTOR, 115 VAC, 3/4 HP 260217 Inlet check valve POWER CORD 260238 Y strainer O-RING, -144 nitrile (Buna N) -
Page 9: Technical Data
Technical Data Technical Data Maximum working pressure 150 psi (1.05 MPa, 10.5 bar) Output flow 3.0 gpm (11 lpm) Inlet size 1 in. npt Outlet size 3/4 in. npt Weight 25 lb (11.25 kg) Horsepower 3/4 hp Max current 7.5 amps Wetted parts carbon steel with zinc plating, stainless steel, galvanized steel, aluminum, nitrile, rubber... - Page 10 All written and visual data contained in this document reflects the latest product information available at the time of publication. 312009 01/2007...
