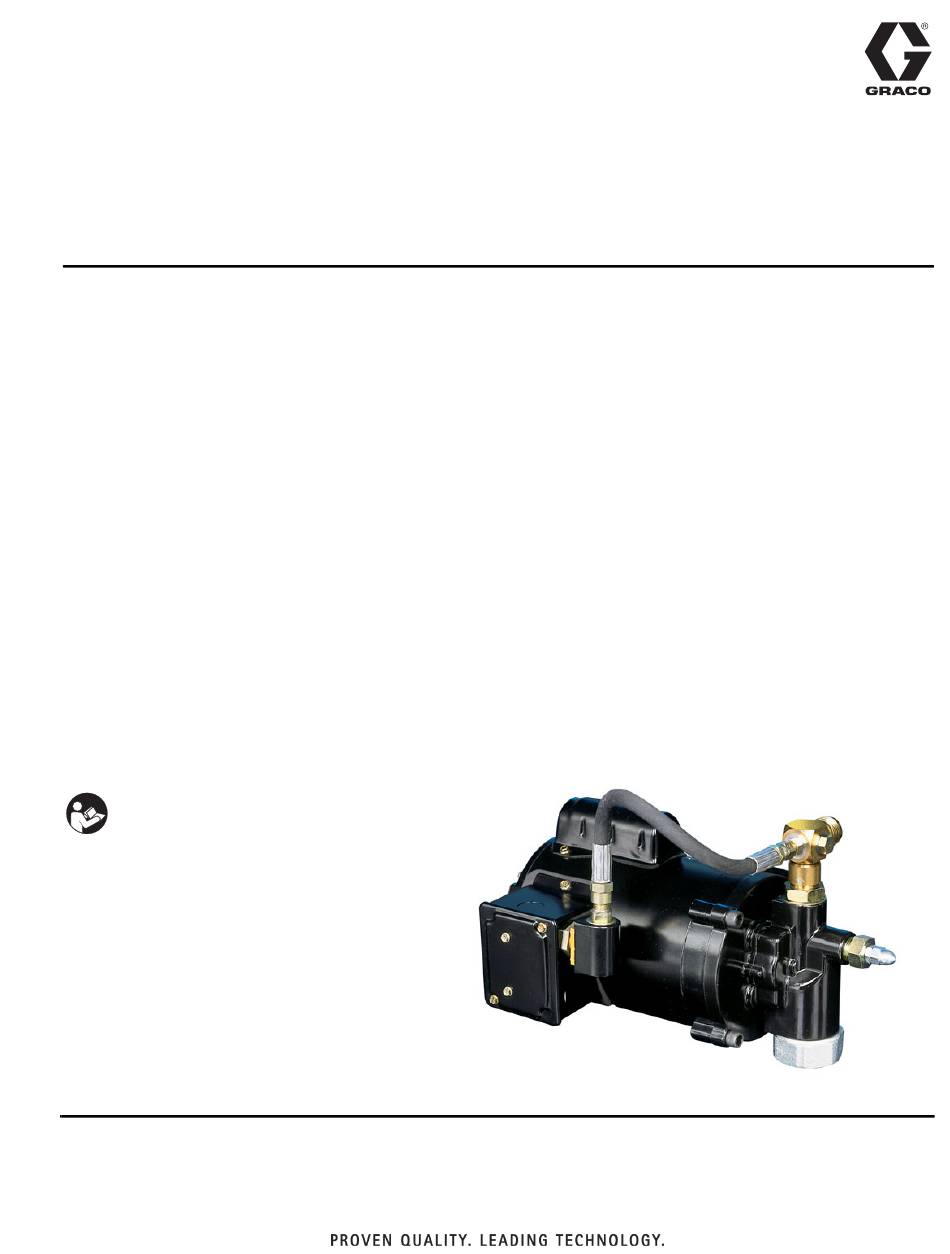

Instructions - Parts List
APEX
On-Demand Pump
For pumping non-flammable fluids including motor oils, hydraulic fluid, and
antifreeze. Do not use to pump water.
Model 260110, 2.3 gpm (9 lpm), 115 VAC
370 psi (2.59 MPa, 25.9 bar) Maximum Working Pressure
Model 260111, 3.0 gpm (11 lpm), 115 VAC
550 psi (3.85 MPa, 38.5 bar) Maximum Working Pressure
Model 260113, 4.0 gpm (16 lpm), 115 VAC
470 psi (3.29 MPa, 32.9 bar) Maximum Working Pressure
Model 260114, 4.0 gpm (16 lpm), 115 VAC
650 psi (4.55 MPa, 45.5 bar) Maximum Working Pressure
Model 260112, 3.0 gpm (11 lpm), 12 VDC
400 psi (2.8 MPa, 28 bar) Maximum Working Pressure
Important Safety Instructions
Read all warnings and instructions in this
manual. Save these instructions. See
Table of Contents on page 2.
311307E
EN
Advertisement
Table of Contents
Related Manuals for Graco 260110
Summary of Contents for Graco 260110
- Page 1 For pumping non-flammable fluids including motor oils, hydraulic fluid, and antifreeze. Do not use to pump water. Model 260110, 2.3 gpm (9 lpm), 115 VAC 370 psi (2.59 MPa, 25.9 bar) Maximum Working Pressure Model 260111, 3.0 gpm (11 lpm), 115 VAC 550 psi (3.85 MPa, 38.5 bar) Maximum Working Pressure...
-
Page 2: Table Of Contents
Operation ....... . . 7 Graco Standard Warranty ....16... - Page 3 Graco replacement parts only. • Do not alter or modify equipment. • Use equipment only for its intended purpose. Call your Graco distributor for informa- tion. • Route hoses and cables away from traffic areas, sharp edges, moving parts, and hot surfaces.
-
Page 4: Installation
Output These On-Demand dispensing pumps are Model No. Setting Flow Rate positive displacement gear pumps. The motors 260110 370 psi (2.59 2.3 gpm are totally enclosed 115 VAC or 12 VDC units, MPa, 25.9 bar) (8.9 lpm) with sealed bearings, and require minimal maintenance. -
Page 5: Mounting Pump On Tank
1. Install supplied bung adapter fitting (12) 115 VAC models into the tank bung port and tighten. Models 260110, 260111, 260113, and 260114, 2. Use a 3/4 in. (19 mm) steel or PVC pipe use a 115 VAC, single phase, 60 Hz motor. -
Page 6: Priming
Installation 12 VDC model 260112 Priming Motor current rating: 62 amps full load. Use 8 1. Attach the connection hose to the outlet of AWG or larger for supply wires. the pump. Insert the opposite end of the hose into the tank through the fill opening. 1. -
Page 7: Operation
Operation Operation 1. To start the pump, turn power switch ON. Power switch is located on the back side of the motor. When system is not in use, always turn power 2. Place the outlet of the dispensing valve into switch OFF. -
Page 8: Troubleshooting
Troubleshooting Troubleshooting Problem Cause Solution Motor runs but pump will not Motor rotation wrong. Check wiring instructions for prime. possible problems (260112 only). Dirt under pressure relief valve Remove pressure relief valve or seal. and inspect, clean, or replace if damaged. - Page 9 Troubleshooting Problem Cause Solution Motor stalls when nozzle is Bypass relief valve is stuck. Inspect relief valve, making closed. sure ball is free. Replace if damaged. Low supply voltage. Check supply voltage. Gears damaged and binding. Inspect gears. Gears should turn freely.
-
Page 10: Parts
Parts Parts Models 260110, 260111, 260113, and 260114 Model 260112 311307E... - Page 11 KIT, 650 psi pressure switch 260507 KIT, 400 psi pressure switch 260508 KIT, motor, 115 VAC ¾ HP (model 260110) 5a, 6, 13, 14, 15, 23 260509 KIT, motor, 115 VAC 1 HP (model 260111) 5b, 6, 13, 14, 15, 23 260510 KIT, motor, 115 VAC 1.5 HP (model 260113)
-
Page 12: Technical Data
Technical Data Technical Data Maximum Working Pressure Model 260110: 370 psi (2.59 MPa, 25.9 bar) Model 260111: 550 psi (3.85 MPa, 38.5 bar) Model 260113: 470 psi (3.29 MPa, 32.9 bar) Model 260114: 650 psi (4.55 MPa, 45.5 bar) Model 260112: 400 psi (2.8 MPa, 28 bar) Output Flow Model 260110: 2.3 gpm (9 lpm) -
Page 13: Dimensions
Technical Data Dimensions Length (A) Height (B) Width (C) Models Inches Inches Inches 260110 355.6 203.2 7.75 196.8 260111 14.75 374.6 228.6 215.9 260113 14.5 368.3 228.6 215.9 260114 431.8 228.6 9.75 247.6 260112 10.5 266.7 7.75 196.8 311307E... -
Page 14: Performance Chart
Technical Data Performance Chart 311307E... -
Page 15: Notes
Notes Notes 311307E... -
Page 16: Graco Standard Warranty
With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
