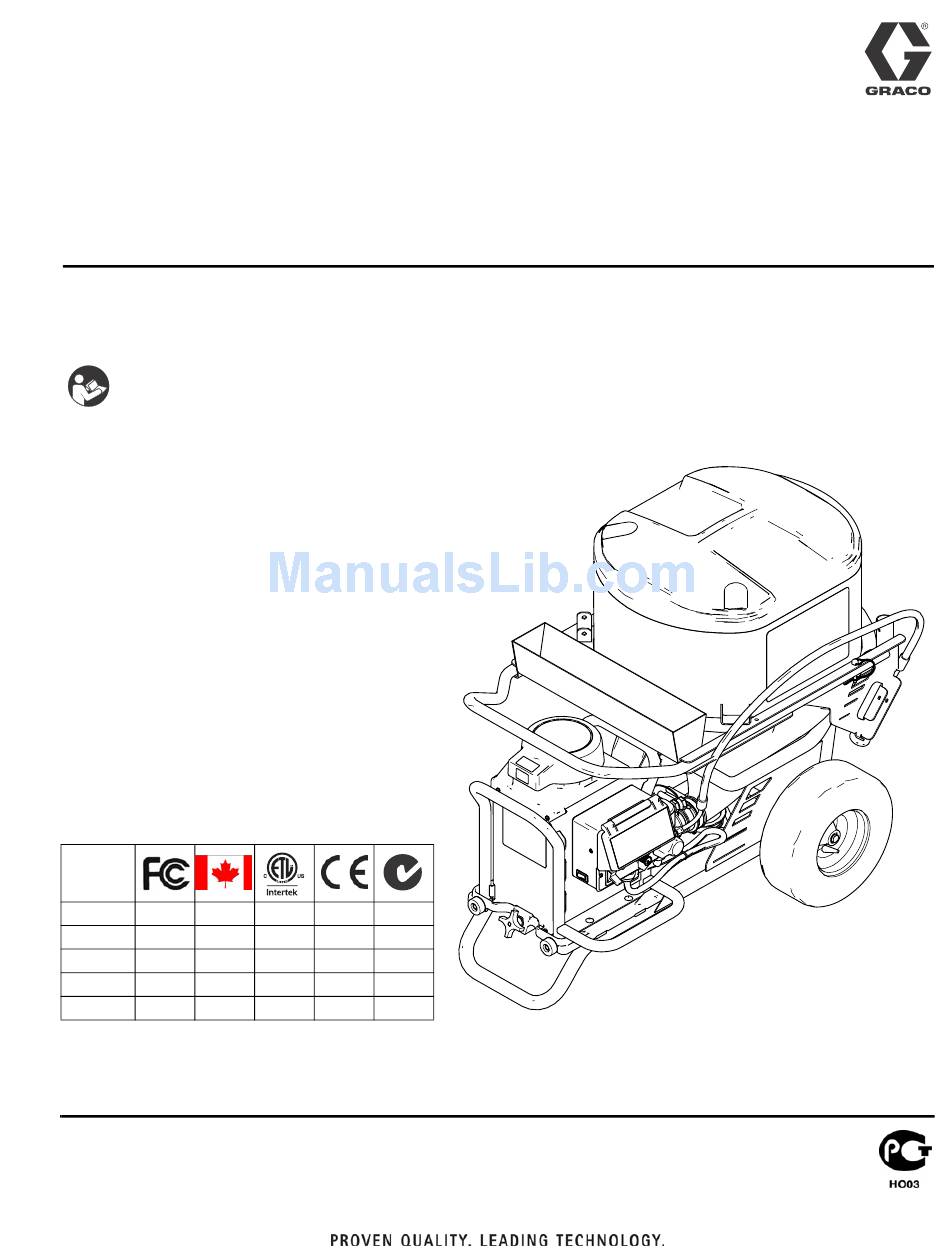

Repair
Drywall Feed Pump
U.S. Patents Pending: 61/315,288; 61/315/322; 61/316,013; 61/316,010
READ ALL WARNINGS AND INSTRUCTIONS
Read all warnings and instructions in this manual.
Save these instructions.
Maximum Working Pressure 2500 psi (17.2 MPa, 172 bar)
Model 257100: 120V NA ETL Listed
Model 258906: 240V Euro Multicord
Model 258907: 110V UK, CE
Model 262288: 120V NA
Model 262300: 240V Euro CE Cord
Agency Approvals:
✓
✓
257100
258906
258907
✓
✓
262288
262300
- For water-based materials only -
- Not for use in explosive atmospheres -
- Not for use with quick-set materials -
✓
✓
✓
✓
✓
✓
3A0246C
ENG
ti14873a
