VIKING Range, LLC
Service
Preferred Service
®
Manual
This manual is to be used by qualified appliance technicians only. Viking
does not assume any responsibility for property damage or personal
injury for improper service procedures done by an unqualified person.

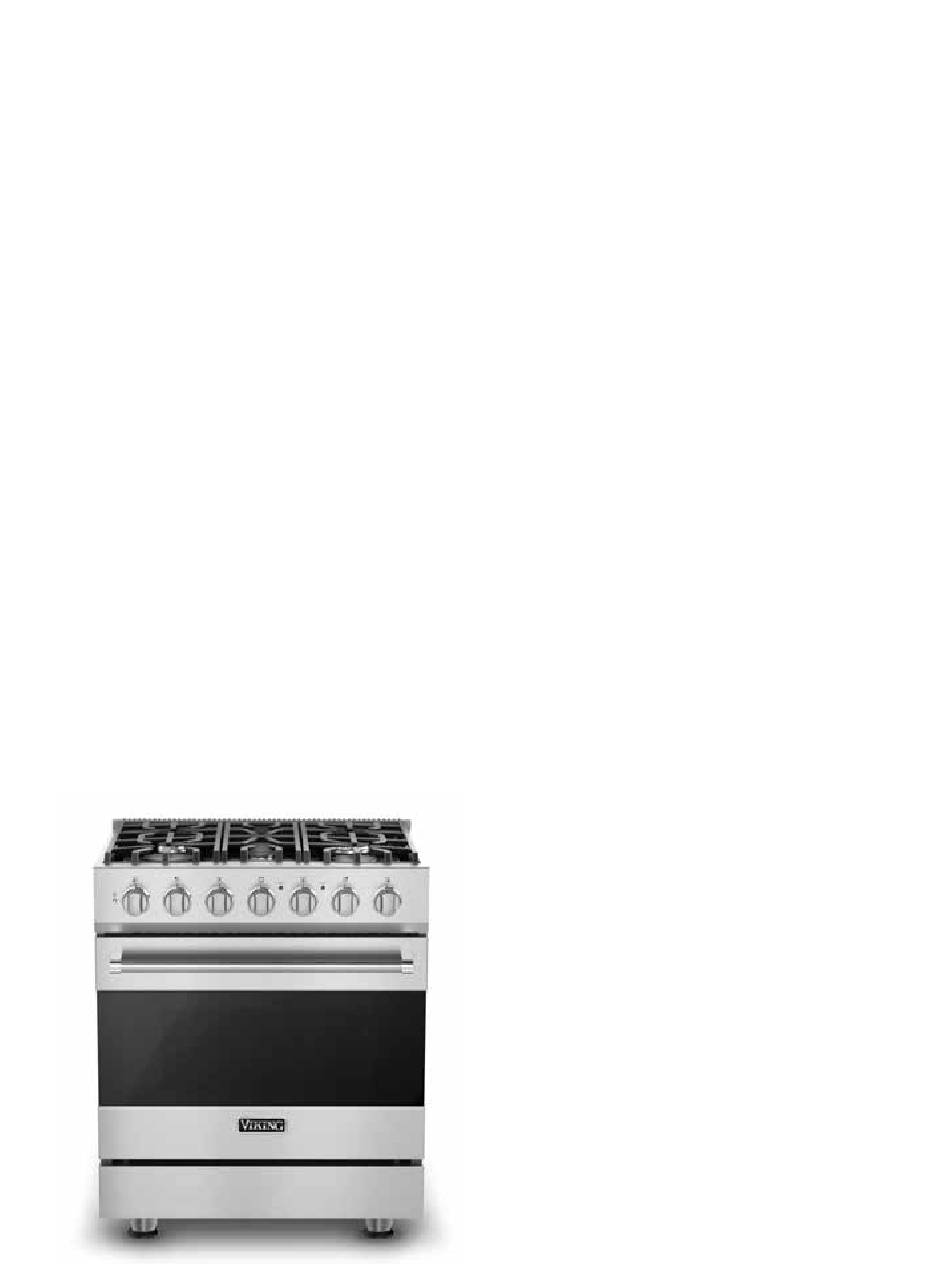

30 Inch
This Base Manual covers general and
specific information including, but not
Gas Range
limited to the following models:
RVGR3305B
CRVGR3305B
BZRVGR3305B
SMC-0035
OCT 2013
Advertisement
Table of Contents
Troubleshooting
Related Manuals for Viking RVGR3305B
Summary of Contents for Viking RVGR3305B
- Page 1 Service Preferred Service ® Manual This manual is to be used by qualified appliance technicians only. Viking does not assume any responsibility for property damage or personal injury for improper service procedures done by an unqualified person. 30 Inch This Base Manual covers general and...
-
Page 2: Table Of Contents
Broil Burner and Igniter Removal ......23 Bake or Broil Burner Orifice Removal ....24 Convection Fan Assembly Removal ...... 24 Control Components Accessed ......24 Control Panel Assembly Removal ......24 Oven Function Selector Removal ......25 ©2013 Viking Preferred Service... -
Page 3: Important Information
All safety messages will be preceded by the safety alert symbol and the word “DANGER”, “WARNING”, or “CAUTION”. These words mean: VIKING will not be responsible for any injury or property damage from improper service procedures. If performing service on your own product, you must... -
Page 4: General Information
13. One 12,000 BTU burner 14. One 18,000 BTU burner 15. One 17,000 BTU burner 16. One 8,000 BTU burner 17. Identification plate 18. One full extension glide rack, 2 standard racks / Six rack positions ©2013 Viking Preferred Service... -
Page 5: Warnings
©2013 Viking Preferred Service... -
Page 6: Cleaning Safety
BURN OR ELECTRICAL SHOCK HAZARD. Make may be equally harmful. sure all controls are OFF and oven is COOL before cleaning. Failure to do so can result in burns or electrical shock. ©2013 Viking Preferred Service... -
Page 7: Before Using Range
When the insulation is thoroughly cured, this odor will disappear. During subsequent self-cleaning cycles, you may sense an odor characteristic of high temperatures. KEEP THE KITCHEN WELL-VENTED DURING THE SELF-CLEAN CYCLE. ©2013 Viking Preferred Service... -
Page 8: Troubleshooting
Gas solenoid fault. Check wiring and gas solenoid. 7 flashes every 4 seconds Power up with channel on. Switch channel off and retry. 8 flashes every 4 seconds Gas solenoid fault. Check wiring and gas solenoid. Direct Spark Module (DSI Board) Connections ©2013 Viking Preferred Service... -
Page 9: Led Error Codes
1 second ON, 1 second OFF (Oven Probe) Model 2 flashes, then 4 seconds OFF A/D Stuck 3 flashes, then 4 seconds OFF Fan Hall 4 flashes, then 4 seconds OFF Self-Cleaning Oven Control Board Connections ©2013 Viking Preferred Service... -
Page 10: Component Characteristics
120 VAC Not Applicable On Single Point Spark Module - black to white Module *Resistance checks made with power off. **High limit switch is N.C. (normally closed) and opens at 275°F, resets at 250°F (+/- 10°F). ©2013 Viking Preferred Service... -
Page 11: Timing Chart
ON when the RTD senses 315° F and cycle OFF when the temperature drops below 300° F Mode of Operation Cycles ON at: Cycles OFF at: Cook or Clean cycles 250°F 235°F When unit is set to OFF 315°F 300°F ©2013 Viking Preferred Service... -
Page 12: Checking Oven Bake Operation
Replace DSI module if no voltage is present. If voltage is present on control board and DSI module, disconnect power to the range. If voltage is present, check bake solenoid (see Checking ©2013 Viking Preferred Service... -
Page 13: Checking Oven Broil Operation
1650 ohms, if not replace RTD. Broil ignition and operation can be troubleshot using the previous explanation of normal broil operation shown If resistance on the RTD is correct, check resistance of selector switch and thermostat (see Selector and above. ©2013 Viking Preferred Service... -
Page 14: Checking Solenoid Operation
P6. The resistance should be approximately 6.82K ohms. If no resistance is read, remove the latch motor to repair/ replace (Follow the latch motor disassembly procedure). ©2013 Viking Preferred Service... -
Page 15: Testing Latch Switches
Shown below is the closed circuit in red. S2 bottom Orange Blue White/Green Motor Note: (S3 - top switch not shown) S2 bottom Shown below is the closed circuit in red. Note: (S3 - top switch not shown) ©2013 Viking Preferred Service... -
Page 16: Rtd Sensor
If the RTD resistance is within the specifications given, opened. it is not necessary to replace the RTD. If the RTD test resistance is within specifications and the consumer is having erratic oven temperatures, please call Viking Technical support (1-800-914-4799) for assistance. ©2013 Viking Preferred Service... -
Page 17: Spark Module Test
9. Check for 0 ohms between the black wire and the metal top of the igniter. (If open, replace wire.) 10. If 120 VAC is present in step 5 and the black igniter wire has continuity, replace the spark module. ©2013 Viking Preferred Service... -
Page 18: Troubleshooting Guide
Replace thermostat Open selector switch Replace selector switch Open oven control board Replace oven control board Open direct spark module Replace direct spark module Defective oven wiring (shorted, Repair or replace defective wiring open, or burned) ©2013 Viking Preferred Service... -
Page 19: Surface Burners
1. Access control components (see Access Control Components Assembly). 2. Disconnect Molex connector to remove power to the range. 3. Reverse procedure for installation. ©2013 Viking Preferred Service... -
Page 20: Selector And Thermostat Characteristics
9.40 kW 2.98 kW 6.43 kW Broil 9.40 kW 1.97 kW 7.56 kW Clean 9.40 kW 722 W 8.85 kW Resistance checks are made on the control panel wire harness with the control panel wire harness disconnected. ©2013 Viking Preferred Service... -
Page 21: Disassembly
3. Lift the inner door panel assembly from the outer " hex head Allen wrench. Tighten hinge trim door panel assembly. screws after adjustment is made. 4. Reverse procedure for installation. 5. Reverse procedure for installation. ©2013 Viking Preferred Service... -
Page 22: Door Handle Removal
3. Remove screws and bracket from inner door panel. Note: Use care with insulation; make sure to replace any damaged or missing insulation. 4. Remove screws, brackets and door insulation retainer from inner door panel. 9. Reverse procedure for installation. ©2013 Viking Preferred Service... -
Page 23: Door Hinge Removal
4. Disconnect wire and then remove broil burner from range. 5. Remove screw and igniter from broil burner. 4. Disconnect wire from igniter. 5. Remove screw and igniter from bake burner. (View of top of oven cavity) ©2013 Viking Preferred Service... -
Page 24: Bake Or Broil Burner Orifice Removal
5. Remove left hand nut and fan blade from convection 7. Reverse procedure for installation. fan. Control Panel Assembly Removal 1. Access control components (see Control Components Accessed). 2. Mark and disconnect all connectors to remove control panel from range. 3. Reverse procedure for installation. ©2013 Viking Preferred Service... -
Page 25: Oven Function Selector Removal
1. Access control components (see Control Components Accessed). 2. Disconnect connector from the oven thermostat (always on right). 3. Remove screws, bezel, and thermostat from control panel. 4. Reverse procedure for installation. 4. Reverse procedure for installation. ©2013 Viking Preferred Service... -
Page 26: Dsi Module And Control Board Accessed
5. Reinstall door lock assembly. 5. Reverse procedure for installation. Note: During installation, make sure all wires are connected and are not pinched between the component tray and burner box. 6. Reverse procedure for installation. ©2013 Viking Preferred Service... -
Page 27: Control Board Removal
Control Board Removal 1. Access control board (see DSI Module Accessed). 2. Mark and disconnect connectors from control board. 3. Remove screws and control board from component tray. 5. Reverse procedure for installation. 4. Reverse procedure for installation. ©2013 Viking Preferred Service... -
Page 28: Surface Burner Valve Removal
5. Remove screw and burner valve from manifold 2. Remove screws and rack support from holes in back assembly. wall of oven cavity. 6.. Reverse procedure for installation. 8. Perform gas leak test. 3. Reverse procedure for installation. ©2013 Viking Preferred Service... -
Page 29: Oven Light Bulb Removal
1. Remove grates, burner caps, and burner heads from burner base assembly. 2. Remove orifice from jet holder. Note: Make sure to return insulation to original position under each side trim. 7. Reverse procedure for installation. 3. Reverse procedure for installation. ©2013 Viking Preferred Service... -
Page 30: Jet Holder Removal
5. Remove inverted screws from jet holder. 7. Remove screws, main top support, and side panel 6. Lift jet holder to remove from tubing. from range. 7. Reverse procedure for installation. 8. Perform gas leak test. 8. Reverse procedure for installation. ©2013 Viking Preferred Service... -
Page 31: Back Panel Removal
5. Reverse procedure for installation. Side Light Housing Removal 1. Remove back panel (see Back Panel Removal). 4. Remove screws and hinge receiver from range. 2. Disconnect connector for side light housing. 5. Reverse procedure for installation. ©2013 Viking Preferred Service... -
Page 32: Gas Solenoid Valve Removal
4. Remove screws and solenoid valve from range. Gas shutoff, shown in normally open position 6. Reverse procedure for installation. 5. Reverse procedure for installation. Note: Use approved sealant when installing pressure 6. Perform gas leak test. regulator. 7. Perform gas leak test. ©2013 Viking Preferred Service... -
Page 33: Temperature Sensor (Rtd) Removal
5. Route RTD wires through burner box area and out 5. Mark and disconnect three connectors and remove back of range. blower motor. 6. Reverse procedure for installation. 6. Remove screws and RTD sensor from the oven liner. 7. Reverse procedure for installation. ©2013 Viking Preferred Service... -
Page 34: Wiring Diagrams
Wiring Diagrams RVGR3305B Gas Range ©2013 Viking Preferred Service...
