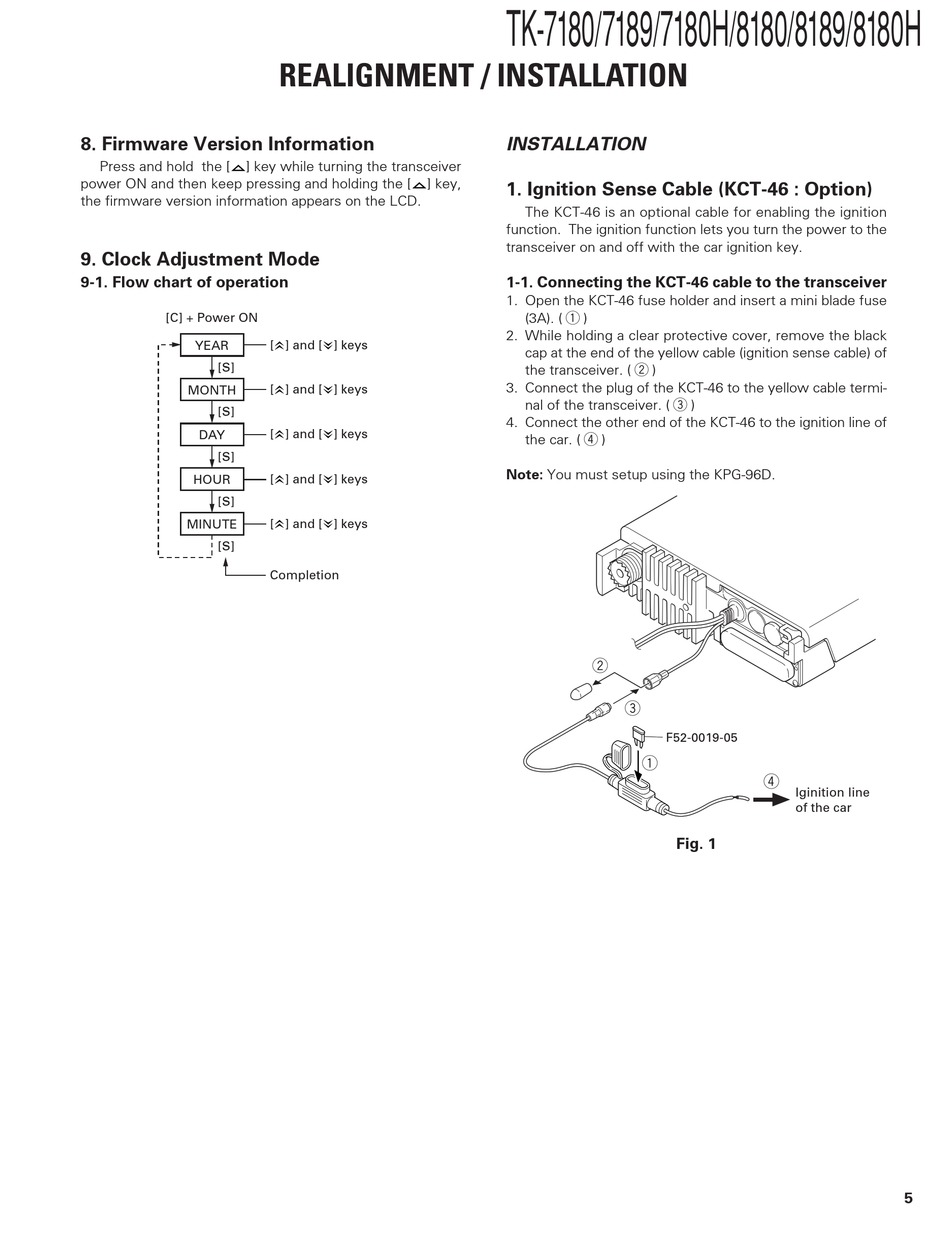

Installation - Kenwood TK-7189 Service Manual

8. Firmware Version Information
Press and hold the [ ] key while turning the transceiver
power ON and then keep pressing and holding the [
the firmware version information appears on the LCD.
9. Clock Adjustment Mode
9-1. Flow chart of operation
[C] + Power ON
YEAR
[S]
MONTH
[S]
DAY
[S]
HOUR
[S]
MINUTE
[S]
REALIGNMENT / INSTALLATION
] key,
[ ] and [ ] keys
[ ] and [ ] keys
[ ] and [ ] keys
[ ] and [ ] keys
[ ] and [ ] keys
Completion
TK-7180/7189/7180H/8180/8189/8180H

INSTALLATION

1. Ignition Sense Cable (KCT-46 : Option)
The KCT-46 is an optional cable for enabling the ignition
function. The ignition function lets you turn the power to the
transceiver on and off with the car ignition key.
1-1. Connecting the KCT-46 cable to the transceiver
1. Open the KCT-46 fuse holder and insert a mini blade fuse
(3A). ( q )
2. While holding a clear protective cover, remove the black
cap at the end of the yellow cable (ignition sense cable) of
the transceiver. ( w )
3. Connect the plug of the KCT-46 to the yellow cable termi-
nal of the transceiver. ( e )
4. Connect the other end of the KCT-46 to the ignition line of
the car. ( r )
Note: You must setup using the KPG-96D.
w
e
F52-0019-05
q
Fig. 1
r
Iginition line
of the car
5
