Time switch
EN

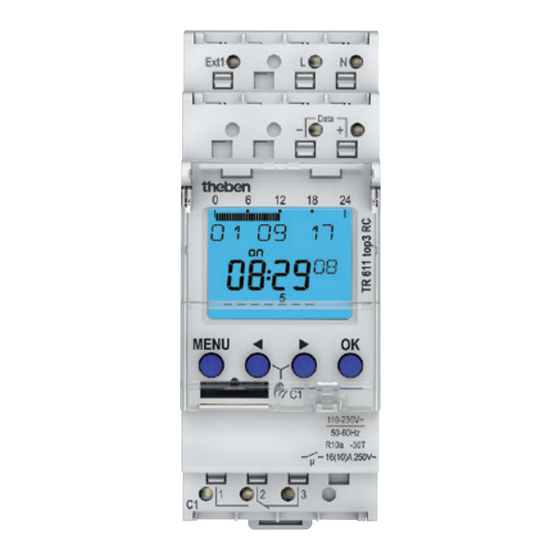

TR 611 top3
6110130
TR 611 RC top3
6110330
TR 622 top3
6220130
1. General information
•
The device is designed for installation on DIN rails (in
accordance with EN 60715)
•
The device corresponds to type 1 STU in accordance with
IEC/EN 60730-2-7
•
Power reserve (10 years) is reduced when Bluetooth
OBELISK top3 is connected (in battery mode)
2. Safety
Assembly and installation should only be carried
out by a qualified electrician, somebody who has
completed appropriate professional training and
has the knowledge and experience necessary to be
able to recognise and avoid the potential dangers
posed by electricity.
Before installation/disassembly, disconnect the
power supply and ensure that the parts are no
longer live.
Prior to commissioning and using the product, read
the entire manual and follow the instructions.
3. Proper use
•
Digital time switch with weekly program, annual program
•
Interface for Bluetooth OBELISK top3 (app)
•
Time switch with 2 channels (6220130)
•
The time switch is used for lighting, ventilation, flushing,
etc.
•
Only for use in closed, dry rooms
!
Do not use on safety devices, e.g. escape route doors, fire
safety equipment, etc.
4. Installation and connection
307407 01
22.02.2023
Mounting the time switch
Mount on DIN rail.
†
clic
45° cable
!
Check the depth of the control cabinet when OBELISK
top3 is connected. The depth must be > 94 mm.
Time switch with GPS antenna 9070610
L Additional power unit (9070892) required for GPS if only
one device is connected to the antenna.
L Refer to the operating instructions when connecting a GPS
antenna.
Minimum number of participants needed to operate the GPS
antenna:
•
2 x weekly timer TR 611 top3 RC, SELEKTA 171 top3 RC,
LUNA 121–122 top3 RC each with 50 mA feed, or
•
1 x weekly timer with 50 mA feed plus 1 x top2 GPS
power unit (9070892) with 50 mA feed
Time switch with antenna RC-GNSS R 9070807
L Refer to the operating instructions when connecting the
antenna RC-GNSS R.
Number of participants on the data bus, as the maximum
current on the data bus is limited to 500 mA:
•
5 x 365 day timer TR 64x top2 RC each with 100 mA
feed, or
•
10 x top RC devices
TH 35-7,5
(DIN EN 60715)
DuoFix spring
plug-in terminal
Test connection
Spring plug-
in terminal
opener
Bluetooth OBELISK top3
(9070130)
1
