Theben TC 649 C Installation And Operating Instructions

TC 649 C
6490430
Control box Cloud
Installation and operating
instructions
1. Basic safety information
WARNING
Danger of death through electric shock or fire!
† Installation should only be carried out by a qualified
electrician!
•
The device is designed for installation on DIN top hat rails (in
accordance with IEC 60715)
•
It complies with product standard EN 60669-2-1
† Do not operate the device outside the specified technical data
!
The device must be installed in an enclosed switchgear cabinet
made of metal or an appropriate fire-resistant material!
!
After proper installation, the housing component under the
cover must not be accessible!
2. Proper use
Control box TC 649 C is an annual time switch with astronomical
function, which can be controlled and updated via Theben Cloud and
managed centrally from a computer and a smartphone. The control
box is used for lighting and ventilation.
!
Do not use on safety devices, e.g. escape route doors, fire
safety equipment, etc.
Disposal
† For an environmentally appropriate disposal, send the device back
to the owner
3. Installation and connection
Installing TC 649 C
click
Connecting TC 649 C
Connecting the power supply
† Strip cable to 8 mm (max. 9 mm)
† Insert the line into the terminal and fasten it
† Plug terminal into power supply socket
† Connect to power supply
▻ During the start of the operating system, all LEDs are flashing.
After approx. 150 s the start process is completed and the
power LED (PWR/TLS) flashes.
Wiring diagram
307456
Link to the
manual
http:/ /qr.theben.
de/o/urls/433
L N
L Switch the load with a contactor.
!
If a load is switched directly, secure the device with a circuit
breaker of 6 A.

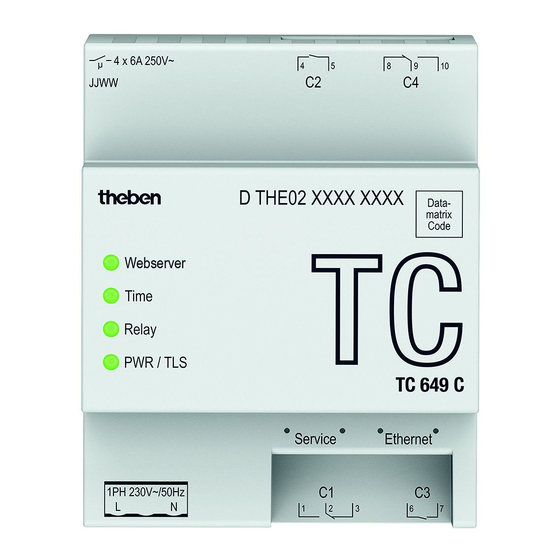

4. Device description
Connections
Voltage
L The performance specifications can be found on the side and on
the device shoulder (see picture). After installation they are not
visible any more!
N
L
L L
TC 649 C
L L
L
L
N
Service interface
Connection to LAN
network
Power supply
socket (230 V)
1
