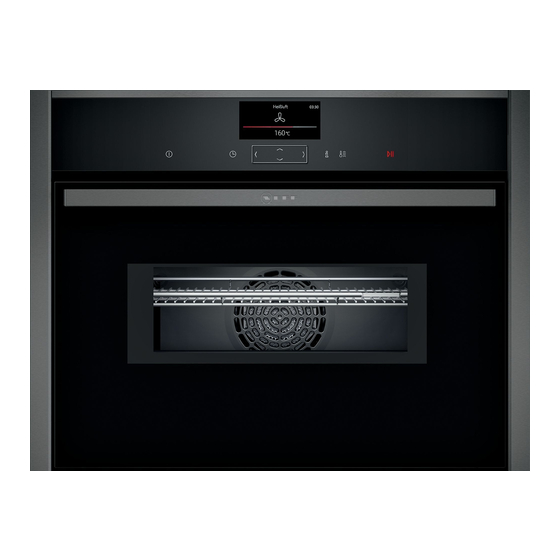

- Page 1 Oven [en] User manual and installation in- structions C17MS22.1...
-
Page 2: Table Of Contents
en Safety Futher information and explanations are available online: Table of contents 1 Safety Observe the following safety instructions. 1.1 General information INFORMATION FOR USE ¡ Read this instruction manual carefully. Safety .............. 2 ¡ Keep the instruction manual and the Preventing material damage ....... 6 product information safe for future refer- ence or for the next owner. -
Page 3: Safety
Safety en When the cooking compartment is hot, any al- been instructed on how to use the appliance coholic vapours inside may catch fire. The ap- safely and have understood the resulting dangers. pliance door may spring open. Hot steam and jets of flame may escape. -
Page 4: Preventing Material Damage
en Safety Alcoholic vapours may catch fire in the hot WARNING ‒ Risk of suffocation! cooking compartment, and the appliance Children may put packaging material over door may spring open and may fall off. The their heads or wrap themselves up in it and door panels may shatter and fragment. - Page 5 Safety en Using the appliance for anything other than its WARNING ‒ Risk of explosion! intended purpose is dangerous. This is be- Liquids and other food may easily explode cause, for instance, overheated slippers, pil- when in containers that have been tightly lows filled with grain or cereal, sponges and sealed.
- Page 6 en Preventing material damage Never operate the appliance if the cooking WARNING ‒ Risk of electric shock! compartment door or the door seal is dam- The appliance uses a high voltage. aged. Microwave energy may escape. ▶ Never remove the casing. ▶ Never use the appliance if the cooking WARNING ‒ Risk of serious harm to compartment door, the door seal or the health!
-
Page 7: Environmental Protection And Saving En- Ergy
Environmental protection and saving energy en Placing aluminium containers in the appliance may 2.2 Microwave cause sparks, which will damage the appliance. Follow these instructions when using the microwave. Do not use aluminium containers in the appliance. ▶ ATTENTION! Operating the appliance without food in the cooking Metal touching the wall of the cooking compartment compartment may lead to overloading. -
Page 8: Familiarising Yourself With Your Appliance
en Familiarising yourself with your appliance 4 Familiarising yourself with your appliance 4.1 Control panel You can use the control panel to configure all functions of your appliance and to obtain information about the operat- ing status. Display Buttons Control element 4.2 Buttons The buttons are touch-sensitive areas. - Page 9 Familiarising yourself with your appliance en Button Name Right Navigate to the right on the display Navigate upwards on the display Down Navigate downwards on the display 4.4 Display The display shows the current settings, options or rel- evant information. 4.5 Main menu The main menu provides an overview of your appliance's functions.
- Page 10 en Familiarising yourself with your appliance Symbol Heating function Temperature Slow cooking 70 - 120 °C For gentle, slow cooking of seared, tender pieces of meat in cookware without a lid. The heat is emitted evenly from above and below at a low tem- perature.
-
Page 11: Accessories
Accessories vary from one appliance to another. When purchasing accessories, always quote the exact 5.3 Sliding accessories into the cooking product number (E no.) of your appliance. - Page 12 en Before using for the first time 6 Before using for the first time Configure the settings for initial start-up. Clean the ap- Use the button to select the next setting. pliance and accessories. Setting the time Use the ...
- Page 13 Time-setting options en 7.8 Cancelling operation 7.9 Viewing the current temperature Note: Some functions, e.g. cleaning functions, cannot You can view the current temperature while the appli- be cancelled. ance is heating up. Press . ▶ Press and hold the button until the function that is ▶...
- Page 14 en Microwave time (duration) and specify when you want your food to Use the button to select the required end time. be ready. You can only use the delayed start function Press to confirm the delayed start. in conjunction with a heating function.
-
Page 15: Microwave
Microwave en ¡ To prevent condensation, when the microwave Cookware and ac- Information power setting is 600 watts (max), the appliance cessories automatically switches on a heating element. The Metal cookware and Metal can be used with Micro- cooking compartment and the accessories become bakeware Combi. - Page 16 en Microwave Drying the cooking compartment with the Dry ¡ → "Preventing material damage", Page 6 function ¡ → "Microwave power settings", Page 10 ¡ → "Cookware and accessories with microwave", The "Dry" function heats up the cooking compartment Page 14 so that the moisture in the cooking compartment evap- orates.
-
Page 17: Microwave Programmes
Microwave programmes en 10 Microwave programmes The microwave programmes help you to use your ap- ¡ Chicken portions pliance to prepare different dishes by selecting the op- ¡ Meat loaf made from fresh mince timum settings automatically. This significantly reduces ¡ Baked potatoes, whole the cooking time. -
Page 18: Childproof Lock
en Childproof lock ¡ Goose, whole (3-4 kg) Use the button to navigate back to the recommen- ded settings. Use the button to adjust the temperature or cook- 11.2 Configuring the baking and roasting ing time, if required. assistant Use the ... -
Page 19: Rapid Heating
Rapid heating en one-time childproof lock. After you have switched off Press and hold the button until "Childproof lock ▶ the appliance, the control panel will no longer be dis- activated" appears on the display. abled. Note: When you activate the automatic childproof lock, 12.6 Deactivating the one-time childproof the appliance will immediately disable the control lock... - Page 20 en Cleaning and servicing Press . Basic setting Selection Use the or button to select "MyProfile" . Audible signal ¡ Short duration Use the button to navigate to the next row. ¡...
- Page 21 Cleaning and servicing en New sponge cloths contain residues from production. Wash new sponge cloths thoroughly before use. ▶ Suitable cleaning agents Only use cleaning agents that are suitable for the differ- Follow the instructions on cleaning the appliance. ent surfaces on your appliance. → "Cleaning the appliance", Page 22 Appliance front Surface...
-
Page 22: Cleaning Function
en Cleaning function Area Suitable cleaning agents Information Rails ¡ Hot soapy water Soak any heavily soiled areas and use a brush or steel wool. Note: To clean thoroughly, detach the rails. → "Rails", Page 23 Accessories ¡ Hot soapy water Soak any heavily soiled areas and use a brush or steel wool. Enamelled accessories are dishwasher-safe. - Page 23 Rails en Remove limescale with a cloth soaked in vinegar. In order to dry the cooking compartment, leave the Then wipe with clean water and rub dry with a soft appliance door open in the detent position (approx. cloth (including under the door seal). 30°) for approx. one hour.
-
Page 24: Appliance Door
en Appliance door 19 Appliance door To clean the appliance door thoroughly, you can disas- WARNING ‒ Risk of serious harm to health! semble the appliance door. If the screws are undone, the safety of the appliance can no longer be guaranteed. Microwave energy 19.1 Removing the door cover may escape. -
Page 25: Troubleshooting
Troubleshooting en Put the door cover in position and push down on it Close the appliance door. until you hear it click into place. Note: Do not use the cooking compartment again until the door panes have been correctly fitted. 20 ... - Page 26 Setting values, e.g. temperature or cooking time, depend on the recipe, quantity and food. Next time, set lower or higher values. ▶ Tip: A lot of information about the food preparation and corresponding setting values can be found on our website www.neff-international.com. 21 Disposal 21.1 Disposing of old appliance This appliance is labelled in accord- ance with European Directive Valuable raw materials can be reused by recycling.
-
Page 27: How It Works
How it works en This product contains light sources from energy effi- 22.1 Product number (E-Nr.) and production ciency class G. These light sources are available as a number (FD) spare part and should only be replaced by trained spe- You can find the product number (E-Nr.) and the pro- cialist staff. - Page 28 en How it works Roasting in cookware 23.4 Microwave cooking If you cover the cookware when you cook your food, If you use the microwave mode, you can reduce the this will keep the cooking compartment cleaner. cooking time considerably. General information about roasting in cookware General information ¡...
- Page 29 How it works en 23.7 List of foods Recommended settings for a variety of foods, sorted into food categories. Recommended settings for various types of food Food Accessory/cook- Shelf pos- Heating Temperature in Microwave Cooking ware ition function °C power setting time in → Page 9 in W mins...
- Page 30 en How it works Food Accessory/cook- Shelf pos- Heating Temperature in Microwave Cooking ware ition function °C power setting time in → Page 9 in W mins Pizza, fresh, thin-crust, on Pizza tray 210 - 230 20 - 30 a pizza tray Quiche Tart dish or tin ...
- Page 31 How it works en Food Accessory/cook- Shelf pos- Heating Temperature in Microwave Cooking ware ition function °C power setting time in → Page 9 in W mins Fish, grilled, whole, Wire rack 15–20 300 g, e.g. trout Vegetables, fresh, 250 g Covered cookware ...
- Page 32 en How it works Requirement: The cooking compartment is cold. 23.8 Special cooking methods and other applications Use fresh, clean, hygienic meat without bones. Place the cookware onto the wire rack at level 1 in Information and recommended settings for special the cooking compartment. cooking methods and other applications, e.g.
- Page 33 How it works en Food Accessory/cook- Shelf pos- Heating Temperature in Microwave Cooking ware ition function °C power setting time in → Page 9 in W mins Meat, whole, e.g. joint, Uncovered cook- 1. 180 1. 15 raw meat, 1 kg ware 2.
- Page 34 en How it works Food Accessory/cook- Shelf pos- Heating Temperature in Microwave Cooking ware ition function °C power setting time in → Page 9 in W mins Soup, stew, 400 ml Covered cookware 5 - 7 Chilled Plated meal, 1 portion Covered cookware ...
- Page 35 Installation instructions en Food Accessory/cookware Shelf posi- Heating Temperature in °C Cooking time tion function in mins → Page 9 Hot water sponge cake Springform cake tin, 160–170 25–35 diameter 26 cm Hot water sponge cake Springform cake tin, 160–170 30–45 diameter 26 cm...
-
Page 36: General Installation Instructions
en Installation instructions 24.1 General installation instructions Follow these instructions before you start with the installation of the appliance. ¡ The installation cabinet must not have a back panel behind the appliance. There ¡ Wear protective gloves so that you do not should be a gap of at least 35 mm cut yourself. - Page 37 Installation instructions en 24.2 Appliance dimensions 24.3 Installation below a worktop You will find the dimensions of the appliance here Observe the installation dimensions and the installation instructions when installing below a worktop. ¡ To ventilate the appliance, the intermediate floor must have a ventilation cut-out. ¡...
- Page 38 en Installation instructions ¡ To ensure that the appliance door can be opened, 24.5 Installation in a tall unit you must take the minimum dimensions into consid- Observe the installation dimensions and the installation eration when installing in a corner. The dimension ...
- Page 39 Installation instructions en For handleless kitchens with vertical bar handle 24.8 Installing the appliance strips: Note: Do not use a cordless screwdriver to secure the Attach a suitable filling piece in order to cover ‒ panels. This may damage the panels. any sharp edges and to guarantee a safe install- ation.
- Page 40 Valid within Great Britain: Imported to Great Britain by BSH Home Appliances Ltd. Grand Union House Old Wolverton Road Wolverton, Milton Keynes MK12 5PT United Kingdom *9001749874* 9001749874 BSH Hausgeräte GmbH Carl-Wery-Straße 34 020608 81739 München, GERMANY...
