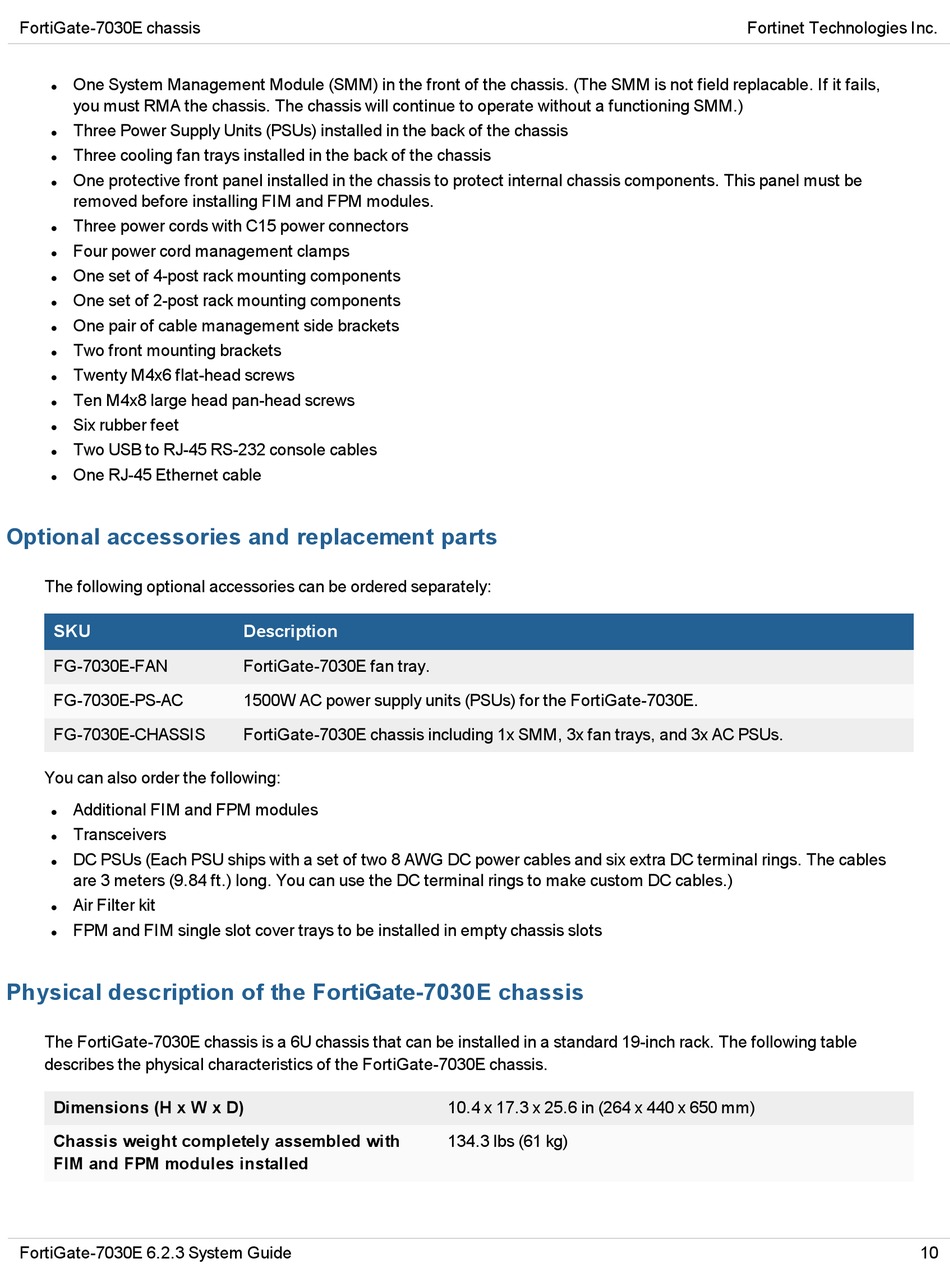

FortiGate-7030E chassis
One System Management Module (SMM) in the front of the chassis. (The SMM is not field replacable. If it fails,
l
you must RMA the chassis. The chassis will continue to operate without a functioning SMM.)
Three Power Supply Units (PSUs) installed in the back of the chassis
l
Three cooling fan trays installed in the back of the chassis
l
One protective front panel installed in the chassis to protect internal chassis components. This panel must be
l
removed before installing FIM and FPM modules.
Three power cords with C15 power connectors
l
Four power cord management clamps
l
One set of 4-post rack mounting components
l
One set of 2-post rack mounting components
l
One pair of cable management side brackets
l
Two front mounting brackets
l
Twenty M4x6 flat-head screws
l
Ten M4x8 large head pan-head screws
l
Six rubber feet
l
Two USB to RJ-45 RS-232 console cables
l
One RJ-45 Ethernet cable
l

Optional accessories and replacement parts

The following optional accessories can be ordered separately:
SKU
FG-7030E-FAN
FG-7030E-PS-AC
FG-7030E-CHASSIS
You can also order the following:
Additional FIM and FPM modules
l
Transceivers
l
DC PSUs (Each PSU ships with a set of two 8 AWG DC power cables and six extra DC terminal rings. The cables
l
are 3 meters (9.84 ft.) long. You can use the DC terminal rings to make custom DC cables.)
Air Filter kit
l
FPM and FIM single slot cover trays to be installed in empty chassis slots
l

Physical description of the FortiGate-7030E chassis

The FortiGate-7030E chassis is a 6U chassis that can be installed in a standard 19-inch rack. The following table
describes the physical characteristics of the FortiGate-7030E chassis.
Dimensions (H x W x D)
Chassis weight completely assembled with
FIM and FPM modules installed
FortiGate-7030E 6.2.3 System Guide
Description
FortiGate-7030E fan tray.
1500W AC power supply units (PSUs) for the FortiGate-7030E.
FortiGate-7030E chassis including 1x SMM, 3x fan trays, and 3x AC PSUs.
10.4 x 17.3 x 25.6 in (264 x 440 x 650 mm)
134.3 lbs (61 kg)
