- Page 1 User Guide DTP Systems DTP T/R DP 4K 330 DTP T/R DP 4K 230 DisplayPort Twisted Pair Extenders 68-2709-02 Rev. B 01 19...
- Page 2 Safety Instructions Safety Instructions • English Istruzioni di sicurezza • Italiano AVVERTENZA: Il simbolo, , se usato sul prodotto, serve ad WARNING: This symbol, ,when used on the product, is avvertire l’utente della presenza di tensione non isolata pericolosa intended to alert the user of the presence of uninsulated dangerous all’interno del contenitore del prodotto che può...
- Page 3 より 『Extron Safety www.extron.com and Regulatory Compliance Guide』 (P/N 68-290-01) をご覧ください。 Copyright www.extron.com © 2014-2019 Extron Electronics. All rights reserved. Trademarks All trademarks mentioned in this guide are the properties of their respective owners. The following registered trademarks ( ®...
- Page 4 FCC Class A Notice This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. The Class A limits provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
-
Page 5: Table Of Contents
Contents Introduction Remote Control ........... 1 ........... 12 About this Guide ..........1 Simple Instruction Set Control ......12 About the DTP T/R DP 4K 330 and Host-to-Receiver Communications ....12 DTP T/R DP 4K 230 Extenders ......1 Receiver-Initiated Message ......12 TP Cable Advantages ......... - Page 6 DTP T/R DP 4K 330 and DTP T/R DP 4K 230 Twisted Pair Extenders • Contents...
-
Page 7: Introduction
This guide describes the Extron DisplayPort Twisted Pair Extenders. This guide covers two Extender models: • DTP T/R DP 4K 330 — Consists of a DTP T DP 4K 330 transmitter and a DTP R DP 4K 330 receiver. •... -
Page 8: Features
Extron LINK POWER OVER TP HDBT AUDIO RS-232 DTP T DP 230 Extron 0.8A MAX Tx Rx Tx Rx INPUTS TLP Pro 720T Transmitter 7" Tabletop TouchLink Pro Touchpanel Laptop CATx Cable Tuner Laptop 1 2 3 up to 230' (70 m) Display Volume Tuner... -
Page 9: Installation And Operation

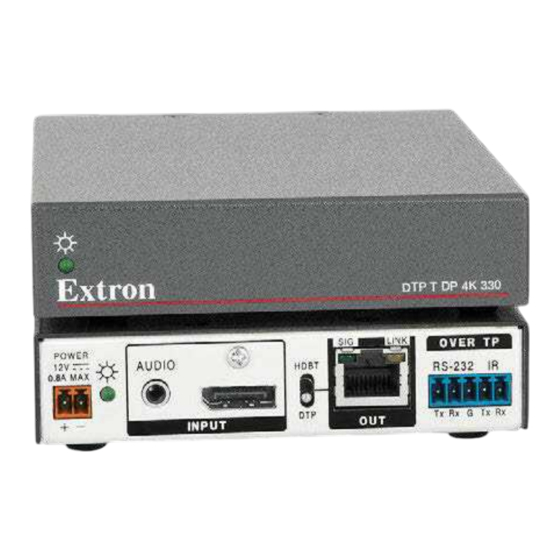

RS-232 0.7A MAX 0.8A MAX DTP IN Tx Rx Tx Rx INPUTS Figure 2. DTP T DP 4K 330 and DTP T DP 4K 230 Rear Panel Connectors and Switch AUDIO LINK OVER TP POWER RS-232 1.0A MAX Tx Rx... -
Page 10: Transmitter Connections And Switch
Transmitter Connections and Switch DisplayPort input port (see figure 2 on the previous page) — Connect a digital video input to this DisplayPort connector. The transmitters also accept DISPLAYPORT embedded digital audio on this port. Audio input connector — If desired, plug an analog audio input into the transmitter via this stereo mini jack connector. - Page 11 TP Output RJ-45 connector (see figure 2 on page 3) — Connect one end LINK of a TP cable to this RJ-45 female connector on the transmitter. Ensure the opposite end of this cable is connected to the receiver TP Input RJ-45 connector (see item , below).
-
Page 12: Receiver Connections
Receiver Connections DTP Input RJ-45 connector (see figure 3 on page 3) — Connect one end LINK of the TP cable from the transmitter output connector to this RJ-45 female connector. Ensure the opposite end of this cable is connected to the DTP IN transmitter DTP Output RJ-45 connector (see item... -
Page 13: Connector And Cable Details
Power input connector (see figure 3 on page 3) — Plug the included external 12 VDC power supply into either this 2-pole connector or the power input connector on the transmitter (see item on the previous page). ATTENTION: • Do not connect power to the DTP T/R DP 4K 330 or DTP T/R DP 4K 230 until you have read the CAUTION ATTENTION... - Page 14 Cable recommendations — Extron recommends using the following practices to achieve full transmission distances up to 330 feet (100 m) (DTP T/R DP 330) or 230 feet (70 m) (DTP T/R DP 230) and reduce transmission errors. • Use the following Extron XTP DTP 24 SF/UTP cables and DTP 24 connectors for the best performance: XTP DTP 24/1000 Non-Plenum 1000' (305 m) spool...
- Page 15 Power supply wiring NOTE: One power supply is included with the transmitter and normally can power both units. Figure 7 shows how to wire the connector. Use the supplied tie-wrap to strap the power cord to the extended tail of the connector. Smooth Ridges SECTION A–A...
- Page 16 ATTENTION: • This product is intended to be supplied by a UL Listed power source marked “Class 2” or “LPS,” rated 12 VDC, 1.0 A minimum. Always use a power supply supplied by or specified by Extron. Use of an unauthorized power supply voids all regulatory compliance certification and may cause damage to the supply and the end product.
-
Page 17: Front Panel Connection And Power Indicator
Front Panel Connection and Power Indicator Transmitter Receiver CONFIG Figure 9. Transmitter and Receiver Front Panel Connector and Indicator Power (and signal) LED (both units) — Amber — The unit is receiving power, either locally or remotely (on the DTP cable). Green —... -
Page 18: Remote Control
Receiver-Initiated Message When power is applied, the receiver responds by sending the following copyright message to the host: © Copyright 20yy Extron Electronics DTP R DTP 4K 230/330 nnnn is the firmware version number and is the part number. nnnn... -
Page 19: Using The Command And Response Table
Using the Command and Response Table The command and response table begins below. Symbols are used throughout the table to represent variables in the command and response fields. Command and response examples are shown throughout the table. The SIS commands are not case sensitive. The ASCII to HEX conversion table below is for use with the command and response table. -
Page 20: Product Configuration Software
Command and Response Table for SIS Commands (continued) Response Additional description Command Function SIS Command (Host to Unit) (Unit to Host) Unit name Set unit name • X$] Set unit name to Set unit name to factory default E • •... - Page 21 Click the link on the main download page, as appropriate to the Software Firmware operation you are performing ( Many popular software downloads, such as the Product Configuration TIP: Software, have direct links to their download options on the Web page ( Click the link to jump directly to information page for that software download (see figure 12 on the next page).
- Page 22 1 1 1 1 1 1 1 1 3 3 3 3 3 3 3 3 5 5 5 5 5 5 5 5 4 4 4 4 4 4 4 4 2 2 2 2 2 2 2 2 Figure 13.
-
Page 23: Starting The Program
Uninstall Firmware Loader Starting the Program Start the Extron Product Configuration Software as follows: Click Start > Programs > Extron Electronics > Extron Product Configuration Software > Extron Product Configuration Software The Product Configuration Software opens to the screen (see Device Discovery figure 15). -
Page 24: Updating The Firmware
Click (see figure , on the previous page). The Product Configuration Connect Software opens to the page (see figure 16). Input/Output Configuration Operate the Product Configuration Software as described in the PCS Help (click > Extron PCS Help Figure 16. Product Configuration Software Updating the Firmware The Product Configuration Software can call the Firmware Loader utility, which provides a... - Page 25 1 1 1 1 1 1 1 1 1 1 1 1 1 1 DTP_T_USW_FW2x02.exe 1 1 1 1 1 1 1 1 1 1 1 1 1 1 2 2 2 2 2 2 2 2 2 2 2 2 2 2 Folder where firmware is saved.
- Page 26 Click to exit the program (figure on the previous page). Finish Connect the computer to the front panel Configuration (USB) port (see item page 11) of the receiver. Start the Product Configuration Software and connect to the unit (see Starting the Program, beginning on page 17).
- Page 27 1 1 1 1 1 1 1 1 1 1 1 1 1 1 2 2 2 2 2 2 2 2 2 2 2 2 2 2 3 3 3 3 3 3 3 3 3 3 3 3 3 3 4 4 4 4 4 4 4 4 4 4 4 4 4 4...
-
Page 28: Equipment Mounting
Equipment Mounting This section provides procedures for mounting the DTP T/R DP 4K 330 and DTP T/R DP 4K 230 transmitter and receiver. Mounting the Transmitter or Receiver ATTENTION: • Installation and service must be performed by authorized personnel only. •... - Page 29 Extron Electronics makes no further warranties either expressed or implied with respect to the product and its quality, performance, merchantability, or fitness for any particular use. In no event will Extron Electronics be liable for direct, indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been advised of such damage.
