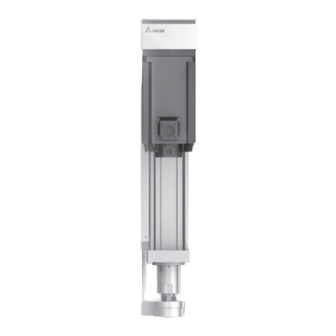

Servo press
Hide thumbs Also See for E Series:

Advertisement

Quick Links

Delta Servo Press - E Series
Installation and Maintenance
Instructions
www.deltaww.com

Advertisement

Table of Contents
loading

Summary of Contents for Delta E Series

  • Page 1 Delta Servo Press - E Series Installation and Maintenance Instructions www.deltaww.com...
  • Page 2: Table Of Contents

    Delta Electronics Servo Press E-Series Installation and Maintenance Instructions Contents Delta Electronics Servo Press (External Electric Cylinder) Installation and Maintenance Instructions Safety Information............... 2 Safety Information Before Use ................2 Safety Information During Use ................3 Safety Information During Maintenance and Under Other Circumstances ..3 Powering System ....................
  • Page 3: Safety Information

    Delta Electronics Servo Press E-Series Installation and Maintenance Instructions 1. Safety Information 1.1 Safety Information Before Use Item Description Please shut down power before removing the external power lines to the unit so that the unit is in a disconnected state when the servo press will be out of service for an extended period of time.
  • Page 4: Safety Information During Use

    While the Equipment is Active While the equipment is active, if there are any unusual sounds or burnt odors, stop the equipment right away and notify the Company (Delta Electronics) or the contract service provider. 1.3 Safety Information During Maintenance and Under Other...
  • Page 5: Comprehensive System Structure

    Delta Electronics Servo Press E-Series Installation and Maintenance Instructions 2. Comprehensive System Structure 2.1 Model & Electronic Control Panel The following figure uses the AM-ESP-E050-41XX as an example: Servo motor Gearbox Cylinder Loadcell Wire cover Servo driver...
  • Page 6: Installation Setup

    Delta Electronics Servo Press E-Series Installation and Maintenance Instructions 3. Installation Setup Fixed Way 3.1.1 AM-ESP-E050-XXXX/AM-ESP-E030-XXXX models The fixed servo press is installed with a flange. The fastening ports are shown in the figure below. Please use 8 general M12X1.75 hex screws (JIS strength is 12.9, length 60) and apply the tightening torque of 1160 kgf-cm.
  • Page 7: Am-Esp-E010-Xxxx / Am-Esp-E005-Xxxx Models

    Delta Electronics Servo Press E-Series Installation and Maintenance Instructions 3.1.2 AM-ESP-E010-XXXX / AM-ESP-E005-XXXX models The fixed servo press is installed with a flange. The fastening ports are shown in the figure below. Please use 4 general M12X1.75 hex screws (JIS strength 12.9, length 60) and apply the tightening torque of 1160 kgf-cm.
  • Page 8: Am-Esp-E002-Xxxx / Am-Esp-E001-Xxxx Models

    Delta Electronics Servo Press E-Series Installation and Maintenance Instructions 3.1.3 AM-ESP-E002-XXXX / AM-ESP-E001-XXXX models The fixed servo press is installed with a flange. The fastening ports are shown in the figure below. Please use 4 general M8X1.25 hex screws (JIS strength 12.9, length 40) and apply the tightening torque of 334 kgf-cm.
  • Page 9: Loading And Unloading Spindle Punch

    Delta Electronics Servo Press E-Series Installation and Maintenance Instructions 3.2 Loading and Unloading Spindle Punch Recommended punch jig design is provided in this section to facilitate realistic application by users. 3.2.1 AM-ESP-E050-XXXX / AM-ESP-E030-XXXX models Please use M16x1.5 threads for the punch jig design.
  • Page 10: Am-Esp-E010-Xxxx / Am-Esp-E005-Xxxx Models

    Delta Electronics Servo Press E-Series Installation and Maintenance Instructions 3.2.2 AM-ESP-E010-XXXX / AM-ESP-E005-XXXX models Please use M8x1.25 threads for the punch jig design. The design of the fixed punch should not be in contact with the entire surface of the front Loadcell.
  • Page 11: Am-Esp-E002-Xxxx / Am-Esp-E001-Xxxx Models

    Delta Electronics Servo Press E-Series Installation and Maintenance Instructions 3.2.3 AM-ESP-E002-XXXX / AM-ESP-E001-XXXX models Please use M8x1.25 threads for the punch jig design. It is recommended to design a neck structure to avoid full-surface contact with the front Loadcell. Loadcell...
  • Page 12: Restrictions Of Jig

    Delta Electronics Servo Press E-Series Installation and Maintenance Instructions 3.2.4 Restrictions of Punch dimensions and recommended jig designs are provided in the preceding three sections. Extended descriptions and precautions are provided hereunder. See the table below: Item Description For the weight limits, please follow those shown in the catalog [front- end load requirements of the spindle].
  • Page 13: Equipment Care And Maintenance

    Delta Electronics Servo Press E-Series Installation and Maintenance Instructions 4. Equipment Care and Maintenance 4.1 Applying Oil to Equipment High temperature lubricating grease has been applied to the servo electric cylinder at the factory. Please refer to the table below for the time intervals for regular lubrication of the bearings and ball screws.
  • Page 14 Delta Electronics Servo Press E-Series Installation and Maintenance Instructions The injection steps are as follows: Step 1: Remove the outer cover of the cylinder block wire cover Step 2: Unscrew the plug of the oil hole on the cylinder body...
  • Page 15: Load Cell Calibration

    (after the warranty period expires). The load cell calibration tool is shown in the figure. Please follow the Operating Instructions while performing calibration and qualification or contact the Company (Delta Electronics) or contract service providers.
  • Page 16: Wiring Instructions

    Delta Electronics Servo Press E-Series Installation and Maintenance Instructions 5. Wiring Instructions 5.1 Circuit Diagram *During configurations, it is recommended that the signal line (green) and the motor power line (blue) be routed separately.
  • Page 17: Plc External I/O Contact Details

    Delta Electronics Servo Press E-Series Installation and Maintenance Instructions 5.2 PLC External I/O Contact Details Power distribution Power reference distribution Ready Indicator reference Waiting Indicator Start button Alarm Indicator (hold type) (red) Two-hand switch Trigger OK/NG Indicator (rising edge) (green)
  • Page 18: Details Of Drive Power Distribution

    Delta Electronics Servo Press E-Series Installation and Maintenance Instructions 5.3 Details of Drive Power Distribution 5.3.1 0.4 kW~1 kW 0.4 kW ~ 1 kW External power supply (AC220V) Write Motor power (Power Cable) Black...
  • Page 19: Kw~7.5 Kw

    Delta Electronics Servo Press E-Series Installation and Maintenance Instructions 5.3.2 2 kW~7.5 kW 2 kW ~ 7.5 kW External power supply (AC220V) Regenerative resistance (5.5-7.5kW) Write Motor power (Power line) Black...
  • Page 20 5101 Davis Drive, Research Triangle Park, NC 27709, U.S.A. TEL: +7 495 644 3240 TEL: +1 - 919 - 767 - 3813 / FAX: +1 - 919 - 767 - 3969 Delta Greentech Elektronik San. Ltd. Sti. ( Turkey ) Turkey: Brazil: Delta Electronics Brazil Şerifali Mah.
