TI01004F/00/EN/25.22-00
71603695
2022-12-13
Products
Technical Information

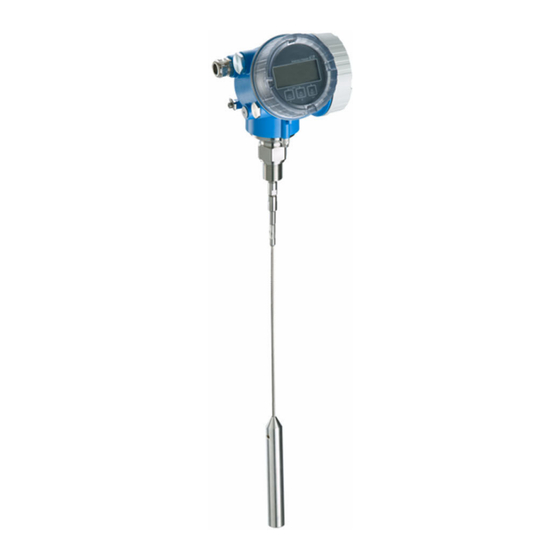

Levelflex FMP56, FMP57
Guided wave radar
Level measurement in bulk solids
Application
• Rod or rope probe
• Process connection: Starting 3/4" thread or flange
• Process temperature: –40 to +185 °C (–40 to +365 °F)
• Process pressure: –1 to +16 bar (–14.5 to +232 psi)
• Maximum measuring range: Rod 4 m (13 ft); rope 45 m (148 ft)
• Accuracy: ±2 mm (±0.08 in)
• International explosion protection certificates; EN10204-3.1
• Linearity protocol (3-point, 5-point)
Your benefits
• Reliable measurement even for changing product and process conditions
• HistoROM data management for easy commissioning, maintenance and
diagnostics
• Highest reliability due to Multi-Echo Tracking
• Hardware and software developed according to IEC 61508 (up to SIL3)
• Seamless integration into control or asset management systems
• Intuitive user interface in national languages
• Bluetooth® wireless technology for commissioning, operation and maintenance via
free iOS / Android app SmartBlue
• Easy proof test for SIL
• Heartbeat Technology™
Solutions
Services

Advertisement

Table of Contents
loading

Related Manuals for Endress+Hauser Levelflex FMP56

Summary of Contents for Endress+Hauser Levelflex FMP56

  • Page 1 Solutions Services TI01004F/00/EN/25.22-00 71603695 2022-12-13 Technical Information Levelflex FMP56, FMP57 Guided wave radar Level measurement in bulk solids Application • Rod or rope probe • Process connection: Starting 3/4" thread or flange • Process temperature: –40 to +185 °C (–40 to +365 °F) •...

  • Page 2: Table Of Contents

    Levelflex FMP56, FMP57 Table of contents Important document information ....4 Process pressure range ......53 Dielectric constant (DC) .
  • Page 3 Levelflex FMP56, FMP57 Heartbeat Monitoring ......Accessories ....... 84 Device-specific accessories .

  • Page 4: Important Document Information

    Levelflex FMP56, FMP57 Important document information Symbols Safety symbols DANGER This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in serious or fatal injury. WARNING This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in serious or fatal injury.

  • Page 5: Function And System Design

    Levelflex FMP56, FMP57 Function and system design Measuring principle General principles The Levelflex is a "downward-looking" measuring system that functions according to the time-of- flight method (ToF). The distance from the reference point to the product surface is measured. High- frequency pulses are injected to a probe and led along the probe.
  • Page 6 Levelflex FMP56, FMP57 Dielectric constant The dielectric constant (DC) of the medium directly affects the degree of reflection of the high- frequency pulses. In the case of large DC values, such as with water or ammonia, there is strong pulse reflection while, in the case of low DC values, such as with hydrocarbons, pulse reflection is weak.

  • Page 7: Measuring System

    • Measurement is unaffected by product properties • Hardware and software developed according to SIL IEC 61508 • Genuine, direct interface measurement Procurement • As the global market leader in level measurement, Endress+Hauser guarantees the security of your investment • Worldwide support and service Installation •...
  • Page 8 Levelflex FMP56, FMP57 A0011388  2 Rope probe with centering rod Rope probe • Maximum probe length 12 m (40 ft) • Material: • 316L • PA>steel • Maximum tensile loading capacity 12 kN FMP57 For level measurement in bulk solids A0011387 ...
  • Page 9 Levelflex FMP56, FMP57 A0011388  4 Rope probe with centering rod Rope probe • Maximum probe length 45 m (148 ft) • Material: • 316L • PA>steel • Maximum tensile loading capacity 30 kN Endress+Hauser...

  • Page 10: Input

    Levelflex FMP56, FMP57 Input Measured variable The measured variable is the distance between the reference point and the product surface. The level is calculated based on "E", the empty distance entered. Optionally, the level can be converted to other variables (volume, mass) by linearization (32 points).
  • Page 11 Levelflex FMP56, FMP57 Levelflex FMP57 Measuring range Medium group ε Typical bulk solids Bare metallic Bare metallic PA-coated Rod probes Rope probes Rope probes 1.4 to 1.6 Plastic powder 4 m (13 ft) 20 to 25 m — (66 to 82 ft) 1.6 to 1.9...

  • Page 12: Blocking Distance

    Levelflex FMP56, FMP57 Blocking distance The upper blocking distance (= UB) is the minimum distance from the reference point of the measurement (mounting flange) to the maximum level. 100% A0013628  5 Definition of blocking distance and safety distance Reference point of measurement...

  • Page 13: Output

    Levelflex FMP56, FMP57 Output Output signal HART • Signal coding: FSK ±0.5 mA over current signal • Data transmission rate: 1 200 Bit/s • Galvanic isolation: Bluetooth® wireless technology • Device version: Order code 610 "Accessory mounted", option NF "Bluetooth"...

  • Page 14: Signal On Alarm

    Levelflex FMP56, FMP57 • Scan rate: Corresponds to the measuring cycle • Signal source / device variables: • Level linearized • Distance • Terminal voltage • Electronic temperature • Relative echo amplitude • Diagnostic values, advanced diagnostic blocks • Only for active interface measurement •...

  • Page 15: Protocol-Specific Data

    Levelflex FMP56, FMP57 Protocol-specific data HART Manufacturer ID 17 (0x11) Device type ID 0x1122 HART specification Device description files (DTM, DD) Information and files under: • www.endress.com • www.fieldcommgroup.org HART load min. 250 Ω HART device variables The measured values can be freely assigned to the device variables.
  • Page 16 Levelflex FMP56, FMP57 PROFIBUS PA Manufacturer ID 17 (0x11) Ident number 0x1558 Profile version 3.02 GSD file Information and files under: • www.endress.com GSD file version • www.profibus.org Output values Analog Input: • Level linearized • Distance • Terminal voltage •...
  • Page 17 Service with information about the state of the device Data Transfer Contains parameters for backing up the device No output values Transducer Block configuration in the display module and for writing the saved configuration to the device. Access to these parameters is reserved for Endress+Hauser Service. Endress+Hauser...
  • Page 18 Levelflex FMP56, FMP57 Function blocks Block Contents Number of Number of Execution Functionality permanent instantiatable time blocks blocks Resource Block The Resource Block contains all Enhanced the data that uniquely identify the device. It is an electronic version of a nameplate of the device.
  • Page 19 Levelflex FMP56, FMP57 Block Contents Number of Number of Execution Functionality permanent instantiatable time blocks blocks Integrator The Integrator Block integrates a 25 ms Standard Block variable as a function of the time or accumulates the counts from a Pulse Input Block. The Block can...

  • Page 20: Power Supply

    Levelflex FMP56, FMP57 Power supply Terminal assignment Terminal assignment, 2-wire: 4 to 20 mA HART A0036498  6 Terminal assignment, 2-wire: 4 to 20 mA HART Without integrated overvoltage protection With integrated overvoltage protection Connection 4 to 20 mA, HART passive: terminals 1 and 2, without integrated overvoltage protection...
  • Page 21 Levelflex FMP56, FMP57 Block diagram, 2-wire: 4 to 20 mA HART, switch output A0036501  9 Block diagram, 2-wire: 4 to 20 mA HART, switch output Active barrier for power supply (e.g. RN221N); observe terminal voltage Resistor for HART communication (≥ 250 Ω); observe maximum load Connection for Commubox FXA195 or FieldXpert SFX350/SFX370 (via VIATOR Bluetooth modem) Analog display unit;...
  • Page 22 Levelflex FMP56, FMP57 Block diagram, 2-wire: 4 to 20 mAHART, 4 to 20 mA A0036502  11 Block diagram, 2-wire: 4 to 20 mAHART, 4 to 20 mA Active barrier for power supply (e.g. RN221N), current output 1; observe terminal voltage Resistor for HART communication (≥...
  • Page 23 Levelflex FMP56, FMP57 Terminal assignment, 4-wire: 4 to 20 mA HART (90 to 253 V A0036519  14 Terminal assignment, 4-wire: 4 to 20 mAHART (90 to 253 V Connection 4 to 20 mA HART (active): terminals 3 and 4...
  • Page 24 Levelflex FMP56, FMP57 Terminal assignment PROFIBUS PA / FOUNDATION Fieldbus A0036500  16 Terminal assignment PROFIBUS PA / FOUNDATION Fieldbus Without integrated overvoltage protection With integrated overvoltage protection Connection, PROFIBUS PA / FOUNDATION Fieldbus: terminals 1 and 2, without integrated overvoltage...

  • Page 25: Device Plug

    Signal + Not assigned Signal - Ground A0011176  21 Pin assignment of 7/8" plug Signal - Signal + Not assigned Shielding An external power supply is necessary. Supply voltage Various power supply units can be ordered from Endress+Hauser. Endress+Hauser...
  • Page 26 Levelflex FMP56, FMP57 2-wire, 4-20mA HART, passive 2-wire; 4-20mA HART "Approval" Terminal voltage U at device Maximum load R, depending on the supply voltage U of the power supply unit 3) 4) • Non-hazardous 11.5 to 35 V R [ ] •...
  • Page 27 Levelflex FMP56, FMP57 2-wire; 4-20mA HART, 4-20mA "Approval" Terminal voltage U at device Maximum load R, depending on the supply voltage U of the power supply unit Channel 1: 3) 4) 5) 13.5 to 30 V R [ ] Ω...

  • Page 28: Power Consumption

    Levelflex FMP56, FMP57 4-wire, 4-20mA HART, active "Power supply; output" Terminal voltage U Maximum load R K: 4-wire 90-253VAC; 4-20mA HART 90 to 253 V (50 to 60 Hz), overvoltage 500 Ω category II L: 4-wire 10.4-48VDC; 4-20mA HART 10.4 to 48 V...

  • Page 29: Power Supply Failure

    Levelflex FMP56, FMP57 FOUNDATION Fieldbus Device basic current 15 mA Failure current FDE (Fault 0 mA Disconnection Electronic) FISCO 17.5 V 550 mA 5.5 W 5 nF 10 μH Power supply failure • Configuration is retained in the HistoROM (EEPROM).

  • Page 30: Overvoltage Protection

    < 1.5 pF Nominal arrest impulse voltage (8/20 μs) 10 kA External overvoltage protection module HAW562 or HAW569 from Endress+Hauser are suited as external overvoltage protection. For detailed information please refer to the following documents: • HAW562: TI01012K • HAW569: TI01013K...

  • Page 31: Performance Characteristics

    Levelflex FMP56, FMP57 Performance characteristics Reference operating • Temperature = +24 °C (+75 °F) ±5 °C (±9 °F) conditions • Pressure = 960 mbar abs. (14 psia) ±100 mbar (±1.45 psi) • Humidity = 60 % ±15 % • Reflection factor ≥ 0.8 (metal plate for rod and rope probe with min. 1 m (40 in) diameter) •...

  • Page 32: Resolution

    Levelflex FMP56, FMP57 80 (3.15) 60 (2.36) DC = 80 40 (1.57) 20 (0.79) -20 (-0.79) -40 (-1.57) -60 (-2.36) -80 (-3.15) A0021482  23 Measured error at the probe end for rope probes Distance from the probe end [mm(in)]...

  • Page 33: Response Time

    Levelflex FMP56, FMP57 Response time The response time can be configured. The following step response times (in accordance with DIN EN IEC 61298-2 / DIN EN IEC 60770-1) are when damping is switched off: Level measurement Probe length Sampling rate Response time <...

  • Page 34: Mounting

    Levelflex FMP56, FMP57 Mounting Mounting requirements Suitable mounting position A0021468  25 Installation conditions for Levelflex Spacing requirements when mounting • Distance (A) between the vessel wall and rod and rope probes: • For smooth metallic walls: > 50 mm (2 in) •...
  • Page 35 Levelflex FMP56, FMP57 Additional conditions • When mounting outdoors, a weather protection cover (1) can be used to protect the device against extreme weather conditions. • In metallic vessels, preferably do not mount the probe in the center of the vessel (2), as this would lead to increased interference echoes.
  • Page 36 Levelflex FMP56, FMP57 Mounting under confined conditions Mounting with remote probe The device version with a remote probe is suitable for applications with restricted mounting space. In this case, the electronics housing is mounted at a separate position from the probe.
  • Page 37 Levelflex FMP56, FMP57 Notes on the mechanical load of the probe Tensile load Bulk solids exert tensile forces on rope probes which increase with: • The probe length, i.e. the maximum cover • The bulk density of the product • The silo diameter and •...
  • Page 38 Levelflex FMP56, FMP57 L [m] A0017171  27 Polyethylene pellets in metal silo with smooth walls; tensile load as a function of level L for rope diameters 6 mm (0.24 in) and 4 mm (0.16 in) Silo diameter 12 m (40 ft)
  • Page 39 Levelflex FMP56, FMP57 L [m] A0017173  29 Cement in metal silo with smooth walls; tensile load as a function of level L for rope diameters 6 mm (0.24 in) and 4 mm (0.16 in) Silo diameter 12 m (40 ft)
  • Page 40 Levelflex FMP56, FMP57 Lateral loading capacity (flexural strength) of rod probes FMP57 Rod 16mm (0.63") 316L 30 Nm Endress+Hauser...
  • Page 41 Levelflex FMP56, FMP57 Information concerning the process connection Probes are mounted on the process connection with threaded connections or flanges. If there is the danger with this installation that the probe end moves so much that it occasionally touches the vessel floor or cone, the probe may need to be shortened at the lower end and fixed in place.
  • Page 42 Levelflex FMP56, FMP57 Rope, Ø 6 mm (0.24 in) Length H: 135 mm (5.3 in) • Permissible nozzle diameter: ≤ 150 mm (6 in) For larger diameters, the near-range measuring capability may be reduced. For large nozzles, see the section "Mounting in nozzles ≥ DN300"...
  • Page 43 Levelflex FMP56, FMP57 Securing the probe Securing rope probes A0012609 Rope sag: ≥ 10 mm/(1 m probe length) [0.12 in/(1 ft probe length)] Reliably grounded end of probe Reliably insulated end of probe Fastener in female thread of probe end weight Insulated fastening kit •...
  • Page 44 Levelflex FMP56, FMP57 Securing rod probes • For WHG approval: A support is required for probe lengths ≥ 3 m (10 ft). • In general, rod probes must be secured in the event of horizontal flow (e.g. from an agitator) or strong vibrations.
  • Page 45 Metal plate Metal pipe Rod extension/centering device HMP40 (see "Accessories") Installation with rod extension/centering device (accessory): Strong dust generation can lead to build-up behind the centering disk. This can result in interference reflections. For other installation options, please contact Endress+Hauser. Endress+Hauser...
  • Page 46 Levelflex FMP56, FMP57 Mounting from the side mm (in) A0014140 • If installation from above is not possible, the device can also be mounted from the side • Always secure the rope probe in this case • Support the rod and coax probe if the lateral load-bearing capacity is exceeded •...
  • Page 47 Levelflex FMP56, FMP57 Non-metal vessels A0012527 Non-metal vessel Metal sheet or metal flange To ensure good measurement results when mounting on non-metal vessels • Use a device with a metal flange (minimum size DN50/2"). • Alternatively: at the process connection, mount a metal sheet with a diameter of at least 200 mm (8 in) at a right angle to the probe.
  • Page 48 Levelflex FMP56, FMP57 Vessel with thermal insulation If process temperatures are high, the device must be included in normal vessel insulation (1) in order to prevent the electronics heating up as a result of thermal radiation or convection. The insulation may not go beyond the points labeled "MAX" in the drawings.

  • Page 49: Environment

    Levelflex FMP56, FMP57 Environment Ambient temperature Measuring device –40 to +80 °C (–40 to +176 °F) Local display –20 to +70 °C (–4 to +158 °F), the readability of the local display may be impaired at temperatures outside the temperature range.
  • Page 50 Levelflex FMP56, FMP57 In the event of temperature (T ) at the process connection, the permitted ambient temperature (T is reduced as indicated in the following diagram (temperature derating): Temperature derating for FMP56 with threaded connection G¾ or NPT¾ [°C] ([°F])T a...

  • Page 51: Storage Temperature

    Levelflex FMP56, FMP57 Temperature derating for FMP57 [°C] ([°F])T a +80(+176) GT20: +66(+150) GT18: +63(+145) 4...20 mA HART GT19: +45(+113) -40(-40) +185 [°C] (-40) (+180) (+365) ([°F]) [°C] ([°F])T a (+174) GT18/20: +79 (+174) GT19: +74 (+165) GT20: +61(+141) 4...20 mA HART GT18: +58(+136) 4...20 mA...

  • Page 52: Altitude According To Iec61010-1 Ed.3

    Levelflex FMP56, FMP57 Altitude according to • Generally up to 2 000 m (6 600 ft) above MSL. • Above 2 000 m (6 600 ft) if the following conditions are met: IEC61010-1 Ed.3 • Ordering feature 020 "Power supply; Output" = A, B, C, E or G (2-wire versions) •...

  • Page 53: Process

    Levelflex FMP56, FMP57 Process Process temperature range The maximum temperature permitted at the process connection is determined by the O-ring version ordered: Device O-ring material Process temperature Approval FMP56 FKM (Viton GLT) –30 to +120 °C (–22 to +248 °F) EPDM (70C4 pW FKN) –40 to +120 °C...

  • Page 54: Mechanical Construction

    Levelflex FMP56, FMP57 Mechanical construction Dimensions Dimensions of the electronics housing 98 (3.86)* 78 (3.07) 90 (3.54) A0011666  33 Housing GT18 (316L). Unit of measurement mm (in) *For devices with integrated overvoltage protection. 99 (3.9)* 78 (3.07) 90 (3.54) A0011346 ...
  • Page 55 Levelflex FMP56, FMP57 Mounting bracket dimensions ø42...60 (1.65...2.36) 127...140 122 (4.8) (5...5.51) 161 (6.34) 162...175 (6.38...6.89) A0014793  36 Mounting bracket for electronics housing. Unit of measurement mm (in) Wall mounting Post mounting With "remote sensor" device versions (see feature 060 in the product structure), the mounting bracket is included in the scope of delivery.
  • Page 56 Levelflex FMP56, FMP57 FMP56: Dimensions of process connection/probe 36 mm 10 mm 10 mm 10 mm ø6 (0.24) ø4 (0.16) ø22 (0.87) ø22 (0.87) A0012781  38 FMP56: Process connection / probe. Unit of measurement mm (in) Thread ISO228 G3/4 or ANSI MNPT3/4 (feature 100) Rope probe 4mm or 1/6"...
  • Page 57 Levelflex FMP56, FMP57 FMP57: Dimensions of process connection/probe SW55 SW55 AF55 AF55 SW14 SW14 SW14 AF14 AF14 AF14 SW14 SW14 AF14 AF14 SW14 SW14 AF14 AF14 SW14 AF14 ø6 (0.24) ø8 (0.31) ø6 (0.24) ø4 (0.16) ø16 (0.63) ø22 (0.87) ø30 (1.18)

  • Page 58: Probe Length Tolerances

    Levelflex FMP56, FMP57 Probe length tolerances Rod probes Permitted tolerance depending on the probe length: • < 1 m (3.3 ft) = –5 mm (–0.2 in) • 1 to 3 m (3.3 to 9.8 ft) = –10 mm (–0.39 in) •...

  • Page 59: Weight

    Levelflex FMP56, FMP57 Weight Housing Part Weight GT18 housing - stainless steel Approx. 4.5 kg GT19 housing - plastic Approx. 1.2 kg GT20 housing - aluminum Approx. 1.9 kg FMP56 Part Weight Part Weight Sensor Approx. 0.8 kg Rope probe 4 mm Approx.

  • Page 60: Materials: Gt19 Housing (Plastic)

    Levelflex FMP56, FMP57 Materials: GT19 housing (plastic) A0013788  41 Material; GT19 housing Housing; PBT 2.1 Electronics compartment cover; PBT-PC, seals; EPDM, window; PC, thread coating; graphite-based lubricant varnish 2.2 Connection compartment cover; PBT, seal; EPDM, thread coating; graphite-based lubricant varnish Lock at the housing neck;...

  • Page 61: Materials: Process Connection

    Levelflex FMP56, FMP57 Materials: Process Endress+Hauser supplies DIN/EN stainless steel flanges as per AISI 316L (DIN/ EN material number 1.4404 or 14435). With regard to their stability-temperature property, the materials connection 1.4404 and 1.4435 are grouped together under 13E0 in EN 1092-1: 2007 Tab. G.3.1-1. The chemical composition of the two materials can be identical.

  • Page 62: Materials: Probe

    Levelflex FMP56, FMP57 Materials: Probe Levelflex FMP56, FMP57 - standard probes Feature 060 "Probe" Material • LA: rope 4mm, 316 • NB: rope 6mm, PA>steel • LB: rope 1/6", 316 • NE: rope 1/4", PA>steel 316L (1.4404) 316 (1.4401) Rope: steel, galvanized Coating 1 mm (0.04 in): PA 12 (Vestamid L 1940)

  • Page 63: Materials: Mounting Bracket

    Levelflex FMP56, FMP57 Materials: Mounting bracket A0015143 Mounting bracket for "remote sensor" version Component Material Holder 316L (1.4404) Round bracket 316Ti (1.4571) Screws/nuts A4-70 Distance sleeves 316Ti (1.4571) or 316L (1.4404) Half-shells 316L (1.4404) Endress+Hauser...

  • Page 64: Materials: Adapter And Cable For Remote Sensor

    Levelflex FMP56, FMP57 Materials: Adapter and cable for remote sensor A0021722 Adapter and cable for "remote sensor" version Component Material Cable FRNC Sensor adapter 304 (1.4301) Terminal 316L (1.4404) Screw A4-70 Band 316 (1.4401) Crimp sleeve Aluminum Nameplate 304 (1.4301)

  • Page 65: Materials: Weather Protection Cover

    Levelflex FMP56, FMP57 Materials: weather protection cover A0015473  43 Material; weather protection cover Protection cap; 316L (1.4404) Molded rubber part (4x); EPDM Clamping screw; 316L (1.4404) + carbon fiber Bracket; 316L (1.4404) Ground terminal; A4, 316L (1.4404) Fillister-head screw; A4-70 + washer; A4...
  • Page 66 Levelflex FMP56, FMP57 Integrated data memory (HistoROM) • Adoption of data configuration when electronics modules are replaced • Up to 100 event messages recorded in the device • Data logging with up to 1000 logged values • A reference signal curve is saved during commissioning for later use as a reference during...

  • Page 67: Local Operation

    Levelflex FMP56, FMP57 Local operation Operation Pushbuttons Touch Control with Order code for Option C "SD02" Option E "SD03" "Display; Operation" A0036312 A0036313 Display 4-line display 4-line display elements white background lighting; switches to red in event of device error Format for displaying measured variables and status variables can be individually configured Permitted ambient temperature for the display: –20 to +70 °C (–4 to +158 °F)

  • Page 68: Operation Via Bluetooth® Wireless Technology

    Levelflex FMP56, FMP57 Operation via Bluetooth® Requirements wireless technology A0036790  45 Device with Bluetooth module Electronics housing of the device Bluetooth module This operation option is only available for devices with Bluetooth module. There are the following options: • The device has been ordered with a Bluetooth module: Feature 610 "Accessory Mounted", option NF "Bluetooth"...

  • Page 69: Remote Operation

    Levelflex FMP56, FMP57 Remote operation Via HART protocol A0044334  47 Options for remote operation via HART protocol PLC (programmable logic controller) Transmitter power supply unit, e.g., RN42 Connection for Commubox FXA195 and AMS Trex device communicator AMS Trex device communicator Computer with operating tool (e.g., DeviceCare/FieldCare, AMS Device View, SIMATIC PDM)
  • Page 70 Levelflex FMP56, FMP57 Via FOUNDATION Fieldbus FF-HSE FF-H1 FF-H1 A0017188  48 FOUNDATION Fieldbus system architecture with associated components FFblue Bluetooth modem Field Xpert SFX350/SFX370 DeviceCare/FieldCare NI-FF interface card Industrial network FF-HSE High Speed Ethernet FF-H1 FOUNDATION Fieldbus-H1 Linking Device FF-HSE/FF-H1...
  • Page 71 Levelflex FMP56, FMP57 Via service interface (CDI) A0039148 Computer with FieldCare/DeviceCare operating tool Commubox FXA291 Service interface (CDI) of the measuring device (= Endress+Hauser Common Data Interface) Endress+Hauser...
  • Page 72 Levelflex FMP56, FMP57 SupplyCare inventory SupplyCare is a web-based operating program for coordinating the flow of material and information along the supply chain. SupplyCare provides a comprehensive overview of the levels of management software geographically distributed tanks and silos, for instance, providing complete transparency over the current inventory situation, regardless of time and location.
  • Page 73 Levelflex FMP56, FMP57 A0034288  49 Example of inventory management platform with SupplyCare Enterprise SCE30B SupplyCare Enterprise (via Web browser) SupplyCare Enterprise installation SupplyCare Enterprise on mobile devices (via Web browser) Ethernet/WLAN/UMTS Fieldgate FXA42 Power supply 24 V DC Modbus TCP via Ethernet as server/client...
  • Page 74 Levelflex FMP56, FMP57 Cloud-based application: SupplyCare Hosting SupplyCare Hosting is offered as a hosting service (software as a service). Here, the software is installed within the Endress+Hauser IT infrastructure and made available to the user in the Endress +Hauser portal. A0034289 ...

  • Page 75: Certificates And Approvals

    The separate "Safety Instructions" documentation (XA) containing all the relevant explosion protection data is available from your Endress+Hauser sales organization. Dual seal according to The devices have been designed according to ANSI/ISA 12.27.01 as dual seal devices, allowing the user to waive the use and save the cost of installing external secondary process seals in the conduit ANSI/ISA 12.27.01...

  • Page 76: Marine Approval

    Levelflex FMP56, FMP57 Marine approval Device Marine approval DNV GL FMP56 FMP57     See order code for 590 "Additional approval" Radio approval Satisfies "Part 15" of the FCC rules for an unintentional radiator. All probes meet the requirements for a Class A digital device.

  • Page 77: Test, Certificate

    Levelflex FMP56, FMP57 Test, certificate Feature 580 "Test, Designation Approval certificate" 3.1 Material certificate, pressurized parts, EN10204-3.1 inspection FMP57 certificate Declaration of Conformity ASME B31.3: FMP57 The design, the material used, the pressure and temperature ranges and the labeling of the devices meet the requirements of ASME B31.3...

  • Page 78: Other Standards And Guidelines

    Levelflex FMP56, FMP57 Other standards and • EN 60529 Degrees of protection provided by enclosures (IP code) guidelines • EN 61010-1 Safety requirements for electrical equipment for measurement, control and laboratory use • IEC/EN 61326 "Emission in accordance with Class A requirements". Electromagnetic compatibility (EMC requirements).

  • Page 79: Ordering Information

    • Depending on the device: Direct input of measuring point-specific information such as measuring range or operating language • Automatic verification of exclusion criteria • Automatic creation of the order code and its breakdown in PDF or Excel output format • Ability to order directly in the Endress+Hauser Online Shop Endress+Hauser...

  • Page 80: 3-Point Linearity Protocol

    Levelflex FMP56, FMP57 3-point linearity protocol The following points must be considered if option F3 (3-point linearity protocol) was selected in feature 550 ("Calibration"). The 3 points of the linearity protocol are defined as follows, depending on the selected probe:...

  • Page 81: 5-Point Linearity Protocol

    Levelflex FMP56, FMP57 5-point linearity protocol The following points must be considered if option F4 (5-point linearity protocol) was selected in feature 550 ("Calibration"). The 5 points of the linearity protocol are evenly distributed over the measuring range (0% - 100%).

  • Page 82: Application Packages

    Levelflex FMP56, FMP57 Customized If the option IJ: "Customized parameterization HART", IK "Customized parameterization PA" or IL "Customized parameterization FF" has been selected in feature 570 "Service", presettings that differ parameterization from the default settings can be selected for the following parameters:...

  • Page 83: Heartbeat Verification

    Levelflex FMP56, FMP57 Detailed description See the "Diagnostics and troubleshooting" section of the Operating Instructions for the device. Heartbeat Verification Availability Available for the following versions of feature 540 "Application package": • EH Heartbeat Verification + Monitoring • EJ Heartbeat Verification Device functionality checked on demand •...

  • Page 84: Accessories

    Levelflex FMP56, FMP57 "Foam detection" wizard • The Heartbeat Monitoring module contains the Foam detection wizard. • This wizard is used to configure automatic foam detection, which detects foam on the product surface on the basis of the reduced signal amplitude. Foam detection can be linked to a switch output in order to control a sprinkler system, for example, which dissolves the foam.
  • Page 85 Levelflex FMP56, FMP57 202 (7.95) 299 (11.8) A0015472  52 Dimensions. Unit of measurement mm (in) Material 316L Order number for accessories: 71162242 Mounting bracket for electronics housing Accessories Description Mounting bracket for electronics housing ø42...60 (1.65...2.36) 122 (4.8) 127...140 (5...5.51)
  • Page 86 Levelflex FMP56, FMP57 Rod extension / centering device Accessories Description Rod extension / centering device HMP40 • Suitable for: FMP57 • Permitted temperature at lower edge of nozzle: • without centering disk: no restriction • with centering disk: -40 to +150 °C (-40 to +302 °F)
  • Page 87 Levelflex FMP56, FMP57 Mounting kit, insulated Accessories Description Mounting kit, insulated suitable for • FMP56 • FMP57 A0013586  54 Scope of delivery of mounting kit: Insulation sleeve Eye bolt To secure rope probes so that they are reliably insulated.
  • Page 88 Levelflex FMP56, FMP57 Technical data • Material: • Plastic PBT • 316L/1.4404 • Aluminum • Degree of protection: IP68 / NEMA 6P and IP66 / NEMA 4x • Suitable for display modules: • SD02 (push buttons) • SD03 (touch control) •...
  • Page 89 Levelflex FMP56, FMP57 Technical data • Resistance per channel: 2 × 0.5 Ω • Threshold DC voltage: 400 to 700 V • Threshold surge voltage: < 800 V • Capacitance at 1 MHz: < 1.5 pF • Nominal leakage current (8/20 μs): 10 kA •...

  • Page 90: Communication-Specific Accessories

    For details, see "Technical Information" TI00404F Commubox FXA291 Connects Endress+Hauser field devices with a CDI interface (= Endress+Hauser Common Data Interface) and the USB port of a computer or laptop Order number: 51516983 For details, see "Technical Information" TI00405C...

  • Page 91: Service-Specific Accessories

    Technical Information TI00081R and Brief Operating Instructions KA00110R Supplementary documentation The following document types are available in the Downloads section of the Endress+Hauser website (www.endress.com/downloads): For an overview of the scope of the associated Technical Documentation, refer to the following: •...
  • Page 92 *71603695* 71603695 www.addresses.endress.com...
