- Page 1 UPER ® SC113 Chassis Series SC113TQ-700UB SC113TQ-700CB SC113TQ-R650UB SC113TQ-R650CB SC113TQ-563CB SC113TQ-563UB SC113TQ-560UB USER’S MANUAL 1.0b...
- Page 2 SC113 Chassis Manual The information in this User’s Manual has been carefully reviewed and is believed to be accurate. The vendor assumes no responsibility for any inaccuracies that may be contained in this document, makes no commitment to update or to keep current the information in this manual, or to notify any person or organization of the updates.
- Page 3 Preface Preface About This Manual This manual is written for professional system integrators and PC technicians. It provides information for the installation and use of the SC113 1U chassis. Installa- tion and maintenance should be performed by experienced technicians only. Supermicro's SC113 1U chassis is optimized for high-end, high-performance appli- cations.
- Page 4 SC113 Chassis Manual Manual Organization Chapter 1 Introduction The first chapter provides a checklist of the main components included with this chassis and describes the main features of the SC113 chassis. This chapter also includes contact information. Chapter 2 System Safety This chapter lists warnings, precautions and system safety.
-
Page 5: Table Of Contents
Preface Table of Contents Preface About This Manual ......................iii Chapter 1 Introduction Overview ......................1-1 Shipping List ....................1-1 Chassis Features .................... 1-2 CPU ......................... 1-2 Hard Drives ..................... 1-2 I/O Expansion Slots ..................1-2 Peripheral Drives ..................... 1-2 Contacting Supermicro .................. - Page 6 SC113 Chassis Manual Power Supply LEDs ..................4-5 Chapter 5 Chassis Setup and Maintenance Overview ......................5-1 Installation and Maintenance Procedures ............5-1 Installation ....................... 5-1 General Maintenance ..................5-1 Removing the Chassis Cover ................. 5-2 Installing and Removing Hard Drives ............. 5-3 DVD-ROM Drive Installation ................
- Page 7 Preface Inner Rail Extension ..................6-5 Outer Rails ...................... 6-6 Installing the Chassis into a Telco rack ............6-9 Appendix A SC113 Chassis Cables Appendix B SC113 Power Supply Specifications Appendix C SAS-113TQ Backplane Specifications...
- Page 8 SC113 Chassis Manual Notes viii...
-
Page 9: Chapter 1 Introduction

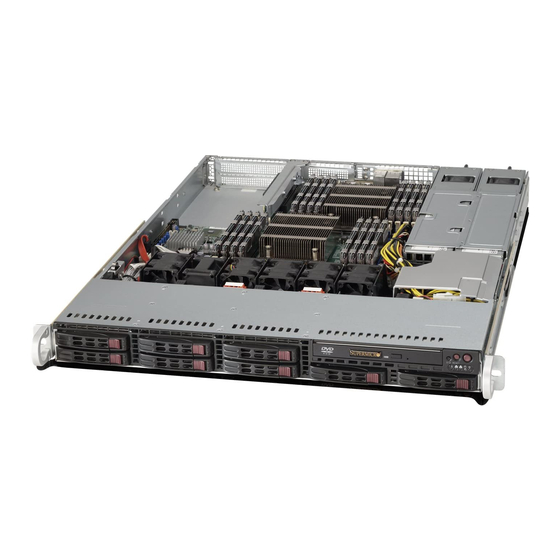

Chapter 1 Introduction Chapter 1 Introduction Overview Supermicro’s SC113 1U chassis features a unique and highly-optimized design. The chassis is equipped with high efficiency power supply. High-performance fans provide ample optimized cooling for the dual processor modules and eight hot-swappable drive bays offer maximum storage capacity in a 1U form factor. Only SAS or enterprise SATA HDDs are recommended for use in the SC113 chassis. -
Page 10: Chassis Features
SC113 Chassis Manual Chassis Features The SC113 1U high-performance chassis includes the following features: The SC113 chassis supports a single or dual CPU. Please refer to the motherboard specifications on our Website for updates on supported processors. Hard Drives The SC113 chassis features 8 hard drive bays for 2.5" hot-swappable SAS/SATA drives. -
Page 11: Contacting Supermicro
Chapter 1 Introduction Contacting Supermicro Headquarters Address: Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Web Site: www.supermicro.com Europe Address: Super Micro Computer B.V. Het Sterrenbeeld 28, 5215 ML 's-Hertogenbosch, The Netherlands Tel:... -
Page 12: Returning Merchandise For Service
SC113 Chassis Manual Returning Merchandise for Service A receipt or copy of your invoice marked with the date of purchase is required be- fore any warranty service will be rendered. You can obtain service by calling your vendor for a Returned Merchandise Authorization (RMA) number. When returning to the manufacturer, the RMA number should be prominently displayed on the outside of the shipping carton, and mailed prepaid or hand-carried. -
Page 13: Chapter 2 System Safety
Chapter 2 System Safety Chapter 2 System Safety Overview This chapter provides a quick setup checklist to get your chassis up and running. Following the steps in the order given should enable you to have your chassis set up and operational within a minimal amount of time. This quick setup assumes that you are an experienced technician, famailiar with common concepts and terminology. -
Page 14: Electrical Safety Precautions
SC113 Chassis Manual Electrical Safety Precautions Basic electrical safety precautions should be followed to protect yourself from harm and the SC113 from damage: • Be aware of the locations of the power on/off switch on the chassis as well as the room’s emergency power-off switch, disconnection switch or electrical outlet. -
Page 15: General Safety Precautions
Chapter 2 System Safety radiation exposure, do not open the enclosure or use the unit in any uncon- ventional way. General Safety Precautions • Keep the area around the chassis clean and free of clutter. • Place the chassis top cover and any system components that have been re- moved away from the system or on a table so that they won’t accidentally be stepped on. - Page 16 SC113 Chassis Manual • Do not let components or PCBs come into contact with your clothing, which may retain a charge even if you are wearing a wrist strap. • Handle a board by its edges only; do not touch its components, peripheral chips, memory modules or contacts.
-
Page 17: Chapter 3 Chassis Components
Chapter 3 Chassis Components Chapter 3 Chassis Components Overview This chapter describes the most common components included with your chassis. Some components listed may not be included or compatible with your particular chassis model. For more information, see the installation instructions detailed later in this manual. -
Page 18: Power Supply
SC113 Chassis Manual Power Supply Each SC113 chassis model includes one or two high-efficiency power supplies rated at 560, 650 or 700 Watts. "R" models include a second redundant, hot-swappable power supply. In the unlikely event your power supply fails, replacement is simple and can be done without tools. -
Page 19: Chapter 4 System Interface
Chapter 4 System Interface Chapter 4 System Interface Overview There are several LEDs on the control panel and on the drive carriers that provide system and component status. This chapter explains the meanings of all LED indi- cators and the appropriate responses that need to be taken. Figure 4-1: Control Panel Buttons and LEDs... -
Page 20: Control Panel Buttons
SC113 Chassis Manual Control Panel Buttons The SC113 chassis includes two or three push-buttons located on the front panel: A reset button, a power on/off button, and a UID button • Reset: The reset button is used to reboot the system. •... -
Page 21: Control Panel Leds
Chapter 4 System Interface Control Panel LEDs The control panel located on the front of the SC113 chassis has up to five LEDs. These LEDs provide critical information related to different parts of the system. This section explains what each LED indicates when illuminated and any action that may be required. -
Page 22: Drive Carrier Leds
SC113 Chassis Manual • NIC2: Indicates network activity on GLAN2 when flashing. • NIC1: Indicates network activity on GLAN1 when flashing. • HDD: Indicates IDE channel activity. SAS/SATA drive and/or DVD-ROM drive activity when flashing. • Power: Indicates power is being supplied to the system's power supply units. This LED should normally be illuminated when the system is operating. -
Page 23: Power Supply Leds
Chapter 4 System Interface nection to the SATA backplane enables this LED to blink on and off when that particular drive is being accessed. • Red: The red LED indicates a SAS/SATA drive failure. If one of the SAS/SATA drives fail, you should be notified by your system management software. Power Supply LEDs This chassis provides several options which may include hot-swappable, cold- swappable, and redundant power supplies. - Page 24 SC113 Chassis Manual Notes...
-
Page 25: Chapter 5 Chassis Setup And Maintenance
Chapter 5 Chassis Setup and Maintenance Chapter 5 Chassis Setup and Maintenance Overview This chapter covers the steps required to install components and perform mainte- nance on the chassis. The only tool you will need to install components and perform maintenance is a Phillips screwdriver. -
Page 26: Removing The Chassis Cover
SC113 Chassis Manual Removing the Chassis Cover Figure 5-1: Removing the Chassis Cover Removing the Chassis Cover: Remove the screws securing the top cover to the chssis. Slide the cover toward the rear of the chassis. Lift the cover up and off of the chassis. Warning: Except for short periods of time, do NOT operate the server without the cover in place. -
Page 27: Installing And Removing Hard Drives
Chapter 5 Chassis Setup and Maintenance Installing and Removing Hard Drives Figure 5-2: Removing Hard Drive The SC113 chassis excepts eight hot-swappable hard drives. Only SAS or enter- prise SATA HDDs are recommended. Removing Hard Drive Carriers from the Chassis 1. - Page 28 SC113 Chassis Manual Figure 5-3: Removing the Dummy Drive from the Hard Drive Carrier Installing a Hard Drive into a Drive Carrier Remove the dummy drive, which comes pre-installed in the drive carrier, by removing the screws securing the dummy drive to the carrier. Note that these screws cannot be reused on the actual 2.5"...
-
Page 29: Dvd-Rom Drive Installation
Chapter 5 Chassis Setup and Maintenance DVD-ROM Drive Installation The SC113 chassis models include a DVD-ROM, which is usually pre-installed. Installing or Replacing a DVD-ROM Drive Power down the system and if necessary, remove the server from the rack and pull the mini-bezel (grate) from the DVD-ROM drive bay. Remove the chassis cover. -
Page 30: Removing The Backplane
SC113 Chassis Manual Reconnect the data and power cables. Replace the chassis cover (replace the server in the rack, if necessary) and power up the system. Removing the Backplane The SC113 chassis backplane is located behind the hard drives and in front of the front system fans. -
Page 31: Backplane Installation
Chapter 5 Chassis Setup and Maintenance Backplane Installation Installing the Backplane Slide the backplane into the chassis as shown, inserting the lower edge of the backplane into the clips on the floor of the chassis. Align the mounting holes in the backplane with the mounting holes in the chassis Secure the backplane to the chassis using the five screws provided with the backplane. -
Page 32: Installing The Motherboard
SC113 Chassis Manual Installing the Motherboard Optional Standoffs Figure 5-7: Chassis Standoffs Permanent and Optional Standoffs Standoffs prevent short circuits by creating space between the motherboard and the chassis surface. The SC113 chassis includes permanent standoffs in locations used by most motherboards. These standoffs accept the rounded Phillips head screws included in the SC113 accessories packaging. -
Page 33: Motherboard Installation
Chapter 5 Chassis Setup and Maintenance Motherboard Installation Installing the Motherboard Review the documentation that came with your motherboard. Become familiar with component placement, requirements, and precautions. Disconnect the power supply and lay the chassis on a flat surface. Open the chassis cover. If necessary, remove the riser card. -
Page 34: Expansion Card Setup
SC113 Chassis Manual Expansion Card Setup SC113 chassis includes I/O slots for add-on cards and expansion cards. "C" models (like SC113TQ-700CB) include one full height slot. "U" model chassis include two full-height expansion slots and one low-profile expansion slot. Note: You must use a riser card to install expansion cards into any SC113 chassis. Riser cards are sold separately. - Page 35 Chapter 5 Chassis Setup and Maintenance Riser Card Riser Card Bracket Screws Figure 5-10: Chassis with a Riser Card Installing an Expansion Card Confirm that you have the correct riser card for your chassis model and the add-on card includes a standard bracket. Remove the chassis cover.
-
Page 36: Installing The Air Shroud
SC113 Chassis Manual Installing the Air Shroud Air shrouds concentrate airflow to maximize fan efficiency. The SC113 chassis air shroud does not require screws for installation. Figure 5-11: Air Shroud Installation Air Shroud Installation Align the air shroud with the CPU, memory card and fan locations. Check the air shroud and serverboard components, removing the break-away piece from the side of the air shroud if required. -
Page 37: Checking The Airflow
Chapter 5 Chassis Setup and Maintenance Checking the Airflow Check the Airflow Make sure there are no objects to obstruct airflow in and out of the server. In addition, if you are using a front bezel, make sure the bezel's filter is replaced periodically. -
Page 38: 5-10 System Fans
SC113 Chassis Manual 5-10 System Fans Figure 5-12: System Fan Four heavy-duty fans provide cooling for the chassis. These fans circulate air through the chassis as a means of lowering the chassis' internal temperature. The SC113 chassis contains counter-rotating fans. Each fan unit is actually made up of two fans joined back-to-back, which rotate in opposite directions. - Page 39 Chapter 5 Chassis Setup and Maintenance Figure 5-13: Chassis Fans The SC113 chassis includes four pre-installed fans. Two additional open slots are available so that up to two more fans may be added. Replacing a System Fan If necessary, open the chassis while the power is running to determine which fan has failed.
-
Page 40: 5-11 Power Supply
SC113 Chassis Manual 5-11 Power Supply Depending on your chassis model, the SC113 chassis has a 560W, 650W or 700W power supply. This power supply is auto-switching capable. They automatically sense and operate at a 100v to 240v input voltage. An amber light will be illuminated on the power supply when the power is off. - Page 41 Chapter 5 Chassis Setup and Maintenance Release Tab Figure 5-14: Removing the Power Supply Replacing the Power Supply Power down the server and unplug the power cord. If your chassis includes a redundant power supply (at least two power modules), you can leave the server running and remove only one power supply.
- Page 42 SC113 Chassis Manual Notes 5-18...
-
Page 43: Chapter 6 Rack Installation
Chapter 6 Rack Installation Chapter 6 Rack Installation Overview This chapter provides a quick setup checklist to get your chassis up and running. Following these steps in the order given should enable you to have the system operational within a minimum amount of time. Unpacking the System You should inspect the box the chassis was shipped in and note if it was damaged in any way. -
Page 44: Rack Precautions
SC113 Chassis Manual Warnings and Precautions! Rack Precautions • Ensure that the leveling jacks on the bottom of the rack are fully extended to the floor with the full weight of the rack resting on them. • In single rack installation, stabilizers should be attached to the rack. •... -
Page 45: Rack Mounting Considerations
Chapter 6 Rack Installation Rack Mounting Considerations Ambient Operating Temperature If installed in a closed or multi-unit rack assembly, the ambient operating tempera- ture of the rack environment may be greater than the ambient temperature of the room. Therefore, consideration should be given to installing the equipment in an environment compatible with the manufacturer’s maximum rated ambient tempera- ture (Tmra). -
Page 46: Rack Mounting Instructions
SC113 Chassis Manual Rack Mounting Instructions This section provides information on installing the SC113 chassis into a rack unit with the rails provided. There are a variety of rack units on the market, which may mean the assembly procedure will differ slightly. You should also refer to the installation instructions that came with the rack unit you are using. - Page 47 Chapter 6 Rack Installation Figure 6-2: Identifying the Sections of the Rack Rails (right side rail shown) Inner Rail Extension The SC113 chassis includes a set of inner rails in two sections: inner rails and inner rail extensions. The inner rails are pre-attached and do not interfere with normal use of the chassis if you decide not to use a server rack.
- Page 48 SC113 Chassis Manual Secure to the Front of the Rack Secure to the Rear of the Rack Attach Outer Racks together Figure 6-3: Assembling the Outer Rails Outer Rails Installing the Outer Rails to the Rack Attach the shorter outer rail to the outside of the longer outer rail. You must align the pins with the slides.
- Page 49 Chapter 6 Rack Installation SCALE 0.380 Figure 6-4: Installing the Outer Rails to the Server Rack...
- Page 50 SC113 Chassis Manual Figure 6-5: Installing the Server into a Rack Installing the Chassis into a Rack Confirm that chassis includes the inner rails and inner rail extensions. Also- confirm that the outer rails are installed on the rack. Align the chassis inner rails with the front of the out rails on the rack. Slide the chassis rails into the rack rails, keeping the pressure even on both sides (you may have to depress the locking tabs when inserting).
- Page 51 Chapter 6 Rack Installation Installing the Chassis into a Telco rack To install the chassis into a Telco type rack, use two L-shaped brackets on either side of the chassis (four total). First, determine how far follow the server will extend out the front of the rack.
- Page 52 SC113 Chassis Manual Notes 6-10...
- Page 53 Appendix A Chassis Cables Appendix A SC113 Chassis Cables A-1 Overview This appendix lists supported cables for your system. It only includes the most commonly used components and configurations. For more compatible cables, refer to the manufacturer of the motherboard you are using and our Web site at: www. supermicro.com.
- Page 54 SC113 Chassis Manual A-3 Compatible Cables These cables are compatible with the SC113 chassis. This section lists cables included with the SC113 chassis packages. Alternate SAS/SATA Cables Some compatible motherboards have different connectors. If your motherboard has only one SAS connector that the SAS/SATA cables must share, use one of the following cables.
- Page 55 Appendix A Chassis Cables Extending Power Cables Although Supermicro chassis are designed with to be efficient and cost-effective, some compatible motherboards have power connectors located in different areas. To use these motherboards you may have to extend the power cables to the moth- erboards.
- Page 56 SC113 Chassis Manual Notes...
- Page 57 Appendix B Power Supply Specifications Appendix B SC113 Power Supply Specifications This appendix lists power supply specifications for your chassis system. SC113TQ-R700UB 700W/750W (80 PLUS Gold Certified) MFR Part # PWS-704P-1R 700W: 100 - 140 V, 50-60 Hz, 8.5 - 6 Amp AC Voltage 750W: 180 - 240 V, 60-50 Hz, 5 - 3.8 Amp DC Output...
- Page 58 SC113 Chassis Manual Notes...
- Page 59 Appendix C SAS-113TQ Backplane Specifications Appendix C SAS-113TQ Backplane Specifications To avoid personal injury and property damage, carefully follow all the safety steps listed below when accessing your system or handling the components. C-1 ESD Safety Guidelines Electrostatic Discharge (ESD) can damage electronic com ponents. To prevent dam- age to your system, it is important to handle it very carefully.
- Page 60 SC113 Chassis Manual C-3 An Important Note to Users All images and layouts shown in this user's guide are based upon the latest back- plane revision available at the time of publishing. The card you have received may or may not look exactly the same as the graphics shown in this manual. C-4 Introduction to the SAS-113TQ Backplane The SAS-113TQ backplane has been designed to utilize the most up-to-date tech- nology available, providing your system with reliable, high-quality performance.
- Page 61 Appendix C SAS-113TQ Backplane Specifications Connectors, Jumpers and LEDs C-5 Front Connectors +12V +12V 9072 RST UPGRADE J P46 M H3 M H4 M H2 J P52 SB#2 SB#1 J P33: M ODE SEL J P29 1- 2: SGPI O J P13 2- 3: I 2C I 2C#2...
- Page 62 SC113 Chassis Manual C-6 Front Connector and Pin Definitions #1. Backplane Main Power Connectors Backplane Main Power The 4-pin connectors designated JP10, provide 4-Pin Connector power to the backplane. See the table on the Pin# Definition right for pin definitions. +12V 2 and 3 Ground...
- Page 63 Appendix C SAS-113TQ Backplane Specifications #6 and #7. I C Connectors C Connector Pin Definitions The I C connectors, designated JP44 and Pin# Definition JP45, are used to monitor HDD activity and Data status. See the table on the right for pin Ground definitions.
- Page 64 SC113 Chassis Manual C-7 Front Jumper Locations and Settings JP29 JP33 JP18 +12V +12V 9072 RST UPGRADE J P46 M H3 M H4 M H2 SB#2 J P52 SB#1 J P33: M ODE SEL J P29 1- 2: SGPI O J P13 2- 3: I 2C I 2C#2...
- Page 65 Appendix C SAS-113TQ Backplane Specifications C and SGPIO Modes and Jumper Settings This backplane can utilize I C or SGPIO. SGPIO is the default mode and can be used without making changes to your jumpers. The following information details which jumpers must be configured to use I C mode or restore your backplane to SGPIO mode.
- Page 66 SC113 Chassis Manual Rear Connectors and LED Indicators SAS #1 SAS #5 SAS #3 ACT#3 FAIL#1 ACT#0 C106 ACT#6 ACT#2 FAIL#0 FAIL#2 FAIL#6 SAS #4 SAS #6 SAS #2 SAS #0 SAS #7 Figure C-4: Rear Connectors Rear SAS/SATA Connectors Rear Connector SAS/SATA Drive...
- Page 67 Appendix C SAS-113TQ Backplane Specifications Notes...
- Page 68 SC113 Chassis Manual Disclaimer (cont.) The products sold by Supermicro are not intended for and will not be used in life sup- port systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency communication devices or other critical systems whose failure to per- form be reasonably expected to result in significant injury or loss of life or catastrophic property damage.
