Summary of Contents for Supero SC113TQ-R700CB
- Page 1 UPER ® SC113 Chassis Series SC113TQ-R700CB SC113TQ-R700UB SC113TQ-R700WB SC113TQ-700UB SC113TQ-700CB SC113TQ-R650UB SC113TQ-R650CB SC113TQ-600CB SC113TQ-600UB SC113TQ-600WB SC113TQ-563CB SC113TQ-563UB SC113TQ-R500UB SC113TQ-R500UB USER’S MANUAL 1.0d...
- Page 2 This product, including software and documentation, is the property of Supermicro and/or its licensors, and is supplied only under a license. Any use or reproduction of this product is not allowed, except as expressly permitted by the terms of said license.

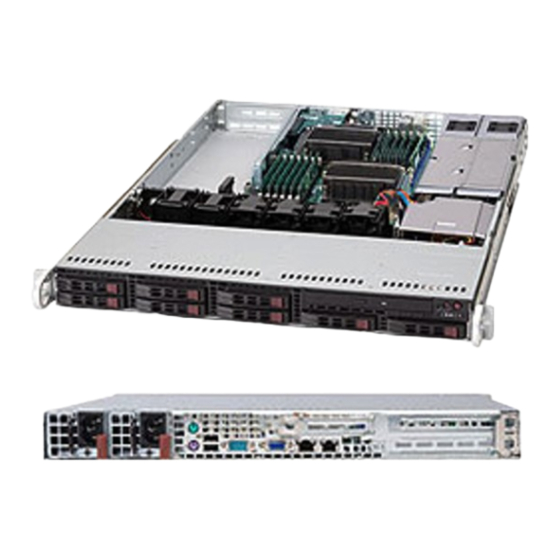

- Page 3 It includes eight hot-swappable 2.5" SAS/SATA hard drive bays protected with the SES-II safety feature, with optimized cooling for all configurations. This manual lists compatible parts available at the time of publication. Always refer to the Supermicro Web site for updates on supported parts and configurations at www.supermicro.com.
-
Page 4: Manual Organization
Appendices These appendices list compatible cables and compatible backplanes. Not all compatible backplanes are listed. Refer to our Web site for the latest compatible backplane information at http://www.supermicro.com. Appendix A Chassis Cables Appendix B SAS-113TQ Backplane Specifications... -
Page 5: Table Of Contents
About This Manual ......................iii Chapter 1 Introduction Overview ......................1-1 Shipping List ....................1-1 Contacting Supermicro ..................1-4 Returning Merchandise for Service..............1-5 Chapter 2 Standardized Warning Statements for AC Systems About Standardized Warning Statements ............2-1 Warning Definition ................... 2-1 Installation Instructions .................. - Page 6 SC113 Chassis Manual Chapter 4 System Interface Overview ......................4-1 Control Panel Buttons ..................4-2 Control Panel LEDs ..................4-3 Drive Carrier LEDs ..................4-4 SAS/SATA Drives .................... 4-4 Power Supply LEDs ..................4-4 Chapter 5 Chassis Setup and Maintenance Overview ......................
- Page 7 Preface Rack Mounting Instructions ................6-4 Identifying the Sections of the Rack Rails ............6-4 Inner Rail Extension ..................6-5 Outer Rails ...................... 6-6 Installing the Chassis into a Telco rack ............6-9 Appendix A SC113 Chassis Cables Overview ......................A-1 Cables Included with SC113 Chassis (SAS/SATA) ........A-1 Compatible Cables ..................A-2 Alternate SAS/SATA Cables ................A-2...
- Page 8 SC113 Chassis Manual Notes viii...
-
Page 9: Chapter 1 Introduction
1U form factor. Only SAS or enterprise SATA HDDs are recommended for use in the SC113 chassis. Note: A complete list of safety warnings is provided on the Supermicro web site at http://www.supermicro.com/about/policies/safety_information.cfm. - Page 10 SC113 Chassis Manual SC113 Chassis Model I/O Slots Power Supply 8x 2.5" FH UIO: SC113TQ-R650UB hot-swap Redundant 650W 2xFF, 1xLP SAS/SATA 8x 2.5" SC113TQ-R650CB hot-swap 1x FF Redundant 650W SAS/SATA 8x 2.5" 600W SC113TQ-600CB hot-swap 1x FF (Digital Switching) SAS/SATA 8x 2.5"...
-
Page 11: Contacting Supermicro
Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Web Site: www.supermicro.com Europe Address: Super Micro Computer, B.V. Het Sterrenbeeld 28, 5215 ML... -
Page 12: Returning Merchandise For Service
For faster service, RMA authorizations may be requested online (http://www. supermicro.com/support/rma/). Whenever possible, repack the chassis in the original Supermicro carton, using the original packaging material. If these are no longer available, be sure to pack the chassis securely, using packaging material to surround the chassis so that it does not shift within the carton and become damaged during shipping. -
Page 13: Chapter 2 Standardized Warning Statements For Ac Systems
Only certified technicians should attempt to install or configure components. Read this appendix in its entirety before installing or configuring components in the Supermicro chassis. These warnings may also be found on our web site at http://www.supermicro.com/ about/policies/safety_information.cfm. Warning Definition Warning! This warning symbol means danger. - Page 14 SC113 Chassis Manual Warnung WICHTIGE SICHERHEITSHINWEISE Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in einer Situation, die zu Verletzungen führen kann. Machen Sie sich vor der Arbeit mit Geräten mit den Gefahren elektrischer Schaltungen und den üblichen Verfahren zur Vorbeugung vor Unfällen vertraut.
- Page 15 Chapter 2: Warning Statements for AC Systems جسذٌة اصابة ًتتسبب ف حالة ٌوكي أى ًاًك ف خطز ًٌٌع هذا الزهز !تحذٌز الذوائز بالوخاطز الٌاجوة عي ي على علن ، ك هعذات تعول على أي قبل أى الكهزبائٍة حىادث أي وقىع وٌع...
-
Page 16: Installation Instructions
SC113 Chassis Manual Installation Instructions Warning! Read the installation instructions before connecting the system to the power source. 設置手順書 システムを電源に接続する前に、 設置手順書をお読み下さい。 警告 将此系统连接电源前,请先阅读安装说明。 警告 將系統與電源連接前，請先閱讀安裝說明。 Warnung Vor dem Anschließen des Systems an die Stromquelle die Installationsanweisungen lesen. ¡Advertencia! Lea las instrucciones de instalación antes de conectar el sistema a la red de alimentación. -
Page 17: Circuit Breaker
Chapter 2: Warning Statements for AC Systems Circuit Breaker Warning! This product relies on the building's installation for short-circuit (overcurrent) protection. Ensure that the protective device is rated not greater than: 250 V, 20 A. サーキッ ト ・ ブレーカー この製品は、 短絡 （過電流） 保護装置がある建物での設置を前提としています。 保護装置の定格が250 V、... -
Page 18: Power Disconnection Warning
SC113 Chassis Manual 경고! 이 제품은 전원의 단락(과전류)방지에 대해서 전적으로 건물의 관련 설비에 의존합니다. 보호장치의 정격이 반드시 250V(볼트), 20A(암페어)를 초과하지 않도록 해야 합니다. Waarschuwing Dit product is afhankelijk van de kortsluitbeveiliging (overspanning) van uw electrische installatie. Controleer of het beveiligde aparaat niet groter gedimensioneerd is dan 220V, 20A. - Page 19 Chapter 2: Warning Statements for AC Systems ¡Advertencia! El sistema debe ser disconnected de todas las fuentes de energía y del cable eléctrico quitado de los módulos de fuente de alimentación antes de tener acceso el interior del chasis para instalar o para quitar componentes de sistema. Attention Le système doit être débranché...
-
Page 20: Equipment Installation
SC113 Chassis Manual Equipment Installation Warning! Only trained and qualified personnel should be allowed to install, replace, or service this equipment. 機器の設置 トレーニングを受け認定された人だけがこの装置の設置、 交換、 またはサービスを許可 されています。 警告 只有经过培训且具有资格的人员才能进行此设备的安装、更换和维修。 警告 只有經過受訓且具資格人員才可安裝、更換與維修此設備。 Warnung Das Installieren, Ersetzen oder Bedienen dieser Ausrüstung sollte nur geschultem, qualifiziertem Personal gestattet werden. -
Page 21: Restricted Area
Chapter 2: Warning Statements for AC Systems Waarschuwing Deze apparatuur mag alleen worden geïnstalleerd, vervangen of hersteld door geschoold en gekwalificeerd personeel. Restricted Area Warning! This unit is intended for installation in restricted access areas. A restricted access area can be accessed only through the use of a special tool, lock and key, or other means of security. -
Page 22: Battery Handling
SC113 Chassis Manual אזור עם גישה מוגבלת !אזהרה יש להתקין את היחידה באזורים שיש בהם הגבלת גישה. הגישה ניתנת בעזרת .)'כלי אבטחה בלבד (מפתח, מנעול וכד محظورة مناطق ٍنتركُبها ف هذه انىحذة تخصيص تم ،أداة خاصت من خالل استخذاو فقط محظورة... - Page 23 Chapter 2: Warning Statements for AC Systems Warnung Bei Einsetzen einer falschen Batterie besteht Explosionsgefahr. Ersetzen Sie die Batterie nur durch den gleichen oder vom Hersteller empfohlenen Batterietyp. Entsorgen Sie die benutzten Batterien nach den Anweisungen des Herstellers. Attention Danger d'explosion si la pile n'est pas remplacée correctement. Ne la remplacer que par une pile de type semblable ou équivalent, recommandée par le fabricant.
-
Page 24: Redundant Power Supplies
SC113 Chassis Manual Redundant Power Supplies Warning! This unit might have more than one power supply connection. All connections must be removed to de-energize the unit. 冗長電源装置 このユニッ トは複数の電源装置が接続されている場合があります。 ユニッ トの電源を切るためには、 すべての接続を取り外さなければなりません。 警告 此部件连接的电源可能不止一个，必须将所有电源断开才能停止给该部件供电。 警告 此裝置連接的電源可能不只一個，必須切斷所有電源才能停止對該裝置的供電。 Warnung Dieses Gerät kann mehr als eine Stromzufuhr haben. Um sicherzustellen, dass der Einheit kein trom zugeführt wird, müssen alle Verbindungen entfernt werden. -
Page 25: Backplane Voltage
Chapter 2: Warning Statements for AC Systems امداد الطاقة بوحدات عدة اتصاالت جهاز ال يكون لهذا قد الكهرباء عن وحدة ال لعسل كافة االتصاالت يجب إزالة 경고! 이 장치에는 한 개 이상의 전원 공급 단자가 연결되어 있을 수 있습니다. 이 장치에 전원을... -
Page 26: Comply With Local And National Electrical Codes
SC113 Chassis Manual מתח בפנל האחורי !הרה אז קיימת סכנת מתח בפנל האחורי בזמן תפעול המערכת. יש להיזהר במהלך .העבודה اللىحة أوالطاقة المىجىدة على التيار الكهزبائي مه خطز هناك هذا الجهاس خدمة كه حذرا عند يعمل النظام عندما يكىن 경고! 시스템이... -
Page 27: Product Disposal
Chapter 2: Warning Statements for AC Systems Attention L'équipement doit être installé conformément aux normes électriques nationales et locales. תיאום חוקי החשמל הארצי !אזהרה הציוד חייבת להיות תואמת לחוקי החשמל המקומיים והארציים התקנת المتعلقة المحلية والىطىية قىاويه يجب أن يمتثل لل الكهربائية... -
Page 28: Hot Swap Fan Warning
SC113 Chassis Manual ¡Advertencia! Al deshacerse por completo de este producto debe seguir todas las leyes y reglamentos nacionales. Attention La mise au rebut ou le recyclage de ce produit sont généralement soumis à des lois et/ou directives de respect de l'environnement. Renseignez-vous auprès de l'organisme compétent. - Page 29 Chapter 2: Warning Statements for AC Systems 警告 當您從機架移除風扇裝置，風扇可能仍在轉動。小心不要將手指、螺絲起子和其他 物品太靠近風扇。 Warnung Die Lüfter drehen sich u. U. noch, wenn die Lüfterbaugruppe aus dem Chassis genommen wird. Halten Sie Finger, Schraubendreher und andere Gegenstände von den Öffnungen des Lüftergehäuses entfernt. ¡Advertencia! Los ventiladores podran dar vuelta cuando usted quite ell montaje del ventilador del chasis.
-
Page 30: Power Cable And Ac Adapter
Electrical Appliance and Material Safety Law prohibits the use of UL or CSA -certified cables (that have UL/CSA shown on the code) for any other electrical devices than products designated by Supermicro only. 電源コードとACアダプター 製品を設置する場合、 提供または指定された接続ケーブル、 電源コードとACアダプター... - Page 31 Appareils électroménagers et de loi sur la sécurité Matériel interdit l'utilisation de UL ou CSA câbles certifiés qui ont UL ou CSA indiqué sur le code pour tous les autres appareils électriques que les produits désignés par Supermicro seulement.
- Page 32 SC113 Chassis Manual Notes 2-20...
-
Page 33: Chapter 3 Chassis Components
Some components listed may not be included or compatible with your particular chassis model. Components For the latest shipping lists, visit our Web site at: http://www.supermicro.com. All SC113 models come in black. Power Supply The chassis includes high-efficiency power supplies. Different chassis models offer choices rated at 500, 560, 600, 650 or 700 Watts. -
Page 34: I/O Expansion Slots
Supermicro Authorized Distributors / System Integrators / Resellers. A list of Supermicro Authorized Distributors / System Integrators /Reseller can be found at: http://www.supermicro.com. Click the Where... -
Page 35: Chapter 4 System Interface
Chapter 4 System Interface Chapter 4 System Interface Overview There are several LEDs on the control panel and on the drive carriers that provide system and component status. This chapter explains the meanings of all LED indi- cators and the appropriate responses that need to be taken. Figure 4-1: Control Panel Buttons and LEDs... -
Page 36: Control Panel Buttons
SC113 Chassis Manual Control Panel Buttons The control panel on the front of the chassis includes push-buttons for reset, power on/off, and a UID. • Reset: The reset button is used to reboot the system. • Power: The main power switch is used to apply or remove power from the power supply to the server system. -
Page 37: Control Panel Leds
Chapter 4 System Interface Control Panel LEDs The control panel located on the front of the SC113 chassis has five LEDs. They pro- vide critical information related to different parts of the system. This section explains what each LED indicates when illuminated and any action that may be required. •... -
Page 38: Drive Carrier Leds
SC113 Chassis Manual • HDD: Indicates IDE channel activity. SAS/SATA drive and/or DVD-ROM drive activity when flashing. • Power: Indicates power is being supplied to the system's power supply units. This LED should normally be illuminated when the system is operating. Drive Carrier LEDs The SC113 chassis uses SAS/SATA drives. -
Page 39: Chapter 5 Chassis Setup And Maintenance
Chapter 5 Chassis Setup and Maintenance Chapter 5 Chassis Setup and Maintenance Overview This chapter covers the steps required to install components and perform mainte- nance on the chassis. The only tool required is a Phillips screwdriver. Review the warnings and precautions listed in the manual before setting up or servicing this chassis. -
Page 40: Removing The Chassis Cover
SC113 Chassis Manual Removing the Chassis Cover Figure 5-1. Removing the Chassis Cover Removing the Chassis Cover: 1. Remove the screws securing the top cover to the chssis. 2. Slide the cover toward the rear of the chassis. 3. Lift the cover up and off of the chassis. Caution: Except for short periods of time, do not operate the server without the cover in place. -
Page 41: Installing And Removing Hard Drives
Chapter 5 Chassis Setup and Maintenance Installing and Removing Hard Drives The SC113 chassis accepts eight hot-swappable hard drives. Note that only SAS or enterprise SATA HDDs are recommended. Figure 5-2. Removing Hard Drive Removing Hard Drive Carriers from the Chassis 1. - Page 42 SC113 Chassis Manual Figure 5-3. Removing the Dummy Drive from the Hard Drive Carrier Installing a Hard Drive 1. Remove the dummy drive, which comes pre-installed in the drive carrier, by removing the screws securing the dummy drive to the carrier. Note that these screws cannot be reused on the actual 2.5"...
-
Page 43: Dvd-Rom Drive Installation
Chapter 5 Chassis Setup and Maintenance DVD-ROM Drive Installation Some SC113 chassis models include a DVD-ROM, which is usually pre-installed. Installing or Replacing a DVD-ROM Drive 1. Power down the system as described in Section 5-2 and if necessary, remove the server from the rack and pull the mini-bezel (grate) from the DVD-ROM drive bay. -
Page 44: Removing The Backplane
SC113 Chassis Manual Removing the Backplane The SC113 chassis backplane is located behind the hard drives and in front of the front system fans. In order to change the jumper settings on the backplane, it may be necessary to remove the backplane from the chassis. Removing the Backplane from the Chassis 1. -
Page 45: Backplane Installation
Chapter 5 Chassis Setup and Maintenance Backplane Installation Installing the Backplane 1. Slide the backplane into the chassis, inserting the lower edge of the backplane into the clips on the floor of the chassis. 2. Align the mounting holes in the backplane with the mounting holes in the chassis 3. -
Page 46: Installing The Motherboard
SC113 Chassis Manual Installing the Motherboard Optional Standoffs Figure 5-7. Chassis Standoffs Permanent and Optional Standoffs Standoffs prevent short circuits by creating space between the motherboard and the chassis surface. The SC113 chassis includes permanent standoffs in locations used by most motherboards. These standoffs accept the rounded Phillips head screws included in the SC113 accessories packaging. -
Page 47: Motherboard Installation
Chapter 5 Chassis Setup and Maintenance Motherboard Installation Installing the Motherboard 1. Review the documentation that came with your motherboard. Become familiar with component placement, requirements, and precautions. 2. Power down the system as described in Section 5-2 and lay the chassis on a flat surface. -
Page 48: Expansion Card Setup
Note: You must use a riser card to install expansion cards into any SC113 chassis. Riser cards are sold separately. For the latest compatibility and performance information, visit our website at: http://www.supermicro.com. I/O Panel Figure 5-9. SC113 Chassis Rear with Two Full Height/Full Length PCI Slots... - Page 49 Chapter 5 Chassis Setup and Maintenance UIO Riser Card WIO Riser Card Figure 5-10. Chassis with a Riser Card Installing an Expansion Card 1. Confirm that you have the correct riser card for your chassis model and the add-on card includes a standard bracket. 2.
-
Page 50: Installing The Air Shroud
SC113 Chassis Manual 5-10 Installing the Air Shroud Air shrouds concentrate airflow to maximize fan efficiency. The SC113 chassis air shroud does not require screws for installation. Figure 5-11. Air Shroud Installation Air Shroud Installation 1. Align the air shroud with the CPU, memory card and fan locations. 2. -
Page 51: Checking The Airflow
Chapter 5 Chassis Setup and Maintenance Checking the Airflow Check the Airflow • Make sure there are no objects to obstruct airflow in and out of the server. In addition, if you are using a front bezel, make sure the bezel's filter is replaced periodically. -
Page 52: System Fans
SC113 Chassis Manual 5-11 System Fans Figure 5-12. System Fan Four heavy-duty fans provide cooling for the chassis. These fans circulate air through the chassis as a means of lowering the chassis' internal temperature. The SC113 chassis contains counter-rotating fans. Each fan unit is actually made up of two fans joined back-to-back, which rotate in opposite directions. - Page 53 Chapter 5 Chassis Setup and Maintenance Figure 5-13. Chassis Fans The SC113 chassis includes four pre-installed fans. Two additional open slots are available so that up to two more fans may be added. Replacing a System Fan 1. If necessary, open the chassis while the power is running to determine which fan has failed.
-
Page 54: Power Supply
SC113 Chassis Manual 5-12 Power Supply The power supplies are auto-switching, so they automatically sense the input volt- age and operate at 100v to 240v. An amber light is illuminated on the power supply when the power is off. A green light indicates that the power supply is operating. Redundant Power Models Redundant power modules are hot-swappable. -
Page 55: Single Power Module Models
Chapter 5 Chassis Setup and Maintenance 2. Push the new power supply module into the power bay until you hear a click. 3. Plug in the AC power cord. Single Power Module Models If the power supply requires replacement, use one of these procedures. Replacing a Single Power Supply (except SC113TQ-563CB or UB) 1. - Page 56 SC113 Chassis Manual Notes 5-18...
-
Page 57: Chapter 6 Rack Installation
Chapter 6 Rack Installation Chapter 6 Rack Installation Overview This chapter provides a quick setup checklist to get your chassis up and running. Following these steps in the order given should enable you to have the system operational within a minimum amount of time. Unpacking the System You should inspect the box the chassis was shipped in and note if it was damaged in any way. -
Page 58: Rack Precautions
SC113 Chassis Manual Rack Precautions • Ensure that the leveling jacks on the bottom of the rack are fully extended to the floor with the full weight of the rack resting on them. • In single rack installation, stabilizers should be attached to the rack. •... -
Page 59: Rack Mounting Considerations
Chapter 6 Rack Installation Rack Mounting Considerations Ambient Operating Temperature If installed in a closed or multi-unit rack assembly, the ambient operating tempera- ture of the rack environment may be greater than the ambient temperature of the room. Therefore, consideration should be given to installing the equipment in an environment compatible with the manufacturer’s maximum rated ambient tempera- ture (Tmra). -
Page 60: Rack Mounting Instructions
SC113 Chassis Manual Rack Mounting Instructions This section provides information on installing the SC113 chassis into a rack unit with the rails provided. There are a variety of rack units on the market, which may mean the assembly procedure will differ slightly. You should also refer to the installation instructions that came with the rack unit you are using. -
Page 61: Inner Rail Extension
Chapter 6 Rack Installation Figure 6-2. Identifying the Sections of the Rack Rails (right side rail shown) Optional Inner Rail Extension The SC113 chassis includes a set of inner rails in two sections: inner rails and optional inner rail extensions. The inner rails are pre-attached and do not interfere with normal use of the chassis if you decide not to use a server rack. -
Page 62: Outer Rails
SC113 Chassis Manual Secure to the Front of the Rack Secure to the Rear of the Rack Attach Outer Racks together Figure 6-3. Assembling the Outer Rails Outer Rails Installing the Outer Rails to the Rack 1. Attach the shorter outer rail to the outside of the longer outer rail. You must align the pins with the slides. - Page 63 Chapter 6 Rack Installation SCALE 0.380 Figure 6-4. Installing the Outer Rails to the Server Rack Note: Figures are for illustrative purposes only. Always install servers into racks from the bottom up.
- Page 64 SC113 Chassis Manual Figure 6-5. Installing the Server into a Rack Installing the Chassis into a Rack 1. Confirm that chassis includes the inner rails and inner rail extensions. Also- confirm that the outer rails are installed on the rack. 2.
-
Page 65: Installing The Chassis Into A Telco Rack
Chapter 6 Rack Installation Installing the Chassis into a Telco rack To install the chassis into a Telco type rack, use two L-shaped brackets on either side of the chassis (four total). First, determine how far follow the server will extend out the front of the rack. - Page 66 SC113 Chassis Manual Notes 6-10...
-
Page 67: Appendix A Sc113 Chassis Cables
This appendix lists supported cables for your system. It only includes the most commonly used components and configurations. For more compatible cables, refer to the manufacturer of the motherboard you are using and our Web site at: www. supermicro.com. A-2 Cables Included with SC113 Chassis (SAS/SATA) Part #... -
Page 68: Compatible Cables
SC113 Chassis Manual A-3 Compatible Cables These cables are compatible with the SC113 chassis. Alternate SAS/SATA Cables Some compatible motherboards have different connectors. If your motherboard has only one SAS connector that the SAS/SATA cables must share, use one of the following cables. -
Page 69: Extending Power Cables
Appendix A Chassis Cables Extending Power Cables Although Supermicro chassis are designed with to be efficient and cost-effective, some compatible motherboards have power connectors located in different areas. To use these motherboards you may have to extend the power cables to the moth- erboards. - Page 70 SC113 Chassis Manual Notes...
-
Page 71: Appendix B Bpn-Sas-113Tq Backplane
Appendix B SAS-113TQ Backplane Specifications Appendix B BPN-SAS-113TQ Backplane To avoid personal injury and property damage, carefully follow all the safety steps listed below when accessing your system or handling the components. B-1 ESD Safety Guidelines Electrostatic Discharge (ESD) can damage electronic com ponents. To prevent dam- age to your system, it is important to handle it very carefully. -
Page 72: An Important Note To Users
This manual reflects SAS-113TQ Revision 1.02, the most current release available at the time of publication. Always refer to the Supermicro Web site at www.supermi- cro.com for the latest updates, compatible parts and supported configurations. -
Page 73: Front Connectors And Jumpers
Appendix B SAS-113TQ Backplane Specifications B-5 Front Connectors +12V +12V 9072 RST UPGRADE JP46 SB#2 JP52 SB#1 JP33:MODE SEL JP29 1-2:SGPIO JP13 2-3:I2C I2C#2 JP45 JP33 BUZZER RST C137 REV 1.02 I2C#1 Figure C-1: Front Jumpers and Connectors Front Connectors and Jumpers 1. -
Page 74: Front Connector And Pin Definitions
SC113 Chassis Manual B-6 Front Connector and Pin Definitions #1. Backplane Main Power Connectors Backplane Main Power The 4-pin connectors, designated JP10 provide 4-Pin Connector (JP10) power to the backplane. See the table on the Pin# Definition right for pin definitions. +12V 2 and 3 Ground... - Page 75 Appendix B SAS-113TQ Backplane Specifications #6 and #7. I C Connectors C Connector Pin Definitions The I C Connectors, designated JP44 and (JP44 and JP45) JP45, are used to monitor HDD activity and Pin# Definition status. See the table on the right for pin Data definitions.
-
Page 76: Explanation Of Jumpers
SC113 Chassis Manual B-7 Front Jumpers and LED Indicators JP29 JP18 +12V +12V 9072 RST UPGRADE JP46 SB#2 JP52 SB#1 JP33:MODE SEL JP29 1-2:SGPIO JP13 2-3:I2C I2C#2 JP45 JP33 BUZZER RST C137 REV 1.02 I2C#1 Figure C-2: Front Jumpers Explanation of Jumpers Connector Pins To modify the operation of the backplane,... -
Page 77: C And Sgpio Modes And Jumper Settings
Appendix B SAS-113TQ Backplane Specifications C and SGPIO Modes and Jumper Settings This backplane can utilize I C or SGPIO. SGPIO is the default mode and can be used without making changes to your jumpers. The following information details which jumpers must be configured to use I C mode or restore your backplane to SGPIO mode. -
Page 78: Rear Connectors And Led Indicators
SC113 Chassis Manual B-8 Rear Connectors and LED Indicators SAS #5 SAS #1 SAS #3 SAS #6 SAS #4 SAS #2 SAS #7 SAS #0 Figure C-3: Rear Connectors Rear SAS/SATA Connectors Rear Connector SAS Drive Connector Number Number SAS/SATA #0 SAS/SATA HDD #0 SAS/SATA #1 SAS/SATA HDD #1... - Page 79 Appendix B SAS-113TQ Backplane Specifications Notes...
- Page 80 SC113 Chassis Manual Disclaimer (cont.) The products sold by Supermicro are not intended for and will not be used in life sup- port systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency communication devices or other critical systems whose failure to per- form be reasonably expected to result in significant injury or loss of life or catastrophic property damage.
