9
GPS OPERATION (ADVANCED)
Checking your location

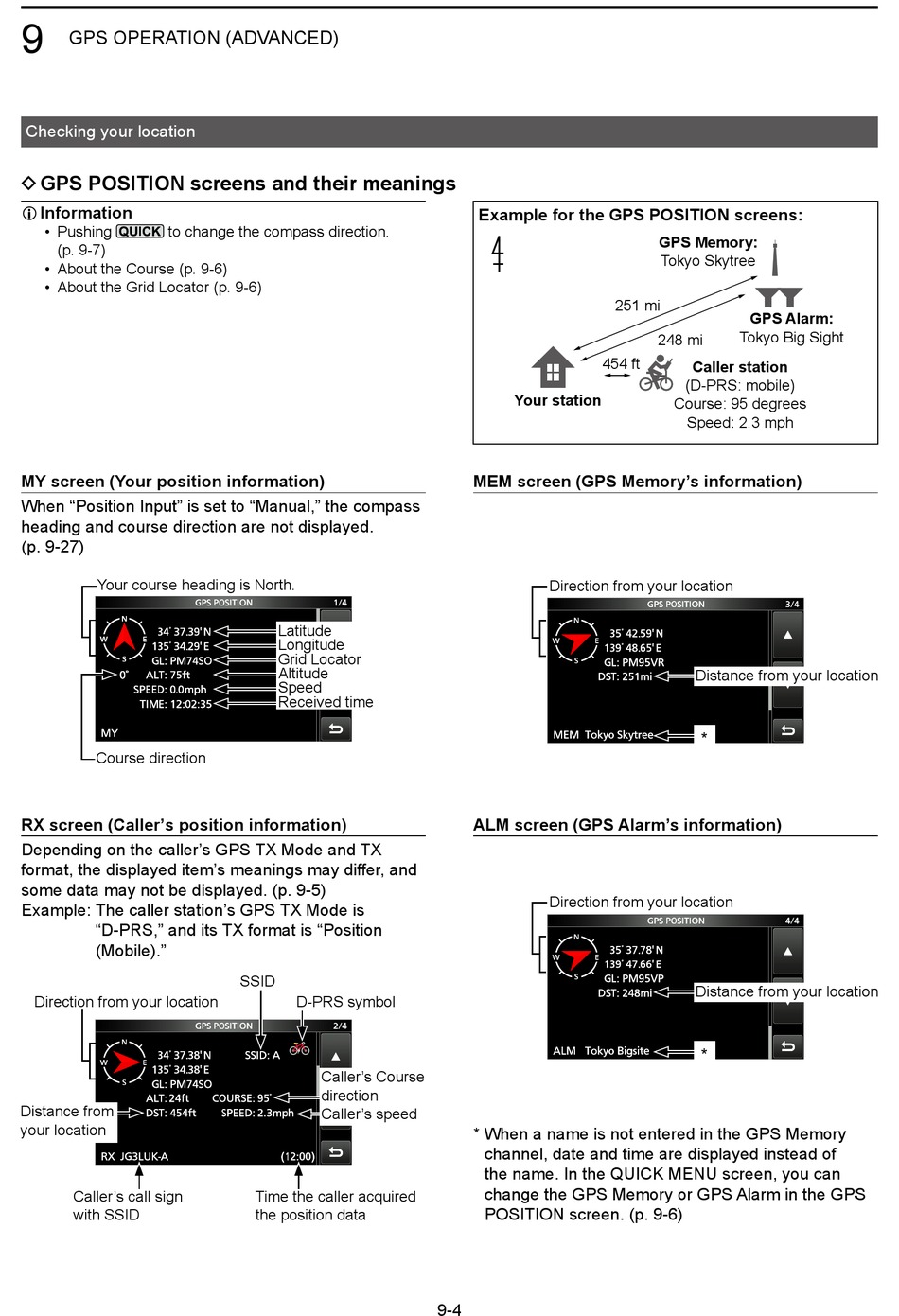

D GPS POSITION screens and their meanings

L Information
• Pushing to change the compass direction.
(p. 9-7)
• About the Course (p. 9-6)
• About the Grid Locator (p. 9-6)
MY screen (Your position information)
When "Position Input" is set to "Manual," the compass
heading and course direction are not displayed.
(p. 9-27)
Your course heading is North.
Course direction
RX screen (Callerʼs position information)
Depending on the callerʼs GPS TX Mode and TX
format, the displayed itemʼs meanings may differ, and
some data may not be displayed. (p. 9-5)
Example: The caller stationʼs GPS TX Mode is
"D-PRS," and its TX format is "Position
(Mobile)."
Direction from your location
Distance from
your location
Caller's call sign
with SSID
Latitude
Longitude
Grid Locator
Altitude
Speed
Received time
SSID
D-PRS symbol
Caller's Course
direction
Caller's speed
Time the caller acquired
the position data
Example for the GPS POSITION screens:
454 ft
Your station
MEM screen (GPS Memory's information)
Direction from your location
ALM screen (GPS Alarm's information)
Direction from your location
* When a name is not entered in the GPS Memory
channel, date and time are displayed instead of
the name. In the QUICK MENU screen, you can
change the GPS Memory or GPS Alarm in the GPS
POSITION screen. (p. 9-6)
9-4
GPS Memory:
Tokyo Skytree
251 mi
GPS Alarm:
Tokyo Big Sight
248 mi
Caller station
(D-PRS: mobile)
Course: 95 degrees
Speed: 2.3 mph
Distance from your location
*
Distance from your location
*
