12
ABOUT THE DV GATEWAY FUNCTION
Setting up a network

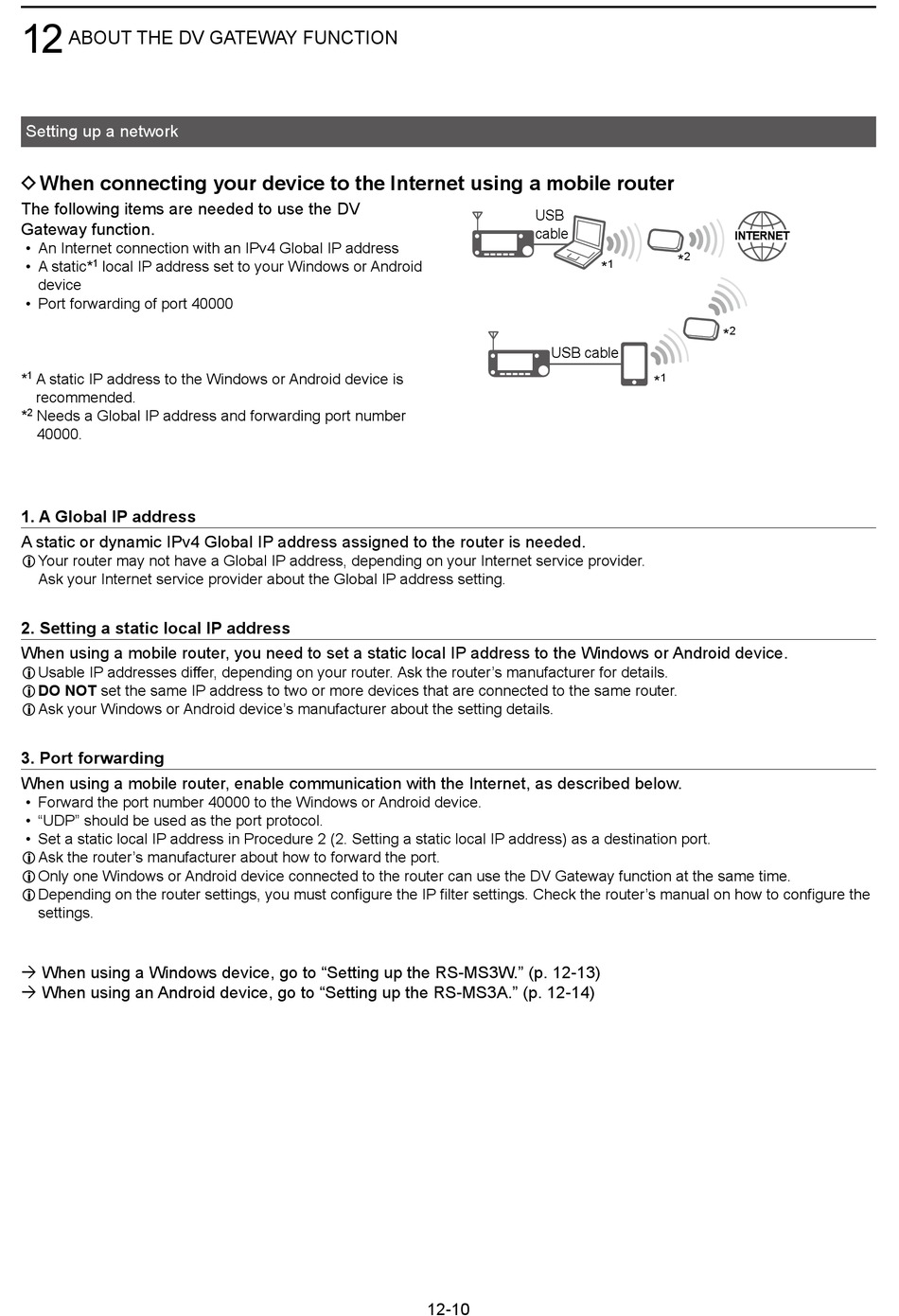

D When connecting your device to the Internet using a mobile router

The following items are needed to use the DV
Gateway function�
• An Internet connection with an IPv4 Global IP address
• A static* 1 local IP address set to your Windows or Android
device
• Port forwarding of port 40000
* A static IP address to the Windows or Android device is
1
recommended�
* Needs a Global IP address and forwarding port number
2
40000�
1. A Global IP address
A static or dynamic IPv4 Global IP address assigned to the router is needed�
L Your router may not have a Global IP address, depending on your Internet service provider�
Ask your Internet service provider about the Global IP address setting�
2. Setting a static local IP address
When using a mobile router, you need to set a static local IP address to the Windows or Android device�
L Usable IP addresses differ, depending on your router. Ask the router's manufacturer for details.
L DO NOT set the same IP address to two or more devices that are connected to the same router�
L Ask your Windows or Android device's manufacturer about the setting details�
3. Port forwarding
When using a mobile router, enable communication with the Internet, as described below�
• Forward the port number 40000 to the Windows or Android device�
• "UDP" should be used as the port protocol�
• Set a static local IP address in Procedure 2 (2� Setting a static local IP address) as a destination port�
L Ask the router's manufacturer about how to forward the port�
L Only one Windows or Android device connected to the router can use the DV Gateway function at the same time�
L Depending on the router settings, you must configure the IP filter settings. Check the router's manual on how to configure the
settings�
 When using a Windows device, go to "Setting up the RS-MS3W�" (p� 12-13)
 When using an Android device, go to "Setting up the RS-MS3A�" (p� 12-14)
USB
cable
USB cable
12-10
INTERNET INTERNET
* 2
* 1
*
2
* 1
