Removing the Bezel Blank

1. Turn off the workstation and any external devices. Disconnect the power
cord from the grounded AC outlet and the network cable from the
system.
2. Remove the workstation access panel.
3. Remove the front bezel.
4. Gently pull the subpanel, with the bezel blank secured in it, away from
the front bezel. Remove the bezel blank.

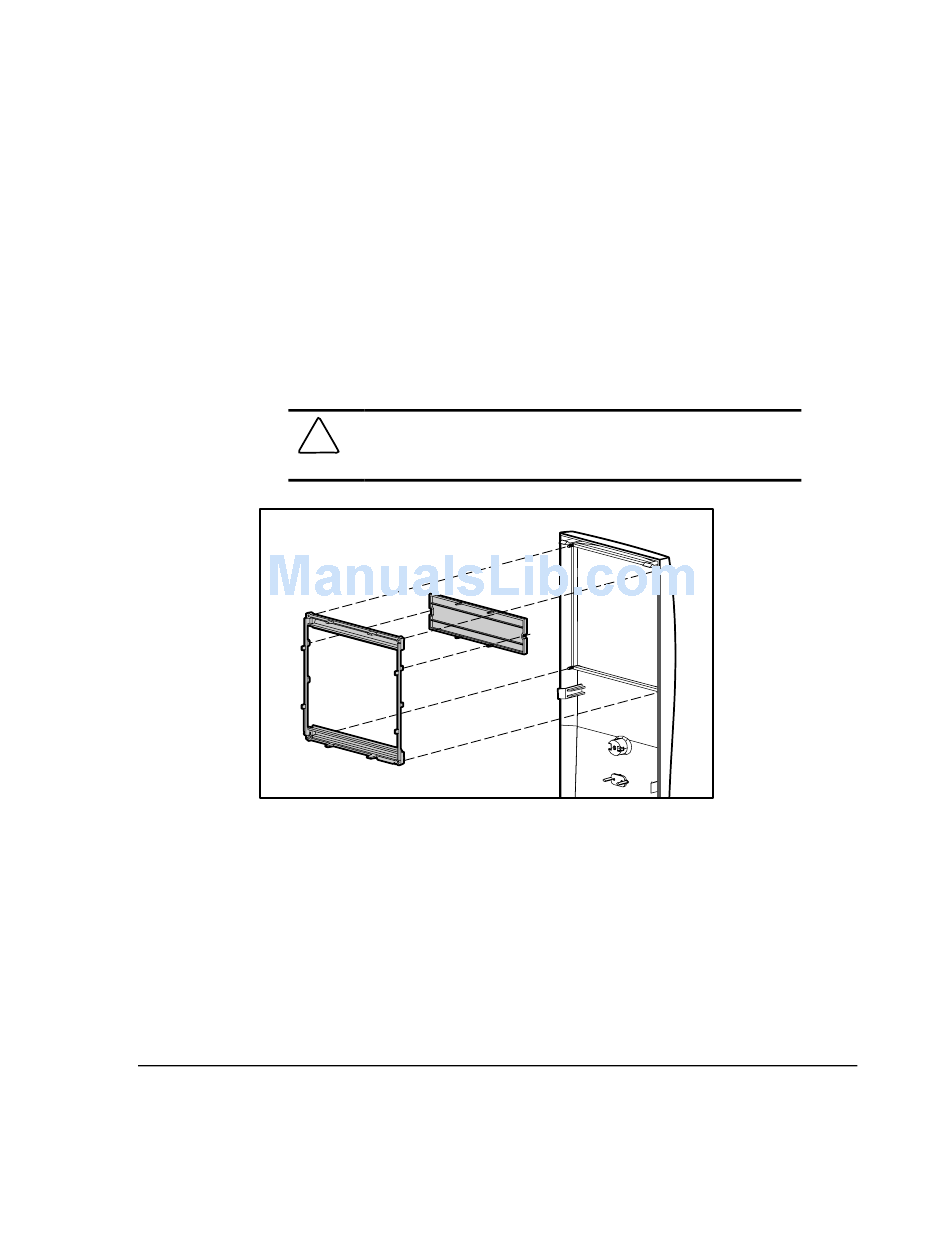

Figure 4-3. Removing the bezel blank from the subpanel
NOTE: When replacing the subpanel, ensure that the aligning pins are in
their proper orientation.
Writer: M. Church Project: Compaq Professional Workstation AP200 Reference Guide Comments: 352620-003
CAUTION: Hold the subpanel straight when you pull it away
from the front bezel. Pulling the subpanel away at an angle could
damage the pins that align it within the front bezel.
