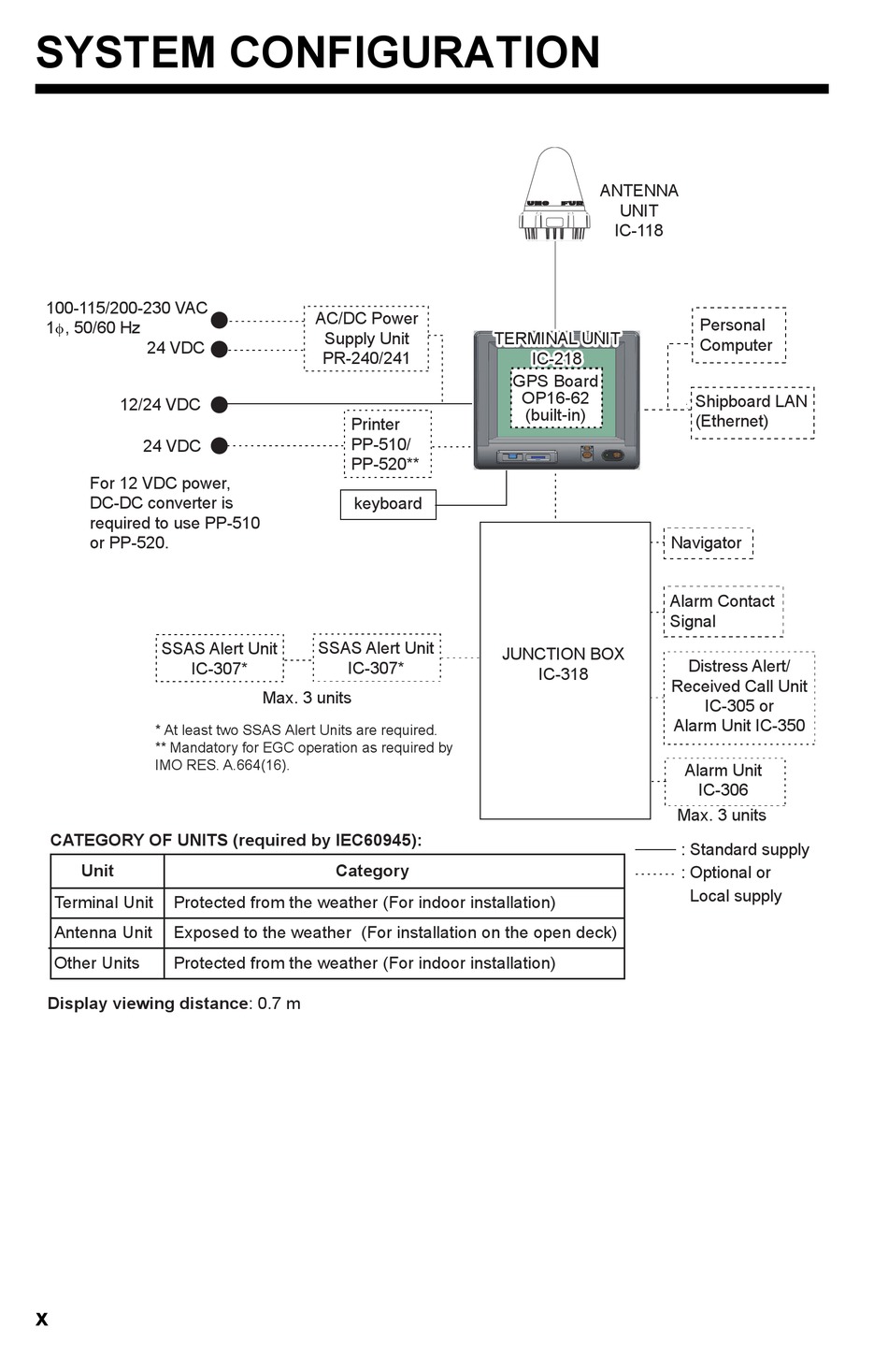

SYSTEM CONFIGURATION

100-115/200-230 VAC
1  , 50/60 Hz
24 VDC
12/24 VDC
24 VDC
For 12 VDC power,
DC-DC converter is
required to use PP-510
or PP-520.
SSAS Alert Unit
IC-307*
* At least two SSAS Alert Units are required.
** Mandatory for EGC operation as required by
IMO RES. A.664(16).
CATEGORY OF UNITS (required by IEC60945):
Unit
Terminal Unit Protected from the weather (For indoor installation)
Antenna Unit Exposed to the weather (For installation on the open deck)
Other Units Protected from the weather (For indoor installation)
Display viewing distance: 0.7 m
x
AC/DC Power
Supply Unit
PR-240/241
Printer
PP-510/
PP-520**
keyboard
SSAS Alert Unit
IC-307*
Max. 3 units
Category
ANTENNA
UNIT
IC-118
TERMINAL UNIT TERMINAL UNIT
IC-218 IC-218
GPS Board
OP16-62
(built-in)
JUNCTION BOX
IC-318
Personal
Computer
Shipboard LAN
(Ethernet)
Navigator
Alarm Contact
Signal
Distress Alert/
Received Call Unit
IC-305 or
Alarm Unit IC-350
Alarm Unit
IC-306
Max. 3 units
: Standard supply
: Optional or
Local supply
