  • Page 1 User’s Manual STOR.E TV+...

  • Page 2: Table Of Contents

    STOR.E TV+ Contents User’s Manual Introduction....................4 Package Content..................4 Safety Instructions..................4 Computer Requirements ................5 TV/Stereo device Requirements ..............5 Product Overview ..................6 Quick Tour .....................6 Remote control ..................9 Getting Started ..................12 Connecting the power adaptor ............12 Connecting to the audio/video device..........14 Network connection and setup ............17 Use of 3-in-1 card reader and USB port ..........18 Connecting to the DVD drive via USB interface ........18 Connecting to the computer via USB interface ........19...
  • Page 3 STOR.E TV+ TOSHIBA Support ..................52 Regulatory Information ................52 REACH ..................... 54 Additional Information ................55 User’s Manual EN-3...

  • Page 4: Introduction

    In order to avoid malfunction or damage of the drive, please carefully follow the precautions listed below. ■ Make sure that you backup all your data on the drive, as Toshiba is not responsible for data corruption or data loss. Toshiba will not cover any data recovery cost.

  • Page 5: Computer Requirements

    (in such case replace the cable with a new one) If the drive behaves not as expected or you have doubts about the electrical safety, please contact immediately the TOSHIBA hotline or an authorised reseller! Computer Requirements ■...

  • Page 6: Product Overview

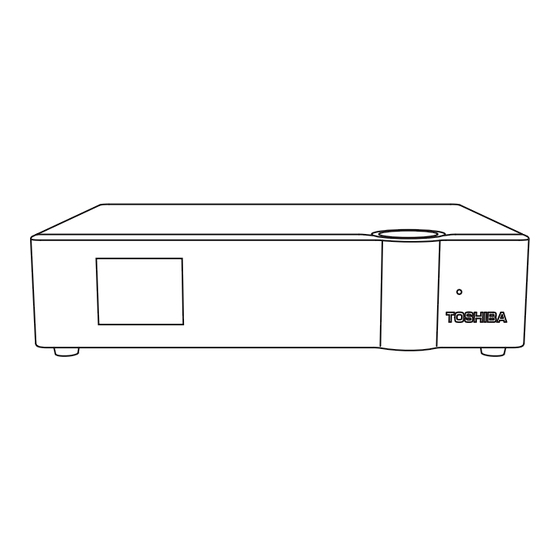

    STOR.E TV+ Product Overview This device is a new type of family high-definition home video player, which can play your favorite pictures, audio/videos files from the built-in Hard Disk Drive, external storage device, memory card including SD (Secure Digital) card, MMC (MultiMediaCard) and MS (Memory Stick) or network, to a connected audio/video playback device.
  • Page 7 STOR.E TV+ Back view USB port HDMI port Coaxial cable jack USB DEVICE port LAN port AV jack DC IN jack (Sample Illustration) Connections on the rear side of STOR.E TV+ Component Description USB DEVICE port Use this USB port for communication with the computer.
  • Page 8 STOR.E TV+ Side View USB port 3-in-1 card reader slot (Sample Illustration) Connections on the side of STOR.E TV+ Component Description 3-in-1 card reader slot Supports SD (Secure Digital) card, MMC (MultiMediaCard) and MS (Memory Stick) USB port Supports multiple external USB storage devices EN-8 User’s Manual...

  • Page 9: Remote Control

    STOR.E TV+ Remote control Button Icon Function Turns device on or off POWER Turns the device sound off MUTE TV SYSTEM Switches between NTSC, PAL, 480P, 576P, 720P 50Hz, 720P 60Hz, 1080i 50Hz and 1080i 60Hz, 1080P 50Hz, 1080P 60Hz. Press to input numbers GO TO Go to the appointed title, chapter or time when...
  • Page 10 STOR.E TV+ Button Icon Function RETURN Return to the previous menu SETUP Open the settings menu Press once to move cursor left Press once to move cursor right Press once to move cursor up Press once to move cursor down Press this button to confirm a selection and or to begin playback of a media file Press to return to the previous file...
  • Page 11 STOR.E TV+ Button Icon Function AUDIO Switches the audio format output ZOOM Press to zoom when playing photos or video programs Photo zoom levels: 2x, 4x, 8x, 16x Video zoom levels: 1x, 2x, 3x, 4x, 8x Shows all the folders and files of the current directory MUSIC Shows the audio files in the current directory...

  • Page 12: Getting Started

    STOR.E TV+ Getting Started Check the Quick Start Guide illustration to setup your device properly. Connecting the power adaptor 1. Choose the proper plug to attach to an AC adaptor. To install the AC adaptor replaceable plug, see the illustrations below. (Sample Illustration) Installing the plugs To remove the replaceable plugs, see the illustrations below.
  • Page 13 STOR.E TV+ 2. Plug the AC adaptor cord/cable into the DC-IN on the back of the STOR.E TV+. (Sample Illustration) Connecting the AC adaptor cord to STOR.E TV+ 3. Connect the power plug to a live electrical outlet. The power light on the front panel glows red when the STOR.E TV+ is powered on.

  • Page 14: Connecting To The Audio/Video Device

    STOR.E TV+ Connecting to the audio/video device STOR.E TV+ connects to the different external device via composite (AV), HDMI, or coaxial ports for audio/video output. Composite AV output connection AC adaptor cable AV cable AV jack (Sample Illustration) Composite AV output connection To connect the device to TV: 1.
  • Page 15 STOR.E TV+ HDMI output connection HDMI is a output port with superior audio and video effects which outputs digital video and audio composited at the same time. AC adaptor cable HDMI cable HDMI port (Sample Illustration) HDMI output connection To connect to a display device via HDMI cable: 1.
  • Page 16 STOR.E TV+ Coaxial output connection AC adaptor cable Coaxial cable Coaxial cable jack (Sample Illustration) Coaxial output connection To connect to an audio device via coaxial cable: 1. Connect the coaxial cable to the coaxial cable port on the STOR.E TV+ and the input port of the audio device.

  • Page 17: Network Connection And Setup

    STOR.E TV+ Network connection and setup This device can play the files stored on the network directly through a router hub. Connect the LAN cable according to the following illustration. There is a strong network connection when the LAN active indicator glows and the Link indicator blinks.

  • Page 18: Use Of 3-In-1 Card Reader And Usb Port

    STOR.E TV+ Use of 3-in-1 card reader and USB port STOR.E TV+ has the ability to expand its large storage. The USB port can read external mobile hard drives/camcorders/DVD drives and the memory card slot lets you insert an SD/MMC/Memory Stick card. You can play a variety of high-definition formats, high-fidelity audio and video files stored in external storage devices directly through the USB port interface or the memory card slot.

  • Page 19: Connecting To The Computer Via Usb Interface

    STOR.E TV+ Connecting to the computer via USB interface STOR.E TV+ is also a personal multimedia files storage device and can be used by connecting to the computer via USB interface. AC adaptor cable USB DEVICE port USB cable USB port (Sample Illustration) USB interface connecting to the computer To connect and use STOR.E TV+, please follow the steps as detailed below: 1.

  • Page 20: Setup Of Media File Sharing On The Computer

    STOR.E TV+ Setup of media file sharing on the computer Two conditions are necessary for successful playback through the network connection. ■ Folder sharing and safety setup. ■ The same gateway and subnet mark addresses are set. Operation of file sharing using Windows XP 1.
  • Page 21 STOR.E TV+ Operation of file sharing using Windows 7 1. Use the Win7 operation system under a user account with administrator rights. 2. Click Control panel -> Network and Internet -> Network and Sharing Center -> Advanced Sharing Settings. Select Turn on file and printer sharing.

  • Page 22: First Boot

    OK. If your language is not available, check the “System Firmware Upgrade” on page 45 section as Toshiba may provide other languages through a firmware update. Not all languages are supported. (Sample Image) First boot - language setup interface After selecting your language, it will go to the TV system interface and allow you to select the appropriate TV system output.

  • Page 23: Operating Stor.e Tv

    STOR.E TV+ Operating STOR.E TV+ The background color of the icon on the screen indicates three kinds of state. Highlighted: that shows the icon is effective. Dim: that shows the icon is noneffective. White: that shows the icon is selected. Main Interface The main interface allows you to access internal Hard Disk content (STOR.E TV+), external USB Device content (USB), memory card, external...
  • Page 24 STOR.E TV+ (Sample Image) Main interface Local HDD From this menu, you can browse the internal Hard Drive content. Press OK to confirm. USB Device From this menu, you can browse the external USB Device content. Press OK to confirm. If no USB Device is connected on the USB port, there will be no USB device folder shown.
  • Page 25 STOR.E TV+ Playlist STOR.E TV+ supports the playlist function, which allows you to add your favorite content to a playlist. The playlist allows you to select music, photos and videos stored on Local HDD, USB device and Memory card. To build your playlist, select the file and press SELECT on the remote control.

  • Page 26: Media Playback

    STOR.E TV+ 3. Share files by setting the software. After installing the software, open the software’s interface, choose Media Base in the main interface of the software, and then choose Add to the media base in the pull-down menu. After adding some documents or folders to the media base, choose Media share in the pull-down menu.
  • Page 27 STOR.E TV+ Supported Audio Formats ■ MP3, WMA, WAV, AAC, OGG, FLAC, LPCM, Dolby Digital, DTS Digital Picture Display Enter the desired folder and click the PHOTO button on the remote control to enter the photo display mode. To playback photos: ■...
  • Page 28 STOR.E TV+ Video Playback Enter the desired folder and click the MOVIE button on the remote control to enter the movie play mode. To playback a movie: ■ Press the navigation keys to select the folder(s) containing your movie files. ■...

  • Page 29: File Edit Menu

    STOR.E TV+ File Edit menu Select the file or folder by pressing the navigation buttons. Edit will be displayed and files can be renamed, deleted or copied. Return key Select to return to the main screen. Rename function To rename a file: 1.

  • Page 30: Setup Menu

    STOR.E TV+ 1. Select Source Device After entering the File copy mode, press to select the device containing the file to be copied. Press to select Destination Device, or press to return. 2. Select Destination Device Once destination device list is shown, press to select the destination device.
  • Page 31 STOR.E TV+ Video Setup ■ Brightness: Selects brightness levels. ■ Contrast: Selects contrast levels. ■ Hue: Selects hue levels. ■ Saturation: Selects saturation levels. ■ Movie preview: On/Off. Allows movies to be previewed. ■ Resume Play: On/Off. When a movie paused, the device will record the time that the movie is paused and the next user can choose “Resume Play”...
  • Page 32 STOR.E TV+ Audio Setup ■ Night Mode: On, Off and Comfort modes. In comfort mode, it restricted volume automatically. ■ Digital Output: HDMI LPCM: Digital audio signal is decoded by the product outputs through HDMI 2.0 channel. HDMI LPCM MULTI CH: Digital audio signal is decoded by the product outputs through HDMI 5.1 channel.

  • Page 33: Network Setup

    STOR.E TV+ Network Setup Wired Lan Setup Allow STOR.E TV+ to access a LAN, press the SETUP key on the remote control to enter the setting interface of STOR.E TV+. Select Network and enter Wired Lan Setup. You can choose automatic or manual mode for setup.
  • Page 34 STOR.E TV+ If no IP address is shown on the screen, the connection was unsuccessful, and you will need to check the network to which you are connected to determine whether the settings meet the necessary requirements. Then repeat the above process to obtain an IP address again. FIX IP (MANUAL) To obtain the IP address of the domain name server manually, select FIX IP (MANUAL) and then select OK according to the instructions.

  • Page 35: Wireless Setup

    STOR.E TV+ Wireless Setup To enable this function, a compatible USB WiFi dongle that supports 802.11 b/g/n must be used. Indeed, some models could not work with this device. First, insert it into the device’s USB port interface. Wifi Plug-in will be displayed on the screen for several seconds.
  • Page 36 STOR.E TV+ Infrastructure mode Infrastructure mode is used to connect computers with wireless network adaptors, also known as wireless clients, to an existing wired network with the help of a wireless router or access point. Select the access point you wish to access from the SSID list shown below.
  • Page 37 STOR.E TV+ (Sample Image) WLAN Security Setting 2. Selects automatic or manual mode to obtain the IP address. Refer to “DHCP IP (AUTO)” on page 33 “FIX IP (MANUAL)” on page 34 section for more details. 3. Setting List The Setting List displays the network settings as below. (Sample Image) Infrastructure mode Network setting list User’s Manual EN-37...
  • Page 38 STOR.E TV+ 4. Test Connection. The test will take a while. If the test is successful, the network information will be displayed as below. (Sample Image) Network information Peer to Peer mode Peer to Peer mode, also called Ad Hoc or computer-to-computer mode, is used to connect wireless clients together directly, without a wireless router or access point.
  • Page 39 STOR.E TV+ 1. Ad Hoc Setup Sets Wireless SSID, Wireless Security, and Host IP for the Ad Hoc connection. (Sample Image) Ad-Hoc Setup Both STOR.E TV+ and computer must be in Ad Hoc mode, share a NOTE common SSID, and be within the same IP range. 2.
  • Page 40 STOR.E TV+ 3. Save and startup. Select the Confirm icon in the interface and press OK or COMFIRM on the remote control to show the setting information below. (Sample Image) Ad-Hoc mode setting list 4. Test Connection. If the test is successful, the network information will be displayed as below.

  • Page 41: Pppoe Setup

    STOR.E TV+ PPPoE Setup PPPoE (Point-to-Point Protocol over Ethernet) is a protocol used by many ADSL Internet Service Providers. If your ISP uses PPPoE, but has given you a router, you may need a PPPoE client on your Linux box. DHCP may work fine.
  • Page 42 STOR.E TV+ Select Network in the main interface of the device. If there are open groups in the sharable network, other sharable working group folders, such as WORKGROUP, will be shown in addition to My_Shortcuts. This image is shown as below: (Sample Image) Accessing the network Select and enter a corresponding folder, to play multimedia content shared on the computer’s network.
  • Page 43 STOR.E TV+ 2. Input Net User ID and Password. (Sample Image) Inputting Net User ID, Password User name is GUEST or EVERYONE and the IP address of the appointed document server is the IP address of the computer that has enabled network sharing.

  • Page 44: The Usage Of Samba

    STOR.E TV+ The usage of Samba STOR.E TV+ contains an operating system (Linux+AP) and application software (Samba). STOR.E TV+ supports the function of Samba through which you can visit your hard disk’s files in your device directly. It is necessary to make your computer and device in the same network.

  • Page 45: System Firmware Upgrade

    The USB device is the most convenient solution to upgrade your firmware. To update the firmware: 1. Go to http://computers.toshiba.eu/options-support and go in the “Manuals and Drivers” section. 2. Click “Download Firmware” then select Product type = “Options”, Family = “Drive Devices”, Product series = “HDDs &...

  • Page 46: Frequently Asked Questions (Faq)

    STOR.E TV+ Frequently Asked Questions (FAQ) Display issues Question 1: What do I do if the screen is too dark or display is not clear? Answer: Adjust the brightness in Setup -> Video -> Brightness. Avoid placing the device in direct, bright light. Question 2: When booting up, why does a short flash, blue screen or screen saver appear on the TV?
  • Page 47 STOR.E TV+ Answer: Close all programs that might be accessing data on STOR.E TV+, including Windows or Internet Explorer. If this does not work, close all programs and wait 20 seconds, then try again. If it still does not work, you can shut down STOR.E TV+ and disconnect the USB cable.
  • Page 48 STOR.E TV+ 6. If you want to access files that are stored on a USB data storage device which is connected to a router and thus made available as network storage, please note that you must set up a connection to the drive using “My_Shortcuts”.

  • Page 49: Specifications

    STOR.E TV+ Others Product accessories of products may be different for this series of products vary according different series and models. Please refer to packing list or contact your agent for information. Pleas understand no advance notice for further product improvement, appearance design and specification update.
  • Page 50 STOR.E TV+ Supported video, audio and picture formats are as below: DECODE FORMARTS RESOLUTION VIDEO MPEG-1 320 x 240 720 x 576 MPEG-2 720 x 576 1920 x 1080P TS/M2TS/TP/TRP 1920 x 1080P MPEG-4 1920 x 1080P 1920 x 1080P 1920 x 1080P VC-1 WMV9...

  • Page 51: Trademarks

    STOR.E TV+ Supported subtitle formats are as below: Support Support Support Support IDX+SUB Support (support DVD files only) Appearance and specification may vary and can be changed without NOTE notice. Trademarks Windows, Microsoft and Windows logo are registered trademarks of Microsoft Corporation.

  • Page 52: Toshiba Support

    This product is CE marked in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Responsible for CE marking is Toshiba Europe GmbH, Hammfelddamm 8, 41460 Neuss, Germany. A copy of the official Declaration of Conformity can be obtained from following website: http://epps.toshiba-teg.com.
  • Page 53 Medical environment: The compliance to the Medical Product Directive has not been verified by Toshiba, therefore this product cannot be used as a medical product without further verification. The use in usual office environments e.g.

  • Page 54: Reach

    The new European Union (EU) chemical regulation, REACH (Registration, Evaluation, Authorization and Restriction of Chemicals), entered into force on 1 June 2007. Toshiba will meet all REACH requirements and is committed to provide our customers with information about the chemical substances in our products according to REACH regulation.

  • Page 55: Additional Information

    Additional Information © 2010 TOSHIBA Europe GmbH. All rights reserved. TOSHIBA reserves the right to make technical changes. TOSHIBA assumes no liability for damages incurred directly or indirectly from errors, omissions or discrepancies between this product and the documentation.
  • Page 56 STOR.E TV+_UM_V1_0610 For more information, please visit: www.toshiba-multimedia.com...
