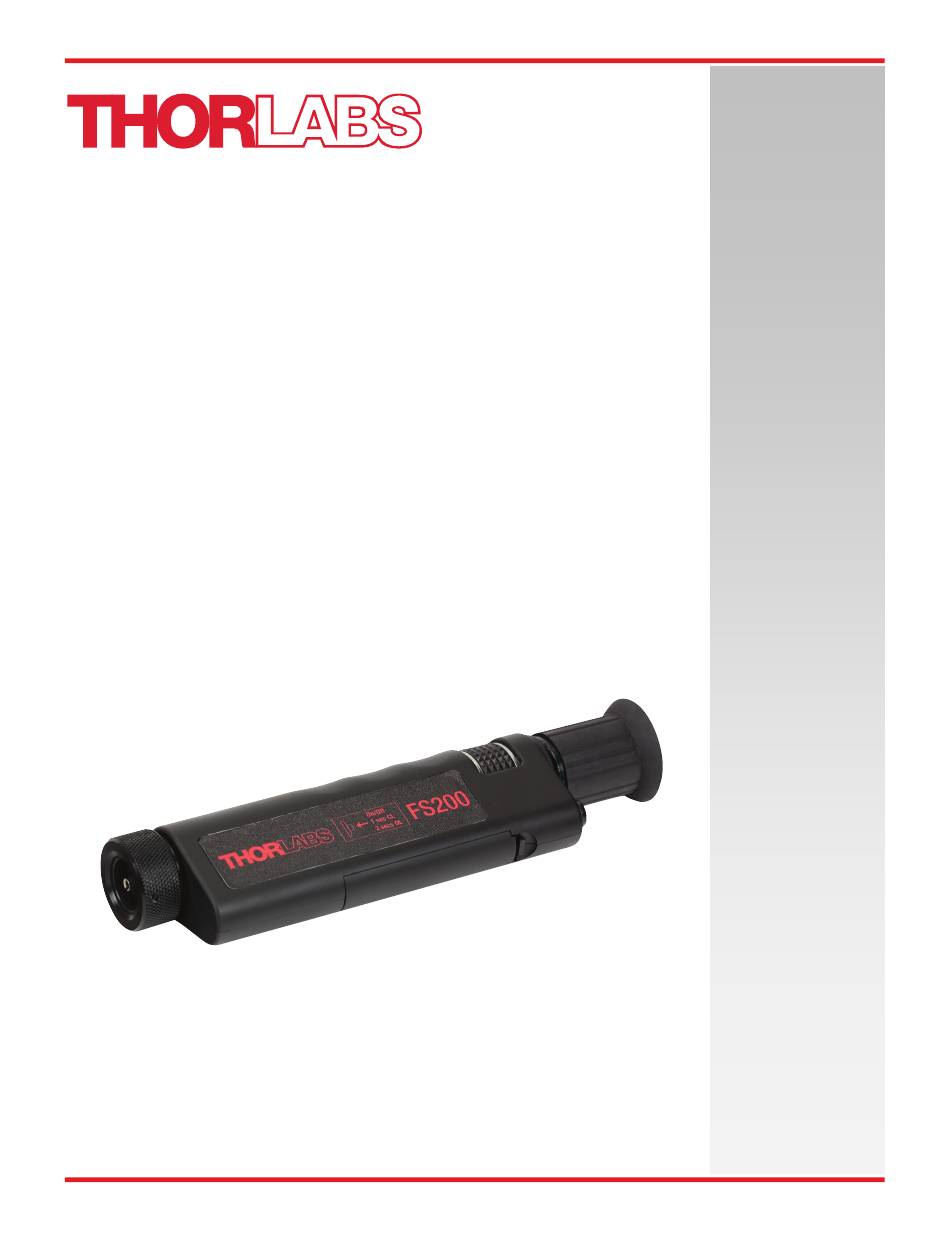

- Page 1 FS200 Fiber Microscope User Guide Rev B, June 3, 2011...
-
Page 2: Table Of Contents
1.1. Specifications ....................... 3 Chapter 2 Operation ..........................4 2.1. Maintenance ........................5 2.2. Safety ..........................5 Chapter 3 Regulatory .......................... 6 3.1. Waste Treatment is Your Own Responsibility ............6 3.2. Ecological Background ....................6 Chapter 4 Thorlabs Worldwide Contacts ..................7... -
Page 3: Chapter 1 Description
Chapter 1 Description The FS200 Fiber Microscope produces a high-quality, low-distortion image of both the connector end and the fiber. With a high intensity coaxial illumination system and a 200X magnification, this microscope is powerful enough to offer a clear image of the fiber core as well as the surrounding cladding. In addition, there is the option to use an oblique illumination setting which provides illumiation at an off-center angle to the fiber end face. -
Page 4: Chapter 2 Operation
Fiber Microscope Chapter 2: Operation Chapter 2 Operation 1. Insert the terminated fiber into the fiber insert entrance of the adapter. Press the LED switch, it will work in CL (coaxial illumination) mode. Press and hold for 3 seconds to change to OL (oblique illimunation) mode. -
Page 5: Maintenance
FS200. Since many of the wavelengths of light used in the fiber optic industry are invisible to the naked eye, the natural aversion reflex to viewing bright light is suppressed, resulting in potentially longer periods of accidental exposure, which can lead to permanent eye damage. -
Page 6: Chapter 3 Regulatory
Waste Treatment is Your Own Responsibility If you do not return an “end of life” unit to Thorlabs, you must hand it to a company specialized in waste recovery. Do not dispose of the unit in a litter bin or at a public waste disposal site. -
Page 7: Chapter 4 Thorlabs Worldwide Contacts
Fiber Microscope Chapter 4: Thorlabs Worldwide Contacts Chapter 4 Thorlabs Worldwide Contacts For technical support or sales inquiries, please visit us at www.thorlabs.com/contact for our most up-to- date contact information. USA, Canada, and South America UK and Ireland Thorlabs, Inc. - Page 8 www.thorlabs.com...
