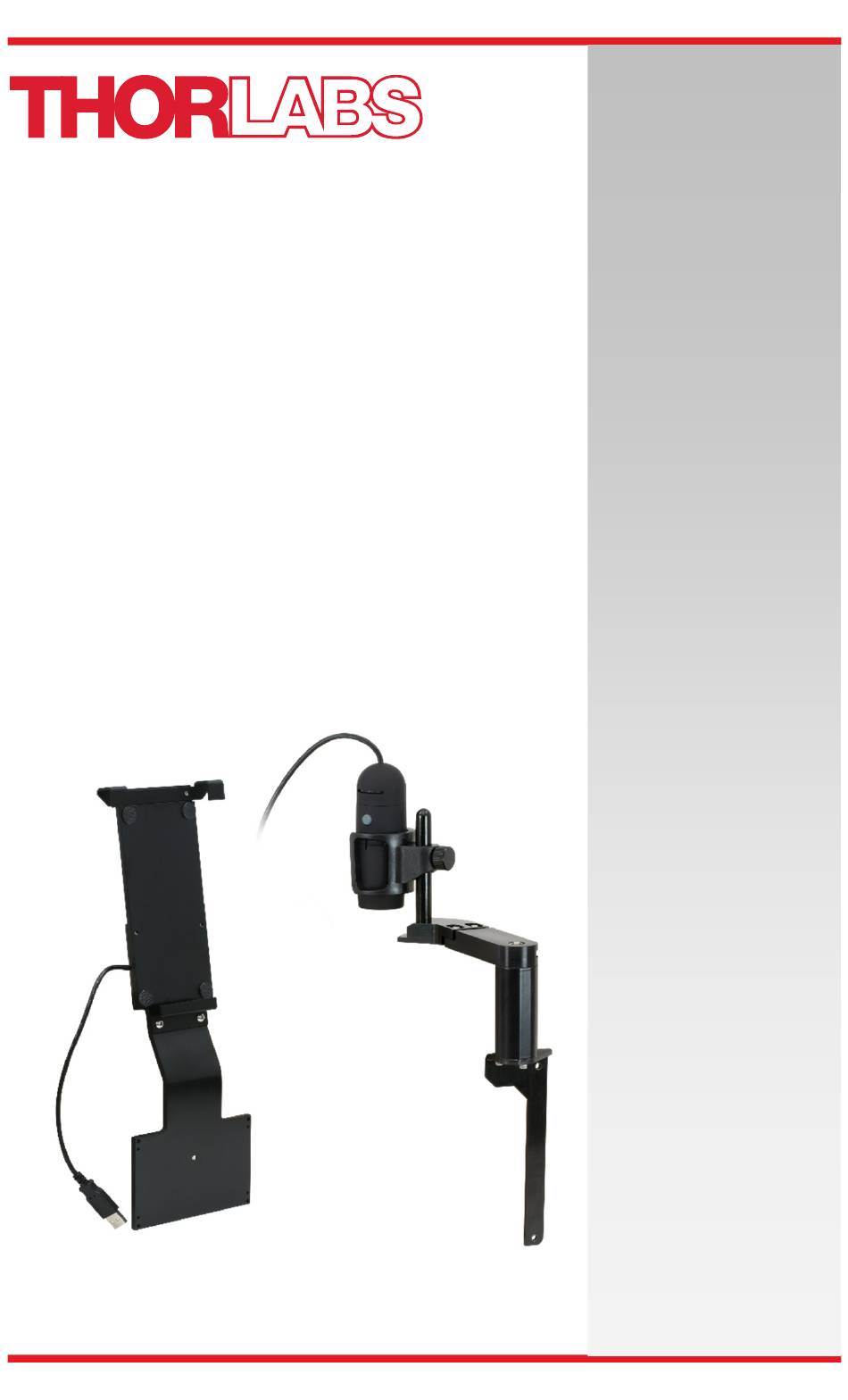

- Page 1 LDCCM Digital Microscope & Tablet Mount Kit for LDC401(A) Fiber Cleavers User Guide...
-
Page 2: Table Of Contents
1.1. Introduction .............. 1 1.2. Parts Checklist ............... 1 Chapter 2 Setup .................. 2 2.1. Hardware .............. 2 2.2. Positioning the Camera .......... 6 Chapter 3 Specifications ..............8 Chapter 4 Regulatory ................. 9 Chapter 5 Thorlabs Worldwide Contacts........10 ... -
Page 3: Chapter 1 Description
(as well as a controller for the cleaver). 1.2. Parts Checklist When unpacking the LDCCM for the first time, check to be sure that you have the following: Camera ... -
Page 4: Chapter 2 Setup
Microscope and Tablet Mount Kit Chapter 2: Setup Chapter 2 Setup 2.1. Hardware Remove the two screws towards the back of the right side of the cleaver using a 3/32" hex key. Save the screws in case you want to use the cleaver without the swing arm some time in the future. - Page 5 Microscope and Tablet Mount Kit Chapter 2: Setup Remove the two screws at the top of the mast using the 3/32" hex key. Place the tablet on the mast's cradle. To allow the tablet to fit in the cradle, it may be necessary to loosen the two screws holding the cradle in place.
- Page 6 Microscope and Tablet Mount Kit Chapter 2: Setup 12. Capture the cable in the black clamp at the back of the mast. 13. Locate the pigtail coming from the USB hub in the mast and plug it into the tablet USB port. 14.
- Page 7 Microscope and Tablet Mount Kit Chapter 2: Setup 17. Plug the end of the camera cable into the middle USB port in the mast. 18. Bundle up the middle part of the camera cable. 19. Secure the camera cable using the hook and loop fastener on the back of the mast.
-
Page 8: Positioning The Camera
Microscope and Tablet Mount Kit Chapter 2: Setup 2.2. Positioning the Camera Load an insert into the left fiber holding block and slide it so that its right end sits right infront of the cleave blade. Swing the camera over the end of the insert. - Page 9 Microscope and Tablet Mount Kit Chapter 2: Setup Load a fiber into the fiber holding blocks. Swing the camera over the fiber. Incrementally lower the camera and adjust the magnification to get a good image of the fiber. Advance the micrometer stop so it comes close to the fiber.
-
Page 10: Chapter 3 Specifications
Microscope and Tablet Mount Kit Chapter 3: Specifications Chapter 3 Specifications Camera Specifications Magnification 20X / 220X Native: 1600 x 1200 Pixels (2 MP) Resolution With Interpolation: 2560 x 2048 Pixels (5 MP) Color 24 bit RGB Focus Range 10 mm to Infinite Flicker Frequency 50 Hz / 60 Hz Frame Rate... -
Page 11: Chapter 4 Regulatory
Waste Treatment is Your Own Responsibility If you do not return an “end of life” unit to Thorlabs, you must hand it to a company specialized in waste recovery. Do not dispose of the unit in a litter bin or at a public waste disposal site. -
Page 12: Chapter 5 Thorlabs Worldwide Contacts
Microscope and Tablet Mount Kit Chapter 5: Thorlabs Worldwide Contacts Chapter 5 Thorlabs Worldwide Contacts USA, Canada, and South America UK and Ireland Thorlabs, Inc. Thorlabs Ltd. 56 Sparta Avenue 1 Saint Thomas Place Newton, NJ 07860 Ely CB7 4EX... - Page 13 www.thorlabs.com...
