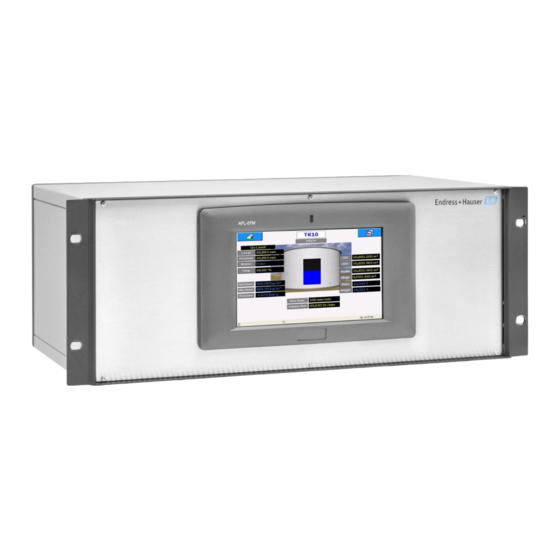

Endress+Hauser Tankvision Multi Scan NXA83B Operating Instructions Manual
Local display
Hide thumbs
Also See for Tankvision Multi Scan NXA83B:
- Operating instructions manual (36 pages) ,
- Installation instructions manual (16 pages) ,
- Operating instructions manual (28 pages)
Related Manuals for Endress+Hauser Tankvision Multi Scan NXA83B
Summary of Contents for Endress+Hauser Tankvision Multi Scan NXA83B

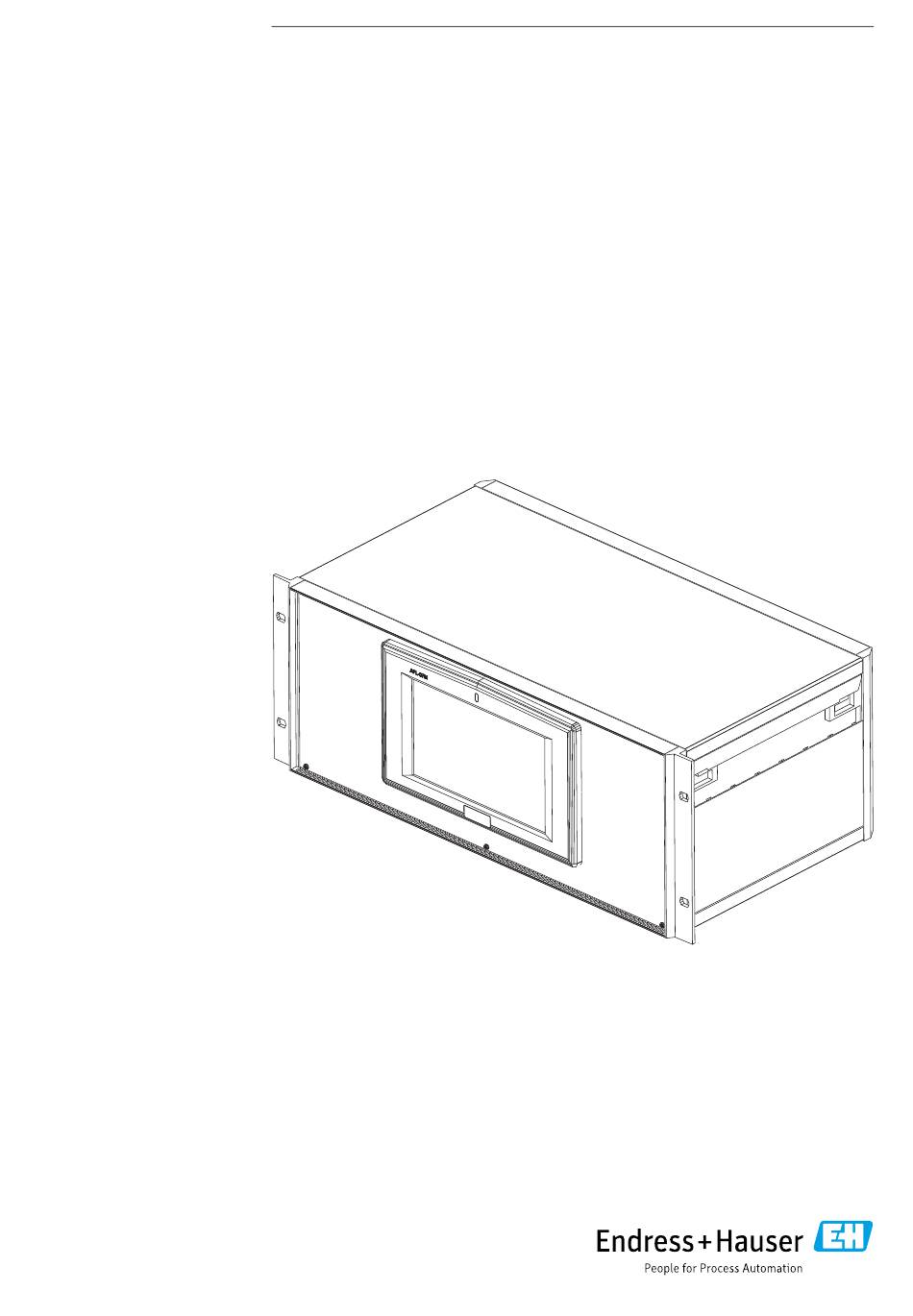

- Page 1 Products Solutions Services BA01288G/00/EN/05.21 71551404 2021-12-01 Valid as of software version: 5.0.0 Operating Instructions Tankvision Multi Scan NXA83B Local display Operation manual...
- Page 2 Tankvision Multi Scan NXA83B Order code: XXXXX-XXXXXX Ser. no.: XXXXXXXXXXXX Ext. ord. cd.: XXX.XXXX.XX Serial number www.endress.com/deviceviewer Endress+Hauser Operations App A0023555 Version history Document version Valid for SW version Changes to the previous version BA01288/00/EN/01.14 3.0.10 Initial version BA01288/00/EN/02.15 3.0.12 Change of order code structure BA01288/00/EN/03.16...
-
Page 3: Table Of Contents
Tankvision Multi Scan NXA83B Table of Contents Document information ....4 Target audience for this manual ....4 Document function . -
Page 4: Document Information
Document information Tankvision Multi Scan NXA83B Document information Target audience for this manual This manual is giving detailed information on the system capabilities and architecture. It supports project and sales engineers in designing the system architecture during acquisition and execution phase. Furthermore during operation time of the system all servicing personnel in need of detailed knowledge about the system capabilities. -
Page 5: Documentation
For an overview of the scope of the associated Technical Documentation, refer to the following: •W@M Device Viewer: www.endress.com/deviceviewer - Enter the serial number from the nameplate • Endress+Hauser Operations App: Enter the serial number from the nameplate or scan the matrix code on the nameplate Registered trademarks ® ® ®... -
Page 6: Basic Safety Instructions
IT security measures in line with operators' security standards and designed to provide additional protection for the device and device data transfer must be implemented by the operators themselves. Endress+Hauser can provide support in performing this task. Intended use 2.3.1... -
Page 7: Workplace Safety
It meets general safety standards and legal requirements. It also complies with the EC directives listed in the device-specific EC Declaration of Conformity. Endress+Hauser confirms this by affixing the CE mark to the device. Endress+Hauser... -
Page 8: Identification
Identification Tankvision Multi Scan NXA83B Identification Product identification The following options are available for identification of the device: • Nameplate specifications • Order code with breakdown of the device features on the delivery note • W@M Device Viewer: www.endress.com/deviceviewer - Enter the serial number from the... -
Page 9: Introduction
Tankvision Multi Scan NXA83B Introduction Introduction The Multi Scan NXA83B is a configurable system designed for tank gauging and tank inventory management systems. It has been designed to fulfil a number of requirements some of which are listed below: • Act as a foreign device gateway allowing old legacy equipment and devices with proprietary interfaces to interface with modern devices using OPC and Ethernet Technology. -
Page 10: Operation
This will take approximately 2 minutes, during which time a number of windows boot messages will be displayed before automatically logging into the user account, at which point the Endress+Hauser wait message will be displayed. NXA83_E+H_Wait_Message Depending on the firmware version of the Multi Scan NXA83B, the top line of the splash screen will display a range of information, including: •... -
Page 11: Status Bar
Tankvision Multi Scan NXA83B Operation NXA83_Display_Grid-View It is perfectly safe to switch off the power without shutting down the operating system. The Multi Scan NXA83B contains an Enhanced Write Filter which protects the system from being corrupted due to a loss of power (see configuration document for description). -
Page 12: Display Navigation
Operation Tankvision Multi Scan NXA83B Display Navigation There are a number of screen types that may be displayed: • GridView • Single Tank • Multi Tank • Report Navigation between these screens is via two buttons, in the top left of the screen... - Page 13 Tankvision Multi Scan NXA83B Operation NXA83_Display_Grid-View_Single-Tank-Overview-Menus Click on the buttons to select more display items. Click on the item in the pop-up menu to change the main display. NXA83_Operation_001 The left hand drop down list displays all tanks in the database, and allows the user to select a tank to show in the single tank display.
-
Page 14: Grid View
Operation Tankvision Multi Scan NXA83B NXA83_Operation_002 Grid View The GridView screens display data in a tabular format. The layout of the grid is fully configurable using the Tankvision Multi Scan Configurator tool, but cannot be changed by the user during normal operation. - Page 15 Tankvision Multi Scan NXA83B Operation NXA83_Display_Grid-View A single tank display can be selected by clicking on the row for that tank in the grid. This will immediately display the single tank details for the selected tank. The GridView may be optionally set to display any moving tanks with a different background colour.
-
Page 16: Single Tank
The default formatting in the screens as shipped from Endress+Hauser is as follows: • Invalid Data: The appropriate diagnostic number will be shown preceded by "DN" and will be displayed with a red background •... - Page 17 Tankvision Multi Scan NXA83B Operation NXA83_Display_Alarm-Summary Any alarms that are active will be ticked and be displayed in red. Click on the Exit button to close the screen. 5.5.1 Commands Certain data fields may be configured so that clicking on the displayed value will show the gauge commands pop-up menu.
- Page 18 Operation Tankvision Multi Scan NXA83B NXA83_Operation_004 5.5.2 Manual Data Certain data fields may be configured so that they are in manual mode (i.e. displayed with the green colour). Clicking on the displayed value will reveal the manual entry window. NXA83_Display_Manual-Entry-Window This allows a new value to be entered via the touchscreen.
- Page 19 Tankvision Multi Scan NXA83B Operation 5.5.3 Multi-Element Display In the default configuration there is a second Single Tank screen available, called "Multi Elements", which can be used to view multi-element temperatures from gauges that support that function. NXA83_Display_Grid-View_Single-Tank-Overview-Menus_Multi-Elements NXA83_Display_Multi-Element-Temperature-View Endress+Hauser...
-
Page 20: Reports
Operation Tankvision Multi Scan NXA83B Reports A range of reports may be configured using the Tankvision Multi Scan Configurator tool, which are then available to be viewed or printed on demand by a user during normal operation. The reports are fully configurable using the same layout as grid views, refer to the Multi Scan NXA83B Configuration Manual (BA01291G) for details. -
Page 21: Alarms
Tankvision Multi Scan NXA83B Operation NXA83_Display_Print-Preview Reports may also be configured to be printed automatically ( ä 23). Alarms When an alarm occurs in the system a pop-up window will be displayed. Where multiple alarms are active they are displayed in order of severity, Critical first then High and finally Low level alarms. - Page 22 Operation Tankvision Multi Scan NXA83B 5.7.1 Event Log A historical log of all alarms and events is saved on disk. To view these events click on the arrow on the right hand Screens menu, then click on the icon. Select a date, those days in bold contain historical alarms/events.
-
Page 23: Scheduling
Tankvision Multi Scan NXA83B Operation Scheduling The following items may be configured to be auto scheduled: • Gauge Commands • Reports Printing Scheduled gauge commands and report are configured using the Tankvision Multi Scan Configurator tool, refer to Multi Scan NXA83B Configuration Manual (BA01291G) for details. - Page 24 Operation Tankvision Multi Scan NXA83B NXA83_Display_Password-Entry Enter the correct password using the onscreen keyboard and click OK. The current login account will be displayed on the status bar at the bottom of the screen. NXA83_Operation_006 Select the button from the screens menu to log out.
-
Page 25: Communications Monitor
Tankvision Multi Scan NXA83B Operation 5.10 Communications Monitor The Communications Monitor is available to be viewed from the Operator touch screen, which can be used to view diagnostic data on the field ports. This utility is similar to the full Communications Monitor available when remotely logged in, but with limited functionality. - Page 26 Operation Tankvision Multi Scan NXA83B This screen operates in a similar way to the full Communications Monitor, in that a COM port can be selected from the drop down list. The screen will then show the details of that port.
-
Page 27: Return
Tankvision Multi Scan NXA83B Return Return The requirements for safe device return can vary depending on the device type and national legislation. Refer to the web page for information: http://www.endress.com/support/return-material Select the region. Return the device if repairs or a factory calibration are required, or if the wrong device was ordered or delivered. - Page 28 Tankvision Multi Scan NXA83B Endress+Hauser...
- Page 29 Tankvision Multi Scan NXA83B Endress+Hauser...
-
Page 30: Index
Tankvision Multi Scan NXA83B Index Alarms......... 21 Commands . - Page 31 Tankvision Multi Scan NXA83B Endress+Hauser...
