BA01296G/00/EN/04.18
71421942
2019-02-13
Valid as of software version:
3.4.0 and 4.4.0
Products
Operating Instructions

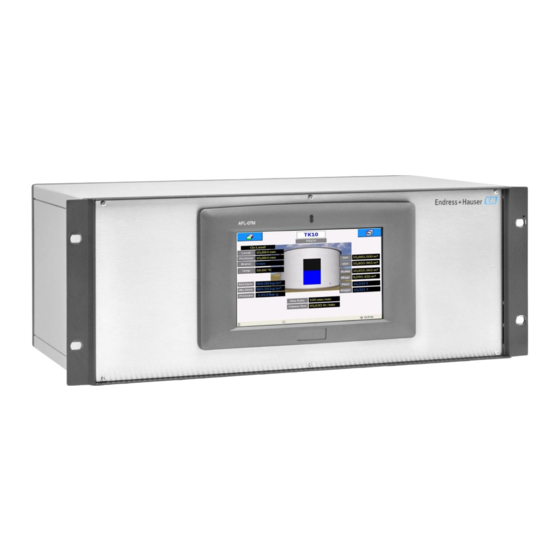

Tankvision
Multi Scan NXA83B
Redundancy manual
Solutions
Services

Advertisement

Table of Contents
loading

Related Manuals for Endress+Hauser Tankvision Multi Scan NXA83B

Summary of Contents for Endress+Hauser Tankvision Multi Scan NXA83B

  • Page 1 Products Solutions Services BA01296G/00/EN/04.18 71421942 2019-02-13 Valid as of software version: 3.4.0 and 4.4.0 Operating Instructions Tankvision Multi Scan NXA83B Redundancy manual...
  • Page 2 Tankvision Multi Scan NXA83B Order code: XXXXX-XXXXXX Ser. no.: XXXXXXXXXXXX Ext. ord. cd.: XXX.XXXX.XX Serial number www.endress.com/deviceviewer Endress+Hauser Operations App A0023555 Endress+Hauser...

  • Page 3: Table Of Contents

    Tankvision Multi Scan NXA83B Table of Contents Document information ....4 Target audience for this manual ....4 Version history .

  • Page 4: Document Information

    Document information Tankvision Multi Scan NXA83B Document information Target audience for this manual This manual is giving detailed information on the system capabilities and architecture. It supports project and sales engineers in designing the system architecture during acquisition and execution phase. Furthermore during operation time of the system all servicing personnel in need of detailed knowledge about the system capabilites.

  • Page 5: Documentation

    Tankvision Multi Scan NXA83B Document information Symbols for certain types of information Symbol Meaning Indicates additional information. A0011193 Reference to page Refers to the corresponding page number. A0011195 ... Series of steps Result of a sequence of actions A0018373 Symbols in graphics...

  • Page 6: Basic Safety Instructions

    IT security measures in line with operators' security standards and designed to provide additional protection for the device and device data transfer must be implemented by the operators themselves. Endress+Hauser can be contacted to provide support in performing this task. Designated use 2.3.1...

  • Page 7: Workplace Safety

    The device complies with the applicable standards and regulations as listed in the EC declaration of conformity and thus complies with the statutory requirements of the EG directives. Endress+Hauser confirms the successful testing of the device by affixing to it the CE mark.

  • Page 8: Introduction

    Introduction Tankvision Multi Scan NXA83B Introduction The Multi Scan NXA83B is a configurable system designed for tank gauging and tank inventory management systems. Redundant operation with a pair of Multi Scan NXA83B linked together is supported, so that only one NXA83B will poll the gauges. The other Multi Scan NXA83B will automatically update its database with live data from the active Multi Scan NXA83B.

  • Page 9: Switch By System

    Tankvision Multi Scan NXA83B Switch By System Switch By System Operation The diagram below shows an example of a pair of Multi Scan NXA83B used in the Switch By System redundancy mode. NXA83B_System-configuration_Switch-by-system Tankvision Professional NXA85 Workstation Ethernet Tankvision Multi Scan NXA83B...
  • Page 10 Switch By System Tankvision Multi Scan NXA83B be configured to not reply on the passive system, to mimic functionality in older equipment such as the Datacon. If one of the field ports on the live system does not receive a correctly formatted reply for longer than the timeout period (default 60 seconds), it will be marked as failed and initiate a switch.

  • Page 11: Port Latching

    Tankvision Multi Scan NXA83B Switch By System Port Latching If a port has failed on both Multi Scan NXA83B the system will "Latch" for that port. A Latched port will not trigger redundancy mode switching. This state will remain until valid communications is restored to the port.
  • Page 12 Switch By System Tankvision Multi Scan NXA83B The redundancy state screen in the Communications Monitor can be displayed by clicking on the Redundancy button. NXA83_Redundancy_001 The fields displayed on this screen will include the following: • Redundancy Type – this shows the type of redundancy configured for this Multi Scan NXA83B.
  • Page 13 Tankvision Multi Scan NXA83B Switch By System 4.5.1 Single Tank Display The current redundancy mode may also be displayed in the Single Tank displays on the local touchscreen. This is generally only recommended for firmware versions before v3.2.0/4.2.0. For later versions use the Communications Monitor.

  • Page 14: Configuration

    Switch By System Tankvision Multi Scan NXA83B Configuration 4.6.1 Redundancy Control Port Configuration The first step to configuring a redundant database on the Multi Scan NXA83B is to configure the redundancy mode. This is set using the Port Configuration module in the Communications menu.
  • Page 15 Tankvision Multi Scan NXA83B Switch By System • COM ports 7 and 8 used for Control Ports: The Multi Scan NXA83B automatically configures the communications ports for redundancy. Ensure that COM 7 and COM 8 are NOT selected as "In Use" as either Host or Slave ports. Connect a Serial Cross-over lead from COM 7 on one Multi Scan NXA83B to COM 8 on the other for both Multi Scan NXA83B.
  • Page 16 Switch By System Tankvision Multi Scan NXA83B 4.6.2 Field Port and Slave Port Configuration Next configure all field ports in the Host Comms page as normal, except that the redundancy operation may be modified for individual ports by editing the Redundancy Settings section of the COM port Settings dialog.
  • Page 17 Tankvision Multi Scan NXA83B Switch By System NXA83_COM-Port-Settings_Flow-Control_Redundant Remove the Redundant Mode Control jumper from each board. NXA83_Current-Loop-Board_Redundant-Mode-Control-jumper Tx LED Rx LED Redundant Mode Control jumper (Fitted = Loop always powered; Not Fitted = Redundant Mode) Loop Current Adjust Master/Slave Select...
  • Page 18 Switch By System Tankvision Multi Scan NXA83B 4.6.4 L&J Tankway Board Configuration When using L&J interface boards with redundant systems the following should be implemented: Set the Flow Control field to Redundant. NXA83_COM-Port-Settings_Flow-Control_Redundant Make sure LK1 is in the UP position (i.e. towards the Tx/Rx LEDs) on each board.

  • Page 19: Configuring Tankvision Professional Nxa85 To Talk To A Pair Of Redundant Multi Scan Nxa83B

    Tankvision Multi Scan NXA83B Switch By System 4.6.5 Gauge Configuration After the interfaces have been configured, the gauges must be configured for redundant operation. To do this, select the gauge in the Gauge Configuration screen in the Configurator tools. NXA83_Device-Configuration Set the Comm Port field to be the field port (i.e.
  • Page 20 Switch By System Tankvision Multi Scan NXA83B NXA83_Redundancy_005 Endress+Hauser...
  • Page 21 Tankvision Multi Scan NXA83B Switch By System 4.7.2 Tankvision Professional NXA85 Port Configuration In the Tankvision Professional NXA85 system configure a pair of Host COM ports using the Datacon protocol, one connected to each Multi Scan NXA83B. These may be either physical serial COM ports (COM 1 +) or network ports (COM 71 +).
  • Page 22 Switch By System Tankvision Multi Scan NXA83B 4.7.3 Gauge Configuration Gauges should be configured as normal in Tankvision Professional NXA85. NXA83_Device-Configuration_Common-Configuration Ensure that the Data Collection Device index is set to correct index of the device in the Multi Scan NXA83B. Alternatively it can be left as zero if the device name is exactly the same on Tankvision Professional NXA85 and Multi Scan NXA83B.
  • Page 23 Tankvision Multi Scan NXA83B Switch By System NXA83_Alarm-Event-Viewer_DCC-Comms-Failure If the interface port is via a physical serial port then only the DCC Comms Failure will be generated. 4.7.5 Multi Scan NXA83B System Monitor The Tankvision Professional NXA85 system can be configured to poll for diagnostic information from the Multi Scan NXA83B device itself.
  • Page 24 Switch By System Tankvision Multi Scan NXA83B • Local COM Port – Enter the COM port that is used to communicate with the Multi Scan NXA83B. • Backup COM Port – Always set this field to ZERO. • Data Collection Device index – Not required, leave as ZERO.

  • Page 25: Index

    Tankvision Multi Scan NXA83B Index Boot Up ........11 Configuration .
