VMC1RS Room Station

VMC1 Master Terminations

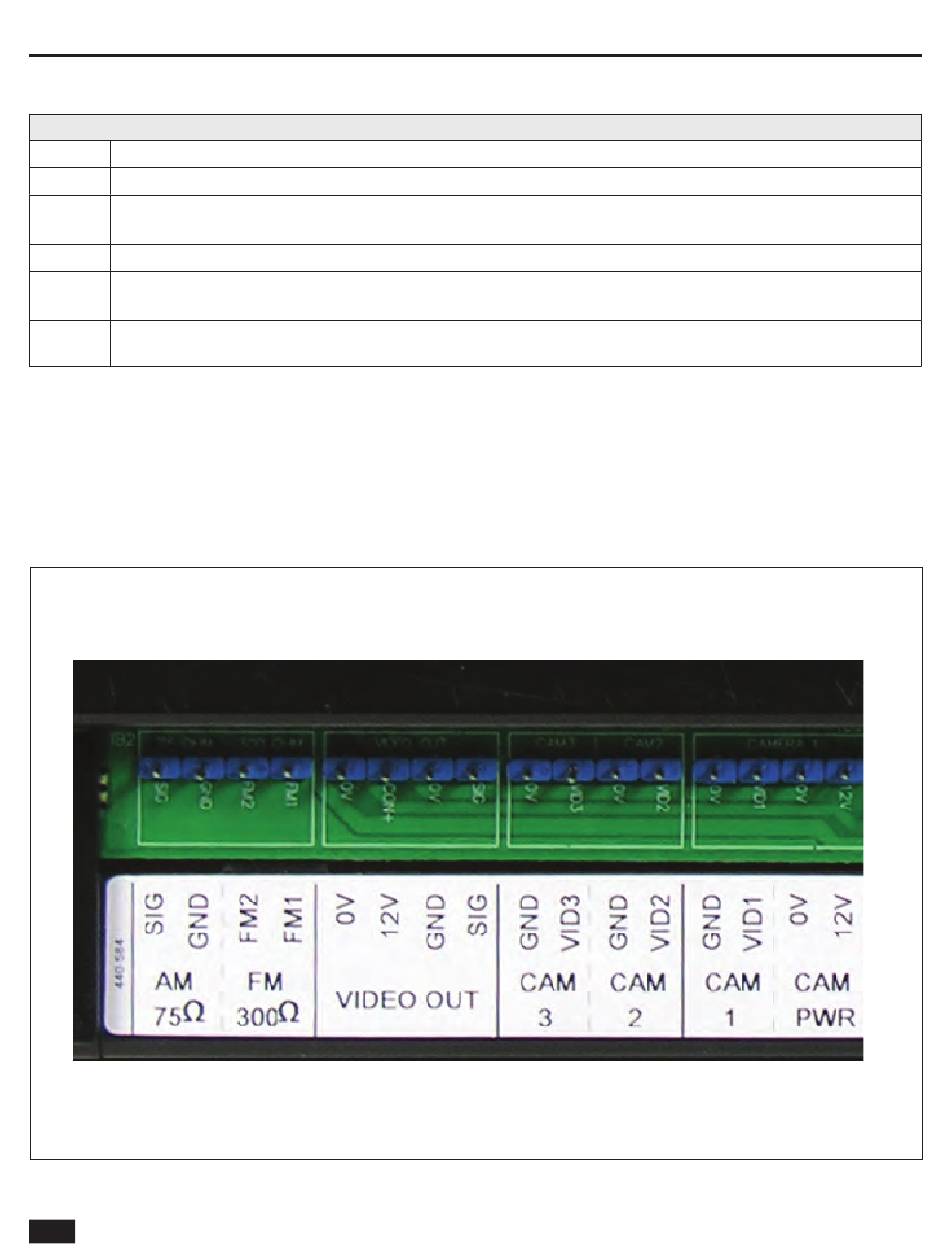

VIDEO OUT (See Figure 6)
SIG Video signal for external video displays
GND Video GND for external video displays
12V This output can be used to activate a 12V relay(s) which switches 12V DC to external NTSC video
display(s)
0V Provides 0V for the external video display control relay
FM
FM1 & FM2 - FM antenna using 75Ω coaxial cable and connected to master using 75Ω to 300Ω
300Ω balun)
AM 75Ω SIG & GND - AM Loop antenna wired back to master using provided antenna cable
10
Figure 6
