Delta TECK II Manual

Delta TECK II Manual

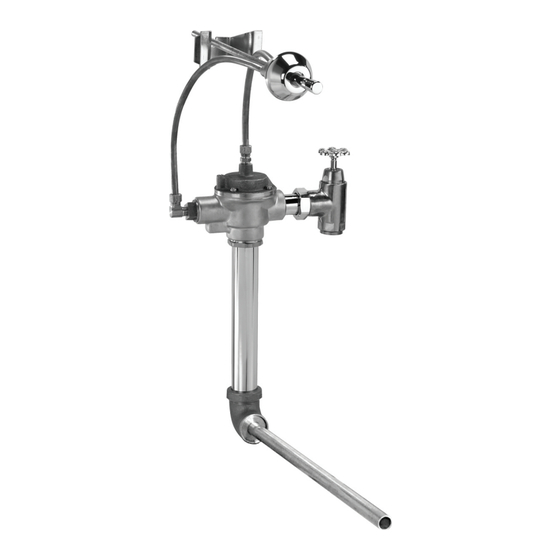

Concealed flushometer
Hide thumbs Also See for TECK II:
Table of Contents

Advertisement

Quick Links

Download this manual
Inlet
0 - 38mm (1 ½") FIP back spud
1 - 38mm (1 ½") Wall hung back inlet water closet
2 - 38mm (1 ½") Free-standing, back inlet water closet
3 - 38mm (1 ½") Top inlet water closet
4 - 19mm (¾") Back spud urinal
Alimentation
0 - 38mm (1 ½ po) Raccord arrière à filets femelle
1 - 38mm (1 ½ po) Toilette murale à raccord arrière
2 - 38mm (1 ½ po) Toilette sur pied à raccord arrière
3 - 38mm (1 ½ po) Toilette à raccord sur le dessus
4 - 19mm (¾ po) Urinoir à raccord arrière
PLEASE LEAVE this sheet with the owner, maintenance plumber, etc. as items relating to ongoing maintenance
VEUILLEZ REMETTRE cette fiche au propriétaire, préposé à l'entretien, etc. car elle contient des articles relatifs

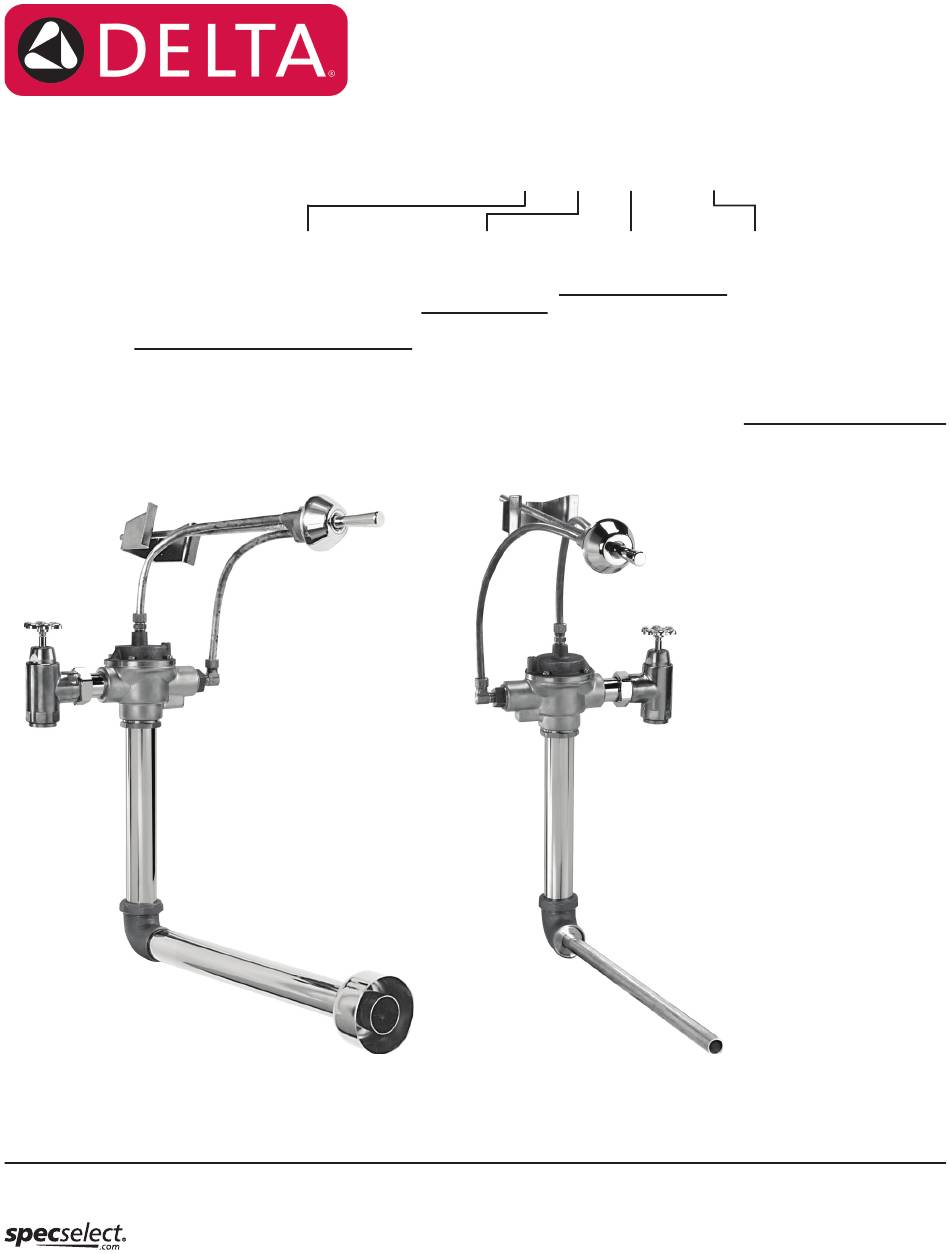

TECK II Concealed Flushometer
Robinet de chasse dissimulé TECK II
- Fiche d'installation et d'entretien
83T __ __ __ - __
Valve Type
0 - Prison
3 - Urinal
4 - Water closet
Type de soupape
0 - Péniteniaire
3 - Urinoir
4 - Toilettes
suggestions and procedures are included.
aux suggestions et procédures d'entretien courant.
www.deltacommercialfaucets.com
Handle
0 - 16mm (⅝") dia. push button
1 - Oscillating handle
Manette
0 - 16mm (⅝ po) dia. poussoir
1 - Manette oscillante
Alternate Flush Volumes
(leave blank if not applicable)
Water Closet
Default - 6 Lpf (1.6gpf) adjustable
6 - 6 Lpf (1.6gpf) fixed
48 - 4.8 Lpf (1.27gpf) fixed
Urinal
Default - 1.9 Lpf (0.5gpf) adjustable
05 - 0.47 Lpf (0.125gpf) fixed
19 - 1.9 Lpf (0.5gpf) fixed
Autres volumes de chasse
(laisser vide s'il ne s'applique pas)
Toilettes
défaut - 6 Lpf (1.6gpf) réglable
6 - 6 Lpf (1.6gpf) fixé
48 - 4.8 Lpf (1.27gpf) fixé
Urinoir
défaut - 1.9 Lpf (0.5gpf) réglable
05 - 0.47 Lpf (0.125gpf) fixé
19 - 1.9 Lpf (0.5gpf) fixé
212738 - Rev. A

Advertisement

Table of Contents
loading

Related Manuals for Delta TECK II

Summary of Contents for Delta TECK II

  • Page 1 TECK II Concealed Flushometer Robinet de chasse dissimulé TECK II - Fiche d’installation et d’entretien 83T __ __ __ - __ Inlet Valve Type Handle Alternate Flush Volumes (leave blank if not applicable) 0 - 38mm (1 ½") FIP back spud 0 - Prison 0 - 16mm (⅝") dia.
  • Page 2 Repair parts/ Repair Parts Slip Joint Nut Installation www.deltacommercialfaucets.com Page 2 of 10 212738 - Rev. A 212738 - Rev. A...
  • Page 3 ITEM PART NO./ NO./ N° DE DESCRIPTION DESCRIPTION ARTICLE PIÈCE Trousse de réparation TECK universelle comprenant des rondelles et 060799A Universal TECK washers and O-rings repair kit des joints toriques Trousse de réparation TECK universelle comprenant des pièces, 061025A Universal TECK parts washers and O-rings repair kit rondelles et des joints toriques Commande à...
  • Page 4 Table 1 - Cap/Pin/Diaphragm Configuration Table / Tableau 1 – Table de Configuration du Capuchon/Tige/Diaphragme ‫٭‬UR - Fixed UR - Adjustable ‫٭‬W/C - Fixed W/C - Adjustable ‫٭‬Urinoir Non Réglable Urinoir Ajustable ‫٭‬Toilette Non Réglable Toilette Ajustable ‫5.0٭٭‬L (0.125 gal) ‫9.1٭٭‬L (0.5 gal) 1.9L (0.5 gal) 4.8L (1.27 gal)

  • Page 5: Front View

    83T2 Front View 83T0 & 83T1 Optional Handle Location #1 102 mm (4”) Optional Handle 102 mm (4”) Location #2 610 mm (24”) 610 mm (24”) 610 mm (24”) 318 mm (12.5”) 254 mm 318 mm (12.5”) 292 mm 292 mm 292 mm (10”) (11.5”)
  • Page 6 BEFORE THE FIRST FLUSH / AVANT D’ACTIONNEUR LE ROBINET DE CHASSE LA PREMIÈRE FOIS FLUSH BOTH OLD AND NEW PIPES: Fig. 1 It is important to FLUSH and CLEAN thoroughly both new and old water piping to ELIMINATE contaminants (i.e., scale, sediment, gravel, cuttings, solder, etc.) from the line.
  • Page 7 BEFORE THE FIRST FLUSH / AVANT D’ACTIONNEUR LE ROBINET DE CHASSE LA PREMIÈRE FOIS TO PREVENT WATER HAMMER: A capped-pipe vertical AIR CHAMBER may be installed at the last flushometer and/or at the back of an individual installation. This assures SMOOTHER OPERATION of the valves and longer life for the working parts.

  • Page 8: Trouble Shooting / Dépannage

    NOTE: DO NOT USE EXCESSIVE FORCE to close the inlet stop stem. We RECOMMEND that the flushometer be flushed while closing the inlet stop. The noise created by the water flow or the flow into the fixture will stop when the inlet water is shut off. NOTE: Always use DELTA COMMERCIAL GENUINE PARTS to maintain the warranty. EXCESSIVE NOISE: PARTIALLY close the inlet stop.
  • Page 9 Le bruit causé par le déplacement de l’eau ou par l’écoulement de l’eau vers l’appareil cesse dès que l’alimentation d’eau est coupée. REMARQUE: Toujours utiliser des pièces de rechange d’origine DELTA COMMERCIAL pour conserver la garantie. BRUIT EXCESSIF : Fermer PARTIELLEMENT le robinet d’arrêt d’équerre.

  • Page 10: Maintenance / Entretien

    ® All parts of Delta® HDF® and TECK® faucets are warranted to the original commercial purchaser to be free from defects in material, nish and workmanship for a period of ve (5) years unless otherwise speci cally stated in the catalogue and price book. This warranty is made to the original commercial purchaser and shall be e ective from date of purchase as shown on the purchaser’s receipt.
