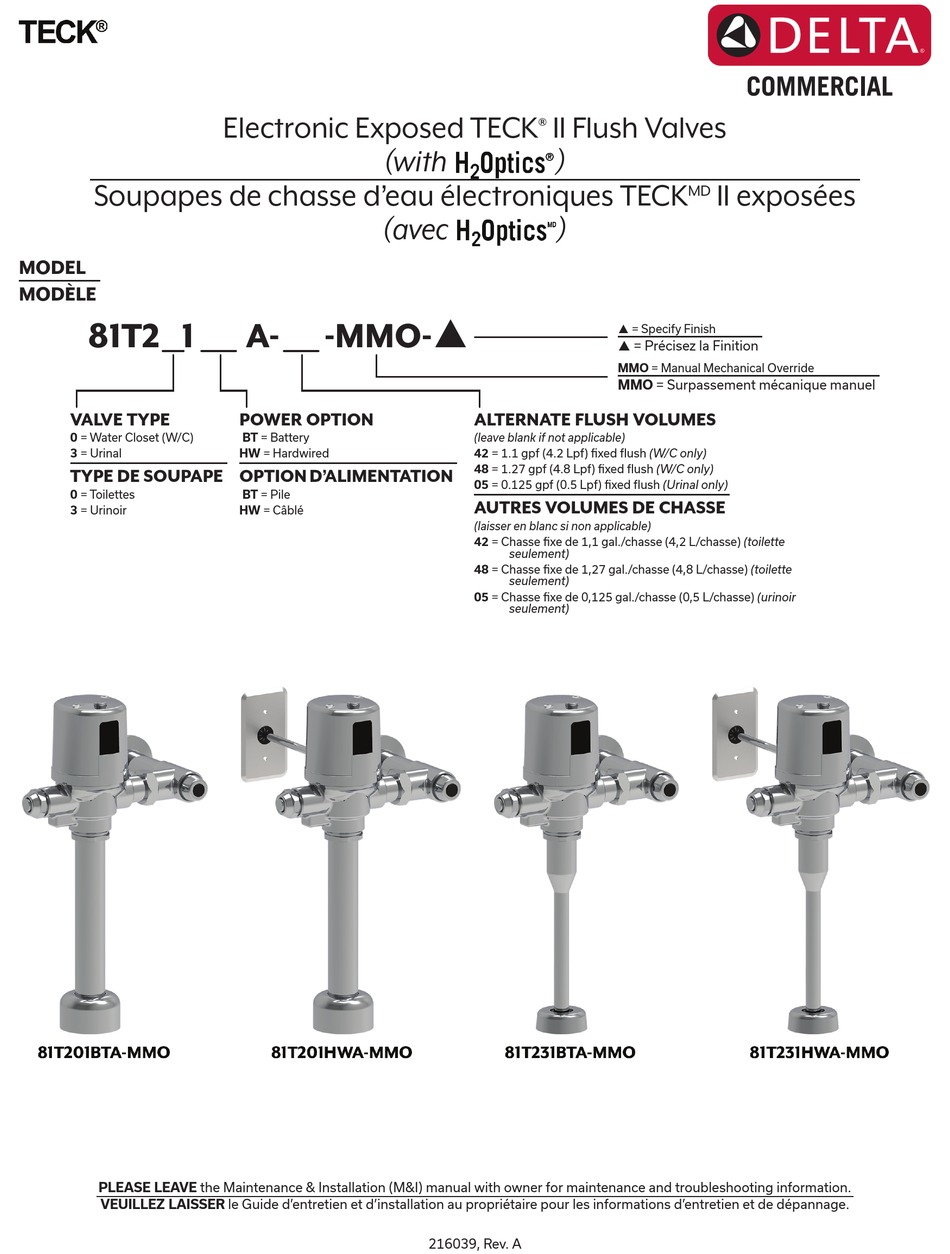

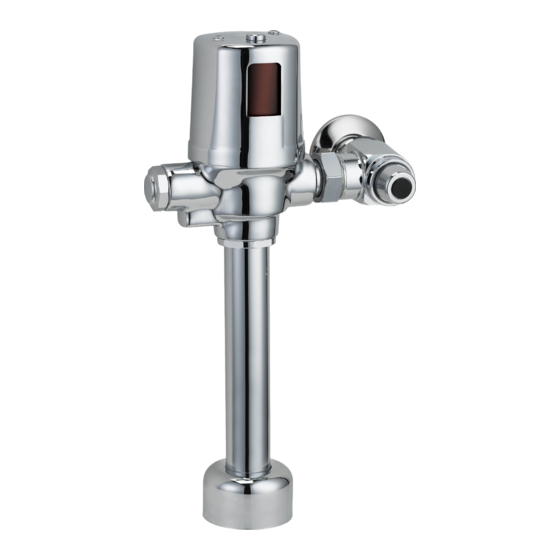

Soupapes de chasse d'eau électroniques TECK
MODEL
MODÈLE
81T2 1
VALVE TYPE
0 = Water Closet (W/C)
3 = Urinal
TYPE DE SOUPAPE
0 = Toilettes
3 = Urinoir
PLEASE LEAVE the Maintenance & Installation (M&I) manual with owner for maintenance and troubleshooting information.
VEUILLEZ LAISSER le Guide d'entretien et d'installation au propriétaire pour les informations d'entretien et de dépannage.
Electronic Exposed TECK
(with
(avec
A-
-MMO-
POWER OPTION
BT = Battery
HW = Hardwired
OPTION D'ALIMENTATION
BT = Pile
HW = Câblé
II Flush Valves
®
)
)
ALTERNATE FLUSH VOLUMES
(leave blank if not applicable)
42 = 1.1 gpf (4.2 Lpf) fixed flush (W/C only)
48 = 1.27 gpf (4.8 Lpf) fixed flush (W/C only)
05 = 0.125 gpf (0.5 Lpf) fixed flush (Urinal only)
AUTRES VOLUMES DE CHASSE
(laisser en blanc si non applicable)
42 = Chasse fixe de 1,1 gal./chasse (4,2 L/chasse) (toilette
seulement)
48 = Chasse fixe de 1,27 gal./chasse (4,8 L/chasse) (toilette
seulement)
05 = Chasse fixe de 0,125 gal./chasse (0,5 L/chasse) (urinoir
seulement)
216039, Rev. A
II exposées
MD
 = Specify Finish
 = Précisez la Finition
MMO = Manual Mechanical Override
MMO = Surpassement mécanique manuel

Advertisement

Table of Contents
loading

Related Manuals for Delta TECK II

Summary of Contents for Delta TECK II

  • Page 1 Electronic Exposed TECK II Flush Valves ® (with Soupapes de chasse d’eau électroniques TECK II exposées (avec MODEL MODÈLE 81T2 1 -MMO-  = Specify Finish  = Précisez la Finition MMO = Manual Mechanical Override MMO = Surpassement mécanique manuel VALVE TYPE POWER OPTION ALTERNATE FLUSH VOLUMES...

  • Page 2: Table Of Contents

    Table of Contents Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Dimensional Table (see Figure 1) .
  • Page 3 Table des matières Données techniques . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Tableau des dimensions (voir Figure 1) .

  • Page 4: Technical Data

    TECHNICAL DATA DONNÉES TECHNIQUES Flushometer MUST be paired with a fixture of equivalent flush NOTICE Figure 1 volume. La soupape de chasse DOIT être utilisée avec un dispositif de chasse AVIS d’eau de débit équivalent. DIMENSIONAL TABLE (see Figure 1) TABLEAU DES DIMENSIONS (voir Figure 1) Models Tolerance...

  • Page 5: Installation

    INSTALLATION INSTALLATION Step 1. SUppLY StOp INStALLAtION (see Figure 2) Figure 2 WARNING It is important to FLUSH and thoroughly CLEAN water lines to 1.0” ELIMINATE contaminants (example - scale, sediment, gravel, cuttings, (25mm) solder, etc.). 1. Cut the end of the 1.0” (25 mm) copper inlet tube (SO1 ) so that it is 1.0”...

  • Page 6: Step 3 . Flushometer Sizing (See Figure 4)

    Step 3. FLUSHOMeteR SIZING (see Figure 4) Figure 4 1. Assemble vacuum breaker components (G) into the outlet tube (I). 2. Attach the outlet tube (I) and vacuum breaker components (G) onto the flushometer body (F) secure with the coupling nut (H). 3.

  • Page 7: Step 5 . If Left Hand Stop Is Required (See Figure 6)

    Step 5. IF LeFt HAND StOp IS ReQUIReD (see Figure 6) Figure 6 1. Remove the cover (F-4) by taking out the two cover screws (F-3). Left Hand Inlet Right Hand Inlet 2. You will now see the electronic compartment (F-5) and a cover gasket (F-6). DO NOT remove the four screws (F-8) that hold down the cap/ WARNING solenoid assembly (F-7).

  • Page 8: Step 6. Hardwire Power Installation (Hw Models Only) (See Figure 7)

    Step 6. HARDWIRe pOWeR INStALLAtION Figure 7 (HW models Only) (see Figure 7) 1. Install the plastic bushing (O) into the hole on the cover-plate (P). 2. Remove screws (F-3) and cover (F-4) from the flushometer body (F) 3. Measure the distance (cc) from the back of the gasket (F-6) to the front of the electrical box (E).

  • Page 9: Step 7 . Activation (Bt Models Only) (See Figure 8)

    Step 7. ACtIVAtION (BT Models Only) (see Figure 8) Figure 8 NOTICE The batteries are already installed and the product is in hibernation mode waiting to be activated. 1. Remove the yellow label (F-11). 2. Push the electronic override button (F-12) three times within five seconds to F-13 activate the valve and to place it into operation mode.

  • Page 10: Flush Volume Adjustment

    FLUSH VOLUME ADJUSTMENT RÉGLAGE DU VOLUME DE CHASSE ADJUSTABLE MODELS (listed below) FIXED NON-ADJUSTABLE MODELS (listed below) The Regulating Screw (F-15) may be adjusted according to job conditions The Flushometer CANNOT be adjusted according to job conditions and and fixture installed to the proper water volume to flush that particular fixture installed.

  • Page 11: Setup Modes

    SETUP MODES MODES DE CONFIGURATION NOTICE Optional: Only required if factory settings are not preferred. IF ADJUSTMENTS ARE MADE WITHIN 30 MINUTES OF INITIAL POWER-UP: 1. Proceed to “Setup Modes”. IF DESIRED ADJUSTMENTS ARE NOT MADE WITHIN 30 MINUTES OF INITIAL POWER-UP. The power must be disconnected for 10 seconds and then reconnected to obtain another adjustment period.

  • Page 12: Step 2. Sensor Adjustment Setting (See Figure 10C)

    Step 2. SeNSOR ADJUStMeNt SettING (see Figure 10C) Figure 10 1. Cycle through the bowl length or Urinal sensing distance by pressing the F-12 electronic override button (F-12). 2. Verify bowl length or Urinal sensing distance. 3. Press and hold the electronic override button (F-12) for 5 seconds and Blue release it when a solid blue light is visible.

  • Page 13: Sensor Adjustment Verification

    SENSOR ADJUSTMENT VERIFICATION VÉRIFICATION DU RÉGLAGE DU CAPTEUR FOR WATER CLOSETS (see Figure 11A) Figure 11 1. Configure the sensing ranges based on the appropriate bowl length (dd) for the installation. 2. Verify the correct distance is selected by: a. Stand or place a target at the end of the bowl. b.

  • Page 14: Battery Strength Indicator

    BATTERY STRENGTH INDICATOR INDICATEUR DE CHARGE 1. During Operation Mode - press and hold down the electronic override button Figure 12 (F-12) for approximately 10 seconds. DO NOT RELEASE the button when solid blue light is present - keep NOTICE holding down.

  • Page 15: Mmo - (Manual Mechanical Override)

    Avoid directing water spray or cleaners directly at sensor lens. Ce robinet de chasse d’eau commercial Delta est conçu et fabriqué conformément aux normes les plus élevées de qualité et de performance. Avec un entretien approprié, il offrira des années de service sans problème.

  • Page 16: Repair Parts

    REPAIR PARTS PIÈCES DE RECHANGE Page 16 - 31 216039, Rev. A...
  • Page 17 Consultez le manuel des pièces de rechange et d’entretien du robinet de chasse d’eau TECK pour plus de pièces et d’informations.  Les quantités par paquet peuvent varier. Consultez la section des pièces de la dernière liste de Prix des Robinets Commerciaux Delta pour connaître les quantités actuelles.
  • Page 18 AVIS  Les quantités par paquet peuvent varier. Consultez la section des pièces de la dernière liste de Prix des Robinets Commerciaux Delta pour connaître les quantités actuelles.  Pour les soupapes fabriquées avant janvier 2013, vous devez remplacer l’ensemble du diaphragme 061323A / 061324A et l’assise en laiton 062007A avec joint torique.

  • Page 19: Tableau 1 - Tableau De Configuration Capuchon/Goupille De Verrouillage/Diaphragme

    TABLE 1 - CAP/PIN/DIAPHRAGM CONFIGURATION TABLE TABLEAU 1 - TABLEAU DE CONFIGURATION CAPUCHON/GOUPILLE DE VERROUILLAGE/DIAPHRAGME Urinal Water Closet Urinoir Toilette   Adjustable Adjustable Fixed Fixed Réglable Réglable Fixe Fixe    0.125 gpf (0.5 Lpf) 0.5 gpf (1.9 Lpf) 1.1 gpf (4.2 Lpf) 1.27 gpf (4.8 Lpf) 1.6 gpf (6.0 Lpf)

  • Page 20: Troubleshooting

    Sensor requires adjustment for “Inadvertent Flushing (see Figure 16)” on page 26 reflection of infrared signal. instruction on sensor angle adjustment. NOTICE If the issue persists, contact Delta Commercial Technical Service at 1-800-387-8277 (Canada). Page 20 - 31 216039, Rev. A...
  • Page 21 MMO button obstructed or 2. Replace MMO button assembly if required.. damaged. “MMO Button Maintenance (see Figure 19)” on page 29 instructions. If the issue persists, contact Delta Commercial Technical Service at 1-800-387-8277 (Canada). NOTICE Page 21 - 31 216039, Rev. A...
  • Page 22 26 pour les instructions sur le réglage de l'angle du capteur. infrarouge. AVIS Si le problème persiste, communiquez avec le service technique de Delta Commercial au 1-800-387-8277 (Canada). Page 22 - 31 216039, Rev. A...
  • Page 23 « Entretien Du Bouton MMO (voir Figure 19) » à la page 29 pour obtenir des instructions. AVIS Si le problème persiste, communiquez avec le service technique de Delta Commercial au 1-800-387-8277 (Canada). Page 23 - 31 216039, Rev. A...

  • Page 24: Maintenance

    MAINTENANCE ENTRETIEN BATTERY REPLACEMENT (see Figure 14) Figure 14 NOTICE • Use of high quality Alkaline Batteries recommended when replacing. • All previously adjusted settings will be retained when batteries are changed. F-13 1. Remove the two cover screws (F-3) and lift off metal cover (F-4). 2.

  • Page 25: Inlet Filter Maintenance (See Figure 15)

    INLET FILTER MAINTENANCE (see Figure 15) Figure 15 1. Remove plug button (D-1) and CLOSE supply stop (D) using a straight screw driver. 2. Using a wrench remove the retaining nut (F-2) from the supply stop (D). 3. Separate the flushometer tail (F-1) from the supply stop (D). 4.

  • Page 26: Inadvertent Flushing (See Figure 16)

    INADVERTENT FLUSHING (see Figure 16) Figure 16 1. Check for the presence of a mirror or reflective surface across from the flushometer. 2. Cover the reflective surface by standing in front or with paper, if this resolves the inadvertent flushing then: 3.

  • Page 27: Cap/Solenoid & Regulating Screw Assembly Maintenance (See Figure 17)

    CAP/SOLENOID & REGULATING SCREW ASSEMBLY Figure 17 MAINTENANCE (see Figure 17) 1. CLOSE the supply stop (D). 2. Remove the two cover screws (F-3) and lift off metal cover (F-4). 3. Carefully lift the electronic compartment (F-5) off the cap/solenoid assembly (F-7), disconnect the solenoid wires from the electronic compartment (F-5).

  • Page 28: Diaphragm/Guide Assembly And Seat Maintenance (See Figure 18)

    DIAPHRAGM/GUIDE ASSEMBLY AND SEAT Figure 18 MAINTENANCE (see Figure 18) 1. CLOSE the supply stop (D). 2. Remove the two cover screws (F-3) and lift off metal cover (F-4). 3. Carefully lift the electronic compartment (F-5) off the cap/solenoid assembly (F-7), disconnect the solenoid wires from the electronic compartment (F-5).

  • Page 29: Mmo Button Maintenance (See Figure 19)

    Figure 19 MMO BUTTON MAINTENANCE (see Figure 19) 1. CLOSE the supply stop (D). 2. Using a wrench remove the capnut (F-24). 3. Remove the cage assembly (F-25) from the flushometer body (F). 4. With the cage assembly (F-25) removed, check for damage to the O-ring (F- 26) and washer (F-27).

  • Page 30: Warranty

    Changes or modifi cations not expressly approved by the manufacturer could void the user’s authority to operate the equipment. WARNING CAN ICES-3 (A) / NMB-3(A) 2022 Masco Canada Ltd. © For further technical assistance, call Delta Commercial Technical Service at 1-800-387-8277 (Canada) or 1-877-509-2680 (U.S.A.). 255069, Rev G Page 30 - 31 216039, Rev. A...

  • Page 31: Garantie

    L’utilisation de cet appareil dans un endroit résidentiel peut causer des interférences nuisibles, auquel cas l’utilisateur devra corriger les interférences à ses propres frais. AVERTISSEMENT Tous changements ou modifi cations non explicitement approuvés par Delta risquent d’annuler le droit de l’utilisateur à utiliser l’équipement. CAN ICES-3 (A) / NMB-3(A) ©...
