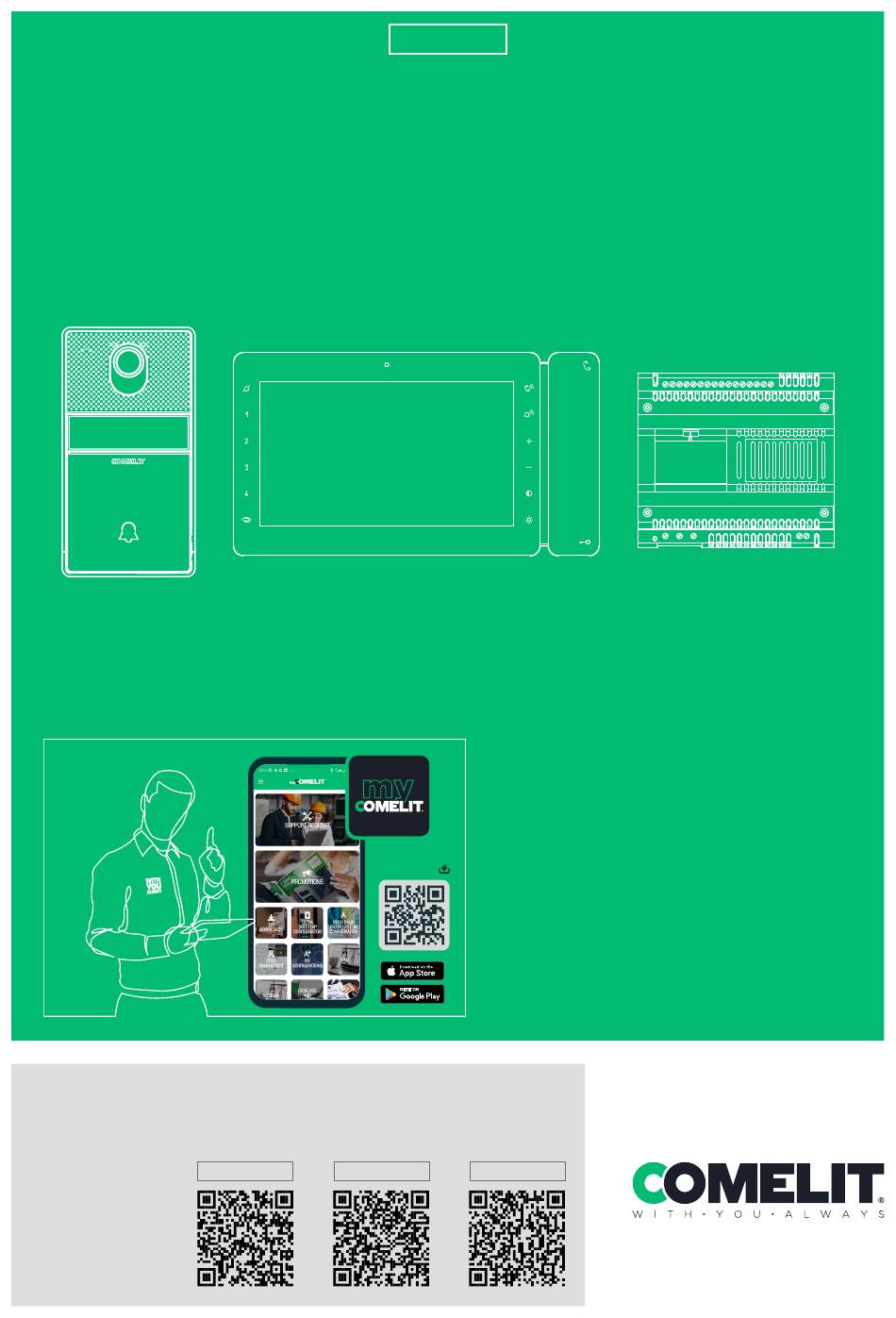

- Page 1 QUICK REFERENCE GUIDE MYCOMELIT: THE APP FOR PROFESSIONALS MYCOMELIT, L'APP PER IL PROFESSIONISTA FREE DOWNLOAD Single-User Kit HFX-9500M also available in French and Spanish...
- Page 2 This QRG contains all the basic informations to install the single- ×4 user kit. ×2 Additional features are available in the full manual at the web site ×2 pro.comelitgroup.com _ HFX-9500M _ MANUALS ×4 clips for dry screws clips for dry screws lined walls...
- Page 3 2. Parts identification 2.1 EX-B EXTERNAL UNIT 1.14 3.15 in 1.06 1.18 in Hole for wall mounting Adjustment trimmer (See page 16) Terminal block Addressing and programming DIP-switches bus line connection CNF Programming confirmation button programmable RTE (local lock-release input) or S2 Special programming selector DO input (door open indication) S1 Button programming selector...
- Page 4 2.2 EX-9000H DOOR ENTRY MONITOR 8.77 in 0.98 in 7” colour LCD screen Micro-switches for programming keys and functions DIP 1-2-3-4 for key function programming Microphone DIP 5-6 access to programming Audio key / Paging call key DIP 7 unused DIP 8: leave default setting (OFF) Lock-release key CV6 see the full manual for more information...
- Page 5 2.3 1209/8 BUS POWER SUPPLY 2.6 in 5.51 in L1 | L1 door entry monitor connection 1 L2 | L2 door entry monitor connection 2 L3 | L3 door entry monitor connection 3 L4 | L4 door entry monitor connection 4 L5 | L5 door entry monitor connection 5 L6 | L6...
- Page 6 2.4 PARTS IDENTIFICATION FOR EXPANSION The art. EX-9000H is the additional internal unit for Single-User ADDITIONAL INTERNAL UNIT Kits (see page for further information) EX-9000H EX-9000H ADDITIONAL EXTERNAL UNIT The art. EX-BSB is the additional external unit for Single-User Kits and contains the external unit art. EX-B (see page further information) and the Video door expander art.
- Page 7 3.1.1 Single-User Kit art. HFX-9500M EX-9000H 1209/8 EX-B HFX-9500M 3.1.2 Maximum Expansion Monitors in Daisy Chain connection EX-9000H EX-9000H EX-9000H EX-9000H expansion expansion expansion expansion expansion expansion expansion expansion door entry monitor door entry monitor door entry monitor door entry monitor...
- Page 8 1209/8 EX-BSB EX-BSB EX-BSB expansion external unit expansion external unit expansion external unit expansion external unit expansion external unit expansion external unit 1405 1405 1405 EX-B EX-B EX-B EX-B HFX-9500M...
- Page 9 Basic single-user kit STANDARD INSTALLATION EX-9000H 1 2 3 4 LEAVE DEFAULT SETTINGS LEAVE DEFAULT SETTING 1209/8 LP LP L1 L1 L2 L2 L3 L3 L4 L4 L5 L5 L6 L6 L7 L7 L8 L8 110-240V EX-B Local lock release button...
- Page 10 Expanded single-user kit MAXIMUM EXPANSION IN DAISY CHAIN CONNECTION EX-9000H EX-9000H 1 2 3 4 1 2 3 4 LEAVE DEFAULT SETTING LEAVE DEFAULT SETTING LEAVE DEFAULT SETTINGS LEAVE DEFAULT SETTINGS EX-9000H EX-9000H REMOVE CV5 REMOVE CV5 REMOVE CV5 REMOVE CV5 1 2 3 4 1 2 3 4 LEAVE DEFAULT SETTING...
- Page 11 Expanded single-user kit MAXIMUM EXPANSION...
- Page 12 3.2 ASSEMBLY ART. EX-9000H INTERNAL UNIT 3.2.1 Surface-mounting (accessory for EX-9000H included) 8.77 in min = 2.6 in max = 2.8 in CLICK ! TO OPEN...
- Page 13 3.2.2 Dry-wall mounting (accessory for EX-9000H included) 8.77 in 8 . 0 CLICK ! TO OPEN...
- Page 14 3.3 SURFACE-MOUNTING OF THE POWER SUPPLY ART. 1209/8 3.4 INSTALLATION OF EXTERNAL UNIT ART. EX-B The camera must not be installed in front of light sources, or in places where the filmed subject is against the light. In dim environments, we recommend additional lighting is provided.
- Page 15 79° 19.68 in 43.70 in 96° REMOVE TERMINAL IF YOU NEEDED...
- Page 16 Microphone DO NOT DO NOT CHANGE CHANGE Loudspeaker ADJUST IF NEEDED 3.3.1 How to change the nameplate of the external unit art. EX-B...
- Page 17 4. Additional features This Quick reference Guide contains all the basic informations to install the single-user kit. Additional features in the full manual at the web site pro.comelitgroup.com: • Configuration Capacitive-touch keys art. EX-9000H • Quick programming (generic actuator, internal intercom calls, internal paging calls, self ignition main external unit, Doctor function) •...
- Page 18 5. System function Audio key/Paging call key Audio volume key Lock-release key Ringtone volume key Keys 1 Programmable button Value 'Up/Down' key Keys 2 Programmable button Keys 3 Automatic lock-release (Doctor Contrast key mode) (programmable) Brightness key Keys 4 Programmable button Self activation key (programmable) Silent mode (Privacy) key 5.1 PERFORMING CALLS...
- Page 19 5.3 SOFT-TOUCH KEY ACTIVATION „ Touch to activate the function keys 5.3 Self activation function √ Self activation is possible only when the system is in standby „ Press again to cycle through several cameras „ Press the self activation button ( by default) to display on the If a call is underway with an external unit it is NOT possible to monitor the video from the external unit.
- Page 20 5.7 Audio volume control „ Press to enable the adjustment of the audio volume. » The LED comes on. „ Adjust by pressing the + / - keys. Tone changes and Privacy LED flashes when the parameter reaches minimum or maximum value. „...
- Page 21 6. Technical specification 6.1 EX-9000H MAIN DOOR ENTRY MONITOR Display 7’’LCD colour screen Resolution 800x480 pixel Auto Timer (intercom) 300 sec Operating Temperature 23°F / 131°F (-5°C / 55°C) Dimensions (with bracket) W×H×D 8.77”x4.88”x0,98” (223x124x25 mm) Power consumption 13 W MAX 6.2 EX-B EXTERNAL UNIT Height 5.90 in Width 3.15 in...
- Page 22 7. Appendix 7.1 WARNING WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THE MONITOR OR POWER ADAPTER TO WATER OR MOISTURE. CAUTION: DO NOT OPEN. RISK OF ELECTRICAL SHOCK. CAUTION! TO REDUCE RISK OF ELECTRICAL SHOCK, DO NOT REMOVE COVER OR BACK, NO USER SERVICEABLE PARTS INSIDE, REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
- Page 23 • Consult the dealer or an experienced radio or television technician 7.4 GENERAL PRODUCT WARRANTY: For all Comelit Branded Products 2 year manufacturer’s warranty from dealer date of Purchase. Proof of purchase by the dealer in the form of an invoice is necessary for all returns.
