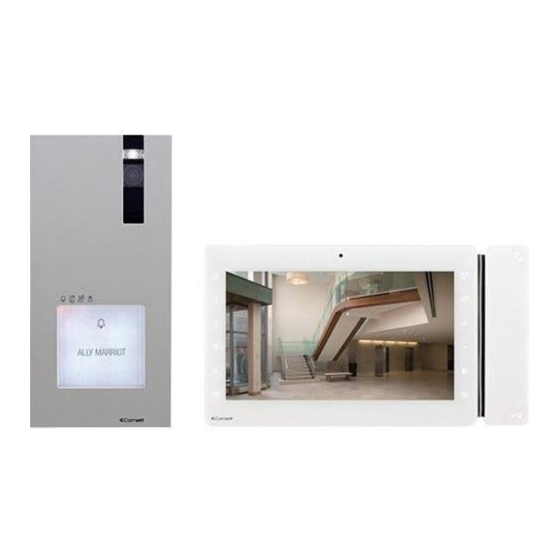

- Page 1 QUICK REFERENCE GUIDE Quick reference Guide for Single-User Kit HFX-9000M also available in French and Spanish...
-
Page 2: Contents Of The Package
×1 ×4 metal frame monitor + terminal block support screws Technical Manual QUICK REFERENCE ×4 GUIDE ×2 ×2 ×4 clips for dry screws Quick reference Guide for Single-User Kit HFX-9000M lined walls tech sheet also available in French and Spanish... -
Page 3: Parts Identification
2. Parts identification 3.79 in 1.06 in 2.1 EX-DSM EXTERNAL UNIT 1. Die-cast aluminium cover 9. Terminal block M2 connection for electric door lock 2. Camera lighting LED connection for electric door lock 3. Wide-angle color camera relay normally closed contact 4. - Page 4 2.2 EX-9000H MONITOR 8.77 in 0.98 in 1. 7” colour LCD screen 5. S2 Micro-switches for programming keys and functions DIP 1-2-3-4 for key function programming 2. Microphone DIP 5-6 access to programming DIP 7 unused Audio key / Paging call key DIP 8: leave default setting (OFF) Lock-release key 6.
- Page 5 2.3 1209/8 BUS POWER SUPPLY 2.6 in 5.51 in 1. L1 | L1 monitor connection 1 L2 | L2 monitor connection 2 L3 | L3 monitor connection 3 L4 | L4 monitor connection 4 L5 | L5 monitor connection 5 L6 | L6 monitor connection 6 L7 | L7 monitor connection 7 L8 | L8 monitor connection 8...
-
Page 6: System Installation
2.4 PARTS IDENTIFICATION FOR EXPANSION The Art. EX-9000H is the Additional Internal Unit for Single-User ADDITIONAL INTERNAL UNIT Kits (see page 4 for further information) EX-9000H EX-9000H ADDITIONAL EXTERNAL UNIT The Art. EX-DSQ is the Additional External Unit for Single-User Kits and contains the external unit Art. - Page 7 3.1.1 Single-User Kit Art. HFX-9000M EX-9000H 1209/8 EX-DSM HFX-9000M 3.1.2 Maximum Expansion Monitors in Daisy Chain connection EX-9000H EX-9000H EX-9000H EX-9000H expansion monitor expansion monitor expansion monitor expansion monitor EX-9000H EX-9000H EX-9000H EX-9000H expansion monitor expansion monitor expansion monitor 1209/8...
- Page 8 EX-9000H EX-9000H EX-9000H EX-9000H EX-9000H expansion monitor expansion monitor expansion monitor expansion monitor expansion monitor expansion monitor expansion monitor 1209/8 EX-DSQ EX-DSQ EX-DSQ expansion external unit expansion external unit expansion external unit 1405 1405 1405 EX-DSM EX-DSM EX-DSM EX-DSM HFX-9000M...
- Page 9 Basic single-user kit STANDARD INSTALLATION EX-9000H LEAVE DEFAULT SETTING 34 Vdc 1209/8 LP LP L1 L1 L2 L2 L3 L3 L4 L4 L5 L5 L6 L6 L7 L7 L8 L8 110-240V 34 Vdc Local lock release button. EX-DSM HFX-9000M Wiring diagram: MXK/039QCU...
- Page 10 LEAVE DEFAULT SETTING REMOVE CV5 REMOVE CV5 1209/8 LP LP L1 L1 L2 L2 L3 L3 L4 L4 L5 L5 L6 L6 L7 L7 L8 L8 110-240V Video Closing Jumper EX-DSM REMOVE WHEN LINE IS USED HFX-9000M Wiring diagram: MXK/Q19U...
- Page 11 Expanded single-user kit MAXIMUM EXPANSION Wiring diagram: MXK/012BQCU...
- Page 12 3.2 ASSEMBLY ART. EX-9000H INTERNAL UNIT 3.2.1 Surface-mounting (accessory for EX-9000H included) 8.77 in min = 2.6 in max = 2.8 in CLICK ! TO OPEN...
- Page 13 3.2.2 Dry-wall mounting (accessory for EX-9000H included) 8.77 in 8 . 0 CLICK ! TO OPEN...
- Page 14 3.3 INSTALLATION OF EXTERNAL UNIT ART. EX-DSM COUNTERCLOCKWISE 19.68 in 72° TIGHTEN WELL 85° Loudspeaker Microphone ADJUST IF NEEDED...
- Page 15 Labels must be made of non-conductive material so as not to compromise the operation of the Capacitive-touch buttons. For instructions on replacing the nameplate, see the complete manual. Before fixing the screw, make sure that you do not need to programme the external unit (see the “4.3 Configuration EX- DSM”...
- Page 16 3.4 SURFACE-MOUNTING OF THE POWER SUPPLY ART. 1209/8...
-
Page 17: Additional Features
4. Additional features This Quick reference Guide contains all the basic informations to install the single-user kit. The full manual is available online via the QR code or by visiting http://pro.comelitgroup.com/files_cms/14-manuali/file/2G40001552.pdf Additional features in the full manual: • Configuration Capacitive-touch keys Art. EX-9000H •... -
Page 18: Paging Call
5.1 PERFORMING CALLS 5.1.1 How to call from the external unit 5.1.2 How to answer a call from an internal unit » On receipt of a call from the external unit you will hear the „ To send the call from an external unit, touch the button call ringtone corresponding to the user you want to contact. -
Page 19: Soft-Touch Key Activation
5.3 SOFT-TOUCH KEY ACTIVATION „ Touch to activate the function keys 5.3 Self-ignition function √ Self-ignition is possible only when the system is in standby „ Press again to cycle through several cameras „ Press the self-ignition button ( by default) to display on the If a call is underway with an external unit it is NOT possible monitor the video from the external unit. - Page 20 5.7 Audio volume control „ Press to enable the adjustment of the audio volume. » The LED comes on. „ Adjust by pressing the + / - keys. Tone changes and privacy LED flashes when the parameter reaches minimum or maximum value.
-
Page 21: Technical Specification
6. Technical specification 6.1 EX-9000H MAIN MONTOR Display 7’’LCD colour screen Resolution 800x480 pixel Auto Timer (intercom) 300 sec Operating Temperature 23°F / 131°F (-5°C / 55°C) Dimensions (with bracket) W×H×D 8.77”x4.88”x0,98”(223x124x25mm) Power consumption 13 W MAX 6.2 EX-DSM EXTERNAL UNIT Image Sensor ¼”... -
Page 22: Important Safety Instructions
7. Appendix 7.1 WARNING WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THE MONITOR OR POWER ADAPTER TO WATER OR MOISTURE. CAUTION: DO NOT OPEN. RISK OF ELECTRICAL SHOCK. CAUTION! TO REDUCE RISK OF ELECTRICAL SHOCK, DO NOT REMOVE COVER OR BACK, NO USER SERVICEABLE PARTS INSIDE, REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. -
Page 23: Fcc Class B Notice
7.4 GENERAL PRODUCT WARRANTY: For all Comelit Branded Products (excluding HFX 700, 720 and 900 products) 2 year manufacturer’s warranty from dealer date of Purchase. Proof of purchase by the dealer in the form of an invoice is necessary for all returns. - Page 24 w w w . c o m e l i t g r o u p . c o m...
