KA01648F/97/EN/01.23-00
71613725
2023-06-16
Products
Brief Operating Instructions

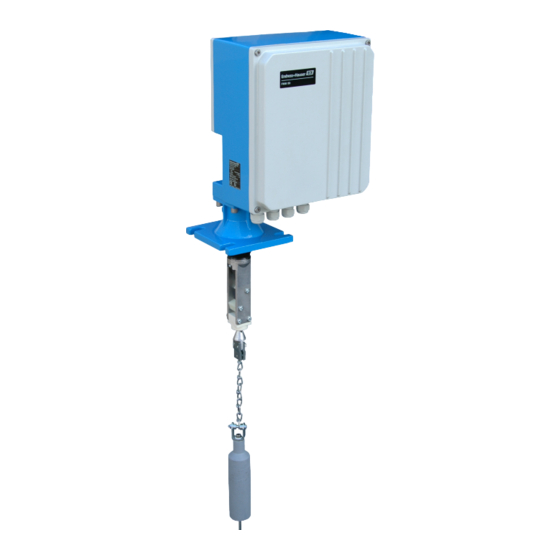

Silopilot FMM50
Electromechanical level system
These Instructions are Brief Operating Instructions; they are
not a substitute for the Operating Instructions pertaining to
the device.
Detailed information about the device can be found in the
Operating Instructions and the other documentation:
Available for all device versions via:
• Internet:
www.endress.com/deviceviewer
• Smart phone/tablet: Endress+Hauser Operations App
Solutions
Services
Advertisement
Table of Contents
Related Manuals for Endress+Hauser Silopilot FMM50
Summary of Contents for Endress+Hauser Silopilot FMM50
- Page 1 Operating Instructions pertaining to the device. Detailed information about the device can be found in the Operating Instructions and the other documentation: Available for all device versions via: • Internet: www.endress.com/deviceviewer • Smart phone/tablet: Endress+Hauser Operations App...
- Page 2 Liquiphant FTL41 Silopilot FMM50 Order code: XXXXX-XXXXXX Ser. no.: XXXXXXXXXXXX Ext. ord. cd.: XXX.XXXX.XX Serial number www.endress.com/deviceviewer Endress+Hauser Operations App A0023555 Endress+Hauser Endress+Hauser...
-
Page 3: Table Of Contents
Silopilot FMM50 Table of contents Table of contents About this document 4 Symbols . -
Page 4: About This Document
About this document Silopilot FMM50 About this document Symbols 111 Safety symbols This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in serious or fatal injury. This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in serious or fatal injury. -
Page 5: Basic Safety Instructions
The manufacturer is not liable for damage caused by improper or non-designated use. Clarification of borderline cases: In the case of special fluids and media used for cleaning, Endress+Hauser is glad to provide assistance in verifying the corrosion resistance of wetted materials, but does not accept any warranty or liability. -
Page 6: Product Safety
It meets general safety standards and legal requirements. It also complies with the EU direc- tives listed in the device-specific EU Declaration of Conformity. Endress+Hauser confirms this by affixing the CE mark to the device. Incoming acceptance... -
Page 7: Product Identification
All of the information on the measuring device is displayed along with an overview of the scope of technical documentation provided • Enter the serial number on the nameplate into the Endress+Hauser Operations App or use the Endress+Hauser Operations App to scan the 2-D matrix code (QR Code) on the name-... -
Page 8: Mounting
Mounting Silopilot FMM50 Mounting Mounting conditions 0000000255 1 Installation position Distance to the filling stream, internals, struts or cornices Ambient temperature Process temperature Installation position • Protect sensing weight from spillage. • Protect measuring tape from damage. • Select an installation position with as free a measuring path as possible. -
Page 9: Mounting The Device
Silopilot FMM50 Mounting • Maximum temperature from lower edge of process adapter: +70 °C (+158 °F) • Accessories → TI00395F Mounting the device 621 Required tool • To open the device: Allen key 5 mm 5 mm • For the process connection: Appropriate installation tool •... - Page 10 Mounting Silopilot FMM50 • For large sensing weight (cage, bell or oval float): Use or create structural support measures and lower the tape border an appropriate distance before mounting. 0000000257 3 Mounting the sensing weight 623 Mounting the device Fit the measuring device on the process connection and align it in such a way that •...
- Page 11 Silopilot FMM50 Mounting 624 Mounting dimensions 260 (10.24) 339 (13.35) 305 (12.01) 0000000249 4 Mounting dimensions. Unit of measurement mm (in) The wiper length (L) depends on the selected maximum nozzle height: • 225 mm (8.86 in), Ordering code "maximum connection height; wiper", option A or B •...
-
Page 12: Post-Installation Check
Electrical connection Silopilot FMM50 Post-installation check ̃ Is the device undamaged (visual inspection)? ̃ Does the device conform to the measuring point specifications? For example: • Process temperature • Process pressure • Ambient temperature ̃ Are the measuring point number and labeling correct (visual inspection)? ̃... -
Page 13: Preparing The Measuring Device
Silopilot FMM50 Electrical connection Preparing the measuring device Remove the dummy plug if present. Housing not sealed tight! • Operational reliability of the measuring device could be compromised. Use suitable cable glands that match the degree of protection. • If the measuring device is supplied with cable glands: Observe the cable specifications... -
Page 14: Terminal Assignment
Electrical connection Silopilot FMM50 732 Connecting the device 0000000222 6 Terminal assignment Unscrew the housing cover on the electronics side (large cover). Push the cable through the cable entry. To ensure tight sealing, do not remove the sealing ring from the cable entry. - Page 15 Silopilot FMM50 Electrical connection 742 Signal input Order code Terminal assignment Without Input 1 (active) Input 2 (active) (‒) Input 1 (passive) Input 2 (passive) • Contact load: - active: 12 to 24 V - passive: switching contact max. 30 V DC / 300 mW •...
-
Page 16: Ensuring The Degree Of Protection
Electrical connection Silopilot FMM50 Ensuring the degree of protection Check that the housing seals are clean and fitted correctly. Dry, clean or replace the seals if necessary. Tighten all housing screws. Firmly tighten the cable glands. Unused cable entries must be sealed with suitable blanking plugs. -
Page 17: Operation Options
Silopilot FMM50 Operation options Operation options 0000000221 7 Operation options Operating keys for configuration Button to start a measurement manually External button to start a measurement manually Endress+Hauser... -
Page 18: Access To The Operating Menu Via The Local Display
Operation options Silopilot FMM50 Access to the operating menu via the local display 811 Operational display m e a s u r e d v a l u e m e a s u r e d v a l u e ... - Page 19 Silopilot FMM50 Operation options 812 Navigation view → → g r o u p s e l e c t i o n g r o u p s e l e c t i o n ...
- Page 20 Operation options Silopilot FMM50 Operating options Meaning Entering a value • Activates the edit mode • Changes the displayed character (9, 8, 7, ... , Z, Y, X, ...) Selecting a value Moves the active option down Entering a value •...
-
Page 21: Commissioning
Silopilot FMM50 Commissioning Meaning The measurement procedure starts if the device is in the display mode (function man. start 000) or external start button 815 Enabling and disabling the keypad lock If the lock symbol appears in the local display and in front of the input values of the functions, the parameterization is protected by a key lock, no more values can be entered or changed in the entire operating menu. -
Page 22: Configuring The Device
Commissioning Silopilot FMM50 Configuring the device The device is configured via the individual function groups and the associated functions in the groups. The following chapters list the functions required for normal commissioning. Special functions such as linearization can be found in the BA00286F operating manual. The default values are always shown in bold in the following chapters, unless they are explicitly menti- oned. - Page 23 Silopilot FMM50 Commissioning Block distance Enter distance between the flange of the device and the end of the sensing weight (in upper limit position) in block distance 002 function: Range of values: 0.23 to 5 m (or converted value in feet/inches) Default: 0.8 m...
- Page 24 Commissioning Silopilot FMM50 Distance/measured value → 22 Display of the measured distance between the device and the medium and the current measured value in dist/measvalue 004 function: The display depends on the number of decimal places (function 062), the distance unit (func- tion 083) and also linearization where applicable.
- Page 25 Silopilot FMM50 Commissioning Time unit Input unit of time interval (see function 021) in time unit 022 function: • h (Hour(s)) • min. (Minute(s)) Normal or short Select operating mode for the "single cycle" and "periodical" type of measurement in normal or short 023 function: •...
- Page 26 Commissioning Silopilot FMM50 [mA] 0000000263 13 Current mode Magnify Normal Function 031 (0/4mA value) Function 032 (20mA value) 0/4mA value Input lower limit current output (see function 030) in 0/4mA value 031 function: Range of values: depends on distance unit and/or CU 20mA value Input upper limit current output (see function 030) in 20mA value 032 function:...
- Page 27 Silopilot FMM50 Commissioning [mA] 0000000262 14 Behaviour of the current output Filling level Level (volume) Current Ullage 933 Display Back to home Input of time until return to measured value display (000) in back to home 061 function: Range of values: 3 ... 9999 seconds Default: 100...
- Page 28 Commissioning Silopilot FMM50 934 Output Relay output 1 Selection behavior relay 1 in relay output 1 014 function: • alarm: Relay switches as soon as an error is detected. • threshold: Relay switches as soon as a set limit value (see function 017 and 018) is excee- ded or not reached.
- Page 29 Silopilot FMM50 Commissioning Range of values: 30 to 100 ms (Pulse weight = 1) 30 to 250 ms (Pulse weight = 2) 30 to 400 ms (Pulse weight = 3) 30 to 550 ms (Pulse weight = 4 to 20)
- Page 30 Commissioning Silopilot FMM50 Input 2 For selection options see input 1 (010) Default: not used Polarity input 2 For selection options see contact input 1 (011) Default: NO contact 936 Advanced settings Device tag Input maximum 16-digit alphanumeric measuring point designation in tag no 080 function:...
- Page 31 Silopilot FMM50 Commissioning • ullage CU: Display the ullage in customized units. The unit can be selected in the customer unit function (056), and the full-scale value can be set in the maximum scale function (057). Measured value linearization is possible.
- Page 32 Commissioning Silopilot FMM50 100 % 0000000260 15 Manual linearization Level marks Volume • Before entering a linearization table, any tables still present from before must be deleted (linearization (051) = "delete table"). • Once a linearization table has been entered, it must be activated (linearization (031) = "table on").
- Page 33 Silopilot FMM50 Commissioning Maximum scale Input upper-range value (in the selected unit and the selected decimal places) in maxscale 057 function: Range of values: 1 to 100000 Default: 100 938 Safety settings Output on alarm Selection behavior current output in case of error in output on alarm 040 function: •...
- Page 34 Commissioning Silopilot FMM50 Security distance → 22 Input security distance before block distance in security distance 043 function: Range of values: 0 m ... (full calibration - safety distance) (or converted value in feet/inches) This zone is used as a warning that if the fill level continues to rise, future measurements might be invalid since the block distance (and therefore also the minimum run-down length of the FMM) might be undershot.
- Page 35 Silopilot FMM50 Commissioning 9310 Simulation Simulation Selection of measured value simulation in simulation 026 function: • sim. off: Simulation is switched off. • sim. level: A fill level can be specified in function 027. In such cases, the range of values is based on the maximum scale value entered in function 057.
- Page 36 Commissioning Silopilot FMM50 Resetting errors Delete the displayed errors in clear error 072 function: • keep; Errors are not deleted. • erase previous: The last error is deleted. • erase present: The current error is deleted. • erase all: The current (070) and previous (071) errors are deleted.
- Page 37 Silopilot FMM50 Endress+Hauser...
- Page 38 Silopilot FMM50 Endress+Hauser...
- Page 39 Silopilot FMM50 Endress+Hauser...
- Page 40 *71518769* 71518769 www.addresses.endress.com...
