Step 4:
Connect digiGate to control board using switch cables by following the steps at
section 5.3.
5.3 SWITCH CABLING
This section explains how to insert the switch cables into the digiGate.
Please refer to sections 6 (gate) or 7 (garage) when determining where the cables are
inserted on digiGate and your specific control board.

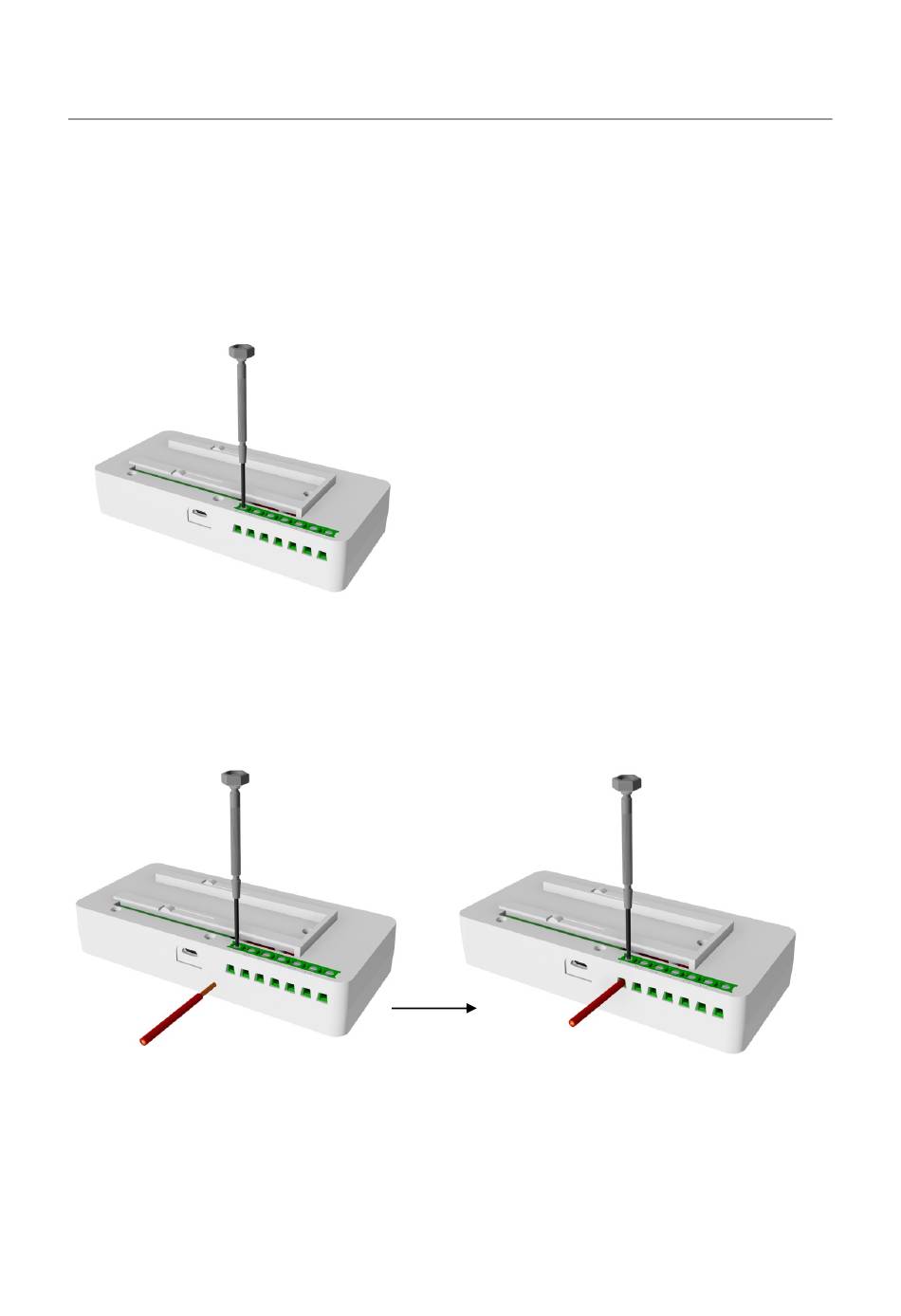

Step 1:
Unscrew the relevant terminal on the digiGate unit with a small flat head
screwdriver.
Step 2:
Ensure the cable is stripped with the metal inside exposed and insert the end into
the terminal point. Once inside, ensuring no metal from the cable is exposed on the outside
of the digiGate, tighten the screw so the cable sits firmly in place without falling out.
Instructions continue on the next page
digiGate.co.uk
11
