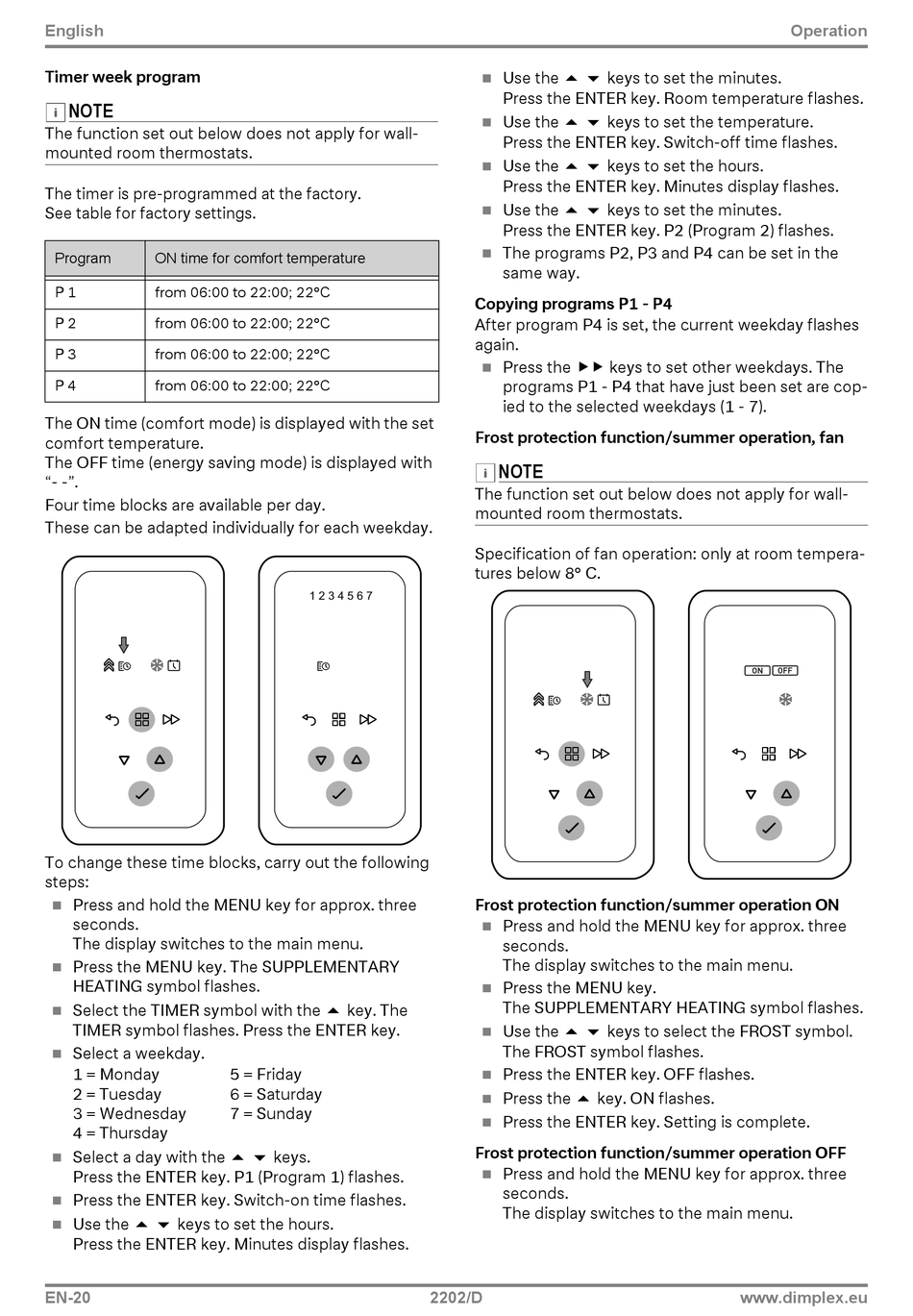

Dimplex VFE 20 Installation And Operating Instructions Manual page 48

English
Timer week program
NOTE
The function set out below does not apply for wall-
mounted room thermostats.
The timer is pre-programmed at the factory.
See table for factory settings.
Program ON time for comfort temperature
P 1 from 06:00 to 22:00; 22°C
P 2 from 06:00 to 22:00; 22°C
P 3 from 06:00 to 22:00; 22°C
P 4 from 06:00 to 22:00; 22°C
The ON time (comfort mode) is displayed with the set
comfort temperature.
The OFF time (energy saving mode) is displayed with
"- -".
Four time blocks are available per day.
These can be adapted individually for each weekday.
To change these time blocks, carry out the following
steps:
Press and hold the MENU key for approx. three

seconds.
The display switches to the main menu.
Press the MENU key. The SUPPLEMENTARY

HEATING symbol flashes.
Select the TIMER symbol with the

TIMER symbol flashes. Press the ENTER key.
Select a weekday.

1 = Monday
2 = Tuesday
3 = Wednesday
4 = Thursday
Select a day with the

Press the ENTER key. P1 (Program 1) flashes.
Press the ENTER key. Switch-on time flashes.

Use the keys to set the hours.
 

Press the ENTER key. Minutes display flashes.
EN-20
key. The

5 = Friday
6 = Saturday
7 = Sunday
keys.
 
Use the
 

Press the ENTER key. Room temperature flashes.
Use the
 

Press the ENTER key. Switch-off time flashes.
Use the
 

Press the ENTER key. Minutes display flashes.
Use the
 

Press the ENTER key. P2 (Program 2) flashes.
The programs P2, P3 and P4 can be set in the

same way.
Copying programs P1 - P4
After program P4 is set, the current weekday flashes
again.
Press the  keys to set other weekdays. The

programs P1 - P4 that have just been set are cop-
ied to the selected weekdays (1 - 7).
Frost protection function/summer operation, fan
NOTE
The function set out below does not apply for wall-
mounted room thermostats.
Specification of fan operation: only at room tempera-
tures below 8° C.
Frost protection function/summer operation ON
Press and hold the MENU key for approx. three

seconds.
The display switches to the main menu.
Press the MENU key.

The SUPPLEMENTARY HEATING symbol flashes.
Use the
 

The FROST symbol flashes.
Press the ENTER key. OFF flashes.

Press the key. ON flashes.


Press the ENTER key. Setting is complete.

Frost protection function/summer operation OFF
Press and hold the MENU key for approx. three

seconds.
The display switches to the main menu.
2202/D
keys to set the minutes.
keys to set the temperature.
keys to set the hours.
keys to set the minutes.
keys to select the FROST symbol.
www.dimplex.eu
Operation
