Plugs compatible with the HRE-425 List 1 include:
HLU-431, HLU-432, HDU-404, HDU-451, EDU-451, HRU-402,
H2TU-R-402, and ERU-412. Documentation for these
products can be downloaded from the ADC website at
www.adc.com.
I
NSTALLATION
The HRE-425 List 1 can be placed on a desk or mounted on a wall rack or equipment rack.
Wall Mounting
1
Loosen the four rear-panel locking bolts and remove the backplate
Locking
bolts
H0328-A
2
Using the backplate as a template, mark the wall locations for drilling the wall
mounting holes.
3
Drill pilot holes and attach the backplate to the backboard with the four
3
#10 x
/
4
Use the four locking bolts loosened in
the backplate to the chassis side panels. For access to the backplane and other
areas, the chassis can be rotated up or down by removing the two upper or two
lower mounting bolts and slightly loosening the two remaining bolts.

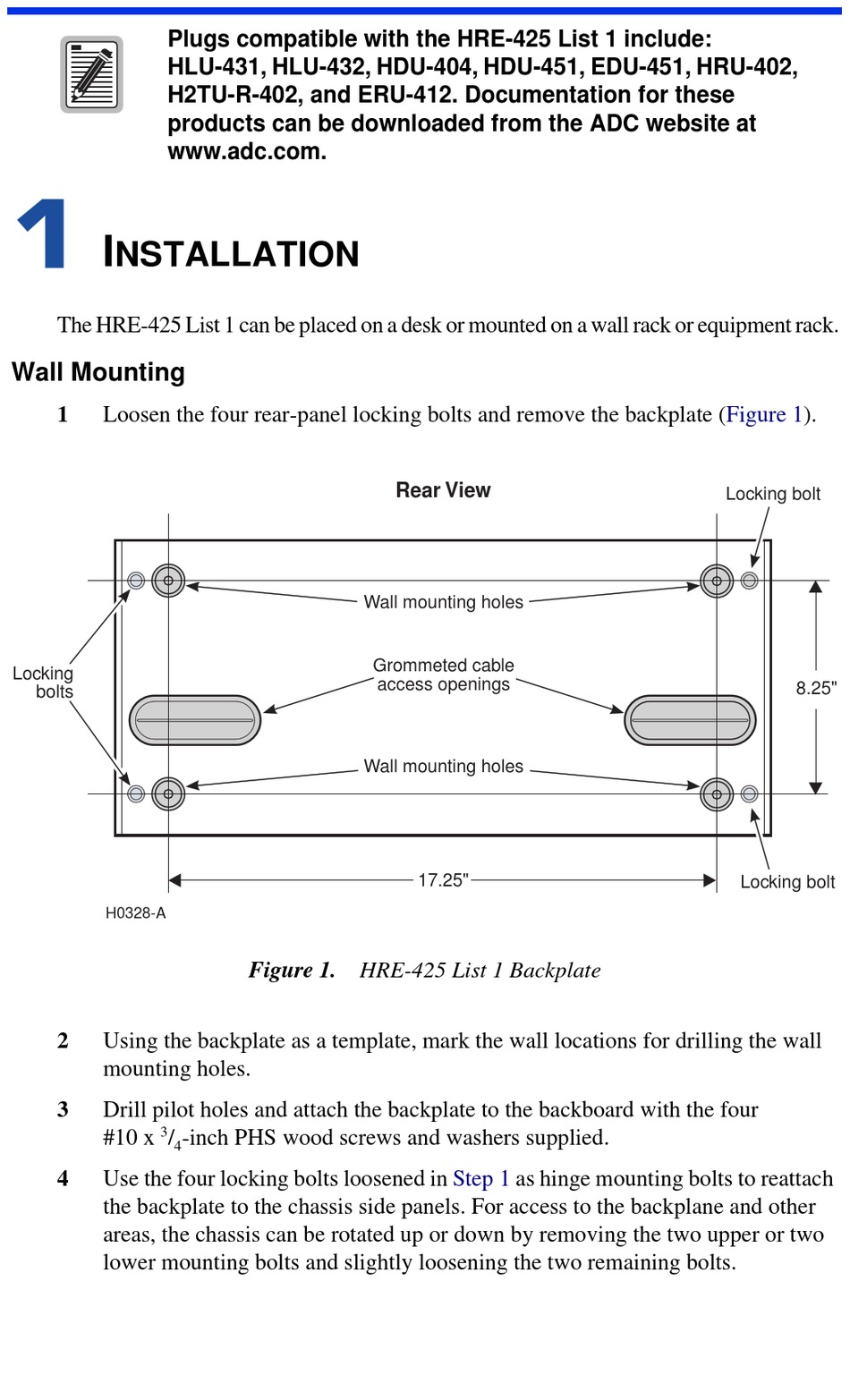

Figure 1. HRE-425 List 1 Backplate
-inch PHS wood screws and washers supplied.
4
Rear View
Wall mounting holes
Grommeted cable
access openings
Wall mounting holes
17.25"
Step 1
as hinge mounting bolts to reattach
(Figure
1).
Locking bolt
8.25"
Locking bolt
