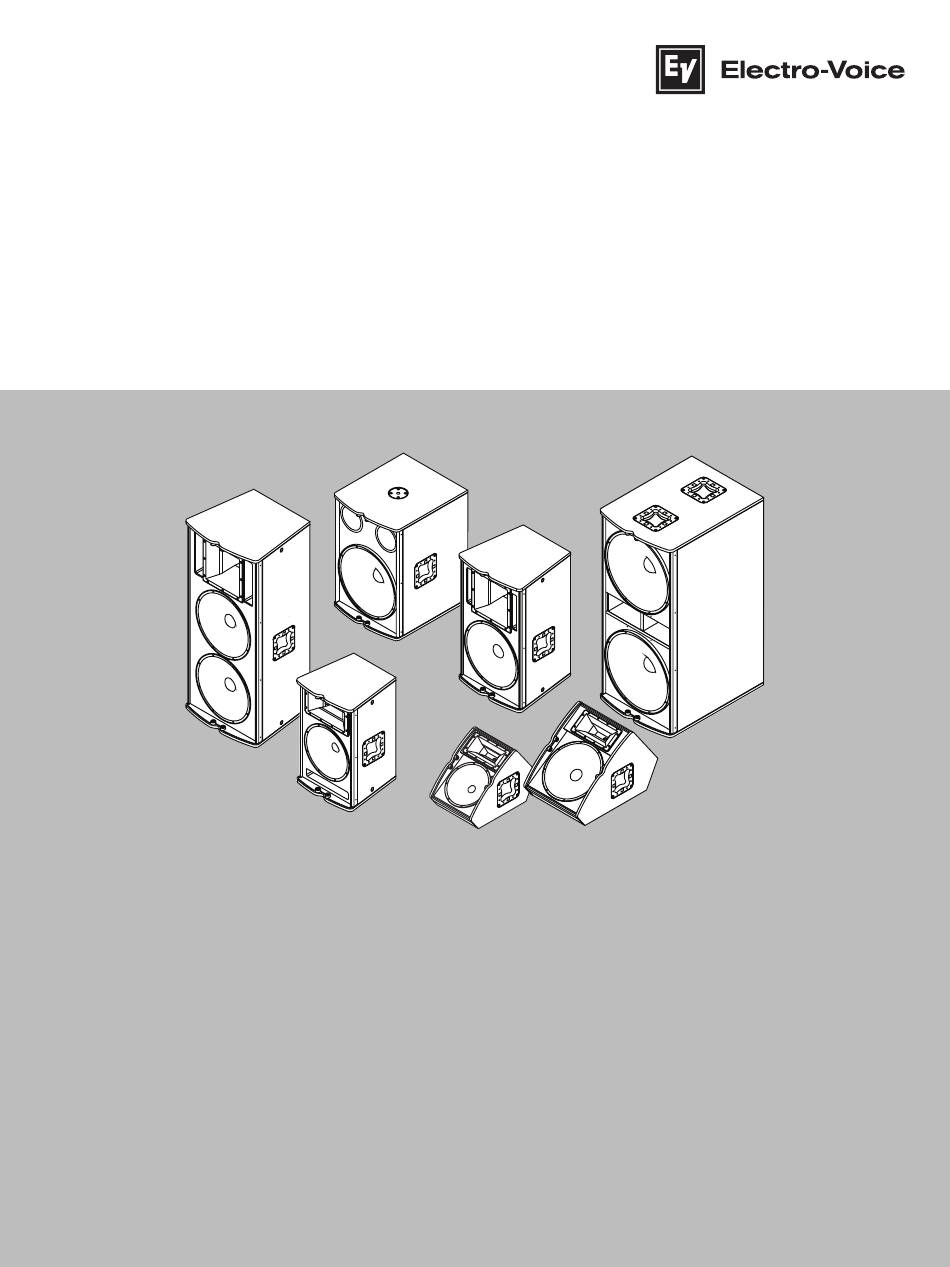

- Page 1 Tour X Series Loudspeakers User manual...
-
Page 3: Table Of Contents
Tour X Series Loudspeakers Table of contents | en Table of contents Safety Suspension Short information Applicable products Description Features Installation Suspending the loudspeaker 4.1.1 Recommended suspension methods Rotating the horn Rotating the logo Attaching the wheel kit Recommended configurations... -
Page 4: Safety
Do not use this apparatus near water other than explicitly called out in this manual. Clean only with a dry cloth. Suspension The Electro-Voice TX1122 , TX1152 , and TX2152 have threaded points that can be used for suspension. Please refer to … on properly suspending Tour X models prior to installation. Warning! - Page 5 Caution should be taken to avoid prolonged exposure to sound pressure levels exceeding 90 dB. Warning! Moisture Electro-Voice does not recommend using Tour X loudspeakers in the rain or in high moisture environments without protection. Electro-Voice 03-2022 | 08 | F.01U.196.114...
-
Page 6: Short Information
| Short information Tour X Series Loudspeakers Short information Thank you for choosing an Electro-Voice loudspeaker system. Please take time to consult the manual to understand all the features built into your EV system and fully utilize its performance capabilities. -
Page 7: Description
Description | en Description The Electro-Voice Tour X professional loudspeakers are a unique and highly-functional package of pro audio performance, versatility and aesthetics. Many of the design features are taken from EV ’s many years of experience in designing transducers and loudspeaker systems for high quality concert touring applications. -
Page 8: Installation
| Installation Tour X Series Loudspeakers Installation Suspending the loudspeaker The TX1122 , TX1152 , and TX2152 enclosures have six (6) M10 threaded points: three (3) points on the top of the enclosure and three (3) points on the bottom (Figure 1). - Page 9 Tour X Series Loudspeakers Installation | en To install the eyebolts: Remove the M10 screw in the desired locations. Replace with the fender washer and eyebolt (Figure 2). Notice! If the eyebolts are removed, reinstall the screw; otherwise, air leaks will occur in the enclosure, resulting in undesirable performance.
-
Page 10: Recommended Suspension Methods
| Installation Tour X Series Loudspeakers 4.1.1 Recommended suspension methods Warning! Eyebolts must be fully seated and oriented in the plane of pull. Always use fender washers at least 1.5 inch in diameter and 1/16 inch thick under the eyebolt to distribute the load on the enclosure. -
Page 11: Rotating The Horn
Warning! Suspension points are to be used for a single enclosure only, never arrays. Never exceed the limitations or maximum recommended working load for Electro-Voice loudspeakers. Rotating the horn The TX1152 and TX2152 loudspeakers have horns that can be rotated to change the coverage pattern. - Page 12 | Installation Tour X Series Loudspeakers To rotate the horn: Remove the (6 or 8) screws that attach the grille to the enclosure. Remove the (12) screws that attach the horn to the enclosure, and disconnect the wires that attach the compression driver to the input panel.
-
Page 13: Rotating The Logo
Tour X Series Loudspeakers Installation | en Rotating the logo All Tour X loudspeakers have logos that can be rotated (horizontally or vertically) to the user’s desired orientation. The logo is mounted on a spacer that has the signature “backbone” notch profile of Tour X grilles. -
Page 14: Attaching The Wheel Kit
| Installation Tour X Series Loudspeakers Attaching the wheel kit The TX1181 and TX2181 loudspeakers have six (6) mounting points for the TX-W1 Wheel Kit on their rear panels. The TX-W1 Wheel Kit is made up of two (2) skid plates with two (2) castors on each skid plate. -
Page 15: Recommended Configurations
Tour X Series Loudspeakers Recommended configurations | en Recommended configurations TX1122 TX1122 or TX1152 or TX1152 Loudspeaker Loudspeaker PCL35 PCL35 Pole Pole (Sold Separately) (Sold Separately) TX1181 TX1181 Loudspeaker Loudspeaker Output B Output A Amplifier From 30 Hz mixer Figure 5.1: One (1) TX1122 (or TX1152) and one (1) TX1181 per side, paralleled, on one (1) Q99 amplifier Electro-Voice 03-2022 | 08 | F.01U.196.114... - Page 16 | Recommended configurations Tour X Series Loudspeakers Output B Output A Q1212 Amplifier Output A TX2152 Output B TX2152 Loudspeaker Loudspeaker Q1212 Amplifier DC-One Processor From mixer TX2181 TX2181 Loudspeaker Loudspeaker Figure 5.2: One (1) TX2152 and one (1) TX2181 per side, on two (2) Q1212 amplifiers and one (1) DC-One processor Notice! Processor settings are available at http://www.electrovoice.com.
- Page 17 Tour X Series Loudspeakers Recommended configurations | en TX1122FM TX1122FM TX1122FM TX1122FM or TX1152FM or TX1152FM or TX1152FM or TX1152FM Loudspeaker Loudspeaker Loudspeaker Loudspeaker Output B Output A Recommended Microphones PL Series N/Dym Series Amplifier From 60 Hz mixer Figure 5.3: Four (4) TX1122FM (or TX1152FM) paralleled on one (1) Q99 amplifier Electro-Voice 03-2022 | 08 | F.01U.196.114...
-
Page 18: Technical Data
| Technical data Tour X Series Loudspeakers Technical data TX1122 Freq. response (-3 dB) : 60 Hz - 20 kHz Frequency range (-10 dB) : 45 Hz - 20 kHz Rec. high pass frequency: 45 Hz Axial sensitivity : 97 dB (1W/1m) Max. calculated SPL: 130 dB Coverage angle (H x V): 90° x 50°... - Page 19 Tour X Series Loudspeakers Technical data | en TX1152 TX2152 Freq. response (-3 dB) : 55 Hz - 20 kHz 55 Hz - 13 kHz Frequency range (-10 dB) : 40 Hz - 20 kHz 50 Hz - 18 kHz Rec. high pass frequency: 40 Hz 40 Hz Axial sensitivity : 100 dB (1W/1m) 103 dB (1W/1m)
- Page 20 | Technical data Tour X Series Loudspeakers TX1181 TX2181 Freq. response (-3 dB) : 50 Hz - 160 Hz Frequency range (-10 dB) : 45 Hz - 700 Hz 40 Hz - 1.5 kHz Rec. high pass frequency: 30 Hz Rec. low pass frequency: n/a 80 Hz - 120 Hz Axial sensitivity : 100 dB (1W/1m)
- Page 21 Tour X Series Loudspeakers Technical data | en TX1122FM TX1152FM Freq. response (-3 dB) : 70 Hz - 20 kHz 65 Hz - 20 kHz Frequency range (-10 dB) : 55 Hz - 20 kHz 45 Hz - 20 kHz Rec. high pass frequency: 60 Hz 45 Hz Rec. low pass frequency: n/a Axial sensitivity : 99 dB (1W/1m)
- Page 22 | Technical data Tour X Series Loudspeakers 03-2022 | 08 | F.01U.196.114 Electro-Voice User manual...
- Page 24 Bosch Sicherheitssysteme GmbH Bosch Security Systems, LLC Robert-Bosch-Ring 5 12000 Portland Avenue South 85630 Grasbrunn Burnsville MN 55337 Germany www.boschsecurity.com www.electrovoice.com © Bosch Sicherheitssysteme © Bosch Security Systems, GmbH, 2022 LLC, 2022 202204221721...
