ElectroVoice | TX1152FM 15" Passive Floor Monitor
TX1152FM 15" Passive Floor
Monitor
▪ 55° Vertical Floor Monitor with Signal
Synchronized Transducers
▪ 100 dB Sensitivity, 133 dB Maximum SPL
▪ DH3 1.25" (32 mm) Diaphragm, 1" (25 mm) Exit
Pure Titanium Compression Driver
▪ SMX2151 15" (381 mm) LF Transducer with
Fully Symmetric Drive
▪ 500 W Continuous (2000 W Peak) Power
Handling

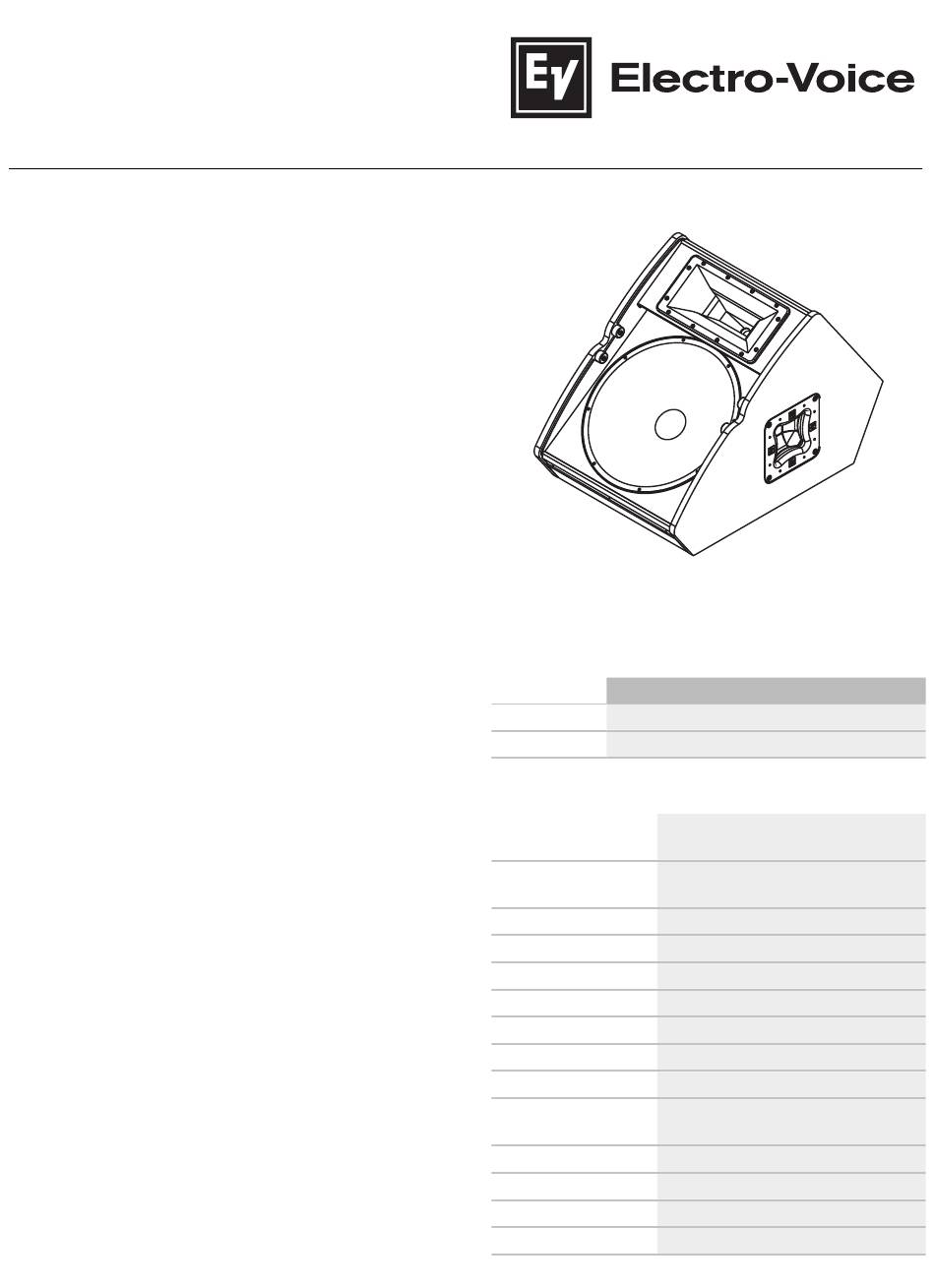

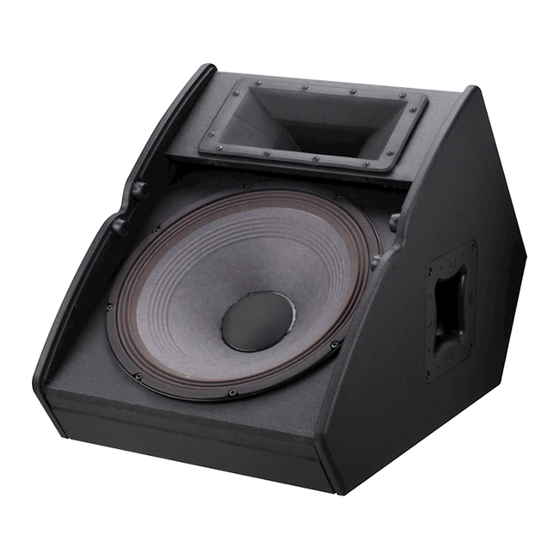

The Electro-Voice TX1152FM is a compact, high output
dedicated floor monitor for use on small to medium-
sized stages where high quality vocal and instrument
applications are required in a lightweight package.
The TX1152FM enclosure utilizes Signal Synchronized
Transducers (patent pending), a design that aligns the
woofer and compression driver by locating them on
separate baffles, and integrates a low distortion port
between the baffles. This offers tremendous advantages
over traditional flat baffle construction: the acoustic
centers of the woofer and compression driver are closer
together, synchronizing arrival time; the voice coils of
the compression driver and woofer are in the same
plane, achieving linear phase response; and the size of
both baffles are smaller than a single baffle; resulting in
a smaller footprint.
The TX1152FM utilizes the DH3, a high output 1.25"
titanium compression driver, coupled to a Constant
Directivity 90° x 50° horn. The SMX2151 15" woofer has
an FEA optimized magnet structure and shorting ring for
ultra low distortion. The crossover uses steep 24 dB/
octave slopes with equalization for very smooth
response in vocal range, and has a built in protection
circuit for long term reliability. The combination of the
transducers, enclosure, and crossover result in a
compact floor monitor that is capable of very high
output levels before feedback.
The TX1152FM has a variety of features that make it
suited as a dedicated floor monitor. The internally
braced enclosure is constructed out of a combination of
plywood and MDF, and coated with EVCoat
maximum strength and durability. The unique grille
design is very strong and dent resistant, and features a
rotatable logo. Four way handles allow for gripping the
TX1152FM in a variety of positions. The recessed input
panel with dual NL4 connectors is located on the rear
of the enclosure, which keeps the connectors hidden
and away from the performers on stage.
Parts included
Quantity
1
1
Technical specifications
TM
for
Component
Floor monitor
User manual
Frequency response (-3 65 Hz - 20 kHz
dB):
Frequency range (-10 45 Hz - 20 kHz
dB):
Rec. hipass frequency: 45 Hz
Axial sensitivity: 100 dB (1W/1m)
Max. calculated SPL: 133 dB
Horizontal coverage: 90°
Vertical coverage: 50°
Power handling: 500 W continuous, 2000 W peak
LF transducer: SMX2151, 15 in (381 mm) driver
HF transducer: DH3, 1.25 in (32 mm) diaphragm
compression driver
Crossover frequency: 1750 Hz
Nominal impedance: 8 Ohm
Minimum impedance: 6.2 Ohm
Connectors: (2) Neutrik Speakon NL4's
