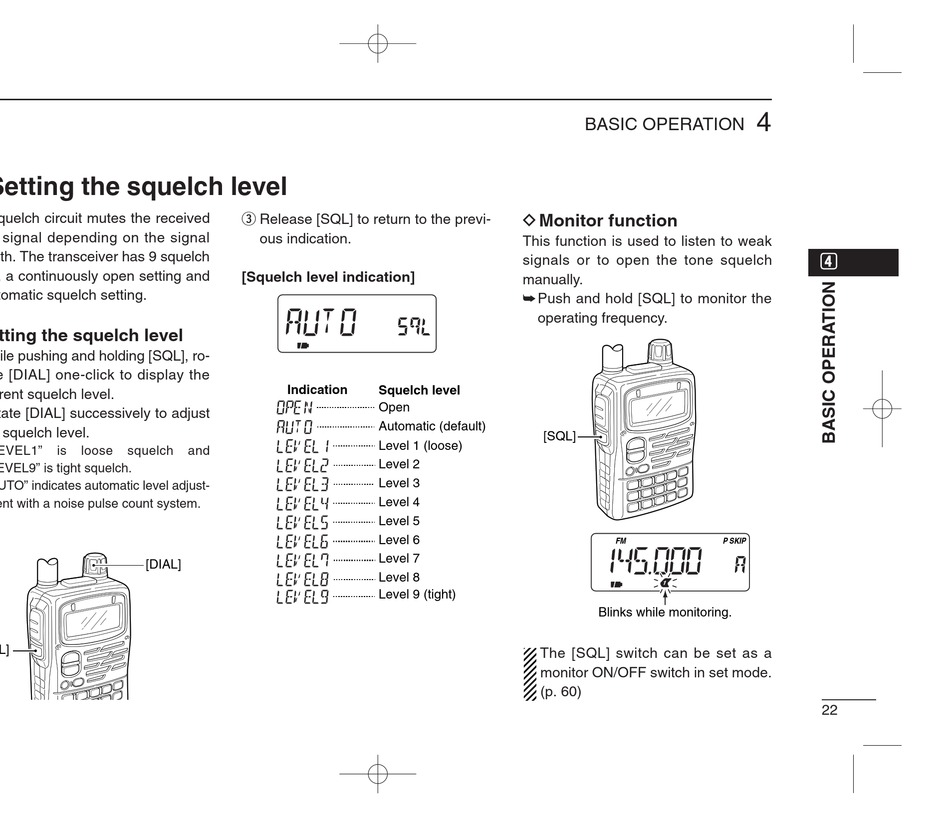

I Setting the squelch level

The squelch circuit mutes the received
audio signal depending on the signal
strength. The transceiver has 9 squelch
levels, a continuously open setting and
an automatic squelch setting.
D Setting the squelch level
q While pushing and holding [SQL], ro-
tate [DIAL] one-click to display the
current squelch level.
w Rotate [DIAL] successively to adjust
the squelch level.
• "LEVEL1" is loose squelch
"LEVEL9" is tight squelch.
• "AUTO" indicates automatic level adjust-
ment with a noise pulse count system.
[SQL]
e Release [SQL] to return to the previ-
ous indication.
[Squelch level indication]
Indication
and
[DIAL]
D Monitor function
This function is used to listen to weak
signals or to open the tone squelch
manually.
➥ Push and hold [SQL] to monitor the
operating frequency.
Squelch level
Open
Automatic (default)
[SQL]
Level 1 (loose)
Level 2
Level 3
Level 4
Level 5
Level 6
Level 7
Level 8
Level 9 (tight)
The [SQL] switch can be set as a
monitor ON/OFF switch in set mode.
(p. 60)
4
BASIC OPERATION
FM P SKIP
Blinks while monitoring.
r r
22
