Note:
Lifting the machine in an awkward position or
transporting it in a poorly balanced position could
result in personal injury. When transporting the
machine, assign an adequate number of persons
to the job and ensure that each person can take a
good position of not being excessively loaded.
(mass: approx. 39.2 kg (86-1/2lb))

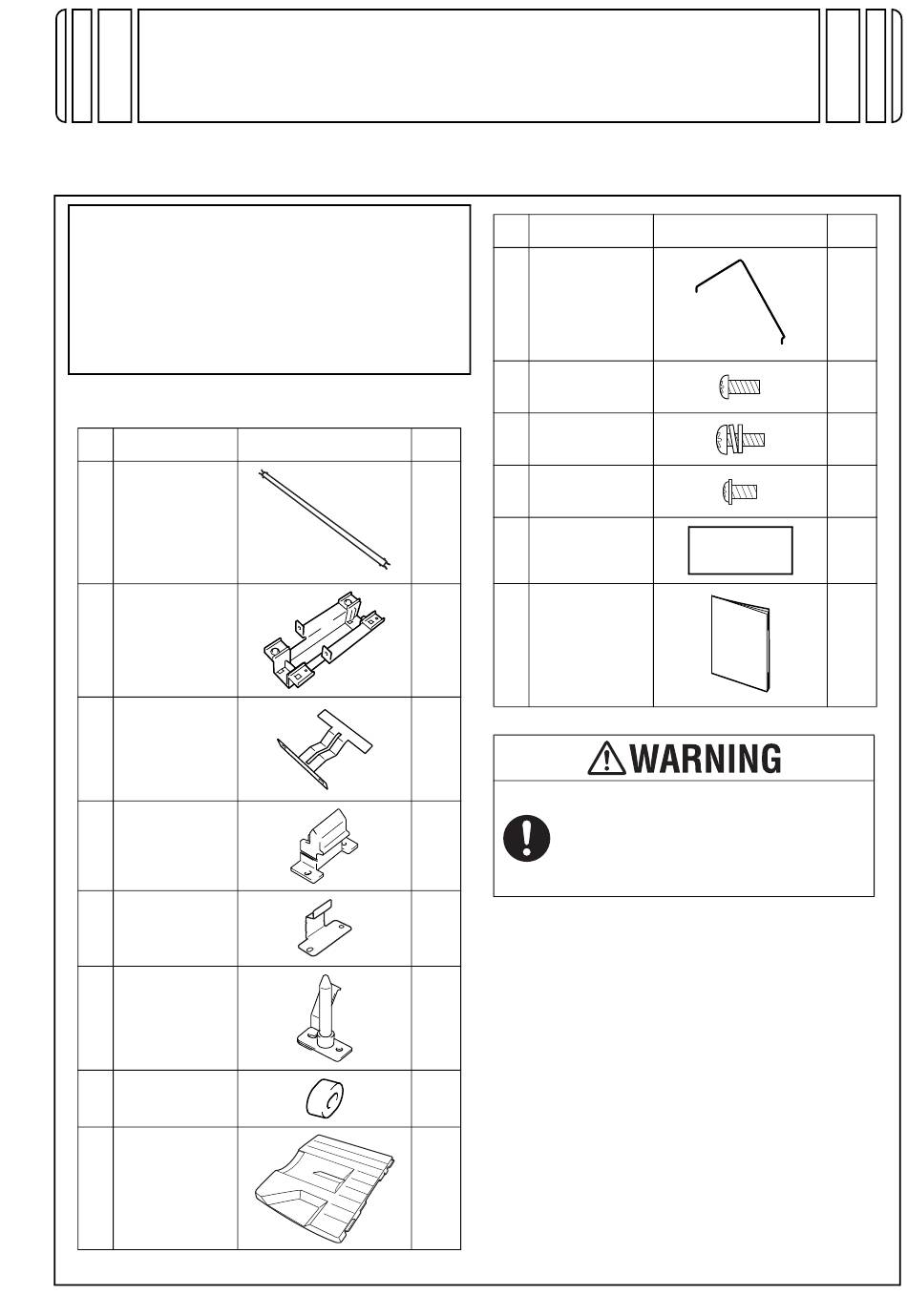

I. Accessory parts
No.
Name
1. Rail
2. Rail Guide
3. Ground Plate
4. Fixing bracket
A
5. Fixing bracket
B
6. Positioning pin
7. Spacer
8. Tray
FS-511
INSTALLATION MANUAL
Shape
Q'ty
1
4683IXC505DA
1
4684U061AB
1
4684U062AA
2
4521IXC001DA
2
4521IXC002DA
1
4521IXC003DA
1
4583U018AA
1
4684U075AA
Finisher
No.
Name
9. Protective
Guide
10. Bind screw
(M4x10)
11. SEMS II screw
(M4x12)
12. TP screw
(M4x8)
13. Label
14. Installation
Manual
After unpacking, be sure to get rid of the
packaging materials and keep them out of
the reach of children.
Putting the head in the plastic bag
involves danger of suffocation.
II. Precautions
1. Choose a horizontal and stable floor for installing
the machine.
2. Install the Relay Unit before installing the Finisher
in the main body.
3. To move the apparatus after installation, always
remove the connector and the rail from the Fin-
isher and remove the rail from the main body.
After the Finisher has been relocated, attach the
rail back again by following the steps given in
"Attaching the rail."
4. When moving the Finisher press the side oppo-
site to the tray to prevent the Finisher from top-
pling over.
E-1
Applied Machines: 500/420
MFP 50 ppm/42 ppm
Shape
Q'ty
1
4684U070AA
2
4521IXC004DA
4
4521IXC005DA
2
4521IXC023DA
1
1
set
4980IXC019DA
4521-9550-00

Advertisement

loading

Summary of Contents for Konica Minolta FS-511

  • Page 1 FS-511 Finisher INSTALLATION MANUAL Applied Machines: 500/420 MFP 50 ppm/42 ppm Note: Name Shape Q’ty Lifting the machine in an awkward position or 9. Protective transporting it in a poorly balanced position could Guide result in personal injury. When transporting the...
  • Page 2: Installation Procedures

    III. Installation procedures 4. Mount the ground plate and the rail guide to the lower, left-hand side of the Paper Feed Cabinet or 1. Turn off the machine’s sub and main power the Desk. switches, and unplug the power cord from the (TP screw M4x8: 2pcs.) outlet.
  • Page 3 IV. Adjusting the position of the Finisher 7. Install the fixing brackets A and B in two loca- tions. (SEMS ll screw M4x12: 2pcs each.) 1. Slowly move the Finisher toward the main body Note: and check the followings. Ensure that fixing brackets B face inward. •...
  • Page 4 3. Pull up and remove the caster covers (2 loca- 5. Press the Finisher against the main body and tions). check that clearance between the two is equal at points a and b. Note: Caster covers If the clearance at a is not equal that at b, readjust with the casters.
  • Page 5 V. Punch hole position adjustment VI. Affixing the Label Make a sample copy in punch mode, then follow the Affix the labels to the position shown below. procedure below if the gap in hole positions is out of <ADF> <On Upper cover/Rr> the following specifications.
