Note:
Lifting the machine in an awkward position or
transporting it in a poorly balanced position could
result in personal injury. When transporting the
machine, assign an adequate number of persons
to the job and ensure that each person can take a
good position of not being excessively loaded.
(mass: approx. 39.2 kg (86-1/2lb))

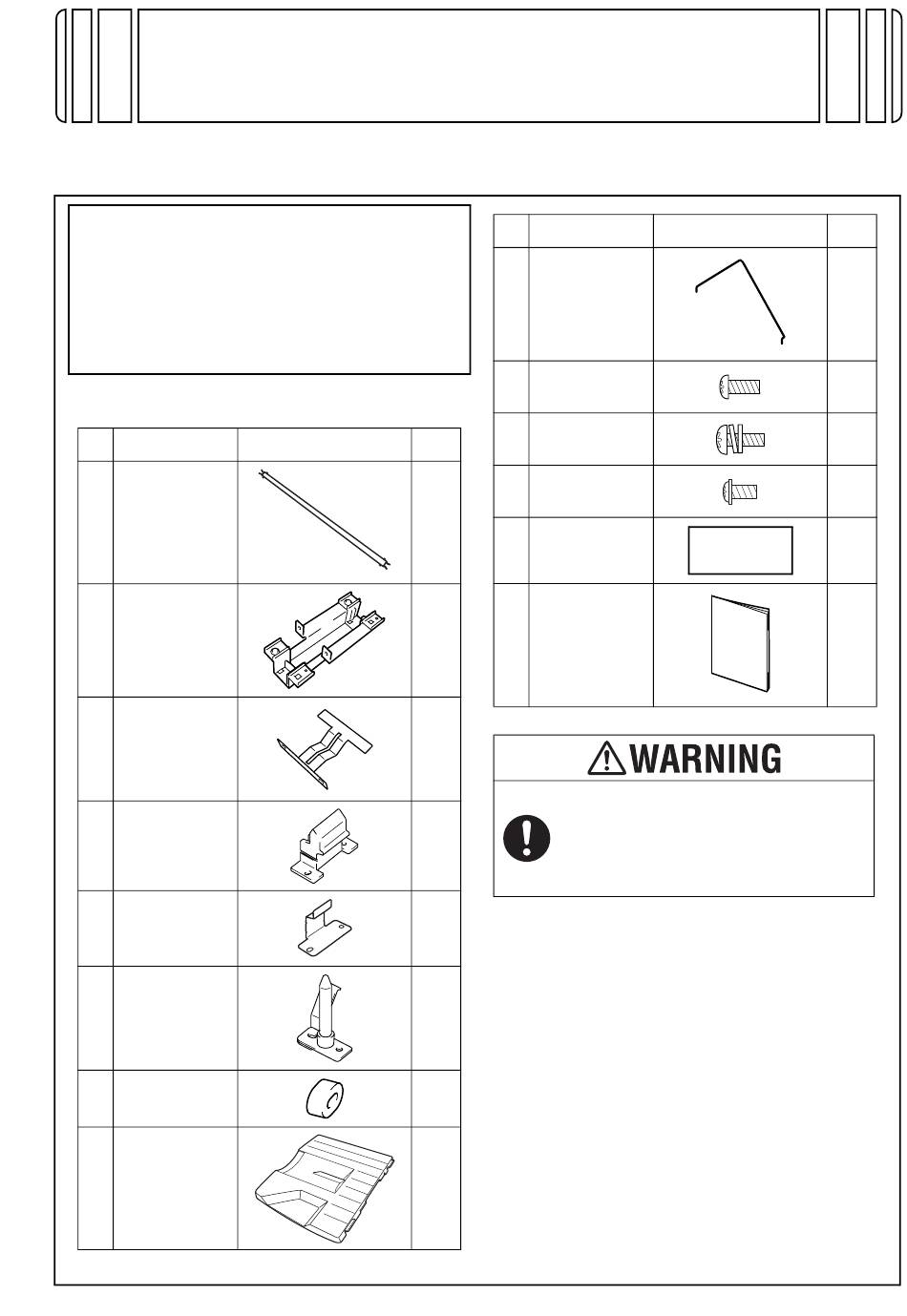

I. Accessory parts
No.
Name
1. Rail
2. Rail Guide
3. Ground Plate
4. Fixing bracket
A
5. Fixing bracket
B
6. Positioning pin
7. Spacer
8. Tray
FS-523
INSTALLATION MANUAL
Shape
Q'ty
1
4683IXC505DA
1
4684U061AB
1
4684U062AA
2
4521IXC001DA
2
4521IXC002DA
1
4521IXC003DA
1
4583U018AA
1
4684U075AA
Finisher
No.
Name
9. Protective
Guide
10. Bind screw
(M4x10)
11. SEMS II screw
(M4x12)
12. TP screw
(M4x8)
13. Label
14. Installation
Manual
After unpacking, be sure to get rid of the
packaging materials and keep them out of
the reach of children.
Putting the head in the plastic bag
involves danger of suffocation.
II. Precautions
1. Choose a horizontal and stable floor for installing
the machine.
2. Install the Relay Unit before installing the Finisher
in the main body.
3. To move the apparatus after installation, always
remove the connector and the rail from the Fin-
isher and remove the rail from the main body.
After the Finisher has been relocated, attach the
rail back again by following the steps given in
"Attaching the rail."
4. When moving the Finisher press the side oppo-
site to the tray to prevent the Finisher from top-
pling over.
E-1
Applied Machines: 501/421/361
MFP 50 ppm/42 ppm/36 ppm
Product Code: A0R5/A0R6/A0R7
Shape
4684U070AA
4521IXC004DA
4521IXC005DA
4521IXC023DA
4980IXC019DA
A0PH-9550-00
Q'ty
1
2
4
2
1
1
