Rinnai Pro Series Operation Manual

High wall split heat pump / air conditioner
Hide thumbs Also See for Pro Series:
Table of Contents

Advertisement

Quick Links

Download this manual

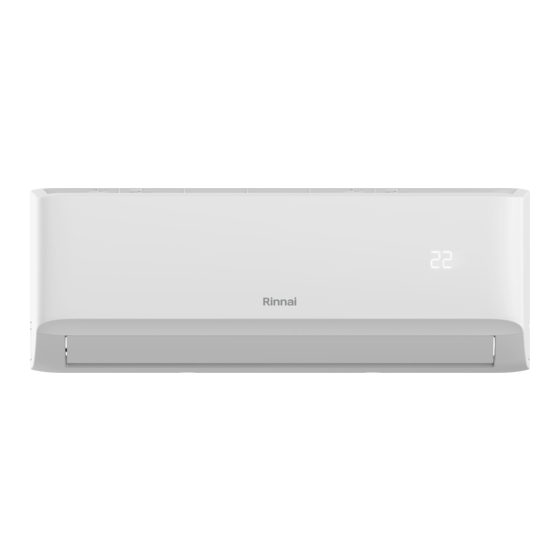

Pro Series High Wall Split Heat Pump / Air Conditioner
Operation guide

Advertisement

Table of Contents
loading

Related Manuals for Rinnai Pro Series

Summary of Contents for Rinnai Pro Series

  • Page 1 Pro Series High Wall Split Heat Pump / Air Conditioner Operation guide...
  • Page 2 Warning Improper installation, adjustment, alteration, service and maintenance can cause property damage, personal injury or loss of life. For more information about buying, using, and servicing of Rinnai appliances call: 0800 RINNAI (0800 746 624). Rinnai New Zealand Limited 105 Pavilion Drive, Mangere, Auckland...

  • Page 3: Table Of Contents

    Setting the angle of air flow ........13 Care and maintenance .........14 Troubleshooting ............16 Wi-Fi control ............18 Wi-Fi registration and connection ......19 Limited Warranty ..........20 Heat pumps, like cars, require regular maintenance and servicing. For reliable operation Rinnai heat pumps / air conditioners should be serviced annually.

  • Page 4: Safety And Important Information

    If an abnormal situation arises (like a burning smell), immediately turn off the unit and disconnect the power. If the Pro Series is used together with other heating devices, throughly ventilate the room to avoid oxygen depletion. Do not let the unit run for extended periods when the humidity is very high, or when doors or windows are left open.

  • Page 5: General Information

    Do not install the outdoor unit where it will be exposed to sea wind and salt spray, this will significantly reduce the durability of the unit. Genuine Rinnai parts Only use the included accessories, parts, and specified parts for installation. Using non-standard parts can cause water leaks, electrical shock, fire, and cause the unit to fail.

  • Page 6: About Your Pro Series Unit

    About your Pro Series unit Front panel Remote control holder Remote Louvre (some units) Filter Display window Operation range limits The table below indicates the temperature range the unit can operated within. Dry mode Mode Cooling mode Heating mode > 16 °C Room temperature >...
  • Page 7 Additional functions TURBO This mode allows you to cool indoor air quickly in summer or warm it quickly in winter. In turbo mode the fan is set to operate at the maximum output. Attempting to alter the fan speed during turbo will cancel this mode and return the appliance to manual operation.

  • Page 8: Remote Control And Functions

    Remote control and functions MODE ON/OFF Scrolls through the Turns the unit on or off. operation modes as follows: TEMP AUTO > COOL > DRY Increase temp. in 1 °C > HEAT > FAN increments. Max. temp. is 30 °C. If you press the ECO/GEAR up and down buttons Press this button to...
  • Page 9 Breeze away Active clean Mode Sleep mode Transmission indicator Follow me Lights up when remote sends a signal to the unit Wireless control Timer on or off Low battery Quiet feature Temperature, timer, fan speed display Displays the set Fan speed temperature by default, fan speed or timer setting Silence...
  • Page 10 Fan mode This mode uses the fan to circulate air without changing the room temperature. In this mode swing operations for air direction can still be adjusted. In FAN mode you can’t set the temperature, so no temperature will display on the remote. 1.
  • Page 11 Swing function If you press the Swing button the horizontal louvre will swing up and down automatically. To make it stop press the Swing button again. If you press the Swing button for more than two seconds the vertical louvre swing function is activated.

  • Page 12: Manual Operation Without Remote

    Manual operation without remote The manual button is intended for testing purposes and emergency operation only. Please do not use this function unless the remote control is lost and it is absolutely necessary. You will need a long thin tool to activate the manual control button as it is positioned underneath the electrical panel.

  • Page 13: Setting The Angle Of Air Flow

    Setting the angle of air flow While the unit is on, use the SWING button on the remote control to set the direction of air flow, refer p.11. Note on louvre angles When using COOL or DRY mode, do not set the louvre at too much of vertical angle for long periods.

  • Page 14: Care And Maintenance

    Failure to clean the filters regularly can cause condensation to form and drip from the indoor unit when it operates in cooling mode during humid conditions. If you need new filters, please contact Rinnai. 14 |...
  • Page 15 Air filter cleaning reminder After 240 hours of use, the display window on the indoor unit will flash ‘CL’. This is a reminder to clean your filter. After 15 seconds, the unit will revert to its previous display. Air filter replacement reminder After 2,880 hours of use, the display window on the indoor unit will flash ‘nF’.

  • Page 16: Troubleshooting

    Check the following information before making a service call as some performance characteristics are a normal part of operation. If you are still unsure or concerned after reading this section, please contact Rinnai on 0800 746 624. Issue Possible causes...
  • Page 17 Sometimes an error code will resolve itself. If not turn the unit off, turn off the mains power to the unit, wait a few minutes, then turn everything back on. If the error code remains contact your installer or Rinnai for advice. | 17...

  • Page 18: Wi-Fi Control

    Please note NetHome Plus is a third party App not run by Rinnai. For this App to run the home’s Internet router must be running on 2.4 GHz (not 5 GHz)— check the Wi-Fi settings on your device.

  • Page 19: Wi-Fi Registration And Connection

    1. Download and install the NetHome Plus App on a compatible mobile device 2. Complete an App registration by creating an account, this must be done in the home 3. Pair your mobile device to the Pro Series unit via the home router Please note: When connecting the device you must finish all the steps in eight minutes after powering on the unit, otherwise you’ll need to switch the unit off and go through the process again.

  • Page 20: Limited Warranty

    6 years 6 years The Rinnai NZ heat pump / air conditioner equipment is warranted against defects in design, materials and workmanship for a period of 6 years from the date the equipment is purchased by the original owner. General warranty terms Rinnai reserves the right to make modifications and change specifications and its parts without notice.
  • Page 21 9. Rinnai reserves the right to have installed product returned to the factory for inspection. 10. Where a system is installed outside the metropolitan area or further than 40 km from a Rinnai NZ accredited installer or authorised service centre, travel and freight charges (inclusive of insurance) shall be the owner’s responsibility.
  • Page 22 Any advice or recommendations given by such parties, including advice about product fitness for purpose and overall system design, sizing and application are not the responsibility of Rinnai. This includes but is not limited to the heat load calculations, airflow and system balancing.
  • Page 23 The website will help guide you as to where this information can be found. Warranty claim To make a warranty claim, contact Rinnai on 0800 RINNAI (0800 746 624) or email info@rinnai.co.nz. | 23...
  • Page 24 Rinnai.co.nz Tel: 0800 746 624 Pro Series operation guide http://www.youtube.com/rinnainz http://facebook.com.rinnainz 14094-A I 01-22...
