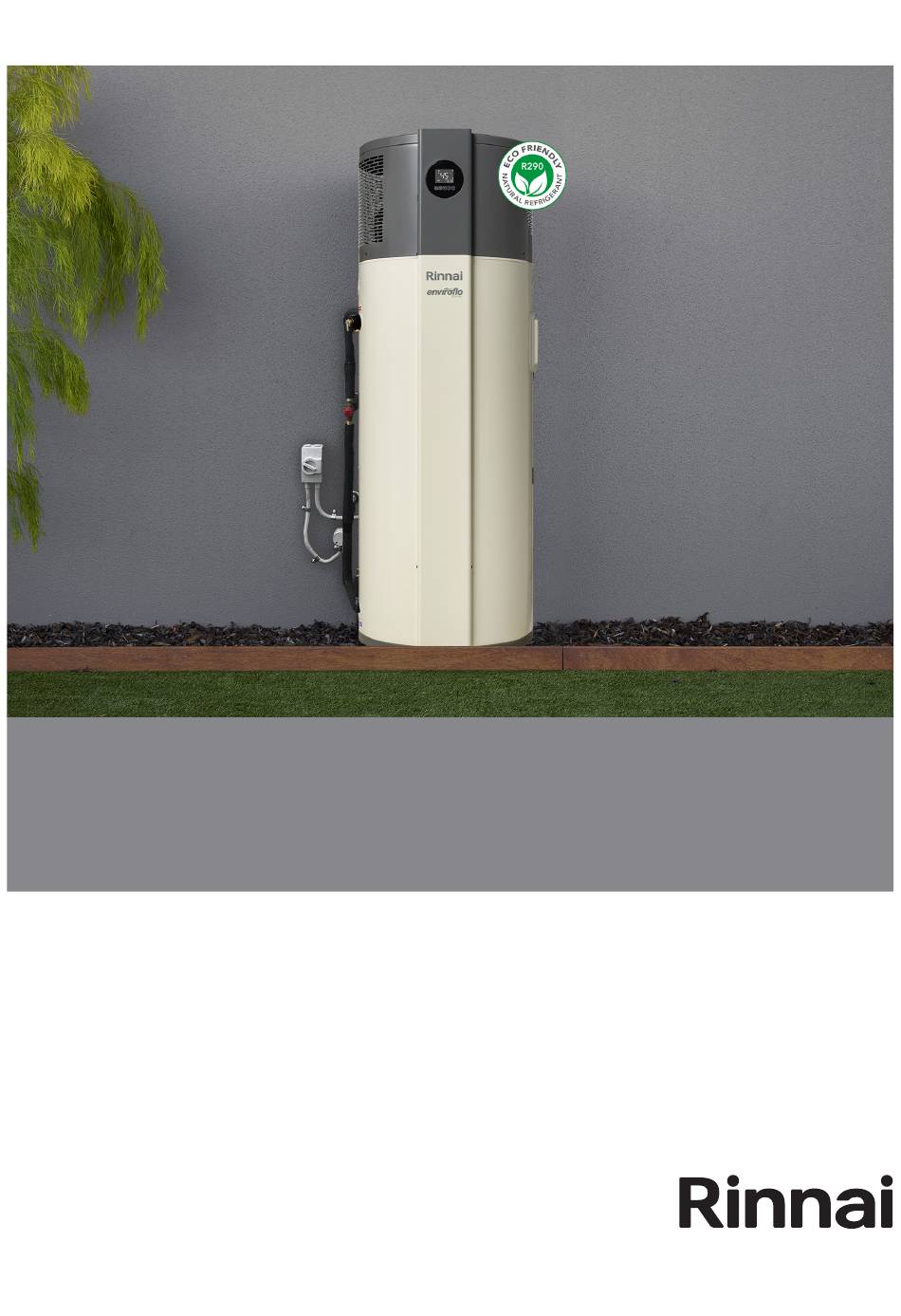

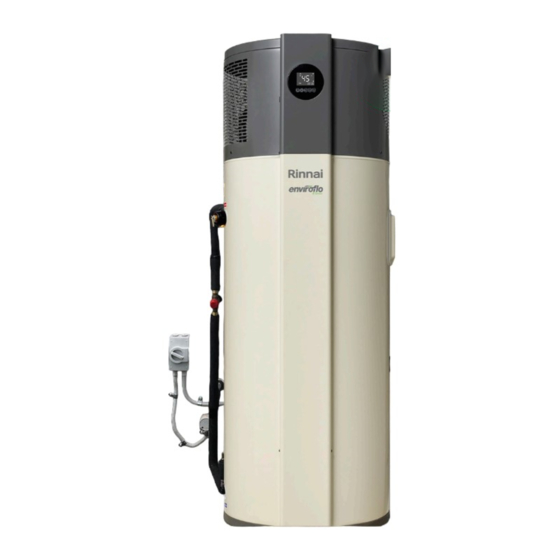

- Page 1 Enviroflo Hot Water Heat Pump Operation guide...
- Page 2 Warning Improper installation, adjustment, alteration, service or maintenance can cause property damage, personal injury or loss of life. For more information about buying, using, and servicing of Rinnai appliances call: 0800 RINNAI (0800 746 624). Rinnai New Zealand Limited 105 Pavilion Drive, Mangere, Auckland...
-
Page 3: Table Of Contents
Troubleshooting ............14 Limited warranty ...........16 For reliable operation the Rinnai Enviroflo Hot Water Heat Pump should be serviced every two years. A typical service would include cleaning the evaporator, checking the condition of the compressor and system connections, and ensuring there are no... -
Page 4: Safety And Important Messages
The Rinnai Enviroflo has a sealed refrigerant system, leaks will not be common unless the internal components of the header have been punctured. If punctured a hissing sound could occur indicating a leak. Contact your installer or Rinnai... - Page 5 Safety devices discussing the installation with a qualified Your Rinnai hot water system is fitted with a: installer prior to installation. • Temperature & Pressure Relief (TPR) valve • DO NOT install the unit in a location that that ensures the water remains at a safe may be exposed to combustible gas leaks.
-
Page 6: General Information
Note about water / water blasting -5 °C for over one minute. This sensor signals The Enviroflo has an IP24 rating which the PCB in the unit to start the compressor means it’s protected against splashing water, which will discharge hot gas into the evaporator for example rain. -
Page 7: About Your Enviroflo Hot Water Heat Pump
About your Enviroflo hot water heat pump How it works The operating principle of an electric heat pump is very similar to a refrigerator, but in reverse. A heat pump operates by transferring heat from the ambient outside air into the water. Electricity is used to operate the system, but not to directly heat the water. -
Page 8: Controller Interface
Controller interface • On/Off button, hold for one second. • Return button • Escape button • Lock / unlock button, hold for five seconds (will beep) On/Off When the controller is in the normal display and there is no button operation for more than 60 seconds, it will automatically lock. - Page 9 Button combinations Buttons can also be used in combination for additional functions: When heat pump is running and in heating mode, press and hold for three seconds to turn On/Off boost mode (i.e. turn off electric element). Boost: The heat pump and cylinder element heat the water to the set temperature, in a one off boost so as to heat the water as quickly as possible.
- Page 10 Clock setting 1. Unlock display if the lock icon is showing–press the On/Off button for five seconds. 2. Press clock, the time will flash on the display. 3. Press clock icon, the hours will flash, adjust using the up and down buttons.
-
Page 11: Operation Modes
Wireless connection The Smart Life - Smart Living App is a third party application independent of Rinnai. For this app to run, the home’s Internet router NOTE must be running on 2.4 GHz (not 5 GHz)—check the wireless settings on your device. It needs to be within 10 m of the water heater. -
Page 12: Maintenance And Servicing
Maintenance and servicing For reliable operation the Rinnai Enviroflo Hot Water Heat Pump should be serviced every two years. A typical service would include cleaning the evaporator, checking the condition of the compressor and system connections, and ensuring there are no water leaks. -
Page 13: Error Codes
When the system encounters an error, the error code will display on the screen. Take a note of the error code and contact Rinnai or your installer. They may advise you to switch to ‘Electric’ mode to ensure a continued supply of hot water until someone is able to come and check the unit. -
Page 14: Troubleshooting
Troubleshooting Do not attempt to carry out any work other than that mentioned in this troubleshooting section. If you have any other faults or problems, please contact your installer, or contact Rinnai. INSUFFICIENT OR NO HOT WATER Heat pump unit not powered Check to ensure the electric isolating switch at the switchboard, usually marked ‘Hot water’... - Page 15 If there is a power cut while the unit is running an error code may appear on disruption the display. If this occurs try powering off the system, wait for approximately ten seconds, then turn on again. If the error code reappears contact Rinnai for assistance. | 15...
-
Page 16: Limited Warranty
Rinnai warranty summary table. If the Rinnai Enviroflo is being acquired for personal, domestic or household use*, this warranty does not limit any consumer rights or guarantees that may apply under the Consumer Guarantees Act 1993. - Page 17 Where Rinnai determines that the heat pump unit needs to be removed for repair, Rinnai may undertake such removal and may permanently replace the defective heat pump unit with a substitute unit that is in the reasonable opinion of Rinnai, in a better or equal condition to the defective unit.
- Page 18 Water quality Water chemistry has a direct impact on hot water heaters, affecting corrosion protection measures, or causing scale buildup. Water quality MUST: 1. Meet the Water Services (Drinking Water Standards for New Zealand) Regulations 2022 and the Aesthetic Values for Drinking Water Notice 2022, or the water standards as statutorily defined at the time;...
- Page 19 Retailer: Retailer address: Date of purchase: Product details: Register your system online: www.rinnai.co.nz/register/ for service reminders, product updates, and special offers. You can unsubscribe at any time. Please keep these details in a safe place for future reference. Installer details...
- Page 20 Rinnai.co.nz Tel: 0800 746 624 http://www.youtube.com/rinnainz http://facebook.com/rinnainz Rinnai Enviroflo operation guide 15176-A...
