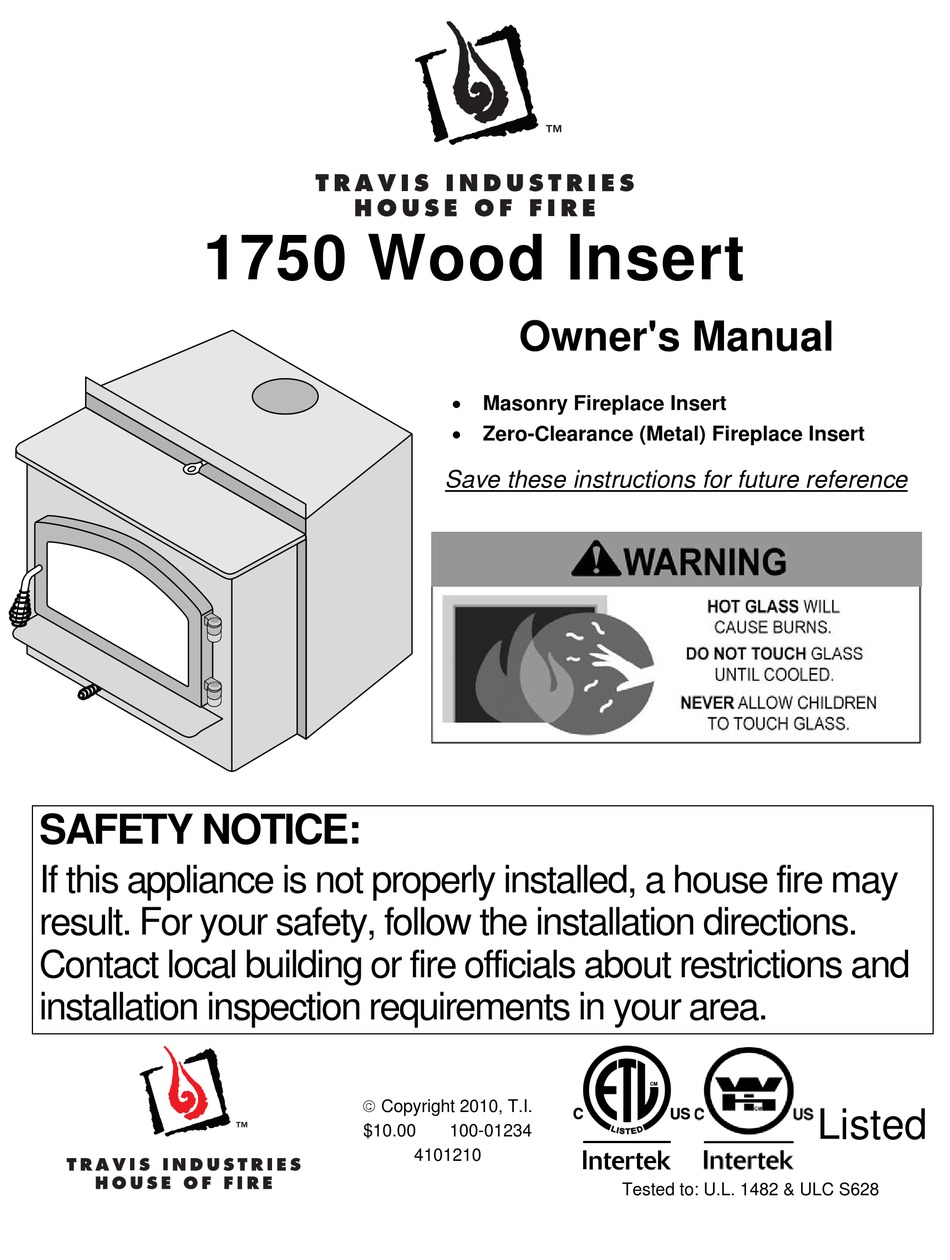

1750 Wood Insert
SAFETY NOTICE:
If this appliance is not properly installed, a house fire may
result. For your safety, follow the installation directions.
Contact local building or fire officials about restrictions and
installation inspection requirements in your area.
Owner's Manual
 Masonry Fireplace Insert
 Zero-Clearance (Metal) Fireplace Insert
Save these instructions for future reference
 Copyright 2010, T.I.
$10.00
100-01234
4101210
Tested to: U.L. 1482 & ULC S628
Listed

Advertisement

loading

Related Manuals for Travis Industries 1750

Summary of Contents for Travis Industries 1750

  • Page 1 1750 Wood Insert Owner's Manual  Masonry Fireplace Insert  Zero-Clearance (Metal) Fireplace Insert Save these instructions for future reference SAFETY NOTICE: If this appliance is not properly installed, a house fire may result. For your safety, follow the installation directions.

  • Page 2: Stove Installation

    (543mm) 10" (254mm) (616mm) Figure 1 (a) Measure side and top clearances from the top plate. Measure front clearances from the stove face (b) Fireplace Opening Emissions 1.9 Grams Per Hour (EPA Phase II Approved) © Travis Industries 100-01234 4101210...

  • Page 3: Fireplace Requirements

    Attach the "This fireplace has been altered..." plate to the fireplace (use two screws or other suitable method). You may wish to place it in a location where it will be covered by the surround panels. © Travis Industries 100-01234...

  • Page 4: Insert Placement Requirements

    Hearth Requirements  Must extend 16" (USA) or 18” (Canada) in front of the insert and 6” (USA) or 8" (Canada) on both sides.  Must be non-combustible and at least .018" thick (26 gauge) © Travis Industries 100-01234 4101210...

  • Page 5: Masonry Fireplace Requirements

    ") may be removed (if applicable). The masonry lining (" "), insulation (" "), and any structured rigid frame members (metal sides, floor, door frame, face of the fireplace, etc. – " ") may not be removed or altered Figure 4 © Travis Industries 100-01234 4101210...
  • Page 6 A block-off plate or other non-combustible sealing device (e.g. damper adapter) is required. It must seal the chimney to insure smoke does not enter the home while providing the chimney system with sufficient draft. Figure 8 © Travis Industries 100-01234 4101210...
