Compatibility
Answer (2020 Compliant) or older Answer (Serial Number 1102-074894 or greater)
Endeavor (2020 Compliant) or older Endeavor (Serial Number 1103-55526 or greater)
Liberty (2020 Compliant) or older Liberty (Serial Number 1105-38119 or greater)
Cape Cod Stove
Evergreen Stove
Rockport Stove
Table of Contents
Compatibility ............................................................................................................................................... 1
Table of Contents ........................................................................................................................................ 1
Electrical Requirements ............................................................................................................................. 1
Packing List ................................................................................................................................................. 2
Installation Tips ........................................................................................................................................... 3
All Stove Models - Igniter Hose Clamp .................................................................................................... 3
Using a Room Blower Outlet with the GreenStart 2 Igniter (US/Canada Only) .................................... 4
Installation ................................................................................................................................................... 5
Igniter Operation ....................................................................................................................................... 12
Warnings ................................................................................................................................................ 12
Operating Tips ........................................................................................................................................ 12
Igniter Instructions .................................................................................................................................. 13
Electrical Requirements
USA or CANADA: This kit requires 8 amps, 120 Volt AC.

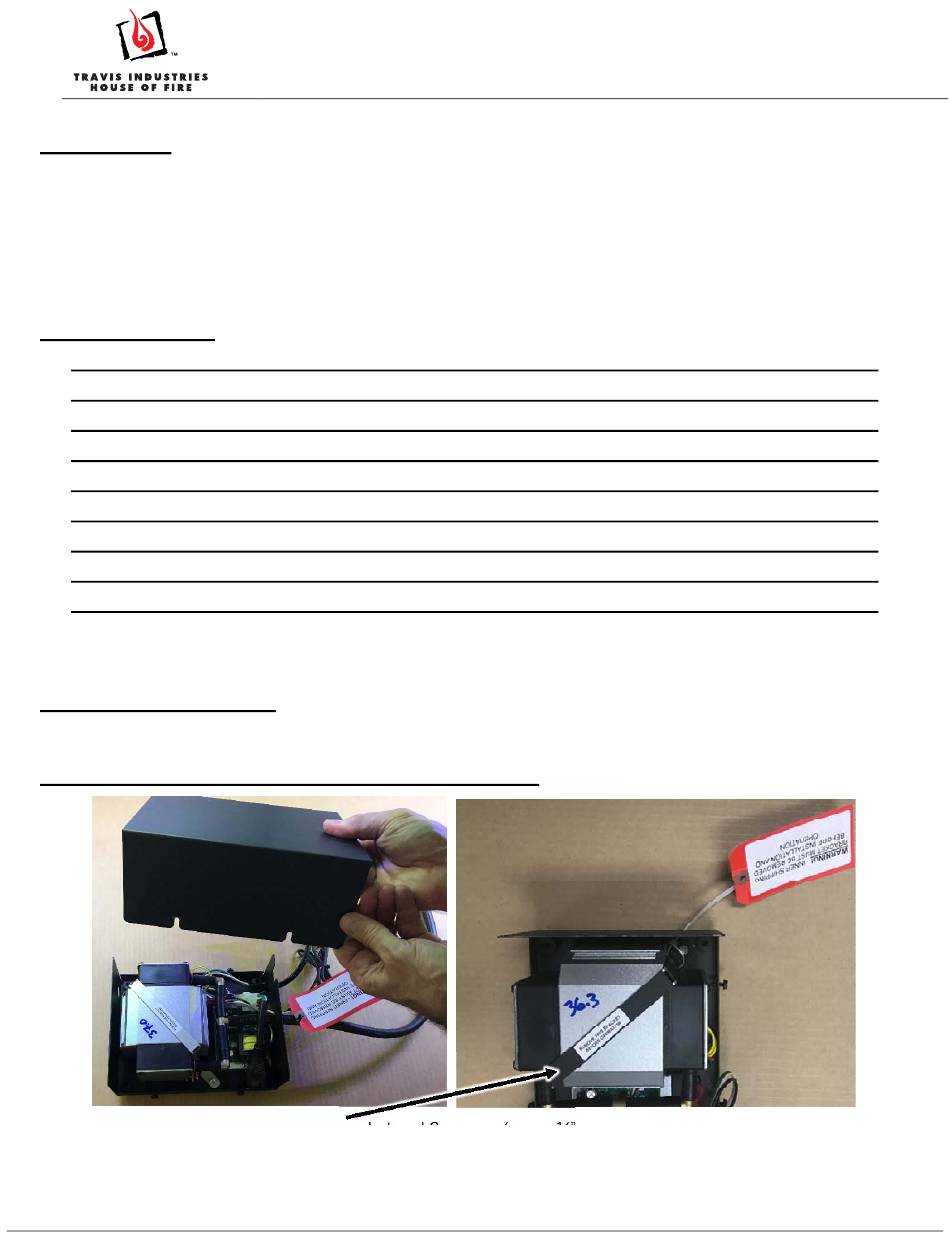

REMOVE AND DISCARD THE SHIPPING BRACKET
Remove and discard this shipping bracket and 2 screws (use a ¼" nutdriver).
Page 1 of 14
GreenStart Igniter 3 for Freestanding Stoves
Installation Instructions
17602077.docx- 12/10/19
(SKU 94400955)
© Travis Industries, Inc.
Advertisement
Table of Contents
Related Manuals for Travis Industries GreenStart Igniter 3
Summary of Contents for Travis Industries GreenStart Igniter 3
-
Page 1: Table Of Contents
GreenStart Igniter 3 for Freestanding Stoves Installation Instructions (SKU 94400955) Compatibility Answer (2020 Compliant) or older Answer (Serial Number 1102-074894 or greater) Endeavor (2020 Compliant) or older Endeavor (Serial Number 1103-55526 or greater) Liberty (2020 Compliant) or older Liberty (Serial Number 1105-38119 or greater) ... -
Page 2: Packing List
GreenStart Igniter 3 for Freestanding Stoves Installation Instructions (SKU 94400955) Packing List Igniter Firebrick Igniter (the igniter and cover box together are referred to as “igniter assembly”) Compressor Assembly (2) Cover Plates Cape Cod (10/19 or Later) Universal ... -
Page 3: Installation Tips
GreenStart Igniter 3 for Freestanding Stoves Installation Instructions (SKU 94400955) Installation Tips Remove the shipping bracket from the pump box before proceeding with installation. The igniter assembly must be installed before placing the stove. If using a blower, install it first. -
Page 4: Using A Room Blower Outlet With The Greenstart 2 Igniter (Us/Canada Only)
Using a Room Blower Outlet with the GreenStart 2 Igniter (US/Canada Only) An extra outlet for the room blower is included with the GreenStart Igniter 3 for Freestanding Stoves. To access this outlet remove the top of the pump box using a 5/16” nutdriver. -
Page 5: Installation
Remove this brick and replace it with the igniter firebrick. The Evergreen 4"x9" uses the brick included with the igniter, the Rockport uses the brick included with the stove. Page 5 of 14 17602077.docx — 12/10/19 © Travis Industries, Inc. - Page 6 Remove the igniter knock-out on the rear of the stove. This is best done by snipping one of the tabs holding the knock-out in place then bending the knock-out repeatedly until it comes loose. Page 6 of 14 17602077.docx — 12/10/19 © Travis Industries, Inc.
- Page 7 Attach the igniter with gasket to the igniter sleeve using the screws and gasket included in this kit. Note that the igniter gasket is placed between the sleeve and igniter assembly. Page 7 of 14 17602077.docx — 12/10/19 © Travis Industries, Inc.
- Page 8 Place the compressor assembly on the floor next to the stove. Attach the igniter wires to the compressor assembly wires. Attach the ¼” tube to the nipple on the igniter. Page 8 of 14 17602077.docx — 12/10/19 © Travis Industries, Inc.
- Page 9 Cape Cod (10/19 or Later) Place the compressor assembly on the floor behind the stove. NOTE: An extra outlet may be used with the Cape Cod stove; see page 3. Page 9 of 14 17602077.docx — 12/10/19 © Travis Industries, Inc.
- Page 10 Attach the igniter switch to the bottom of the stove using the two included magnets. Answer Only Attach the igniter switch to the bottom of the stove using the two included screws. Page 10 of 14 17602077.docx — 12/10/19 © Travis Industries, Inc.
- Page 11 This kit includes two segments of wire loom. Place the shorter piece on the wires leading to the switch to conceal the wiring and connectors. Place the longer piece of loom over the wires and tube leading to the igniter. Page 11 of 14 17602077.docx — 12/10/19 © Travis Industries, Inc.
-
Page 12: Igniter Operation
Wood placement is the key. Experiment with different sizes of wood and wood placement until you find a method that works best for your wood quality and kindling. Make sure to place wood within 1” of the igniter opening. Page 12 of 14 17602077 — 12/10/19 © Travis Industries, Inc. -
Page 13: Igniter Instructions
The more surface area the air flow contacts, the quicker the fire will start. Make sure the air control and bypass are in the open position. Close the stove door when all kindling is in place. Page 13 of 14 17602077 — 12/10/19 © Travis Industries, Inc. - Page 14 GreenStart button twice, which will start the pump-only mode. The bellows effect will stay on for 7 minutes, before the unit shuts down. Want to know more? Scan this code with a QR reader on your cell phone or use the URL below to watch a video of how to use the GreenStart igniter. https://vimeo.com/333399016 Page 14 of 14 17602077 — 12/10/19 © Travis Industries, Inc.
