H3C LSUM1WCME0 Manual

Manual version: 6PW101-20170531
H3C S10500/S7500E LSUM1WCME0 card
1 Card identifier
The card identifier LSU1WCME0 is at the upper right corner of the front panel.
2 Introduction
The LSUM1WCME0 card is a high performance access controller module developed for
S10500/S7500E switches. The card provides functions including access control, wireless security,
wireless user authentication, RF analysis, content filtering, and NAT. You can install it on an H3C
S10500/7500E switch so that the switch can provide wired and wireless services without network
topology changes.
3 Specifications
The card has one console port and one 100/1000Base-T out-band management Ethernet port.

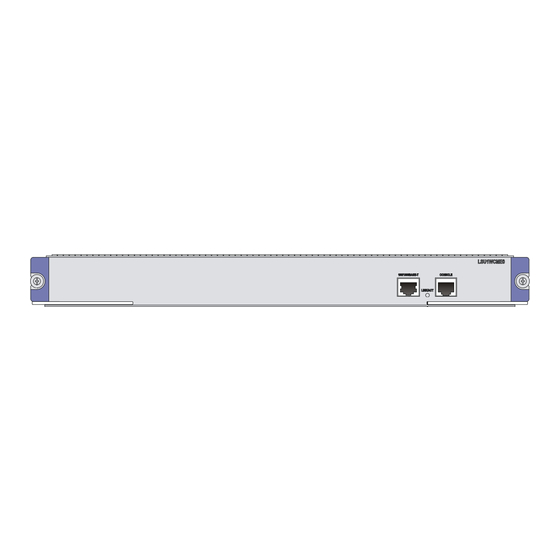

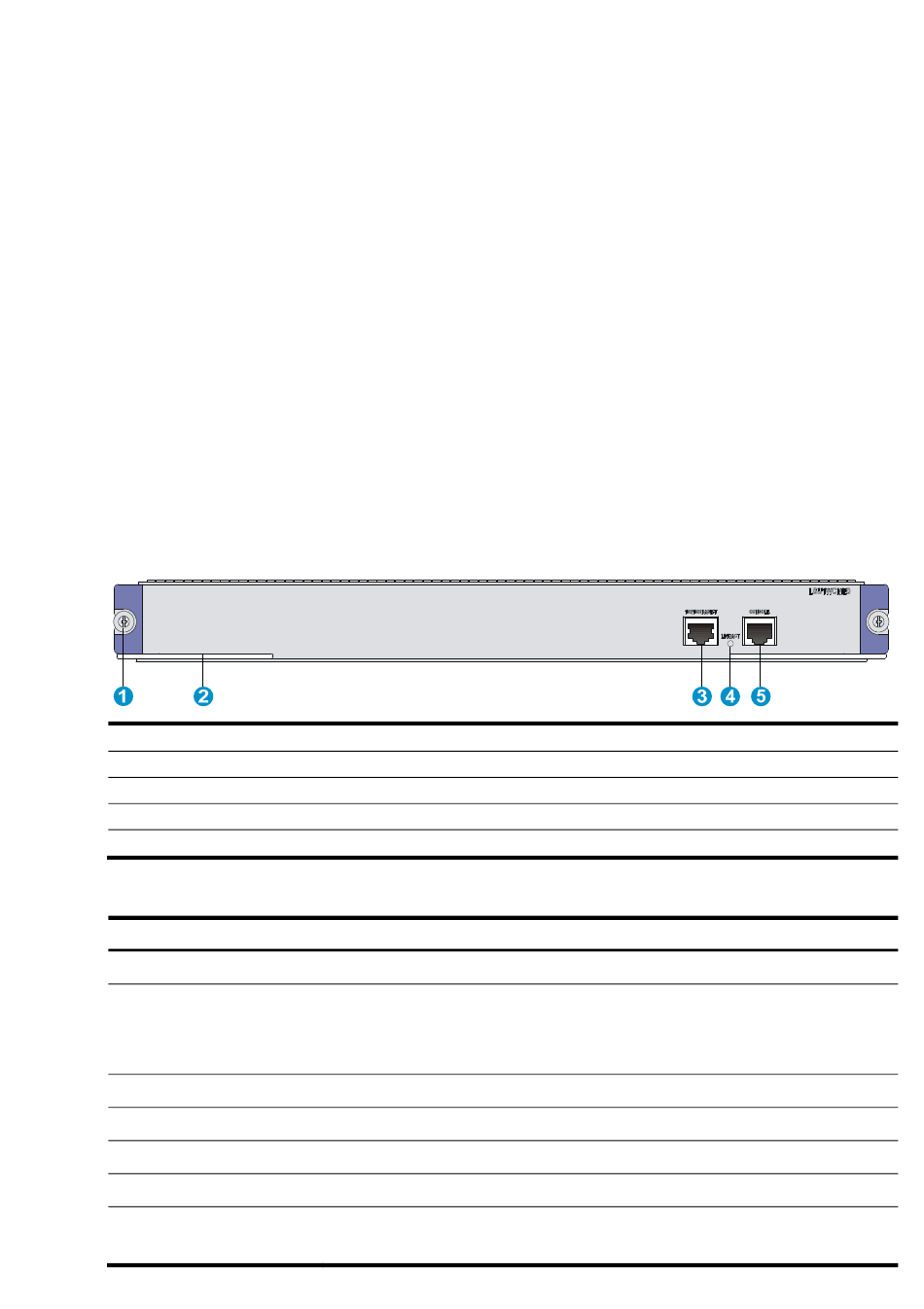

Figure 1 Front panel
(1) Captive screw
(2) Ejector lever
(3) 100/1000Base-T out-band management Ethernet port
(4) 100/1000Base-T out-band management Ethernet port LED (LINK/ACT)
(5) Console port (CONSOLE)
Table 1 Card specifications
Item
CF card
SDRAM
Dimensions (H × W × D)
Power consumption
Weight
Hot swapping
Ports
Specification
4 GB
4 SDRAM slots
Standard configuration: 8 GB (four 2 GB DDR3 SDRAMs)
The card requires four DDR3 SDRAMs that have the same specifications.
40.1 × 399.2 × 354.5 mm (1.58 × 15.72 × 13.96 in)
125 W to 180 W
4 kg (8.82 lb)
Supported
•
1 console port
•
One 100/1000BASE-T out-band management Ethernet port.
i
BOM: 3123A0UT
