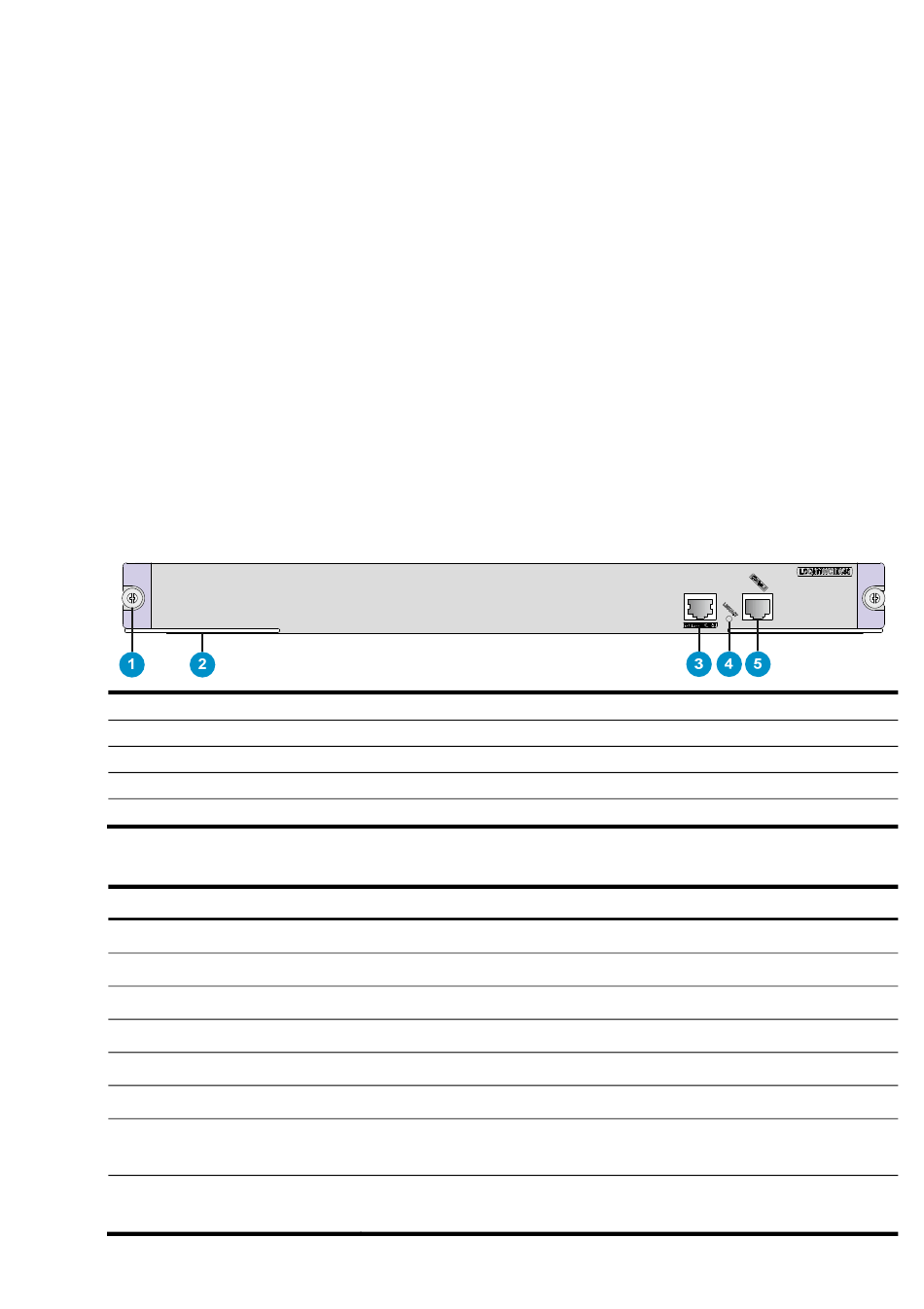

BOM: 3123A1E1 H3C LSQM1WCMX40 access controller module 1 Card identifier The card identifier LSQM1WCMX40 is at the upper right corner of the front panel. 2 Introduction The LSQM1WCMX40 high performance access controller module is developed for H3C S7500E/S7600 switches. The card provides functions including access control, wireless security, wireless user authentication, RF analysis, content filtering, and NAT.
Page 2
• Operating: 10% to 95%, noncondensing Ambient relative humidity • Non-operating: 5% to 95%, noncondensing • H3C S7503E/S7506E-V/S7506E/S7510E/S7506E-NP Compatible device models • H3C S7603/S7606/S7606-NP/S7606-V/S7610 System software version See the release notes that come with the card. Table 2 Console port specifications...
Page 3
Do not touch the components on the PCB. • The slots on the H3C S7500E/S7600 switches are either horizontally oriented or vertically oriented. When installing the card in a horizontal slot, make sure its PCB faces up. When installing the card in a vertical slot, make sure its PCB faces left.
Page 4
Ethernet port as a best practice. For more information about software upgrade of the card, see the release notes that come with the card. 8 Obtaining documentation To access the most up-to-date H3C product documentation, go to http://www.h3c.com.hk/Technical_Documents For software upgrade, see the release notes for the device.
