H3C LSWM1WCM10 Manual

Manual Version
: 5W100-20090929
Access Controller Module LSWM1WCM10
1 Overview
The H3C LSWM1WCM10 access controller module is a wireless access controller (AC) product
developed by Hangzhou H3C Technologies Co., Ltd. (referred to as H3C hereinafter). The
LSWM1WCM10 is applicable to the H3C S5800-60C-PWR and S5820X-28C series Ethernet
switches and can address the deployment requirements of large- and medium-sized WLAN networks.
It features large capacity, high reliability and rich services and provides powerful WLAN access
control capability. Designed for WLAN access of enterprise networks, the LSWM1WCM10 provides
the most ideal access control solutions for WLAN access of large- and medium-sized enterprise
campus networks, wireless area coverage and hot spot coverage.
2 Hardware Features of the LSWM1WCM10
(1) Appearance
The silkscreen LSWM1WCM10 is printed at the upper left corner of the front panel, which is used to
identify the module. The following figure depicts the appearance of the module.

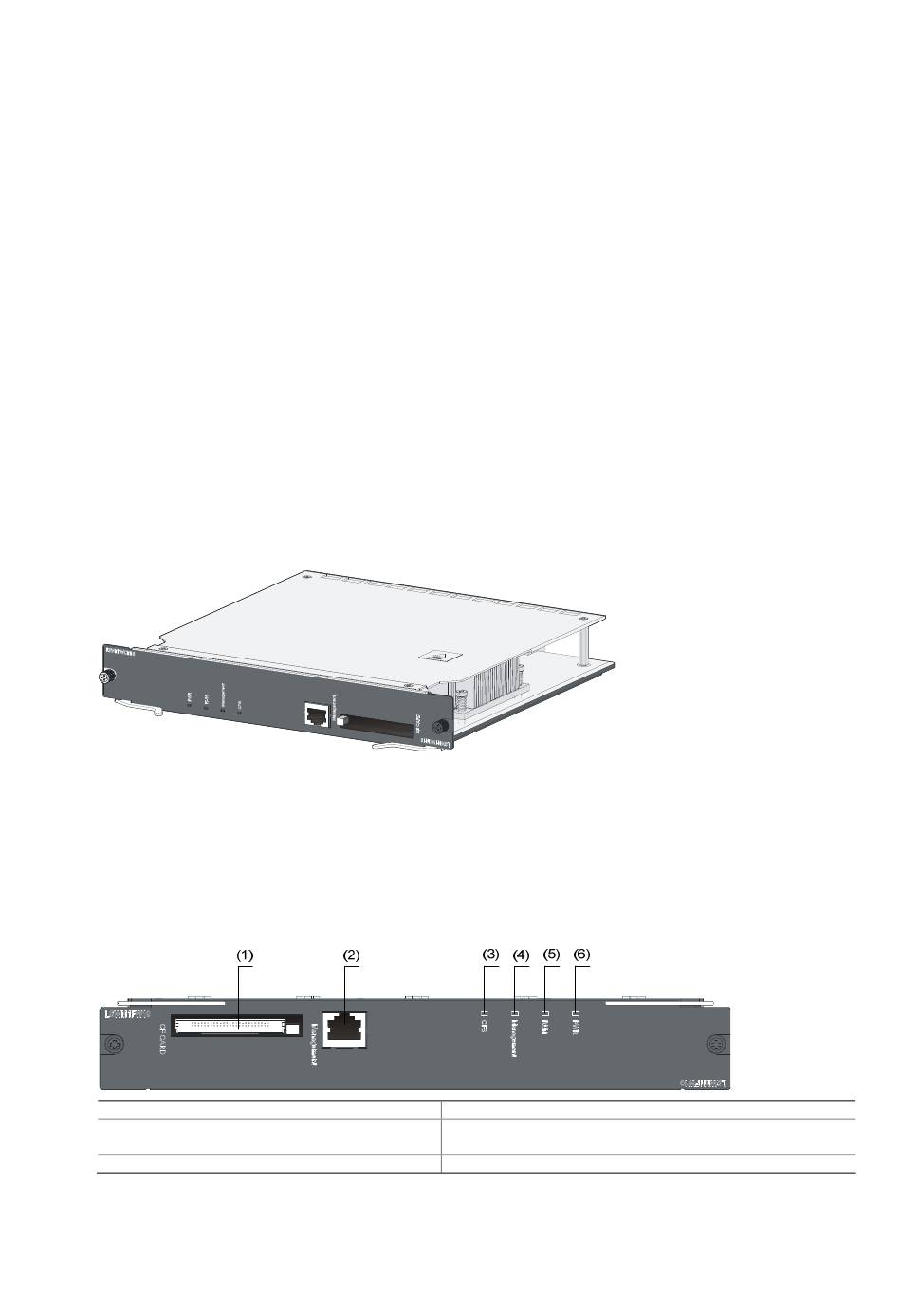

Figure-1 Appearance of the LSWM1WCM10
(2) Specifications
The LSWM1WCM10 can provide wireless features for the S5800-60C-PWR and S5820X-28C
series switches. It provides one 10/100/1000Base-TX interface for out-of-band management.
The following figure depicts the front panel of the LSWM1WCM10.
Figure-2 Front panel of the LSWM1WCM10
(1) CF card slot
(3) CF card status LED (CFS)
(5) System status LED (RUN)
(3) Description of the LEDs on the front panel
(2) Management Ethernet interface
(4) Management Ethernet interface status LED
(Management)
(6) PWR LED
